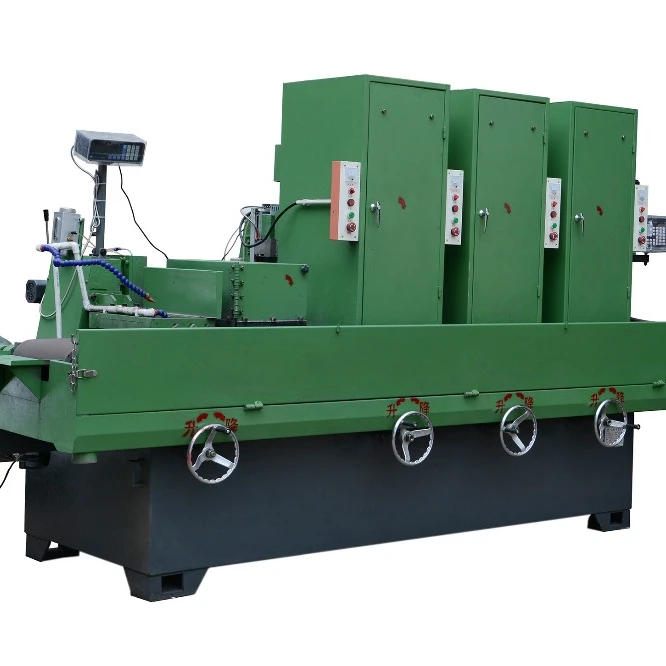

GH 4004P abrasive belt grinding machine for flat face grinding and buffing

flexible to buff

+ surface of all kinds of kitchen knives, chopping knives, scissors and metalwares
+ flat face of knives, knife handle and stamping parts burring
+ car's components brake arrester

1. use great bearings and structures for installing
2. spindle box and workbench are made of high-strength castings. The workbench and racks processed by CNC guide rail to ensure teleparallelism between workbench and grinding wheels, so that make sure the thickness wherever the workpiece place
3. degree of tightness of abrasive belt control automatically by air cylinder
4. equip with 3 grinding heads, can complete thick, precision and smoothness at the same time, effective in time saving and produtivity improving.
5. easy handling, precision grinding that the thickness of surface up to 0.8mm

For your reference, detail comparsion between all types of products are as follow.

P.S. specific descriprion in vertical is
Motor power
Max. grinding height
Max. grinding width
scope of bleed pressure(Mpa)
machine size
machine weight

GH-2803P CNC

3KW 2X7.5KW
(H)80mm
(W)270mm
0.4-1Mpa
3650x1450x2150mm
2500kg

GH-2804P

GH-4003P CNC

2X7.5/ 4/ 1.5/ 0.3KW
(H)80mm
(W)400mm
0.5-0.7Mpa
4710x1700x2200mm
4000kg

GH-4004P Abrasive belt

wooden box

The tight wooden box packaging ensure the product prevent from crash, abrasion or damage during shipping.
*The wooden box required to pay in extra.

Wooden box pack into container

We use forklift truck to shift the machine that can avoid abrasion of the product in a certain extent. Also, proficient staff follows up the work, make sure logistics process in control. The wooden box would then fill into the container, double insurance for the machine's condition.

container

Machines in simple packaging and fixed facilities, pack into containers directly. The damaged degree of product cannot be sure or in control by us during shipping.

Containers assemble ready to ship

The container with machine would deliver to appointed port for shipping.

PRE-SALES SUPPORT

。Inquiry and consult
。Sample testing
。 Visit our Company and Factory

AFTER-SALES SUPPORT

。Training how to instal the machine, training how to use the machine.
。Engineers available to service machinery overseas.、
。Online Support
We welcome your calls for consulting or to solve any problems of the machine.

NUM.: (0086)139 2632 2235/ (0086 0662) 6601950
AVAILABLE: 8:30a.m. to 5:30p.m. on weekday & Sat
