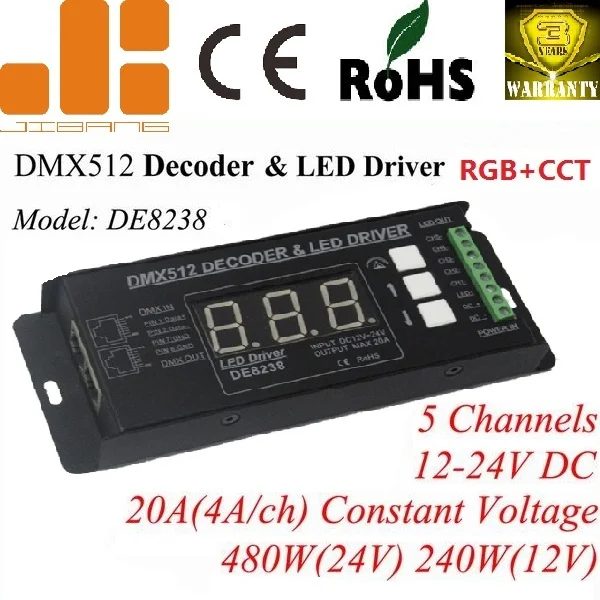

RGB CCT 5CH Digital Tube Display DC12 24V Constant Voltage LED DMX512 DecoderDE8238

 SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~5 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Features of 5CH DMX512 Decoder DE8238:

1,Meets DMX512/1990 Signal ,press button In/Out connection .

2,256-levels brightness,full-color with driver controls.

3,Output 5 channels,4A/CH.Max current is 20A.

4,Can achieve asynchronous color changes effect under working with controller.

5,With the light color selected mechanism, and be able to control the light with 1~5 colors.

6,Cooperating with lighting control system, can realize rich change effect.

7,With the dgitai tube to display menu and set DMX IP address freely.

8,Modularizing and can be matched with different LED module neatly.

9,Custom-made available and 3 years warranty.

Tech-parameter of 5CH DMX512 Decoder DE8238:

Input: DC12-24V                        Control Channels:  5CH              Output Current:  4A/CH Max20A

Max Power:  240W/480W          Frequnce:  <5000Hz                    Working Temperature:  0-70℃

Signal Out:  Constant Voltage PWM Signal                                   The Light Gray Level:  256

Protection Grade:  IP40             Gross Weight:  300g                    Product Size: L170*W65*H24mm

Specifications of DMX512 Decoder Series:

Product Instructions of 5CH DMX512 Decoder DE8238:

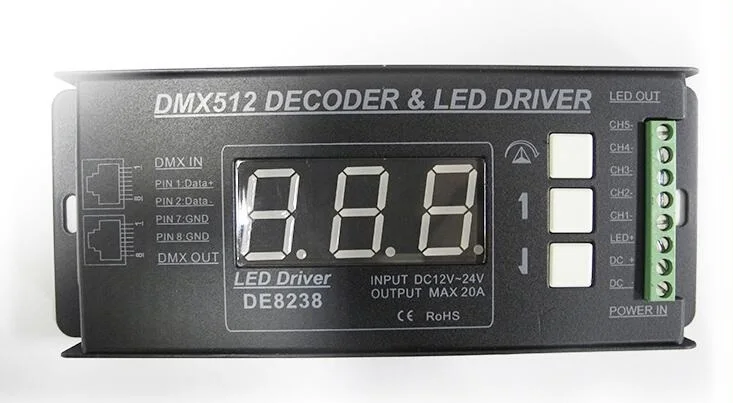

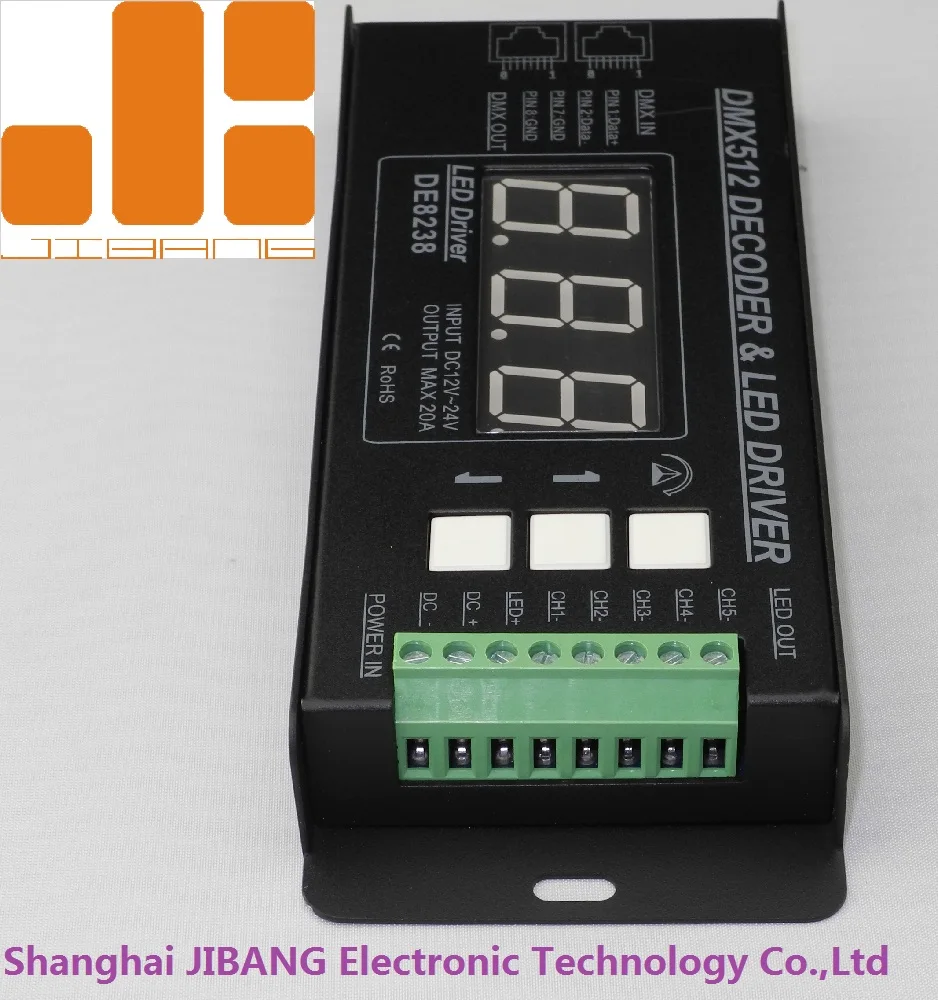

1, Product panel operation instructions, through the digital tube display the address, through the switch control address code, when adjust to the address code of you need, can press the lock key  which is in top and lock the current address code, if in the current state not press the lock key, in 3 seconds the system self-locking address, demand reset address code, first press the upper key, then set the address code by the up key  which is in middle and the down key which is in below. (in the lock key operation, the third paragraph digital tube will show the corresponding instructions), if in 5 minutes didn't any operation with the switch, so digital tube will be closed, If want to see the show again, press the ente key again.

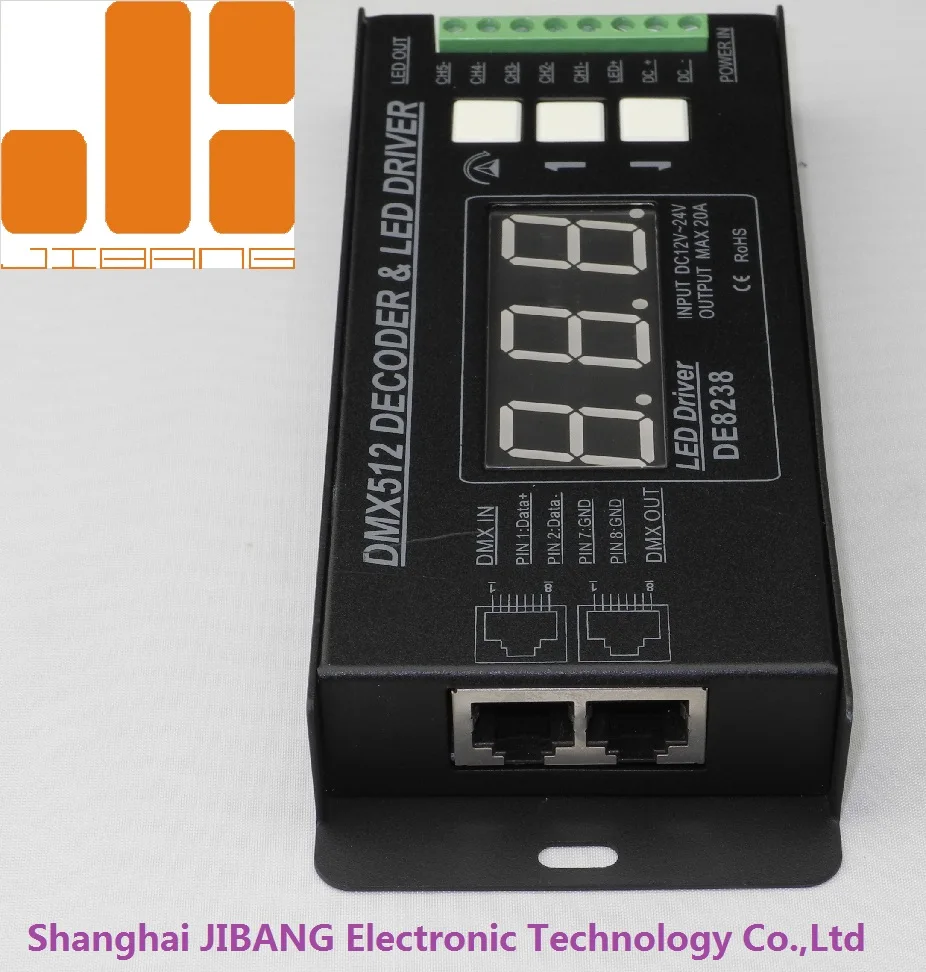

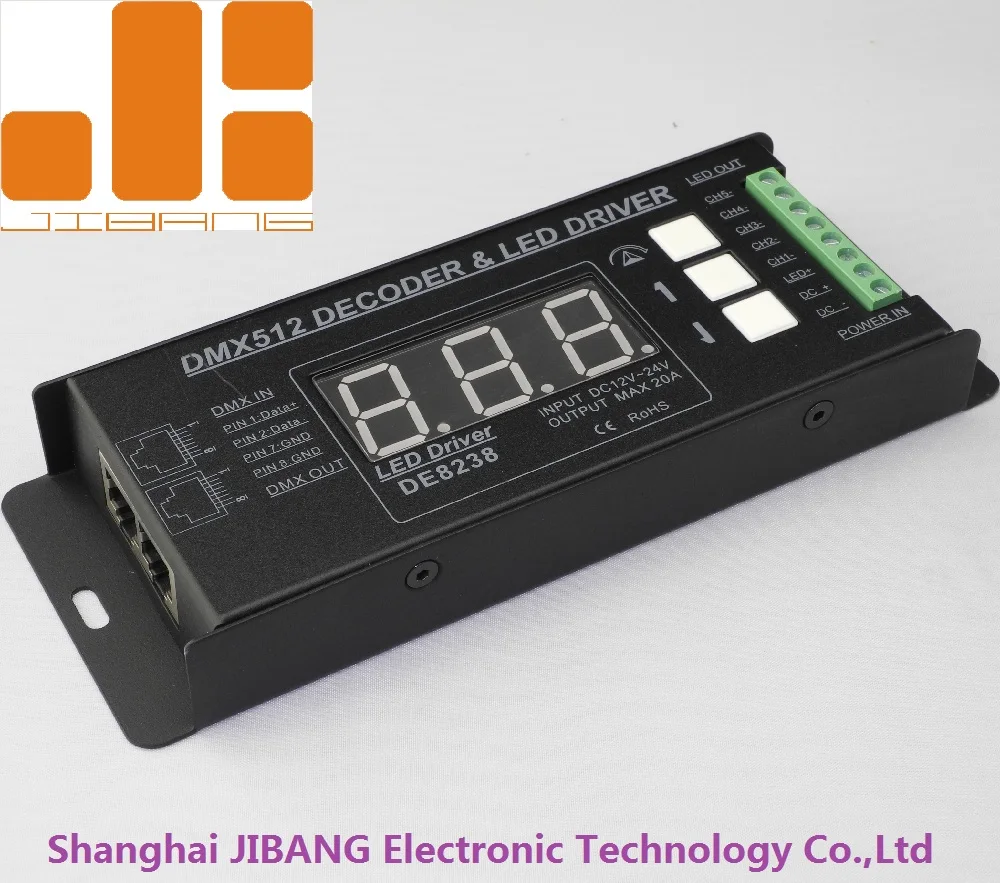

2, The DMX signal IN/OUT by RJ45,PIN1: DATA+PIN2:DATA-PIN7,8:GND,DMX signals in parallel conection.

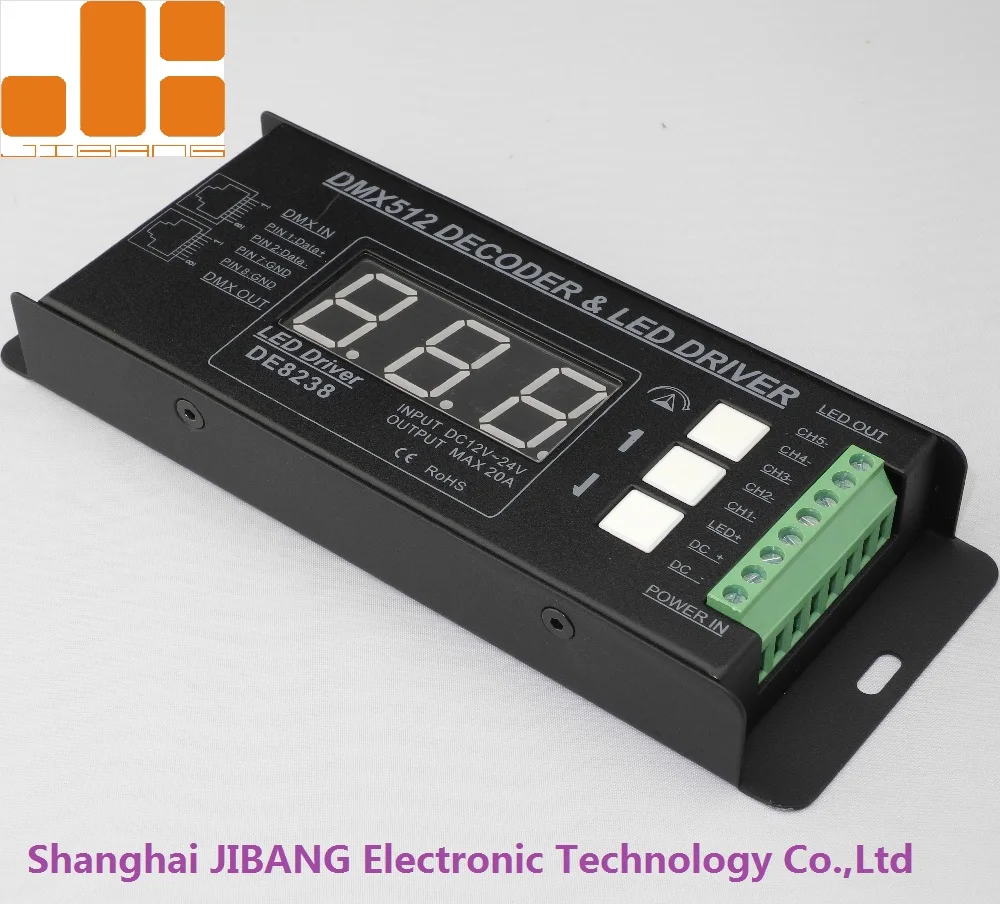

3, 6PINs output interface (of altogether anode output driver, with a LED + interface and 5 channels CH1-CH2-CH3-CH4-CH5 output interface, may meet all kinds of full-color module and monochrome module automatically according to the lamps module load regulation output pulse). 2 PIN for power input interface (supply the power for decoder itself and decoder with lamps).

NOTES:With self test procedures, Address Settings in 000, all 5CH full output during 3s,then each channel gradient.

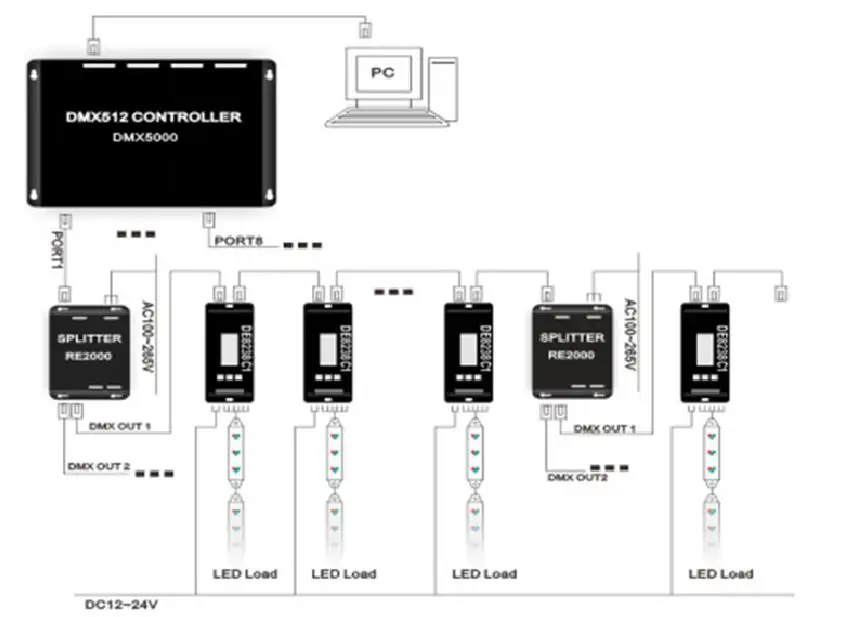

Wiring Diagram:

DMX-512 control signal connection

1, DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity. DMX512 controller input and output signal positive,signal nagative,signal ground with DE8238 input interface corresponding connection.

2, DMX5000 output and DE8238's transmission lines can't be over 300 meters.

3, DMX5000 each interface can connect with no more than 170 pieces of DE8238. Five output interface. Through the JBLED FLASH light making software,it can realize infinite connectting the DMX lights with computer on-line controlling.

4, When contacting 32 pieces of DE8238, DMX signal must add a signal amplifier such as RE2000,cascade can't more than 4 PCS.

5, At the end of the connection, we should connect a DMX signal termination( Put on the NO.10 switch of DE8000 dial switch).
