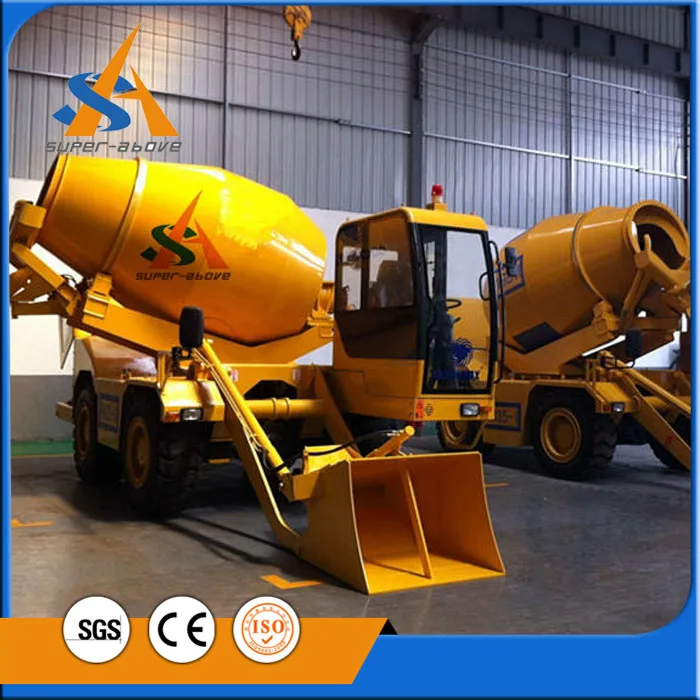

3.5 Self Loading Concrete Mixer Truck with Water Pump
3.5 Self Loading Concrete Mixer Truck with Water Pump
3.5 Self Loading Concrete Mixer Truck with Water Pump

3.5 Self Loading Concrete Mixer Truck with Water Pump

Share on (60678509870):


Price:$56,000.00 - $58,000.00

Quantity:


Product Overview

Description
























3.5 Self Loading Concrete Mixer Truck with Water Pump








3.5 Self Loading Concrete Mixer Truck with Water Pump














Specifications


Self loading mobile concrete mixer, Mini concrete mixer,Hydraulic concrete mixer, China.
4 wheels drive, 4 wheels steering.



Self Loading Mobile Concrete Mixer,  Mini Concrete Mixer, Hydraulic concrete mixer





Self loading, self walking, self mixing, self discharge
Four wheels drive and Four wheels steering,
Hydraulic system






Technical parameters:

















































































MIXING UNIT



Drum capacity 3.0 m3. Concrete output: 2.0 m3 per batch.



PRODUCTIVITY



up to 4 batches per hour



ENGINE



(or WEICHAI AND cummins)



TRANSMISSION



4 wheels drive,2 wheels steering.



SPEED



Working speed from 0 to 9 km/h, road transfer from 0 to 20 km/h.



DRIVING SEAT



Front cab on side of loading shovel. ROPS-FOPS type complete with double closing door.



HYDRAULIC SYSTEM



Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation.



JOYMIX



All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick.



LOADING SHOVEL



Capacity 400 liters, complete with hydraulic opening gate.



WATER SYSTEM:



Self-contained. Hydraulic driven water pump,  High pressure water pump & washing gun(on request).



BRAKES:



Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.



TYRES



20.5-16/70



ELECTRIC SYSTEM



24 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.



TANKS



Water: 1x300 liters. Diesel: 100 liters. Hydraulic oil: 125 liters.



CHASSIS



Steel profile specially engineered for off-road operations.



WEIGHT



About Kg.5500, equally distributed on both axles



OVERALL DIMENSIONS



Long: 6.5M Width 2.16M High: 2.8M



SAFETY



Machine equipped with checking and block valves for maximum safety of the operator.






Can produce according to customer requirements


concrete mixer truck capacity





















































































MIXING UNITDrum capacity 4.3 m3. Concrete output: 3.0 m3 per batch. The mixing unit is slewing hydraulically through 300°
PRODUCTIVITYup to 4 batches per hour
ENGINEYUCHAI YC4D85 water-cooled, 4cylinders. Rated power 60KW/2200rpm .
TRANSMISSION4 wheels drive,4 wheels steering.
SPEEDWorking speed from 0 to 9 km/h, road transfer from 0 to 20 km/h.
DRIVING SEATFront cab on side of loading shovel. ROPS-FOPS type complete with double closing door.
HYDRAULIC SYSTEMThree circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 1 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type.
JOYMIXAll hydraulic functions of shovel controlled by a single - fully servo controlled Joystick.
LOADING SHOVELCapacity 400 liters, complete with hydraulic opening gate.
CHUTESlewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height.
WATER SYSTEM:Self-contained. Hydraulic driven water pump, water meter. High pressure water pump & washing gun(on request).
BRAKES:Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.
TYRES10.00-20-16
ELECTRIC SYSTEM24 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
TANKSWater: 2x300 liters. Diesel: 100 liters. Hydraulic oil: 125 liters.
CHASSISSteel profile specially engineered for off-road operations.
WEIGHTAbout Kg.7500, equally distributed on both axles
OVERALL DIMENSIONSLong: 6.715M Width 2.28M High: 3.23M
SAFETYMachine equipped with checking and block valves for maximum safety of the operator.
