LOOBO universal flexible fume extraction hood Arm/welding fume extractor arm/smoke suction extraction duct
- Category: Gas Disposal Machinery >>>
- Supplier: Qingdao Loobo Environmental Protection Technology Co. Ltd.
Share on (60680231329):
Product Overview
Description
Product Description

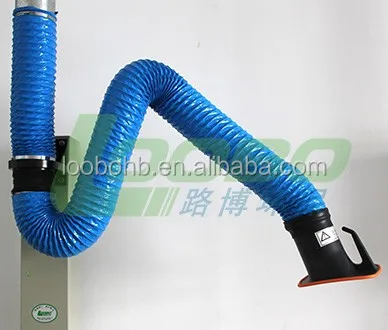

LOOBO universal flexible fume extraction hood Arm/welding fume extractor arm/smoke suction extraction duct
Essential feature:
| Model | Name | Support Structure | Material | Hood Stype | Length | Diameter | Resistance temperature | Color | Application |
| JYB model | Flexible Extraction Arms | built-in stainless steel support | Fire-proof material, anti-rust metal structure | hat stype or hose-hoof stype | 2m/3m/4m/5m Or even longer | from150 to 300mm | 140-320degree | blue or gray | wall mounted, connected to Central Fume Extraction System |
Essential feature:
| Model | Name | Support Structure | Material | Hood Stype | Length | Diameter | Resistance temperature | Color | Application |
| JYC model | Flexible Extraction Arms | built-in stainless steel support | Fire-proof material, anti-rust metal structure | hat stype or hose-hoof stype | 2m/3m/4m/5m Or even longer | from150 to 300mm | 140-320degree | blue or gray | wall mounted, connected to Central Fume Extraction System |
In fact, all directions, dia and lengths according to customer's requests.
General Specifications :
Connection: fixed bracket connection (sealed by the elastic rubber ring )
Cover mouth forms: conical suction mouth (A), Horseshoe suction mouth (L), plate suction mouth(T), hat-type suction mouth (H); Other forms of cover mouth can be ordered.
Cover mouth is installed with wind control valve.
Length: 2m,2.5m,3m,3.5m,4m,5m,(the suction arm more than 4m should be equipped with extended corbel, and the length can be up to 10m)
Diameter: φ150mm, φ175mm, φ200mm (other specifications should be ordered).
External tube material: import PVC steel wire air hose, anti-corrosion, endure high temperature 140C
Skeleton material: the spring steel is galvanized, and other metal components and fasteners are all stainless steel 304#.
External tube use import PVC hose, anti-corrosion, endure acid, and high temperature 1400C . Internal components and cover mouth bracket are all made of stainless steel. it can hover 360 degree arbitrarily with wind control valve for suction mouth.
Its good tensible and hovering feature make it not only can be used with variours welding fume purifier, but also can be installed on the wall or aystem in order to expel the fume and dust with the pipeline togather.
The inner wall of stainless steel cover mouth and the support never rust.It anti-corrosion, endure acid, and high temperature, light weight, high strength, with power device, easy to operate, hover freely. Suction arm is widely used in metal processing,welding fume,workpiece polishing,thermal processing of oil mist treatment, peculiar smell removing, dust removing and other industries.
Optional Accessories: against fire net in cover mouth; spotlights; probe for light, smoke, temperature
Note: The company is committed to update the products constantly,and provide various forms of suction arms according to customers’ requirements.

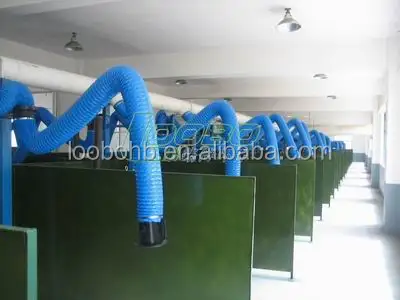

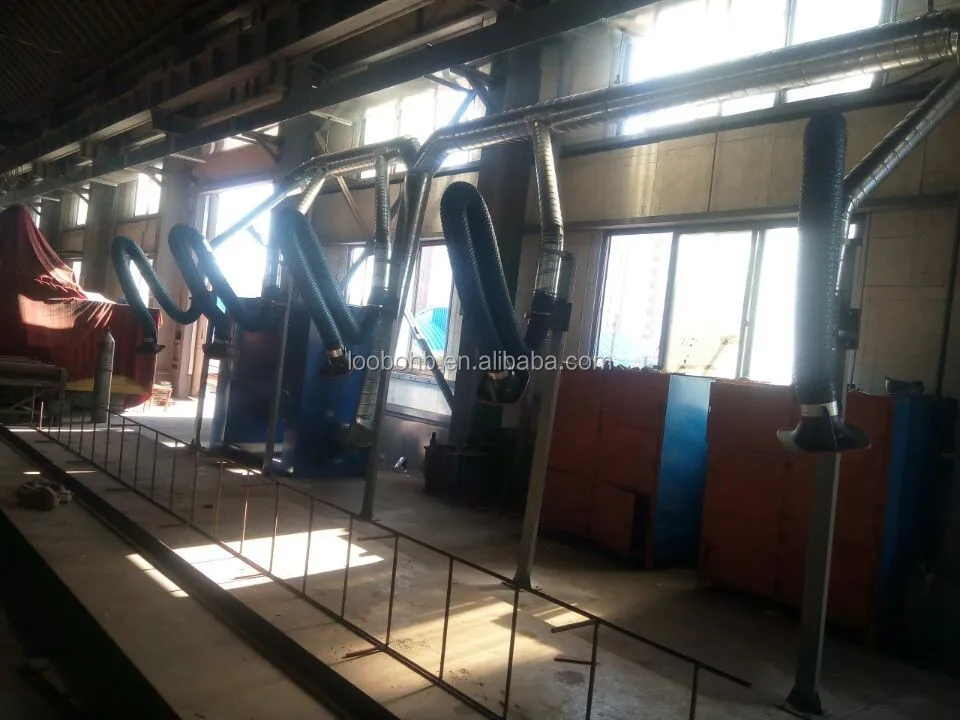

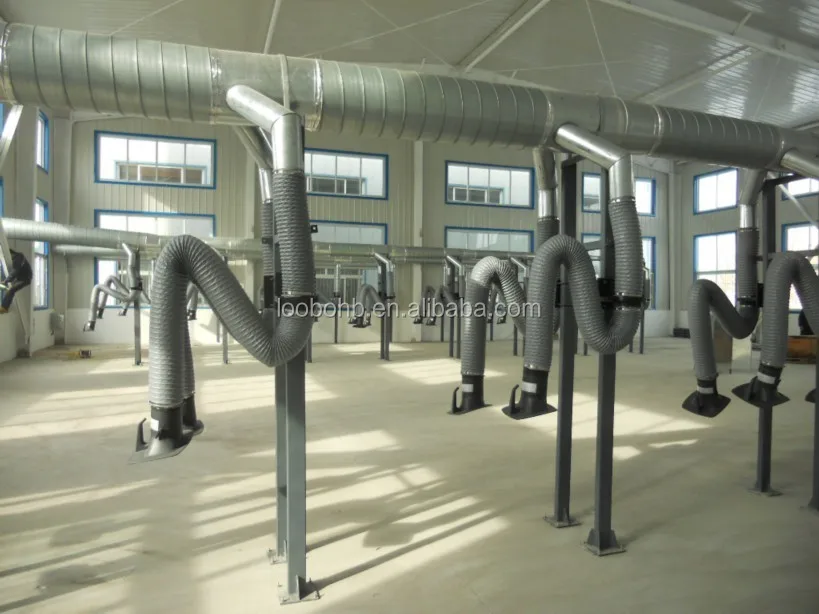

Fume extraction arms used in the central extraction system
* Application places:
Suction arm is widely used in metal processing, welding fume, polishing, and thermal processing of oil mist treatment, peculiar smell removing, dust removing and other industries.
General Specifications :
1.JYB Model, Bult-in structure support: Dia-150mm/300mm,Length:1.5-8m
2.JYC Model, External Support stucture: Dia-150mm/300mm, Length:1.5-8m
3.LB-JC Model, Extension External support structure: Dia-150mm/300mm, Length:1.5-8m
4.LB-QXB Model, Joint Arm: Dia-75mm , length-1.0-1.5m
5.LB-JYD Mini Model: 1.0m*50mm
Other Components :
1.Hood:
2. Soft hose:
Certificate:
Packaging & Shipping
Load Time: one week
MOQ:1 UNIT
Payment Term:30% down payment once the contratc confirmed and 60% balance payment before dispatch.
Plywood package
Company Information
Qingdao Loobo Environmental Protection Technology Co.,Ltd is one of the biggest enviromental protection products manufacturer, located in Qingdao city of china,specialized in alll kinds of portable fume extractor, downdraft benches(grinding dust removal worktable), central fume purification system, flexible suction arm,etc.
We have more than ten years export experience ,all of our products with the ISO9001 and CE certification, the quality can be guaranteed.We have our own R&D department , have a variety of style range to meet any of your requirments and had established the economies of scale, so can dilivery fast and provide can beat your competitor's price.
For more info, feel free to contact Molly Huang as per below details:
Email: lb044007atloobo.cn
Tel:86-15064847869(whatsapp or wechat)
Web: www.looboqd.com
