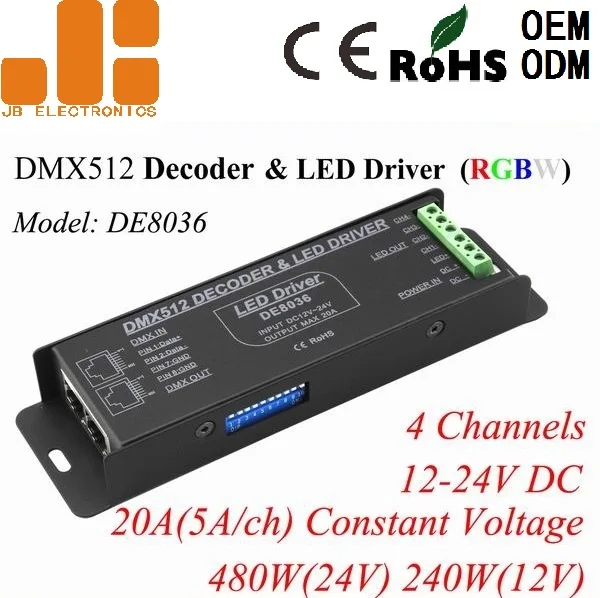

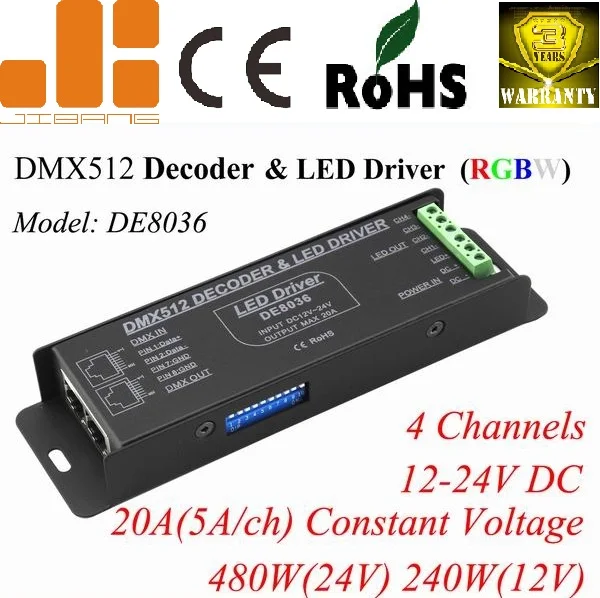

JIBANG DC12 24V 5Ax4CH RGBW Constant Voltage DMX512 Decoder DMX LED Driver DE8036

 SUMMARIZE:

Thank you for using DE8036 DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal. Output 1~4 Channels for option and each channel able to achieve 256 levels of brightness controlling, and it also can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Features of DE8036:

1,Meets DMX512/1990 Signal, with RJ45 interface.

2,256-levels brightness, full-color with driver controls.

3, Power without flashing, low jetter free.

4,Output 4 channels,single channel maximum 5A output drive,total output is less than 20A.

4,Can achieve asynchronous color changes effect under working with controller.

5,With the light color selected mechanism, and be able to control the light with 1~4 colors.

6,With dial switch to set DMX address freely.

7,Modularizing and can be matched with different LED module neatly.

8,Custom-made and 3 years warranty.

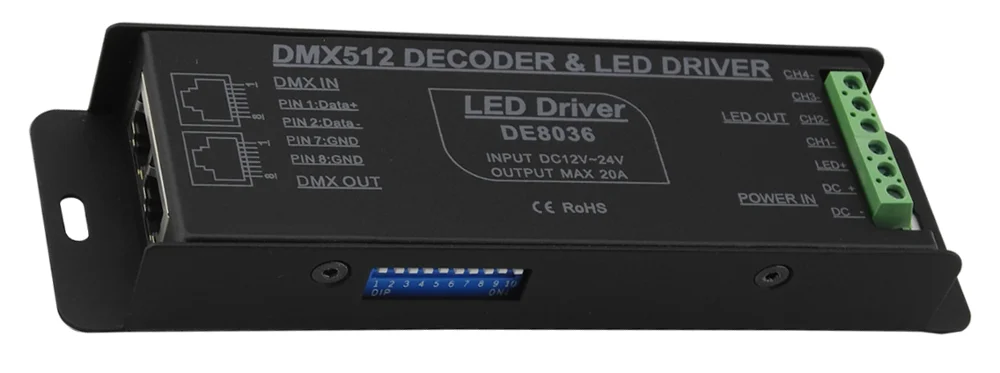

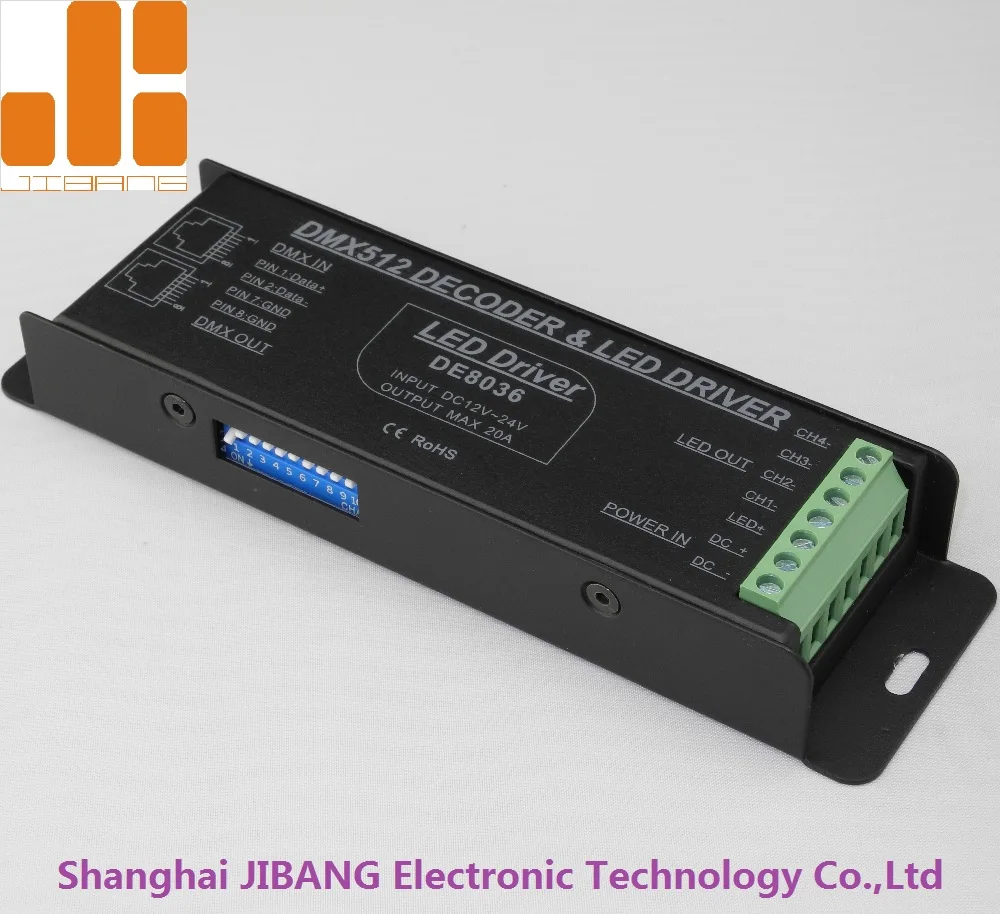

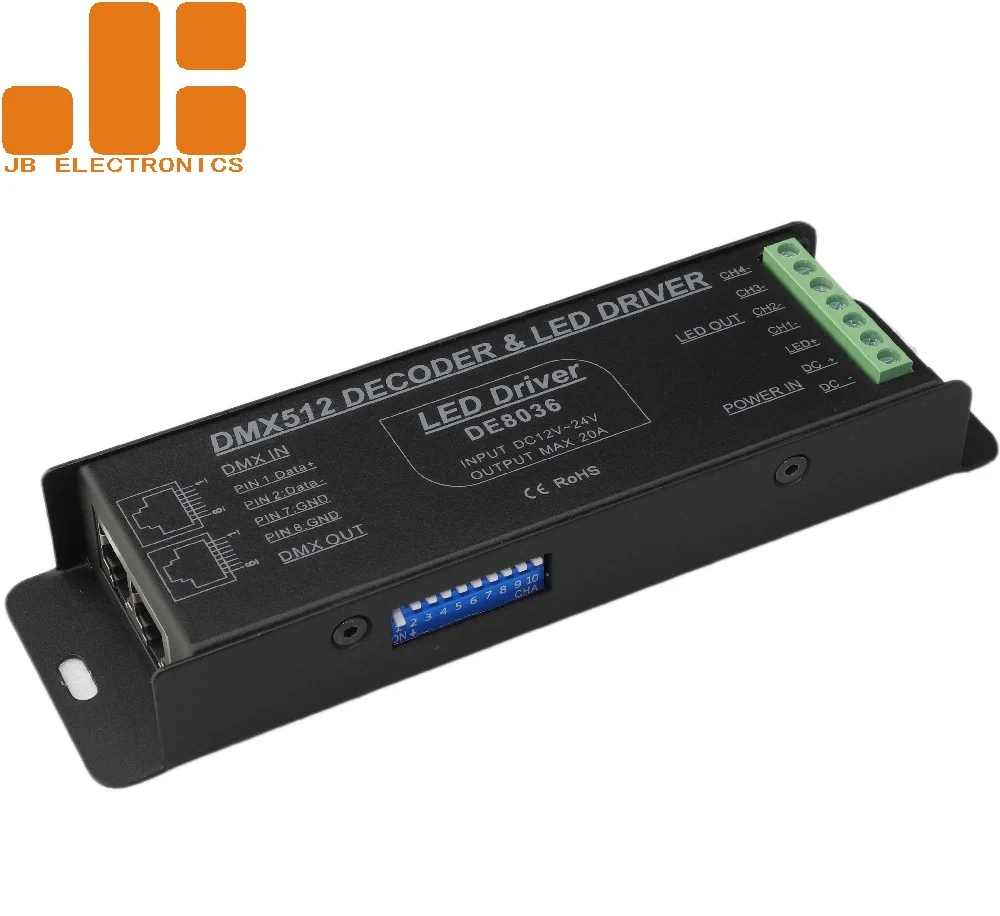

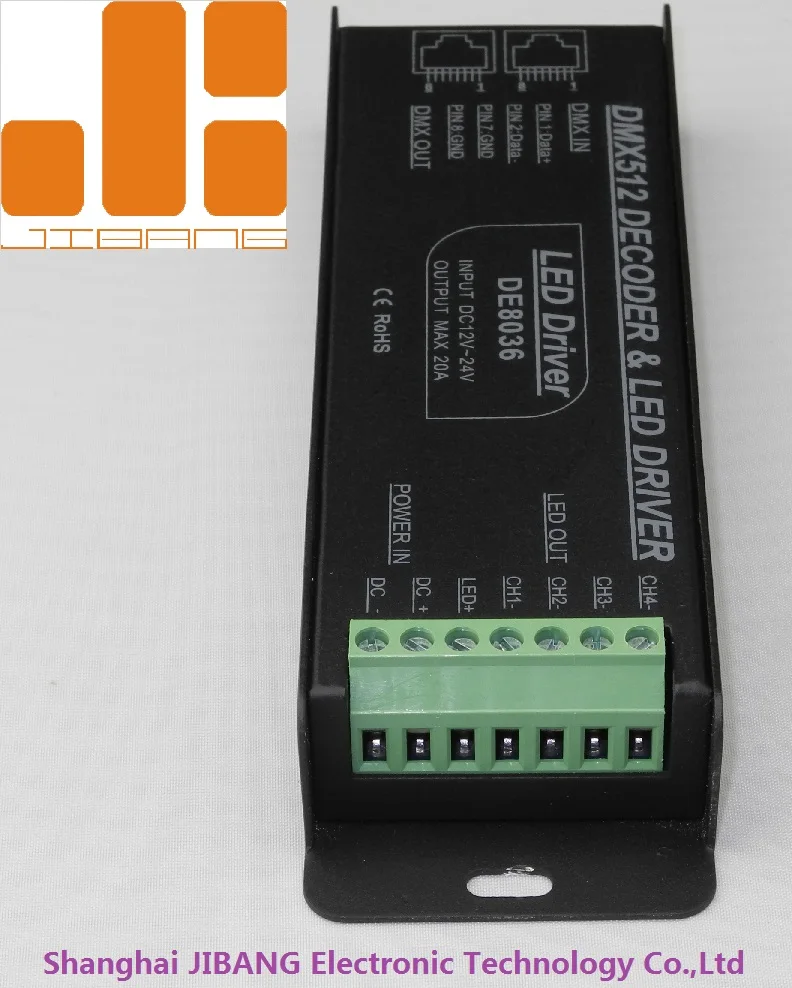

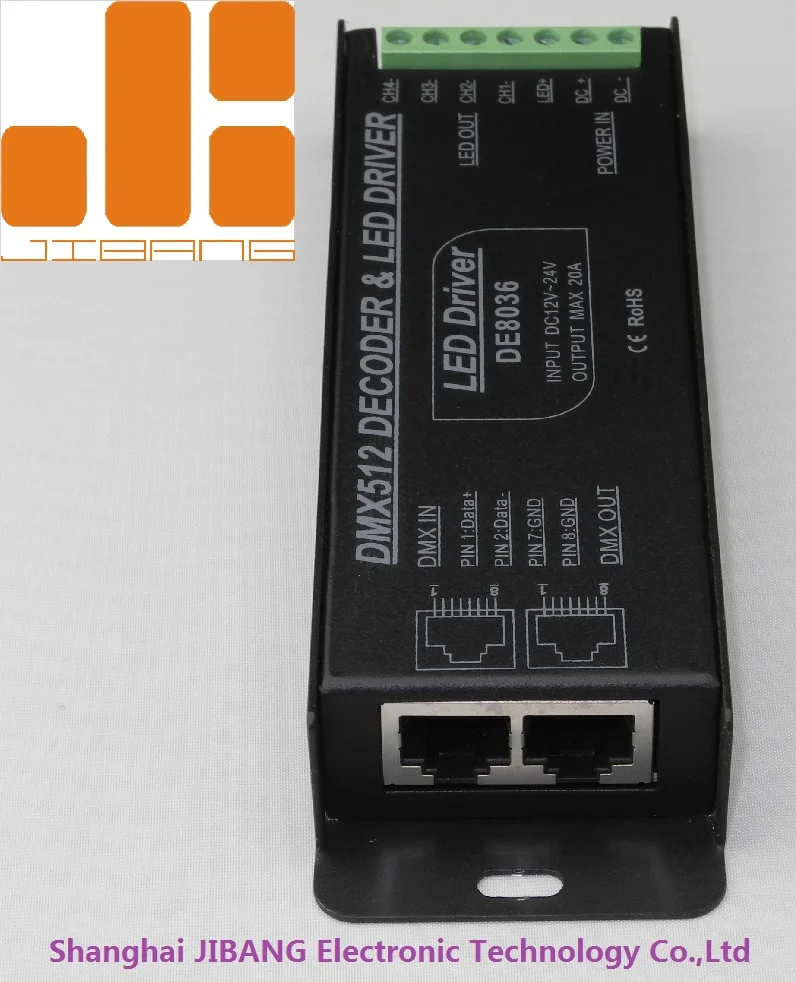

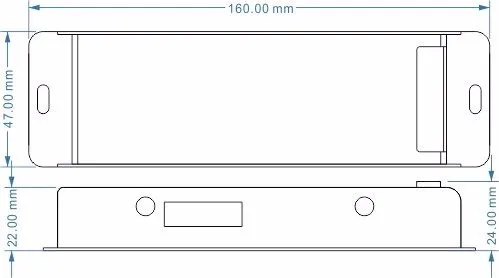

Images of DE8036:

Tech-Parameters of DMX512 Decoder DE80 Series:

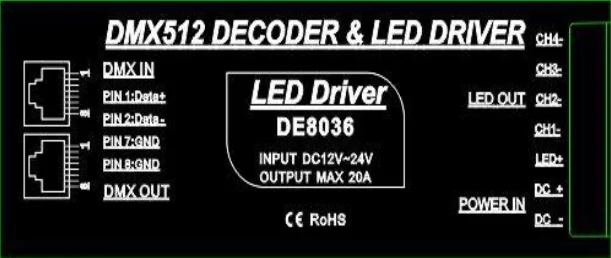

1, The driving output interface of Yang drive, with 1 V+ ports and 4 channels CH1, CH2, CH3, CH4 output interface,can be connected with various full-color module and module automatically according to the lamp module load adjustment of output current, each channel shall not be greater than 5A.

Note: The total connection rgbw-color module directly to the main line and CH1, CH2, CH3, CH4 control line is connected to the output of the decoder interface corresponding pins; single module can be connected to the decoder output interface is V+ feet, negative lines according to the output of CH1, this module is connected to the CH2 color decoder CH3, CH4, a foot on amonochrome module; several colors received the same decoder output interface, will be their main line are connected to a decoder of V+ feet.

2, Self-Test function:Full bright mode will be 1 to 9 of the dial switch upward. Four channels gradient mode will be 1 to 9 of the dial switch down to pull out the channels gradiently.

Wiring Diagram:

DMX-512 control signal connection

1, DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity. DMX512 controller input and output signal positive,signal nagative,signal ground with DE8036 input interface corresponding connection.

2, DMX5000 output and DE8036's transmission lines can't be over 300 meters.

3, DMX5000 each interface can with not more than 170 pieces of DE8036. Eight output interface. Through the JBLED FLASH light making software and can with computer on-line control. Realize infinite connect the DMX lights.

4, When contacting 32 pieces of DE8036, DMX signal must add a signal amplifier such as RE2000,cascade can't more than 4 PCS.

5, At the end of the connection, shall be connectted to a DMX signal termination(DE8036 tenth dial switch can).
