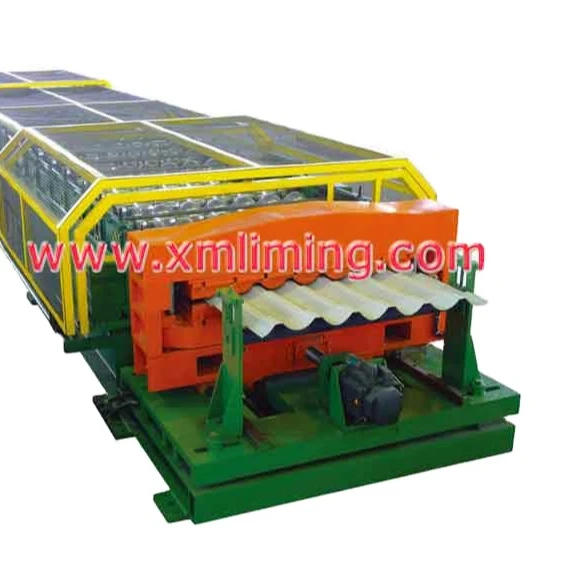

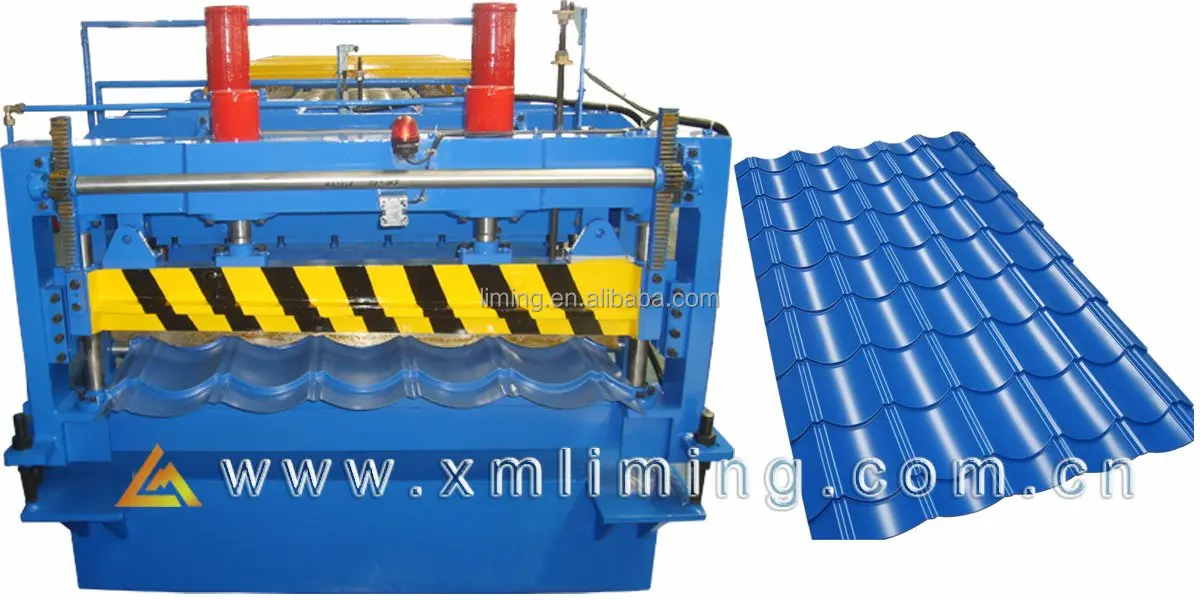

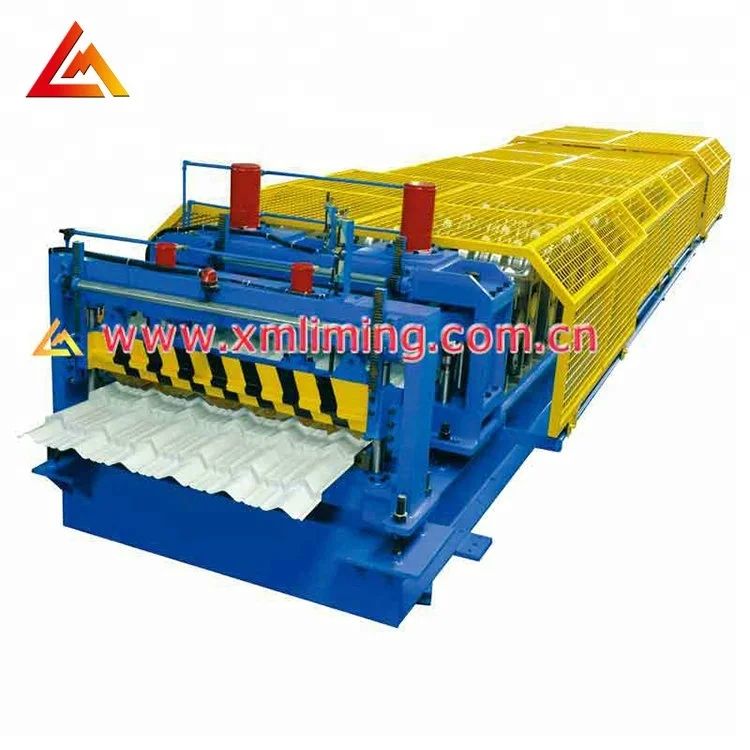

New Customized PPGI& Aluminum Plate Roof and Wall Tile Panel Sheet Cold Roll Forming Machine Equipment Factory Price with ISO900

Product Overview

Description

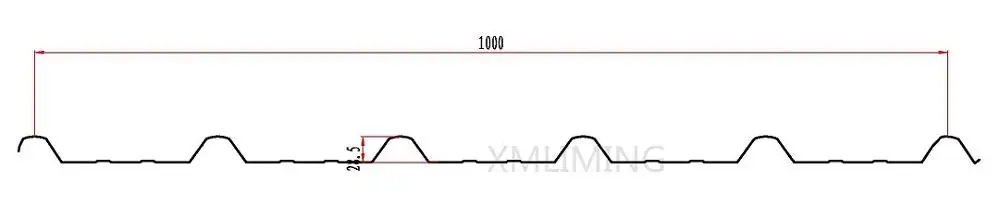

Effective width: 1010+10mm

Feeding width: 1220mm mm

Pre-paint Coil, Yield strength: 550-600Mpa









Machine composition:



5Ton*1250mm Hydraulic un-coiler





Option:

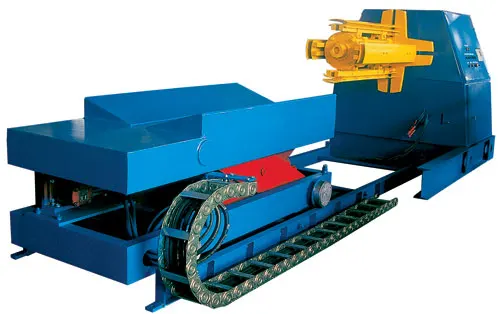

Hydraulic 10Ton*1250mm with coil car

Hydraulic 5Ton*1250mm with coil car



Customization



Entry Bench & Manual Pre-shearing device (Un-powered)

Smart cut control, to cut off the end of the final piece of sheet only





Cold Rolling Mills

New-stand-frame design

Gear/Sprocket driving

Rollers manufactured from 40Cr, heat treatment, CNC lathes, hard Chrome Coated

Shafts Diameter=75/95mm, Precision Machined

Frequency speed control

Protection mesh cover above the roll form to avoid the hands going it;





Hydraulic Cutting Device

Stop to cut, Post cut, No Blanking cut

Hydraulic Station with Pump

Cutting tool material : Cr12, Heat treatment;



PLC Control System

Control the quantity & cutting length automatically;

Combined with: PLC, Touch Screen, Inverter (Siemens), Encoder (Omron), etc

Cut-to-length tolerance≤±1mm

Control voltage 24V



Product Rack Un-powered rack, 6 meters long
