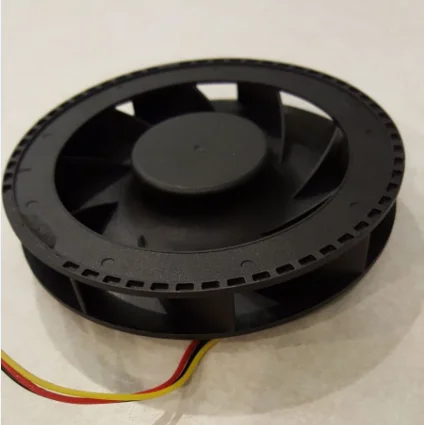

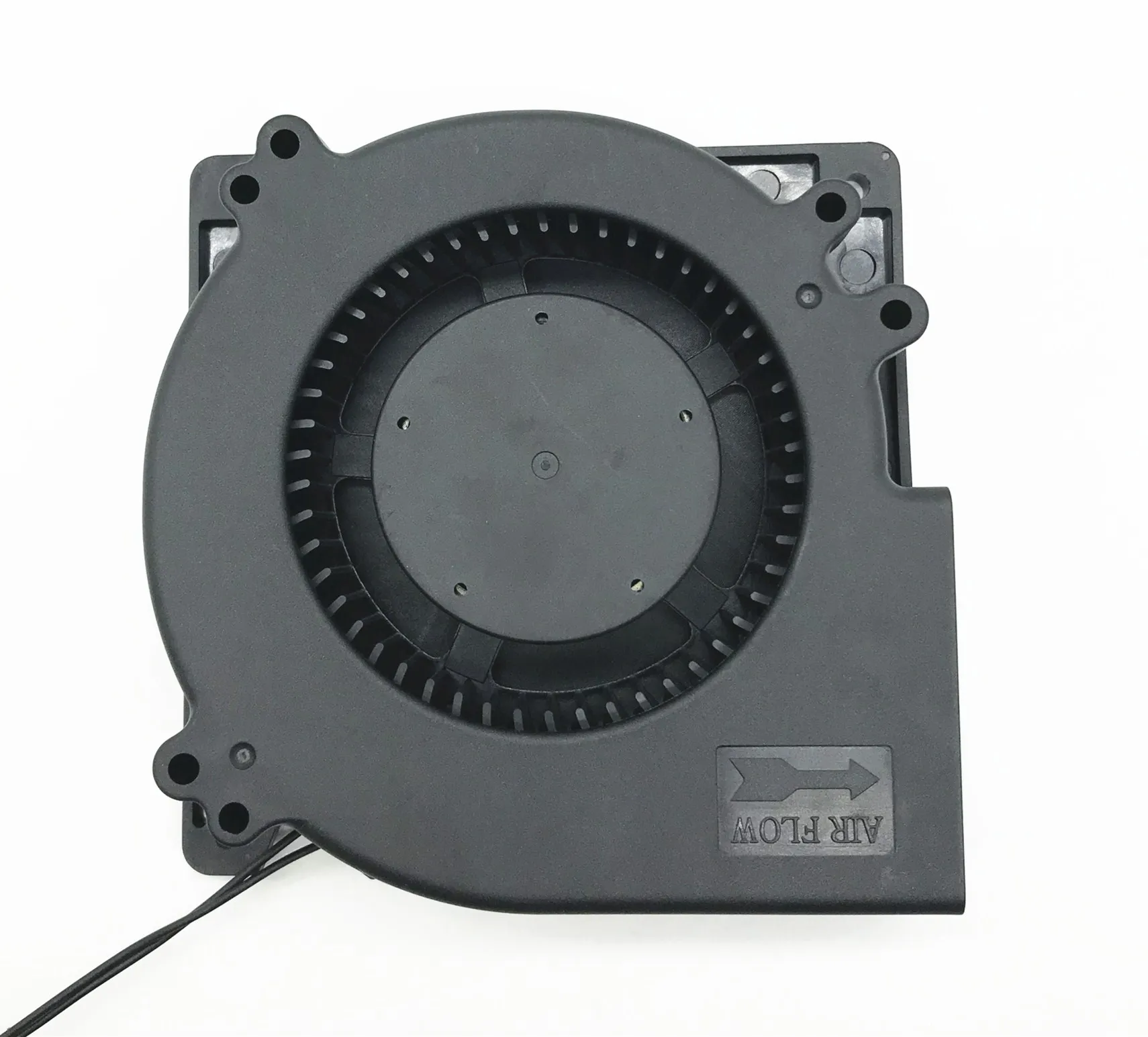

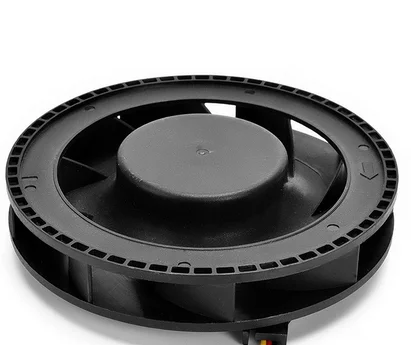

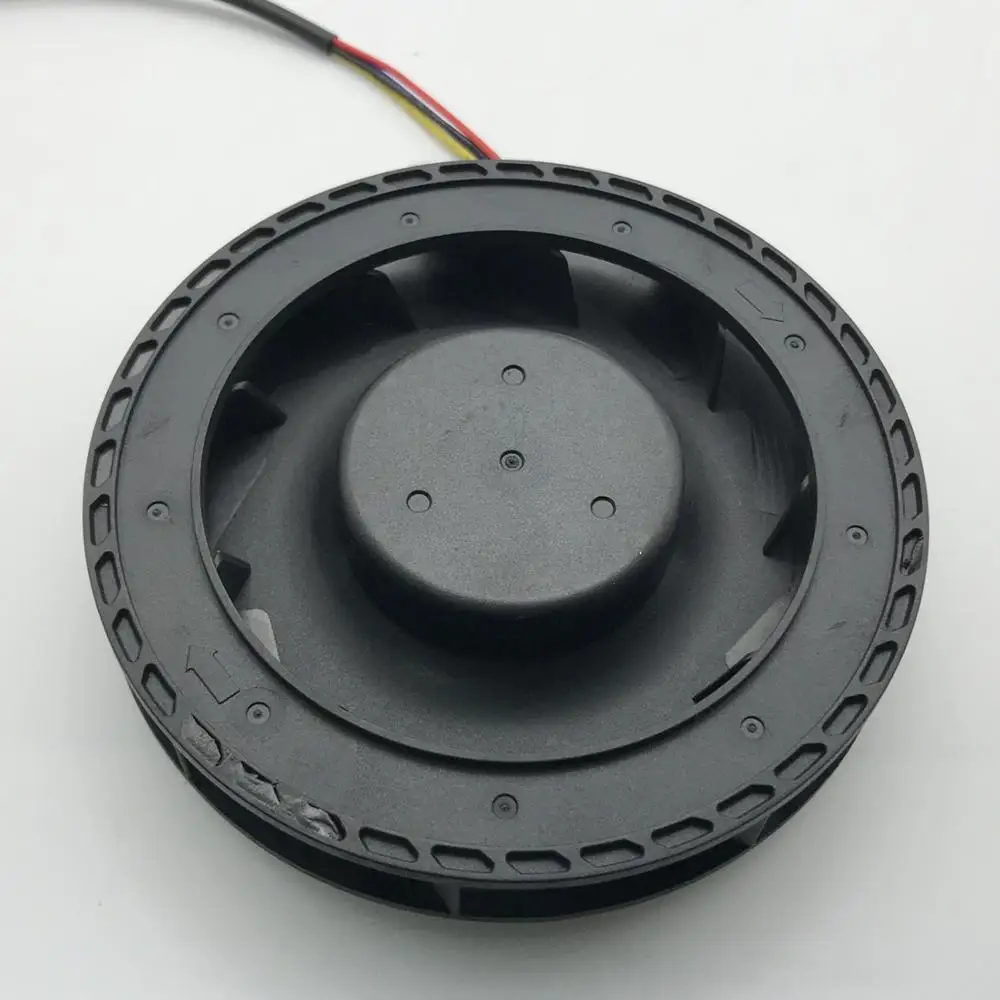

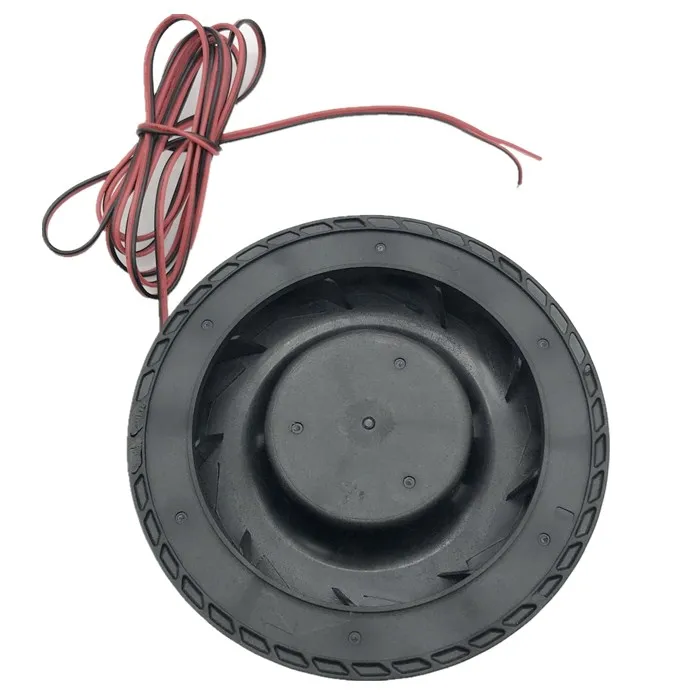

Центробежный вентилятор для очистки воздуха 120 мм, вентилятор постоянного тока с высоким потоком воздуха 4,7 дюйма
- Category: Centrifugal Fans >>>
- Supplier: Shenzhen Topfan Technology Development Co. Ltd.
Share on (60682500580):
Product Overview
Description
120mm air purifier centrifugal fan, 4.7inch high air flow dc fan
PRODUCT SPECIFICATION
A. General Specification
ITEM | Specification Condition | |||
01 | Part No. | MX12025GBU1 | ||
02 | Dimension | 120×25mm | ||
03 | Rated Voltage | 12VDC | ||
04 | Start-up Voltage | 7VDC | ||
05 | Operating Voltage | 7.0~14.0VDC | a. Rated Voltage | |
06 | Rated Speed | 4800rpm | ±10% | b. 25℃ |
07 | Rated Current | 2.5A | ±10% | c. 65% RH |
08 | Rated Power | 30.0W | d. Measured after 5 Mins | |
09 | Max Airflow | 89.5 | CFM | a. PQ Measurement Apparatus : (LW9266-SR) b. Standard : AMCA c. Rated Voltage d. Rated Current
|
2.541 | m3/min | |||
10 | Max Static Pressure | 1.85 | Inch-H2O | |
47.3 | mm-H2O | |||
11 | Life Expectancy | 50000hrs at 40℃ | a.L10 at Conf. Level 90% b. Rated Voltage | |
12 | Noise Level | 54.5dB | a. Rated Voltage b. Non-Echo Chamber c. Standard:CNS 8753/ISO3744 d.Test Condition:ISO 7779 e. Distance: 1.0M | |
13 | No. of Pole | 4 Poles | ||
14 | Rotating Direction | Counte(From Label side) | ||
B. Electrical Specification
ITEM | ||||||
01
| Locked Rotor Protection |
| Safety Condition | |||
| Auto power off after locked at rated voltage for 1sec After auto power off ,circuit attempt restart in 2 to 6sec | |||||
02 | Polarity Protection |
| Open circuit when Vcc&GND are exchanged | |||
| Vcc GND Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged | |||||
03 | Insulation Resistance | 10MΩ Between unshielded wire and frame at 500VDC/min | ||||
04 | Dielectric Strength | 5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min | ||||
05 | Special Function |
| Soft Start |
| Current Limiter | |
C. Main Materials, Parts Specification
01 | Bearing | (Dual Ball Bearing) |
| (Sleeve Bearing) | ||||||||||
02 | Frame |
| PBT of UL94V-0. |
| Die-cast Aluminum Alloy | |||||||||
03 | Impeller |
| PBT of UL94V-0. |
| Steel | |||||||||
04 | Bobbin | PBT of UL94V-0. | ||||||||||||
05 | Lead Wire |
| Red(+) |
| Black(-) |
| Blue(PWM) | UL1007 22# |
| |||||
| Yellow(FG) |
| White(RD) |
| 3 wires 300±10mm | |||||||||
06 | Connector | YES | ||||||||||||
07 | Tube | No | ||||||||||||
D. Environmental Specification
ITEM | Specification. Condition | ||
01 | Operating Temp. Range | Temperature | : -10 ℃ ~70℃ |
Humidity | :15%~ 90% RH (Frost Eliminated) | ||
02 | Storage Temp. Range | Temperature | : -40 ℃ ~70℃ |
Humidity | :15%~ 90% RH (Frost Eliminated) | ||
E. Outline Dimension
