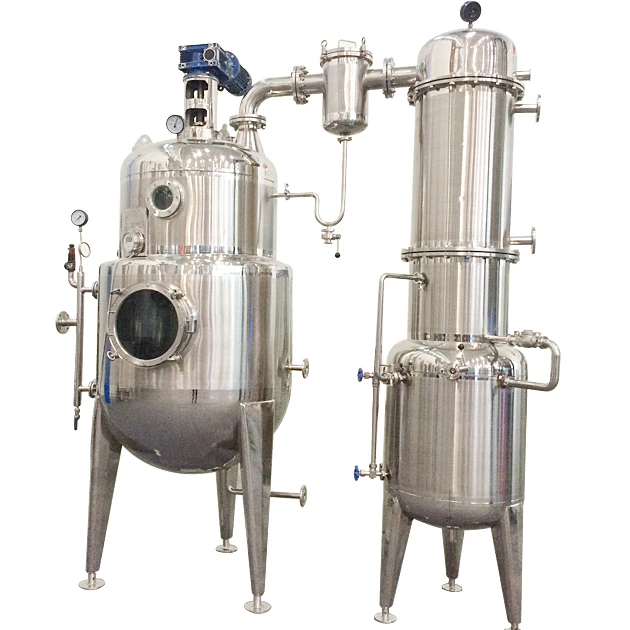

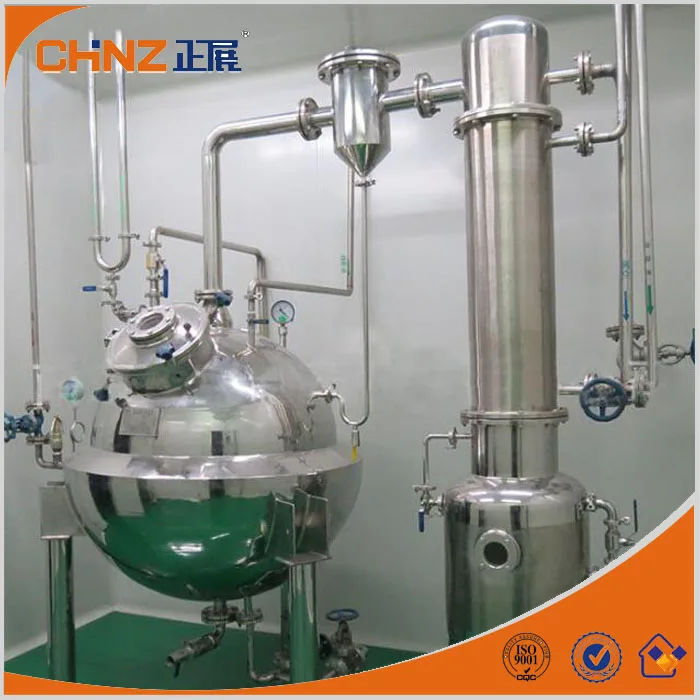

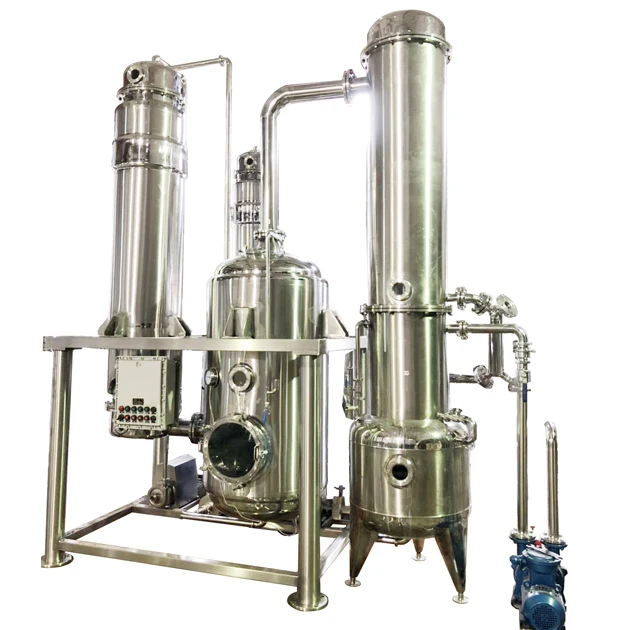

herbal processing machine vacuum spherical Concentrator for sale
Applicable:
The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. It's mainly for get high concentration medium, such as extractum, fruit jam, and so on.
Component:

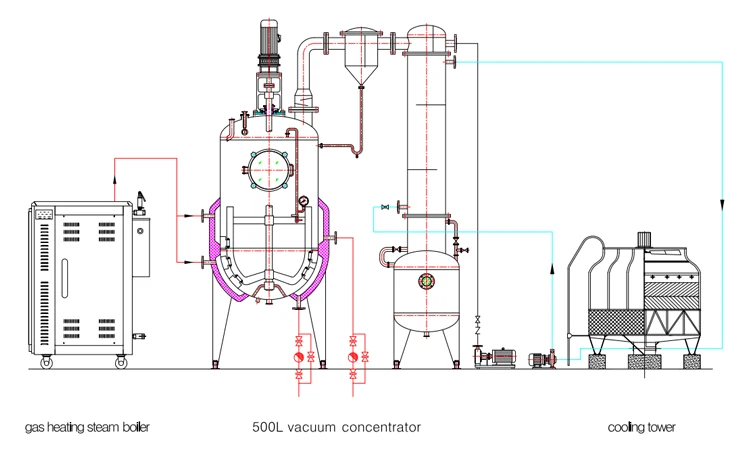

1) The device mainly includes concentration tank, condenser, vapor-liquid separator, cooler and liquid receiving barrel.
2) The concentration can is of clip sleeve structure; the condenser is of row-pipe type; the cooler is of coiled type. The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. and as well serves for the recycle of alcohol and simple reflux extraction purposes.
3) The contact part of the equipment and materials are made with stainless steel, resistant to corrosion and in accordance with the GMP standard.
The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. It's mainly for get high concentration medium, such as extractum, fruit jam, and so on.
Component:
1) The device mainly includes concentration tank, condenser, vapor-liquid separator, cooler and liquid receiving barrel.
2) The concentration can is of clip sleeve structure; the condenser is of row-pipe type; the cooler is of coiled type. The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. and as well serves for the recycle of alcohol and simple reflux extraction purposes.
3) The contact part of the equipment and materials are made with stainless steel, resistant to corrosion and in accordance with the GMP standard.
Product Paramenters
Model | ZN-50 | ZN-100 | ZN-200 | ZN-300 | ZN-500 | ZN-700 | ZN-1000 | ||||||
Volume L | 50 | 100 | 200 | 300 | 500 | 700 | 1000 | ||||||
Receive tank volume L | 50 | 80 | 100 | 100 | 100 | 125 | 200 | ||||||
Jacket pressure Mpa | 0.09~0.25 | ||||||||||||
Vacuum degree Mpa | -0.06~-0.08 | ||||||||||||
Heating area ㎡ | 0.25 | 0.59 | 0.8 | 1.1 | 1.45 | 1.8 | 2.2 | ||||||
Condensation area ㎡ | 4 | 4 | 5 | 6 | 8 | 10 | 12 | ||||||
Overall size mm | 1200 | 1350 | 1700 | 1700 | 2100 | 2400 | 2930 | ||||||
Overall size | 600 | 750 | 800 | 1000 | 1200 | 1300 | 1300 | ||||||
2200 | 2200 | 2700 | 3400 | 3400 | 3400 | 3720 | |||||||

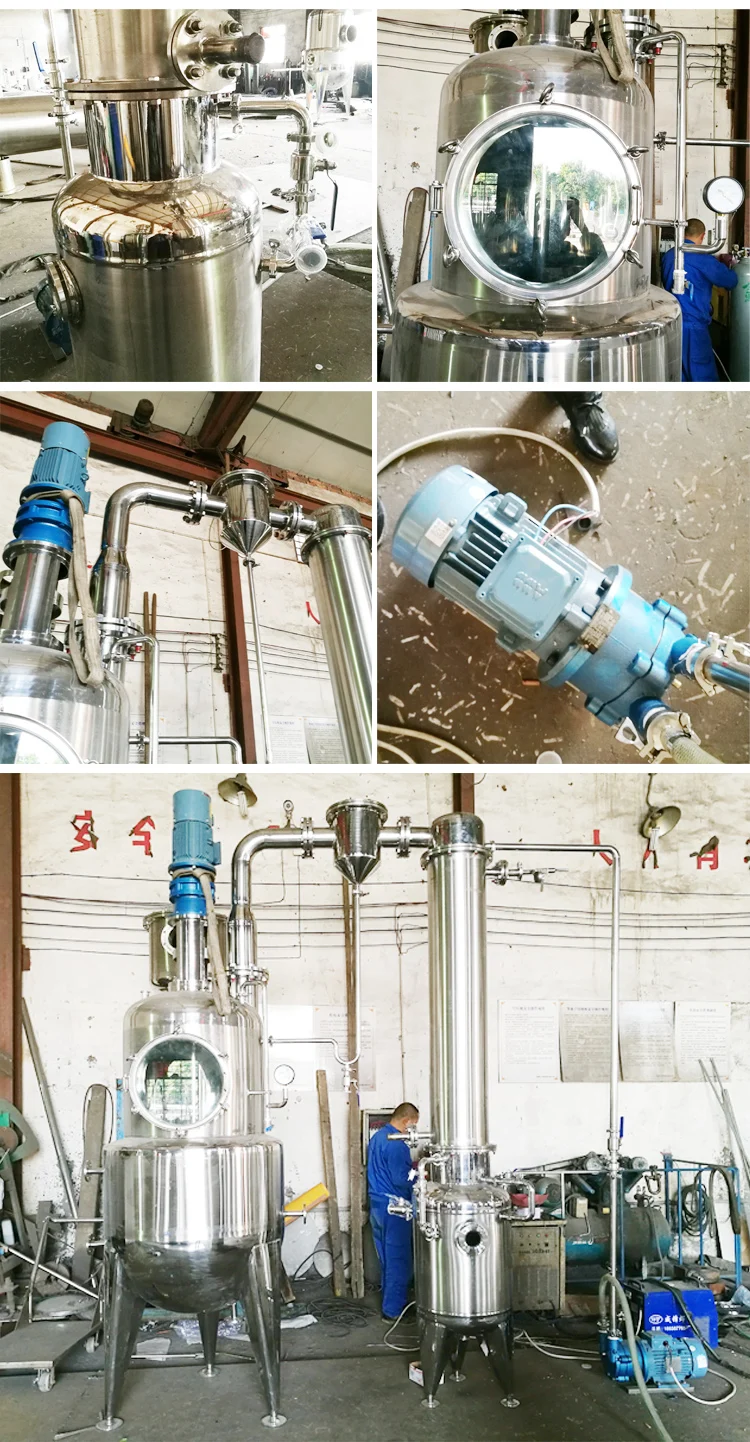

Details Images
Features:
1. This machine is adopted outside heating circulation and vacuum condition, the inside material can be heat well and evaporated efficient fast.2. All the system design according to GMP standard, heating tank and evaporate tank have the CIP unit, the temperature & vacuum pressure can display on line.
3. This machine have the cooling unit, it can be got high concentration solvent. the solvent recovery ratio can reach to 95%.
4. This machine have the big sight glass to inspect inside material evaporate status.
5. Water/gas separater can reduce the material lost under the evaporate process.
6. This machine can be feed raw material, out put final products and take sample online continous.

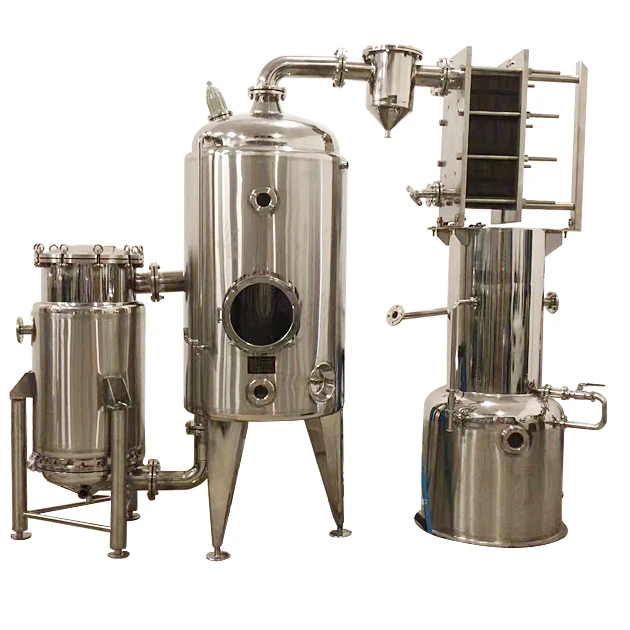

7. According to the process, we can use the PHE type cooling unit instead of the shell & tube condenser for the good cooling efficient.
Similar products
Company Profile
Wenzhou Chinz Machinery Co., Ltd. is a specialized high technology enterprise integrating the design, manufacture and service of biochemical pharmaceutical equipment, dairy food and beverage equipment, chemical equipment and sanitary fluid equipment. Our company is devoted to technology investment and culture construction. We have modern workshops and complete manufacturing facilities. We absorb and train various talented people. We have one batch of capable, specialized and talented persons of design, manufacture and installment.

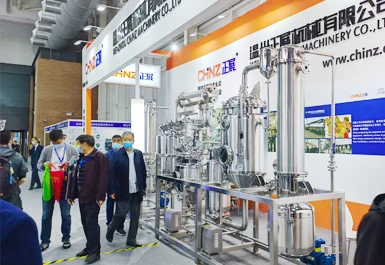

Exhibition
FAQ
1. Q : How can customer visiting our factory?
A : We are in Wenzhou city, Zhejiang Pr.China.which is very near to Shanghai.
From Shanghai,China to our city, it will take 1 hour by air, and 4 hours by fast train.
The name of airport is Wenzhou Longwan International Airport.
The name of fast train station is Wenzhou Nan train station.
And our factory is very close to airport only 15 minutes by car, and 1 hour by car from fast train station.
2. Q : How can customer know the processes of order?
A : We will take photo or video during manufacturing every two weeks to make customer clear about the order.
When goods is finished,we will take more detailed photos or video for inspect.
You can also come to our factory to inspect by yourself.
3. Q : Do you supply installation equipment in oversea?
A : Yes, if need, we can also send our installation engineer to your factory to help you do installation and testing.
And you need to provides round-trip ticket and accommodation for our engineer.
The extra salary of one installation engineer is 200USD/day.
4. Q : How to control quality?
A : All material we use has material certification.
Before any piece of equipment leaves CHINZ.
It goes through a complete quality and assurance control inspection.
This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.
5. Q : What is the shipment schedule?
A : We will send you photographs of your order being loaded into the shipping container at the factory.
The shipping container will generally leave port 3-4 days after loading.
We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container.
Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time.
Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company.
You will be directly contacted by the shipping company's local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time.
If you need to delay the final delivery, there will be a "pull" fee of approximately $100, and a storage fee of approximately $150 per shipping container per day.
6. Q : Which material are the equipment made of?
A : Stainless steel 304/ stainless steel 316/ Ti
