hydraulic arch camber curving machine

This hydraulic arch camber curving machine makes small fine curve for designated performed roof panel. Such curving panel saves roof purlins and steel -friend and lowest cost coating. Moreover the curving roof is strong and durable, looks beautiful and fashionable as well.

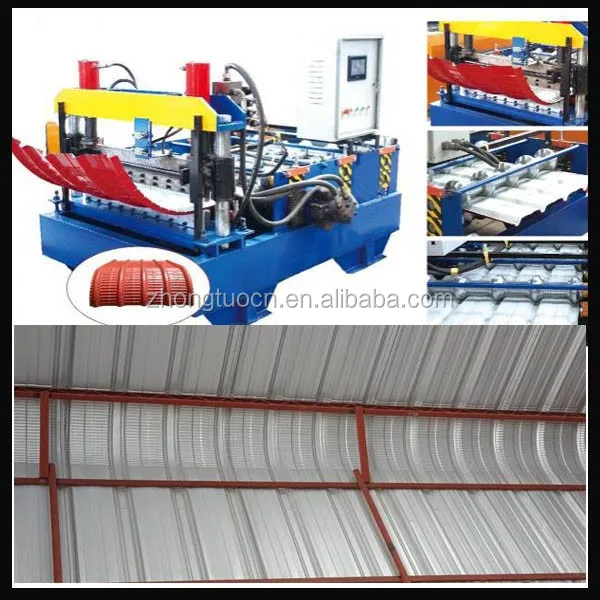

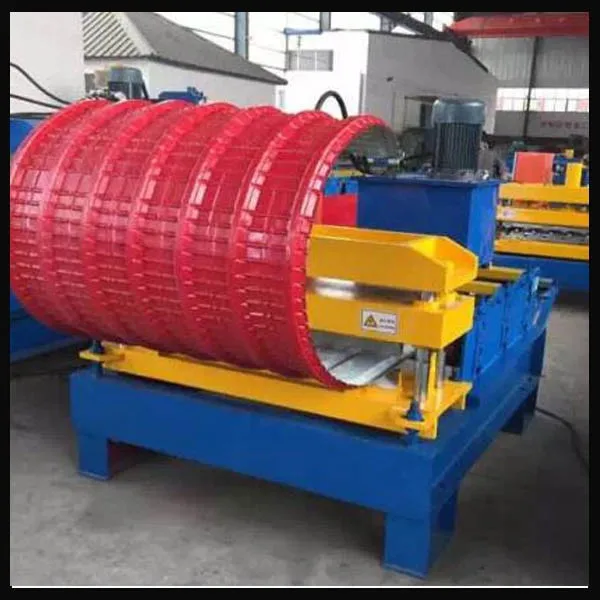

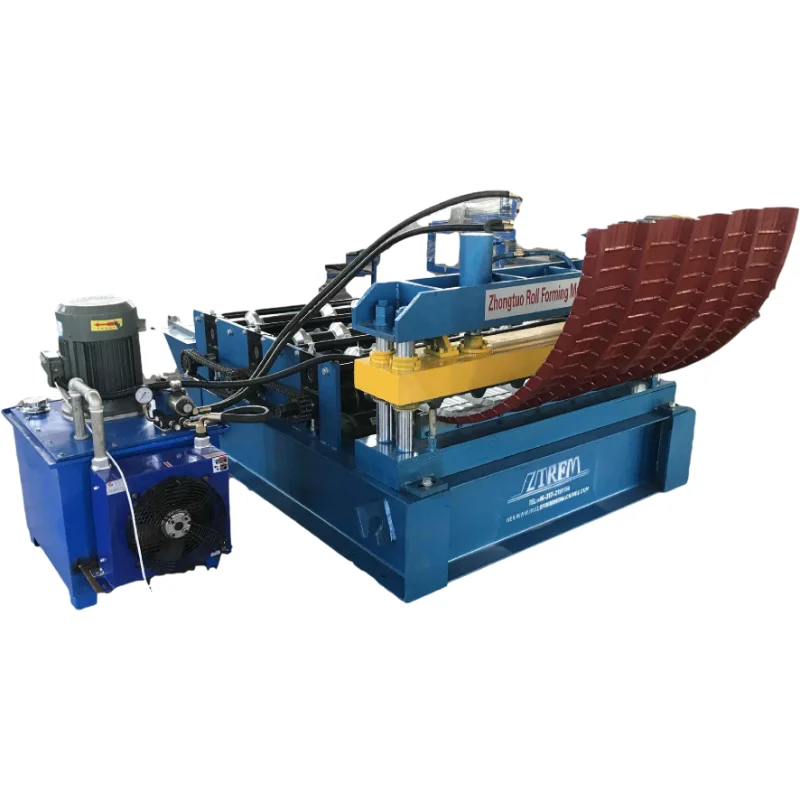

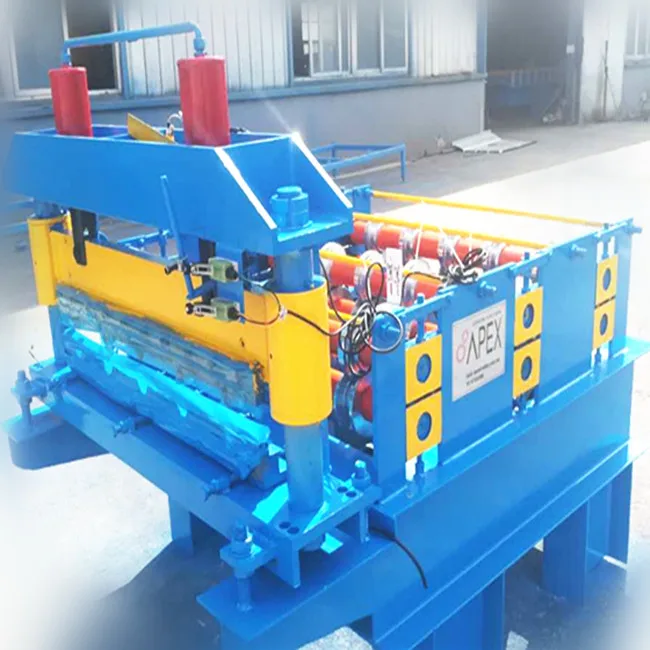

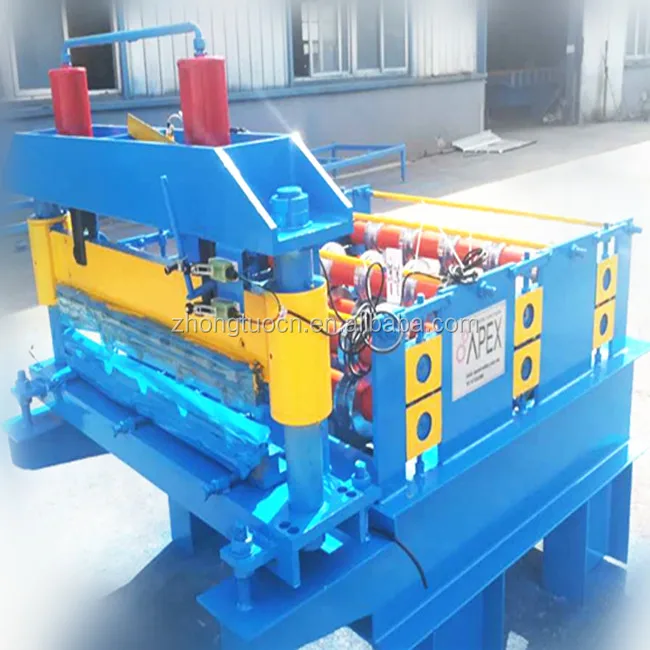

Here are some pictures of this machine and its main parts:

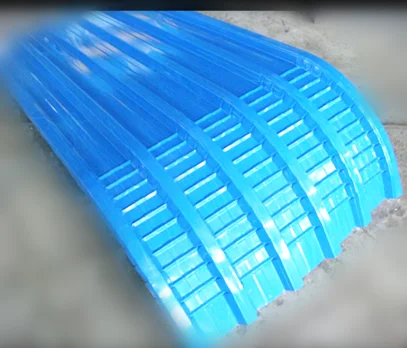

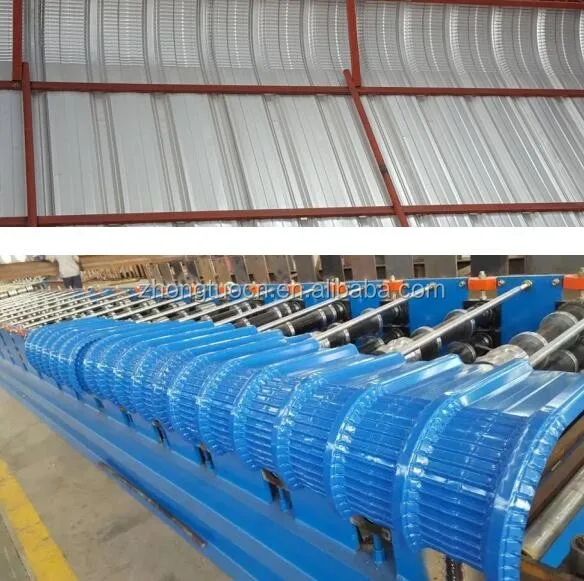

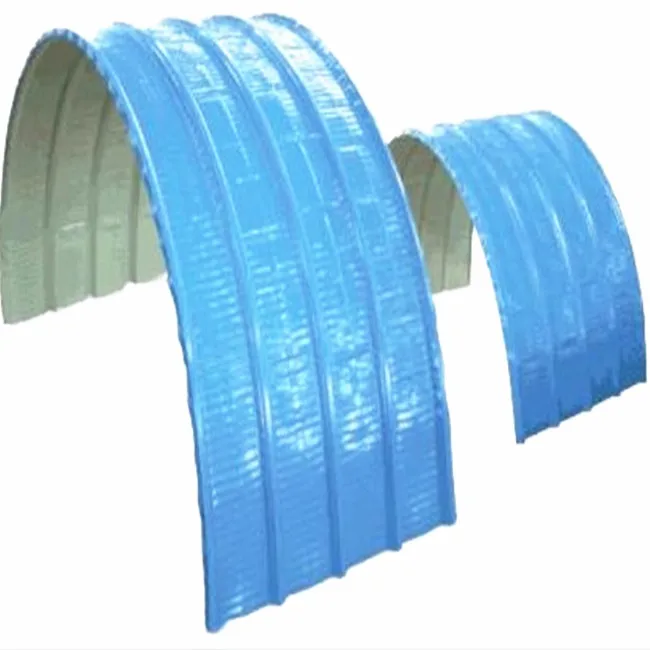

the finished products of arch camber curving machine for your reference:

main parameters of this hydraulic arch camber curving machine:

1) frame of machine: H400 steel welded

2) feeding rollers: 3 stations, Cr12 steel with quenched treatment 60-62℃

3)main power:3KW

4)machine diameter:2500*165*150mm

5)machine weight:2ton

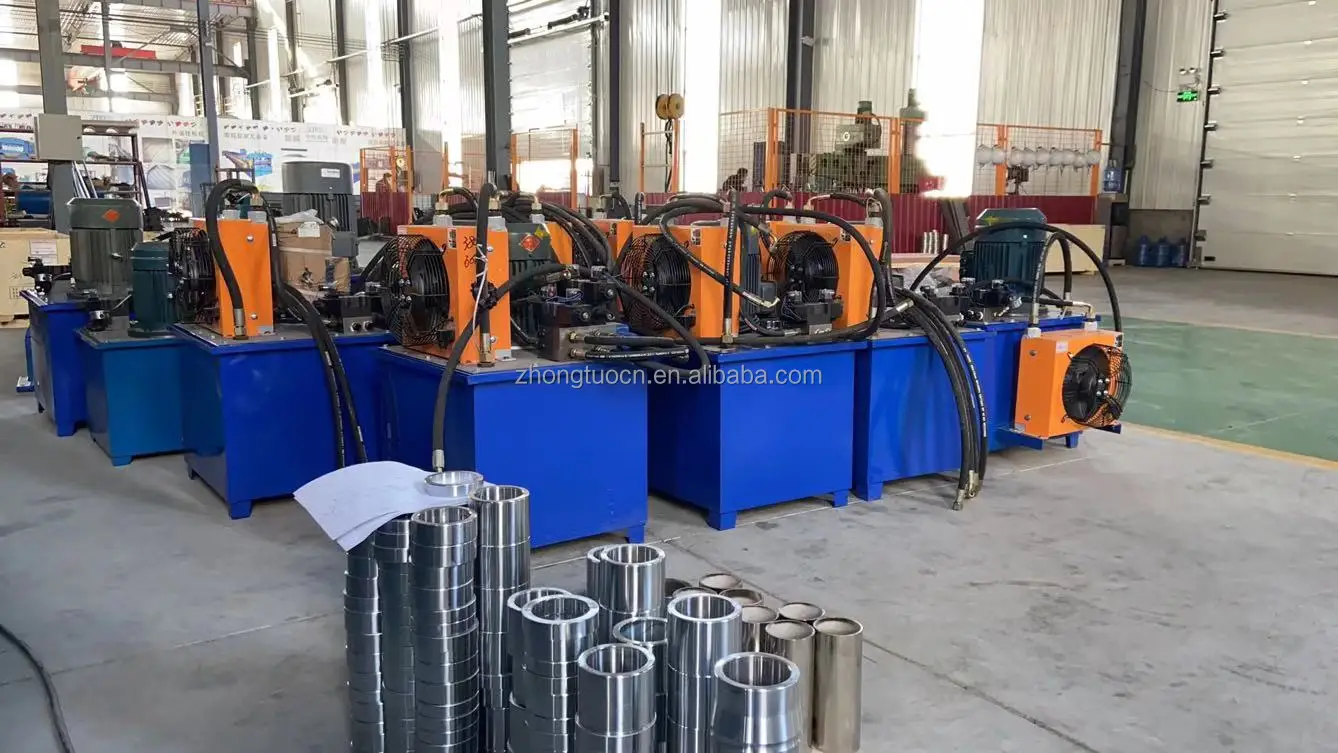

here are photos of control cabinet and hydraulic station:



Automatic Control system:

1) Screen: 5.7 inch DELTA screen from Taiwan

2) PLC: DELTA from Taiwan

3) Coder: ENC-1-1-1T-24 from South Korea
