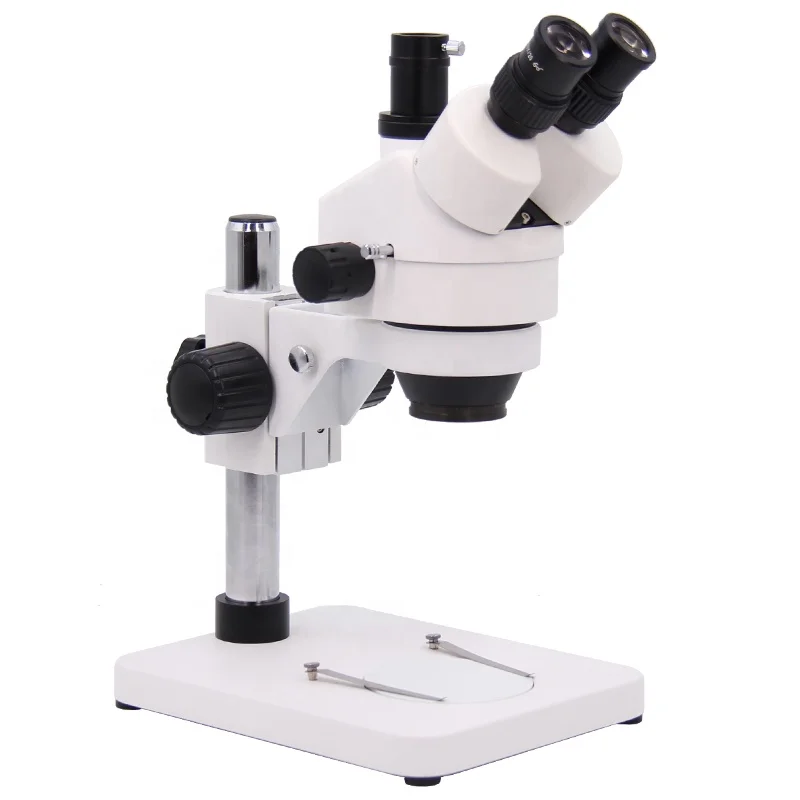

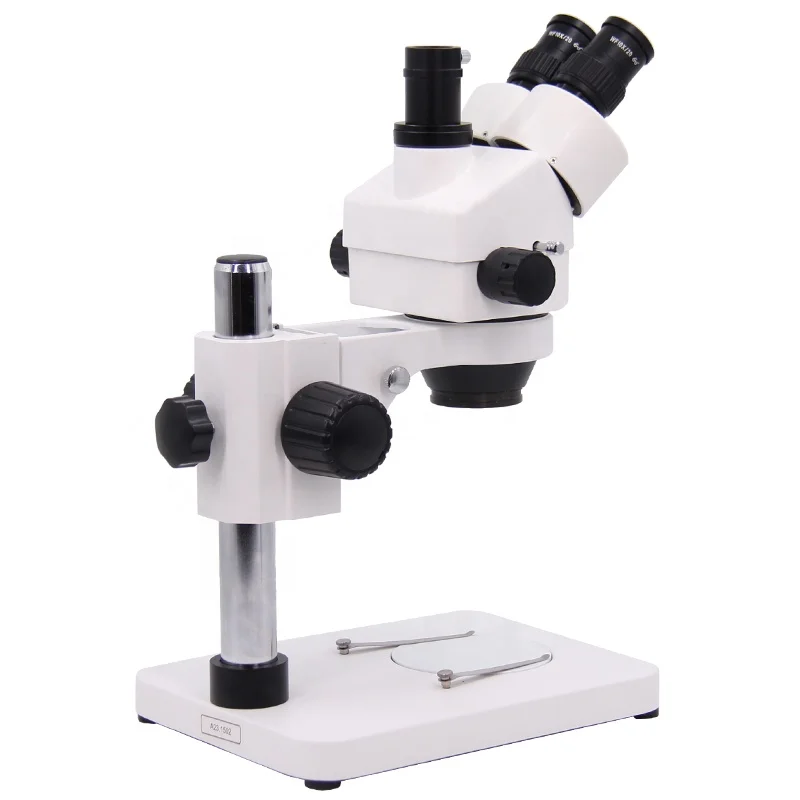

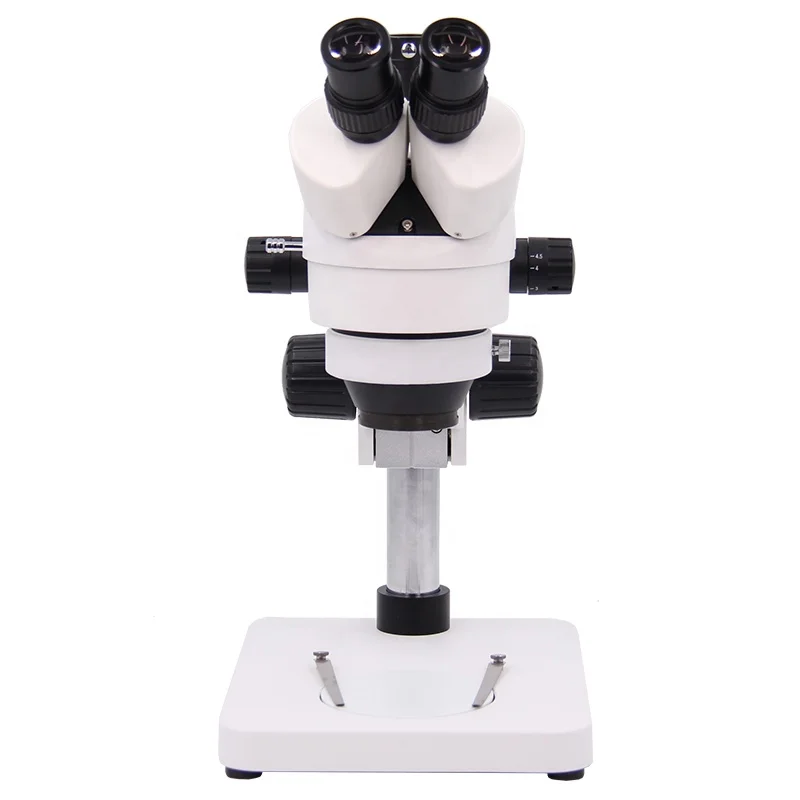

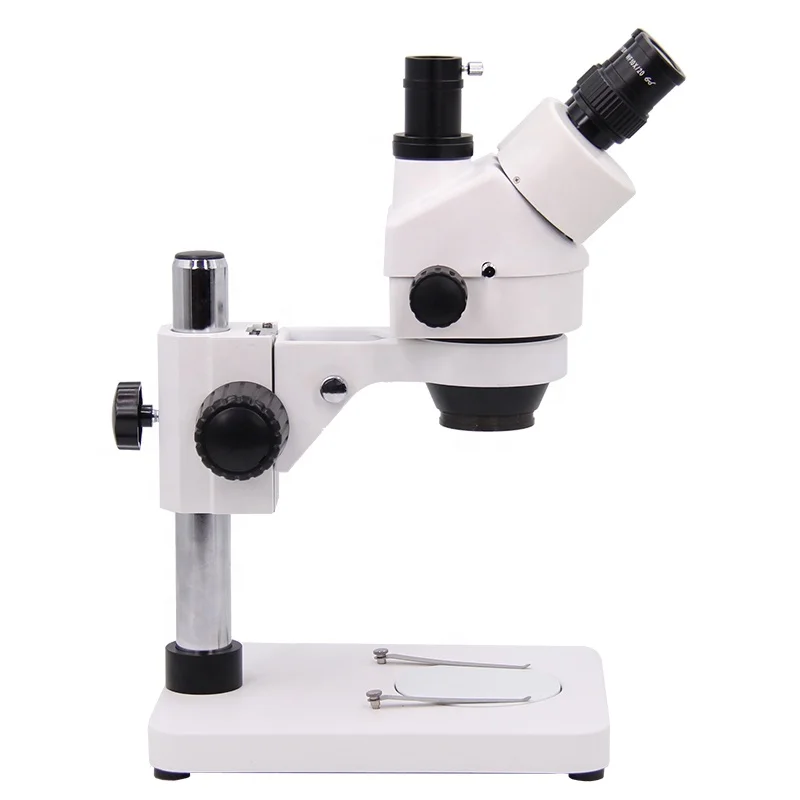

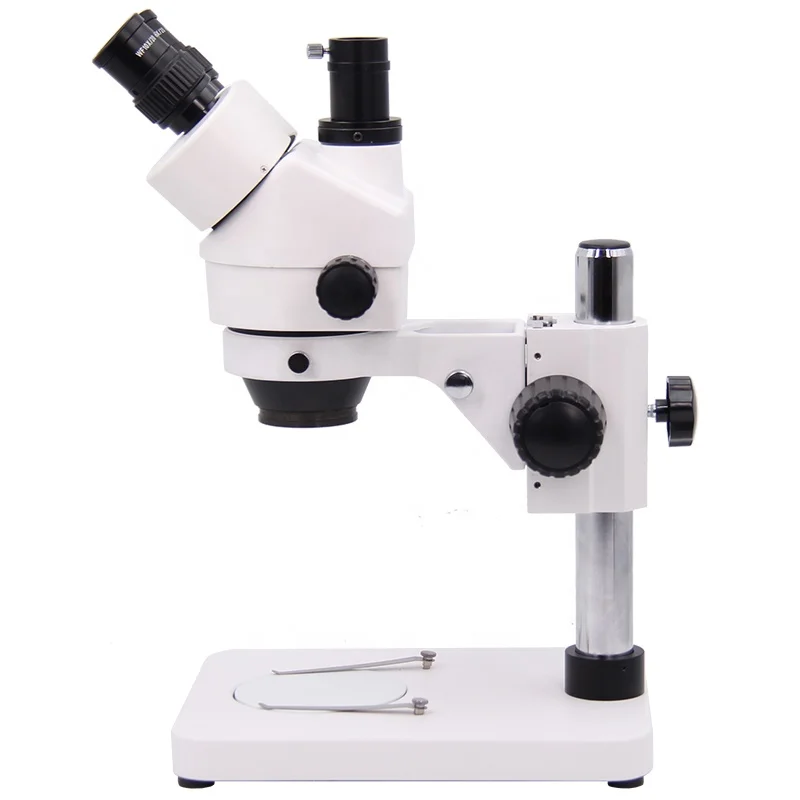

OPTO EDU A23.1502 T1 Trinocular Head 45 Degree Inclined Optical Zoom Microscope For Teaching

Product Overview

Description

OPTO-EDU A23.1502-T1 Trinocular Head 45 Degree Inclined Optical Zoom Microscope For Teaching



A23.1502 is a type of stereo microscope whose price is a litter bit higher than others, because it is a professional stereo microscope in teaching demonstration, biological engineering, IT testing and some other fields. With zoom lens 0.7-4.5x, you can get the continuous zoom image you need. A23.1502 has high eyepoint with WF10x/20mm eyepiece, and the field of view is 1~95.2mm.

Zoom stereo microscope is widely used in teaching demonstration, bio-engineering, IT industry testing and other fields. A23.1502 has a high resolution and large field of view clarity, so it is also good at electronics industry and precision machinery industry parts assembly and testing, agricultural seed inspection and so on.



A23.1502 Zoom Stereo Microscope Specification		B1	T1
Head	Binocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm	o
	Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, With Eyepiece Adatper + 1x C-Mount		o
Eyepiece	WF10x/20mm, High Eyepoint
Zoom Lens	0.7~4.5x
Zoom Ratio	1:6.5
Magnification	7x-45x, Up to 3.5x-180x With Optional Eyepieces and Auxiliary Objectives
Working Distance	100mm, With Auxiliary Objectives 30~177mm
Field of View	1~95.2mm
Light Source	No Light Source
Stand	Pole Stand ST1, Height 248mm, Base 200*255*22mm



A23.1502 Zoom Stereo Microscope Optional Accessories		Cata. No.
Eyepiece	WF15x/15mm, High-eyepoint	A51.1520-15
	WF20x/10mm, High-eyepoint	A51.1520-20
Auxiliary Lens	0.5X,W.D. 177mm	A52.1520-05
	0.75X,W.D. 120mm	A52.1520-75
	2.0X,W.D. 30mm	A52.1520-20
CCD Adapter	0.5x	A55.1520-05
