Product Overview

Description





Products Description






Multi-function rotary evaporator with circulating pump &Chiller
Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting , revolving consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.
1 Quick and easy lifting mechanism
2 Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.

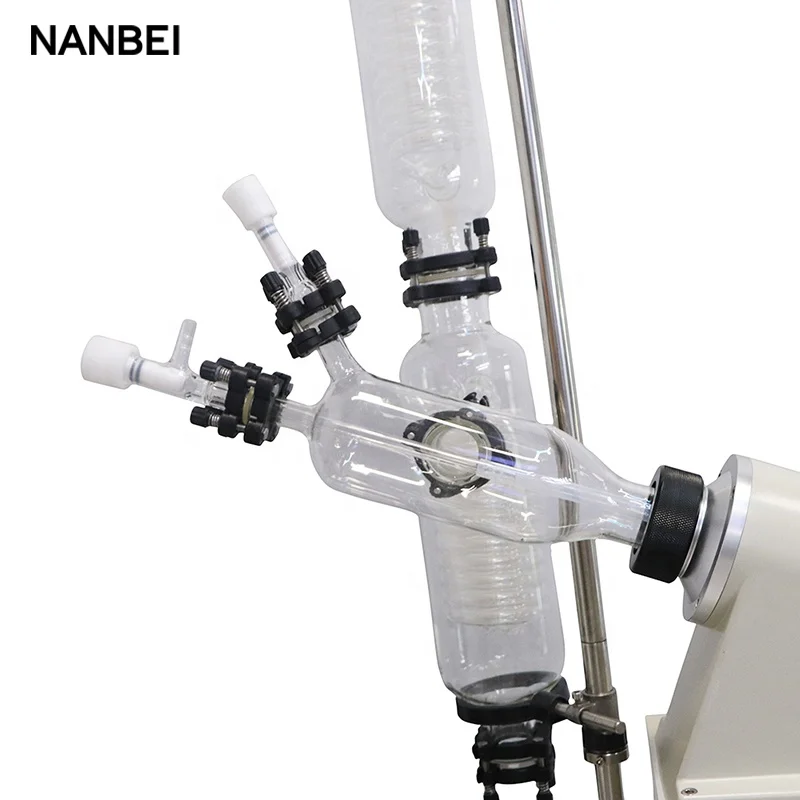

3 Vertical condensation system of high rate of evaporation
4 Vacuum sealing way

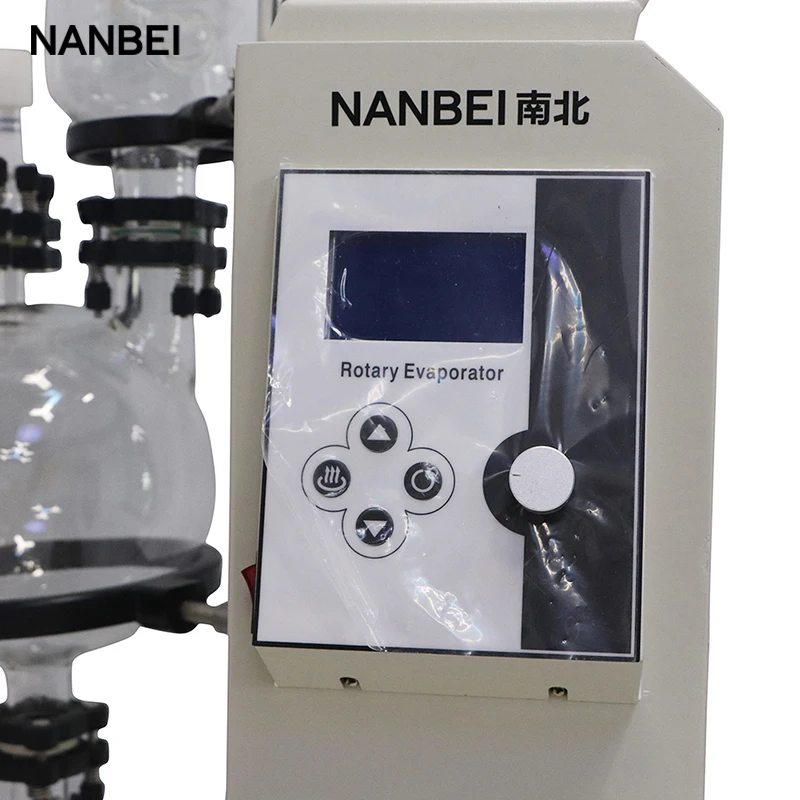

5 Automatic control temperature digital display.




Specification


Parameter For 1L 3L 5L Rotary Evaporator


Model
1L
3L
5L
Glass meterial
GG-17
GG-17
GG-17
Holder material
Stainless steel
Stainless steel
Stainless steel
Pot shell Material
aluminium alloy
270*270*195mm
aluminium alloy
270*296*240mm
aluminium alloy
310*320*240mm
Pot bravery
Stainless steel
250*140mm
Stainless steel
255*170mm
Stainless steel
280*170mm
Plate size
280*330mm
350*330mm
350*330mm
Evaporator flask
1L
flange mouth:Φ50mm
3L
flange mouth:Φ50mm
5L
flange mouth:Φ50mm
Vacuum degree
0.098Mpa
0.098Mpa
0.098Mpa
Rotary speed
0-120RPM
0-120RPM
0-120RPM
Rotary power
30W
40W
40W
Heating power
1.5KW
2KW
2KW
Heating temp.
0-400C
0-400C
0-400C
Temp. accuracy
-1
-1
-1
Lifting stroke
120mm
120mm
120mm
Voltage
220/110V 50/60HZ
220/110V 50/60HZ
220/110V 50/60HZ
Packing size (mm)
590*460*460
1000*460*450
1040*620*410
Packing weight
21kg
38kg
38kg


If You Need Other Models, Please Feel Free To Contact Us
