Product Overview
Description
Two Stage Homogenizer Two Piston High Pressure Homogenizer

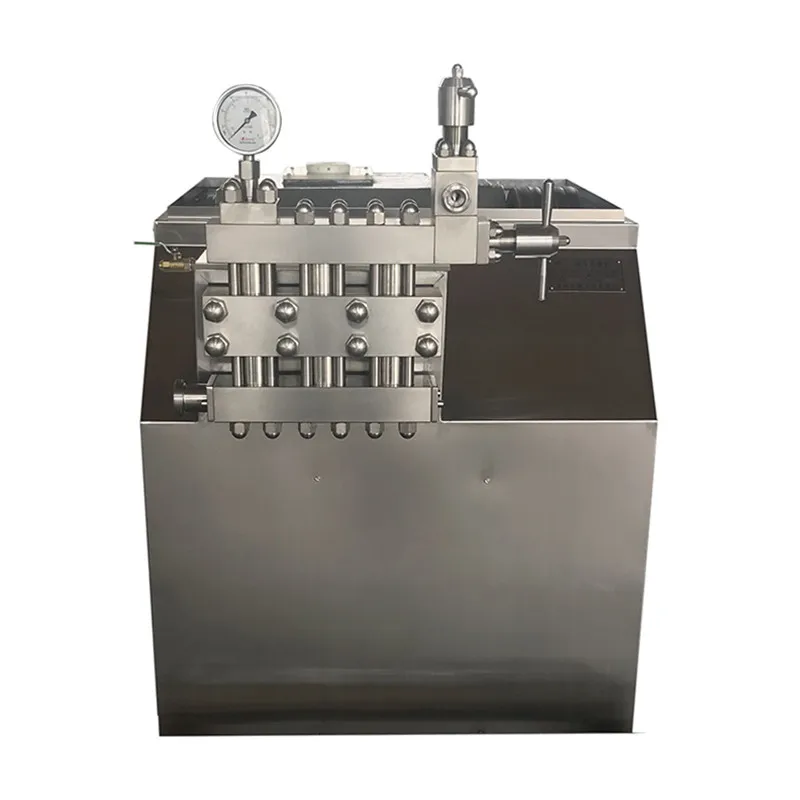

1. Picture of High Pressure Homogenizer
2. Certificate :
3. Technical Data :
small homogenizer types of homogenizer industrial homogenizer price
Technical parameter | GJB0.5-25 | GJB1-25 | GJB1.5-25 | GJB2-25 | GJB2.5-25 | GJB3000-25
| GJB5-25 |
Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Rated flow(Liters/H) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
Medium temperature(℃) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45
|
Volt and Electricity Flow | 380V,50HZ,3PH | 380V,50HZ,3PH | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24
| 1.16×0.9×1.24
| 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1
|
Weight(Tons) | 0.4 | 0.5 | 0.5 | 1.25 | 1.25 | 1.25 | 1.7 |

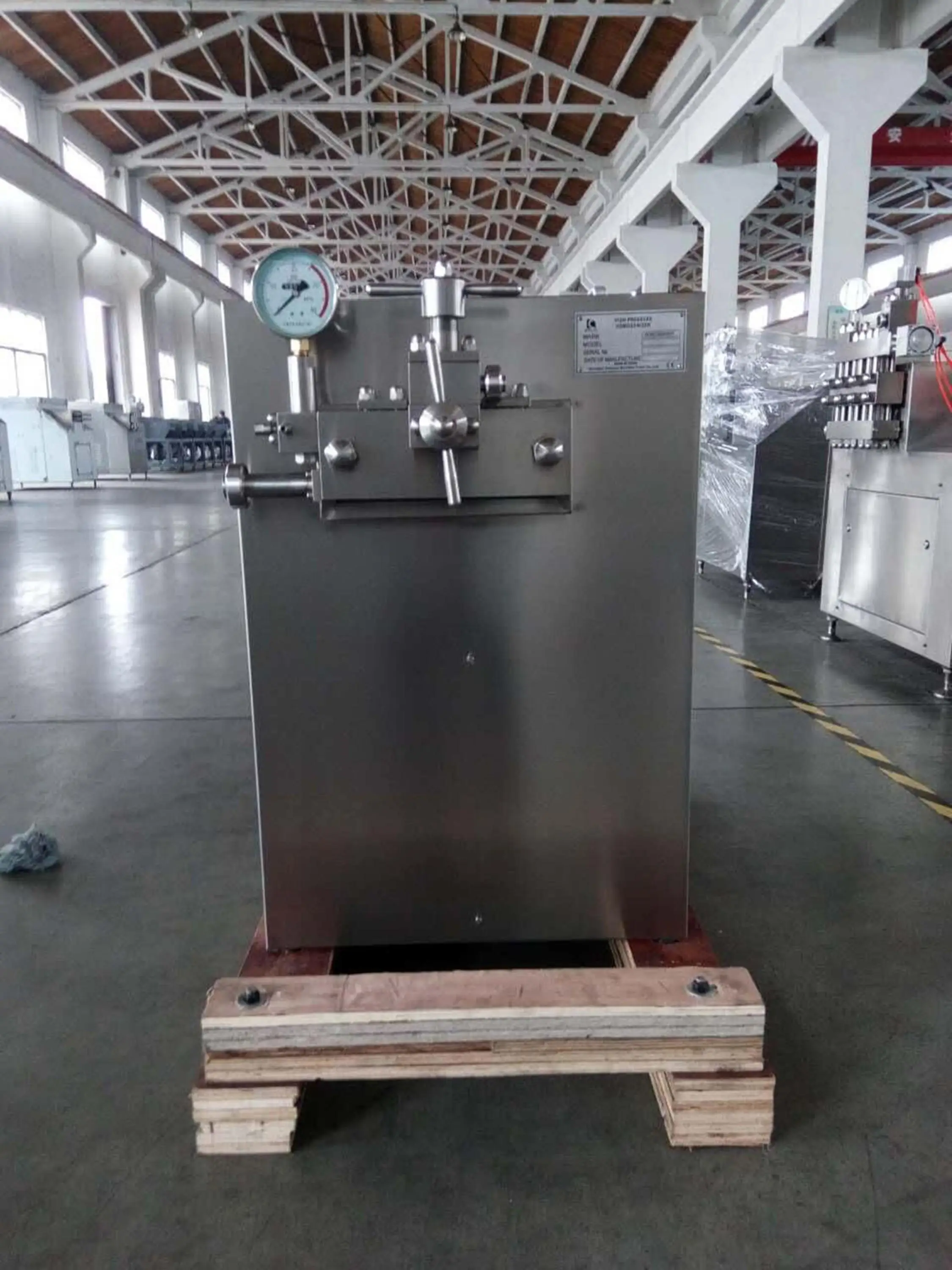

4.Factory :
5.Our Customer :
High Quality High Pressure CE Homogenizer Price
Two Stage Homogenizer Two Piston High Pressure Homogenizer
