Product Overview
Description
DC5V-24V WS2801 WS2811 UCS1903 SPI 3 channel DMX decoder
Quick Description
The DMX512 Data Decoder adopted the advanced decoding technology to convert the international standard DMX512/1990 signal into standard ws2811/ws2801 / TM1804/
TM1809/ TLS3001/P9813 signals ,each decoder has 96/512 DMX output channels and the output channels can be expanded by adding decoders, therefore, most of LED lights can be controlled by DMX512/1990 protocol via the signal conversion, then widely used pixel light,
digital tube light, floodlight,pixel screen, dancing floor light etc .
Product Details
Product Parameter
| Input Voltage | DC5V-24V | ||||
| Input Signal | DMX512/1990 | ||||
| Output Signal | LPD6803 | LPD8806 | TM1809 | P9813 | WS2801 |
| Decoder Channel | 512 | 512 | 512 | 512 | 512 |
| Control LED QTY | 170 | 170 | 170 | 170 | 170 |
| Control chip Model | LPD6803 LPD1101 UCS6906 UCS6912 | LPD8803 LPD8806 LPD8809 LPD8812 | TM1803,TM1804 TM1809,TM1812 UCS1903,UCS1909 UCS1912,UCS2903 WS2811 | P9813 | WS2801 WS2803 |

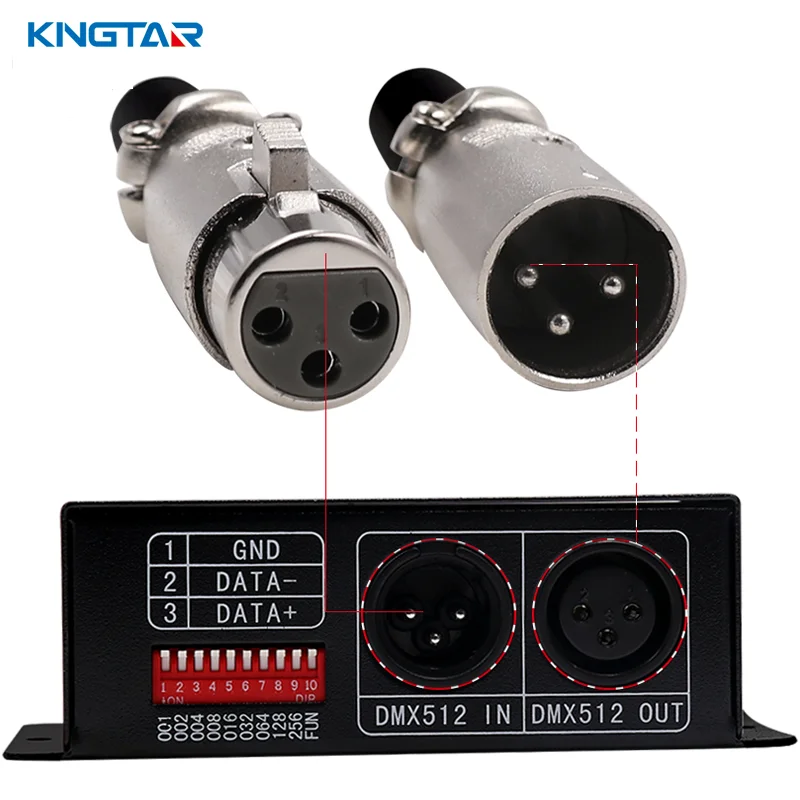

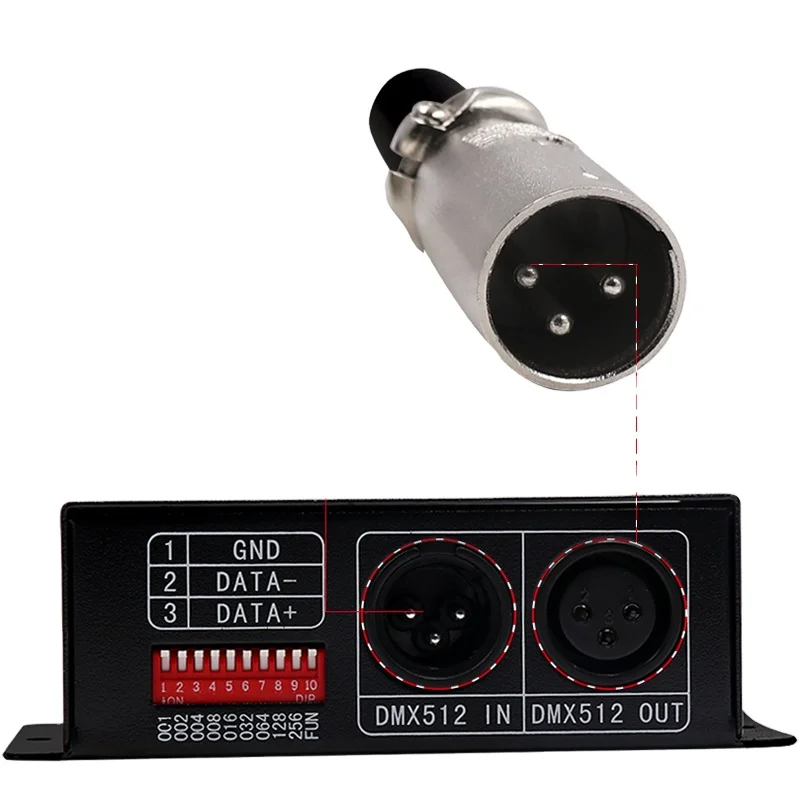

| DMX Socket | Standard XLR-3 | ||||
| Size mm | L125×W52×H40(mm | ||||
| Weight | 315g | ||||
Features

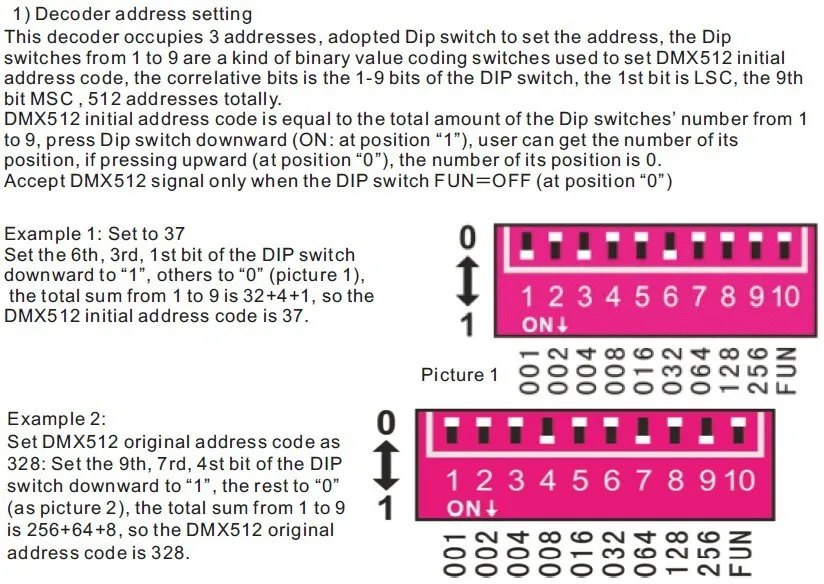

1.In put standard DMX512 protocol,Address can be set by DIP.
2.Automatically adapt input voltage DC5V-24V.

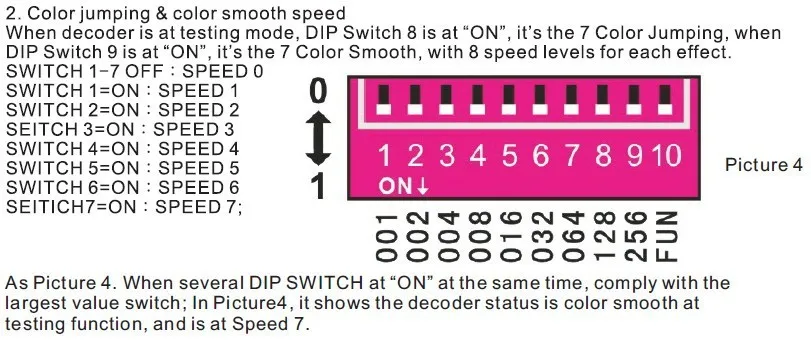

3.Self-Changing Mode exist.
4.Output TTL Signal.
5.Power loss memory function
Notices
Please don’t install this controller in lightening, intense magnetic and high-voltage fields.
1.To reduce the risk of component damage and fire caused by short circuit, make sure
correct connection.
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a
fitting temperature.
3.Check if the voltage and power adapter suit the controller.
(please select DC5-24V power supply with constant voltage)
4.Don’t connect cables with power on; make sure a correct connection and no short circuit
checked with instrument before power on.
5.Please don’t open controller cover and operate if problems occur.
The manual is only suitable for this model; any update is subject to change without prior
notice.

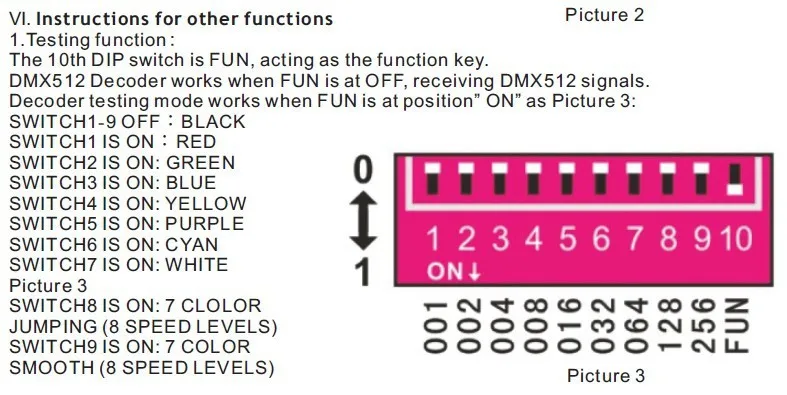

Operating instructions
