The milk fat content standardized in a direct standardization system. Standardized milk used for producing whole milk powder is not normally homogenized.

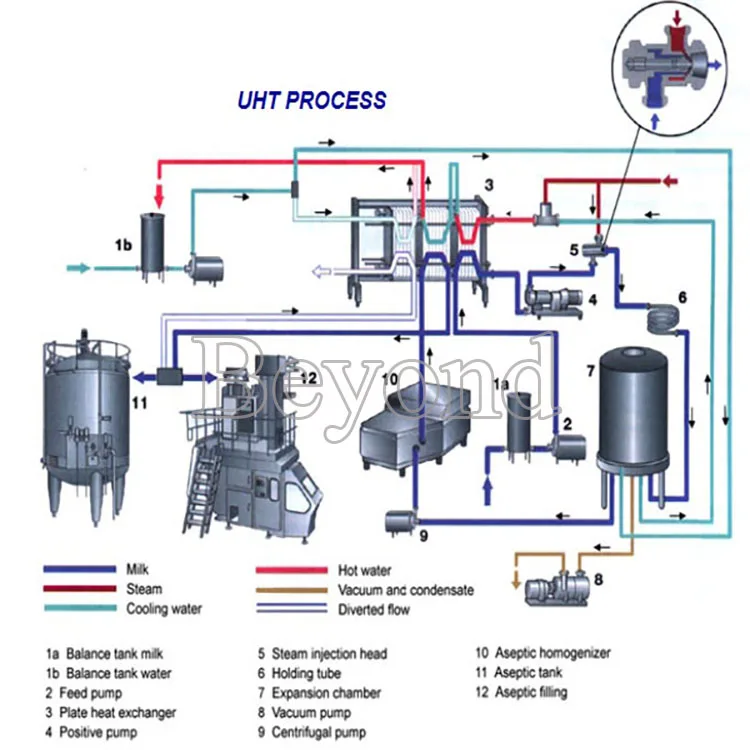

UHT stands for “Ultra High Temperature processing,” which is just another way of heating milk to kill bacterial spores. In the pasteurization process, the milk is heated to 72°C (161.6°F) for at least 15 minutes, whereas the UHT process heats the milk at 135°C (275°F) for one to two seconds. This flash of extreme heat is said to kill off any spores in the milk, and is currently a process that is being used for other products such as fruit juices, cream, yogurt, wine, and soups.
UHT milk tastes different than its pasteurized milk cousins — it tastes like it comes from a box — it tastes burnt. But the economic incentives behind producing, shipping, selling, and buying this type of milk is quickly making it the global standard.

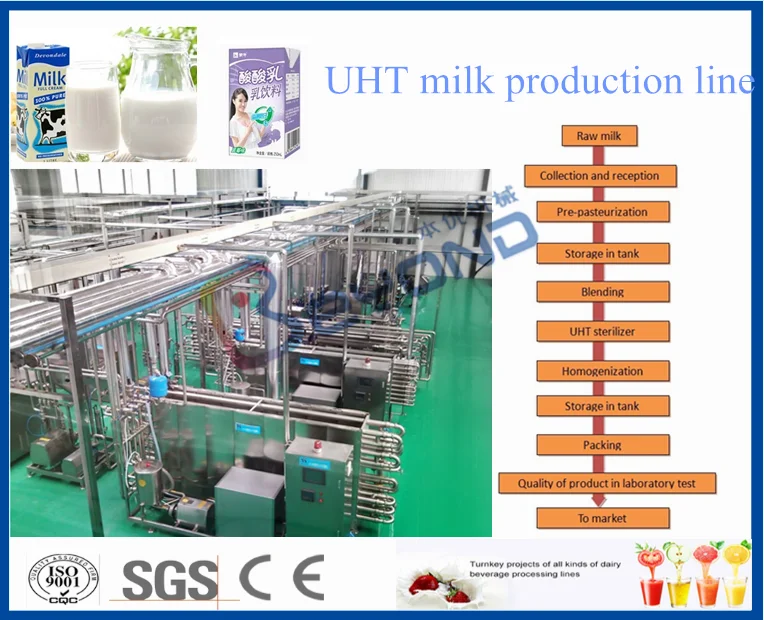

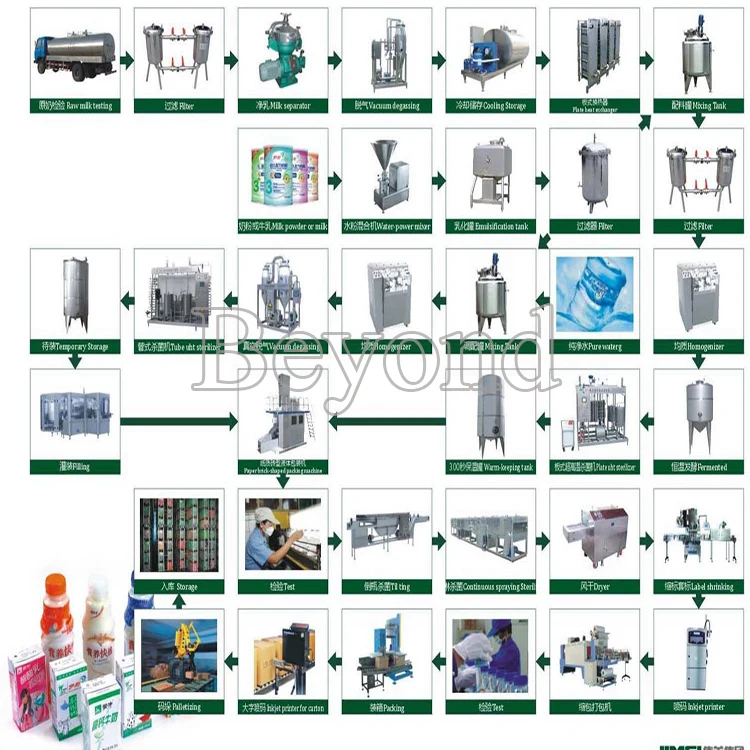

This milk production line is a turnkey project, which can produce several types of market milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents.
This milk production line raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST pasteurizer or UHT processing.
End product package of this milk production line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box,aseptic pouch.

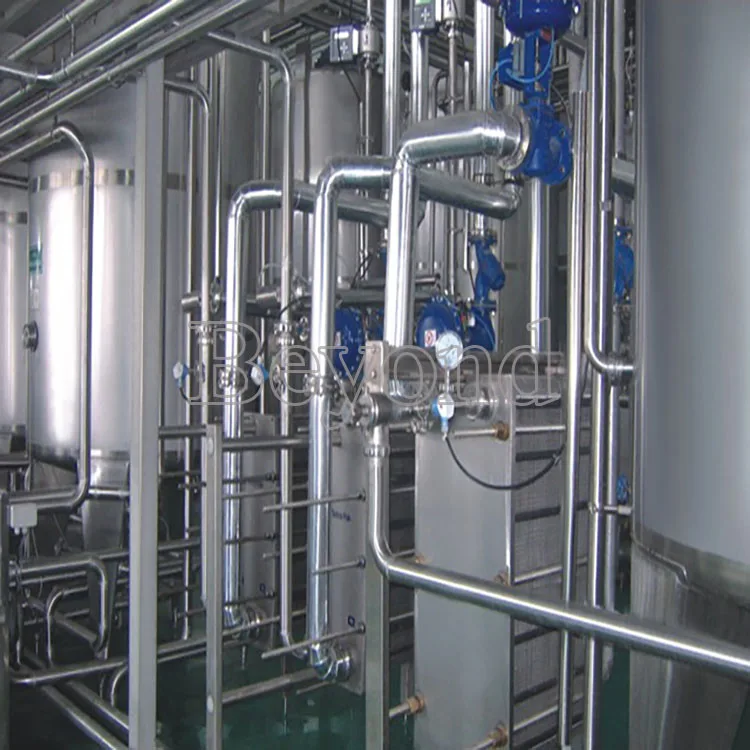

Milk Production Line Project Photos Show
milk blending system milk cooling system
pipe installation sugar melting system
milk temporary storage system spray retort
Equipment List Sample of Dairy Processing Line
| Equipment list of dairy processing line | |||
| No. | Name | Size | Main parameter |
| 1 | Milk reception and storage unit | ||
| 2 | Milk acceptor | 300L | SUS304 stainless steel, single layer, CIP spraying ball |
| 3 | Milk pump | 3T/H | SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished |
| 4 | Single piping filter | 3T/H | SUS304, single pipe, stainless steal filter element of 100 mesh |
| 5 | Milk storage tank | 1000L | SUS304, heat insulated, dimple pad jacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point |
| 6 | Milk pump | 3T/H | SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished |
| 7 | Blending unit | ||
| 8 | Storage tank | 500L | SUS304, heat insulated, dimple pad jacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point |
| 9 | Milk pump | 3T/H | SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished |
| 10 | Single piping filter | 3T/H | SUS304, single, stainless steal filter element of 100 mesh |
| 11 | Plate-type exchanger | 1.5T/H | SUS304, double pipes |
| 12 | High pressure homogenizer | 500L/H | 40MPa |
| 13 | Cream separtor unit | ||
| 14 | Milk separator | 500L/H | The content of dried skim milk (%)<0.03, the speed of rotator is 8000rpm |
| 15 | Buffer container | 100L | SUS304, with a cover, single layer |
| 16 | Buffer & cooling container | 100L | SUS304, with a cover, single layer |
| 17 | Milk pump | 3T/H | SUS304, with a cover, heat insulated, dimple pad jackets |
| 18 | Butter churner | 100L | SUS304 |
| 19 | Yogurt storage, ferment and filling unit | ||
| 20 | Temporary and ferment storage tanks | 500L | SUS304, heat insulated, dimple pad jacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point |
| 21 | Milk pump | 3T/H | SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished |
| 22 | Rotor pump | 1T/H | SUS304, hard alloy mechanical seal, adjustment speed by manual |
| 23 | Plastic pouch filling machine | ||
| 24 | Plastic cup-shaped filling machine | ||
| 25 | CIP system unit | ||
| 26 | Manual CIP system | 3×500L | SUS304, single clening circulation, with CIP pump of connected tanks |
| 27 | CIP return pump | 10T/H | SUS304, pump lift 24m ,hard alloy mechanical seal, inner shell mirror polished |
| 28 | Power system unit | ||
| 29 | Cold water equipment | 7000 kcale per hour, air cooling refrigeration | |
| 30 | Hot water boiler | 1000Kg/h, outlet temperature is 90°C | |
| 31 | Installation system | Stainless steel piping system,power piping system, electric controlling box, electric installation material, installation and commissioning | |
Raw material | Fresh cow(goat)milk and milk powder |
End product | Various kinds of pure milk, yogurt, flavored milk, milk beverage, butter, cheese etc |
Capacity | 2000 – 1000,000 liters per day |
End product package | Aseptic pouch, Gable Top box, plastic bottle, plastic cup, glass bottle,plastic pouch etc |
