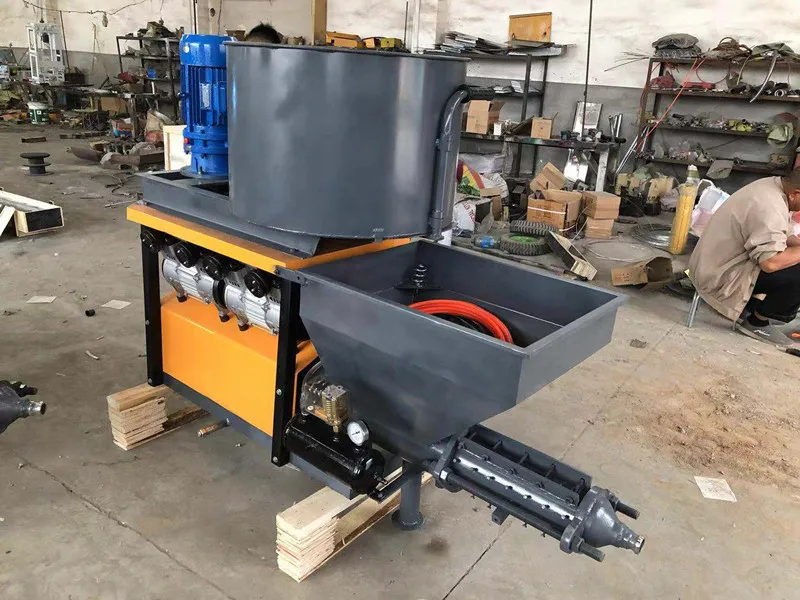

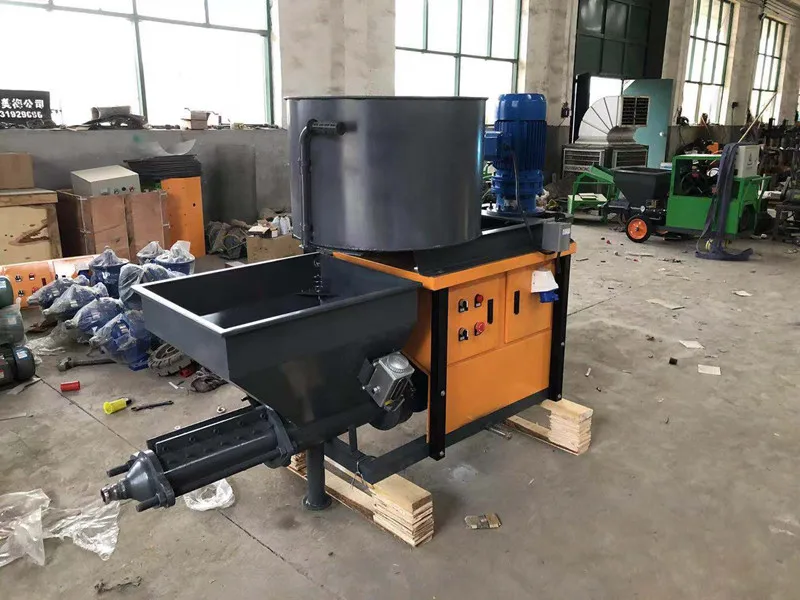

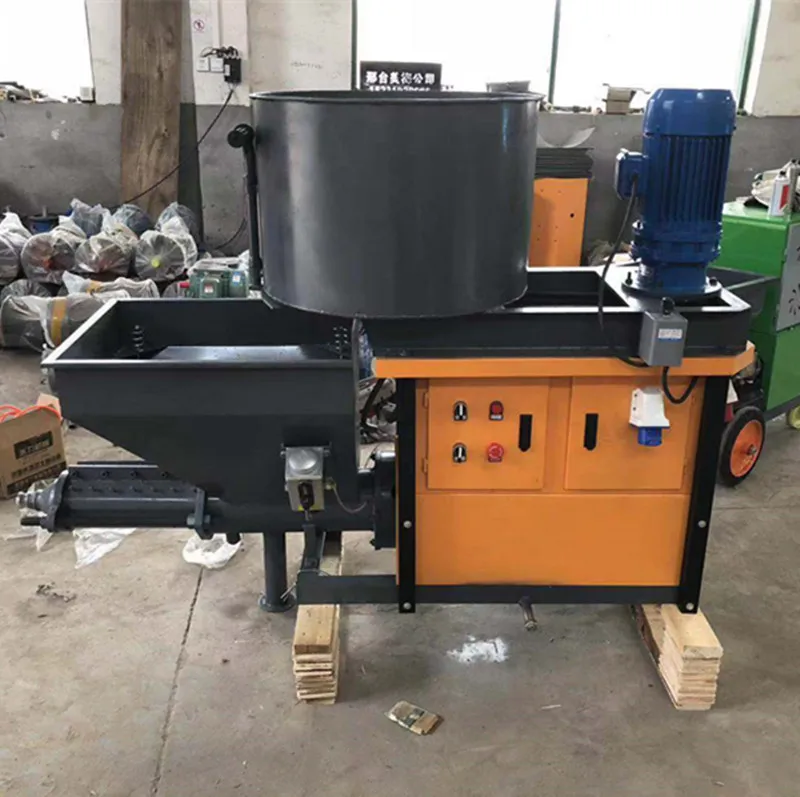

New product mixer and mortar spraying machine

Product Overview

Description

This mixer and mortar spraying machine is a full automatic machine to realize mixer mortar and spray mortar at the same time .It's widely used in construction industry .

1.> This mortar spraying machine adopt plunger type working principle replace the old stator and rotor working principlw. Don't need to keep changing the quick-wear parts and service life is longer than before .

2.> By using this spraying machine you can ajust the size of the flow ,tune out the best coating results .

3.>  gun connection with the feeding tube can be rotated for easy operation.>  Compact structure ,easy to handling on-site and accessories is cheap ,easy to maintenance .

4.> high efficiency, good quality.

Delivery pressure	6mpa
Conveying height	30m
Through particle size	<6mm
Conveying flow	5m³/h
Water:grey:	older than 0.7-1:1:3
The hopper volume	50L
The machine weight	340KG
Form a complete set of air compressor	0.3-0.6m³/h
Auxiliary nozzle	Φ32mm
Mixer power	2.2KW
Sprayer  power	7.5KW
Voltage	380V
