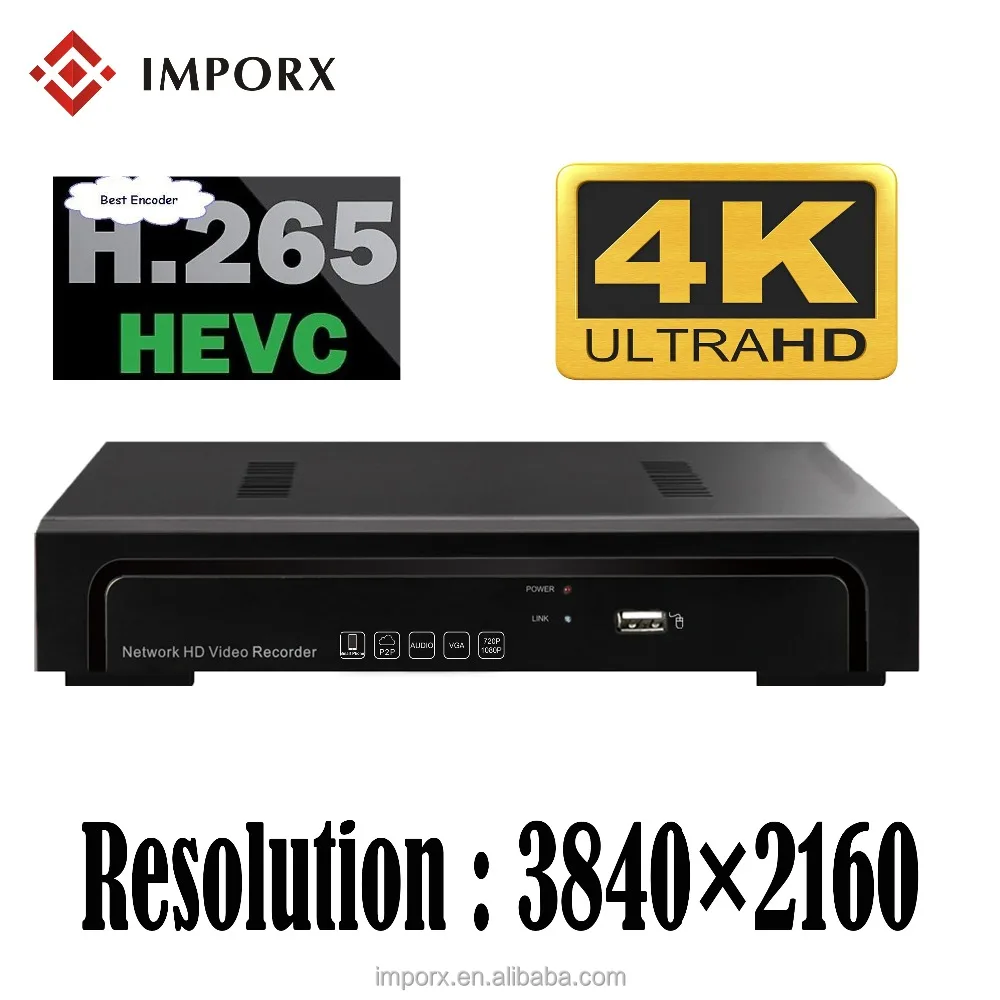

4K H.265 8ch POE NVR 1.5U 2HDD
US $192.00
8ch 4K H.265 NVR1U 1HDD
- Category: Surveillance Video Recorders >>>
- Supplier: Shenzhen Imporx Technology Co. Ltd.
Share on (60691555376):
Product Overview
Description
Features:
Ø Can conform to i8s,ONVIF standard and third-party IPC;
Ø Support GB2818 Protocol,ONVIF Protocol into platform;
Ø Support AEeye cloud service, can one key configure surfing;
Ø Support 4K HD network video preview,storage and playback;
Ø Support H.265,H.264 encode the front self-adaptive connection ;
Ø Support IPC centralize management,including IPC parameter configuration, information input/output,,audio intercom and upgrade,etc.;
Ø HDMI video output resolution up to 3840×2160;
Ø Fresh UI operating interface,support one key start recording function;
Ø Support I8S IPC many smart detection functions to insert and linkage ,such as cross area,enter area,leave area,area invade,wandering,goods left,goods lost,facial recognition,license plate,audio input abnormal,defocus and scene change;
Ø Support playback directly function,playback the current recording of the assigned channel under preview multi-screen to do playback at the same time;
Ø Max support 8ch playback simultaneously and multiple channel playback simultaneously;
Ø Support event,query,playback recording file;
Ø Support double users certification;
Ø Support HDD quota and HDD group storage mode,can allocate different saving space or cycle of recording for different channel;
Ø Support 1×SATA ports;
Ø Support NTP (network timing),SADP(IP auto search),Email(Email service),UPNP(plug and play);
Technological
Parameter type | Parameter | Parameter value |
Video & Audio Input | Network Video Input | 8ch network compress video input |
Network Video Connection Bandwidth | 80M | |
Audio Input | IPC composite Audio input | |
Video & Audio Output | HDMI Output | 1ch,Resolution:4K(3840×2160)/30Hz,1920×1080/60Hz |
Audio Output | 1×RCA port | |
Video & Audio encode parameter | Video Standard | H.265/H.264/MJPEG |
Recording Resolution | 12M/8M/5M/3M/1080P/720P | |
Decode Playback | Max support 4ch 1080P playback | |
Recording management | Record/Snapshot Way | Manual recording,timer recording,event recording,motion detection recording,alarm recording,motion detection recording/alarm recording,motion detection recording & alarm recording |
Playback Way | Time-phased playback,routine playback,event playback,external file playback,log playback | |
Backup Way | Routine backup,event backup,record cutting backup | |
HDD | HDD Port | 1×SATA ports |
Max Capacity | Each port supports Max 6TB HDD | |

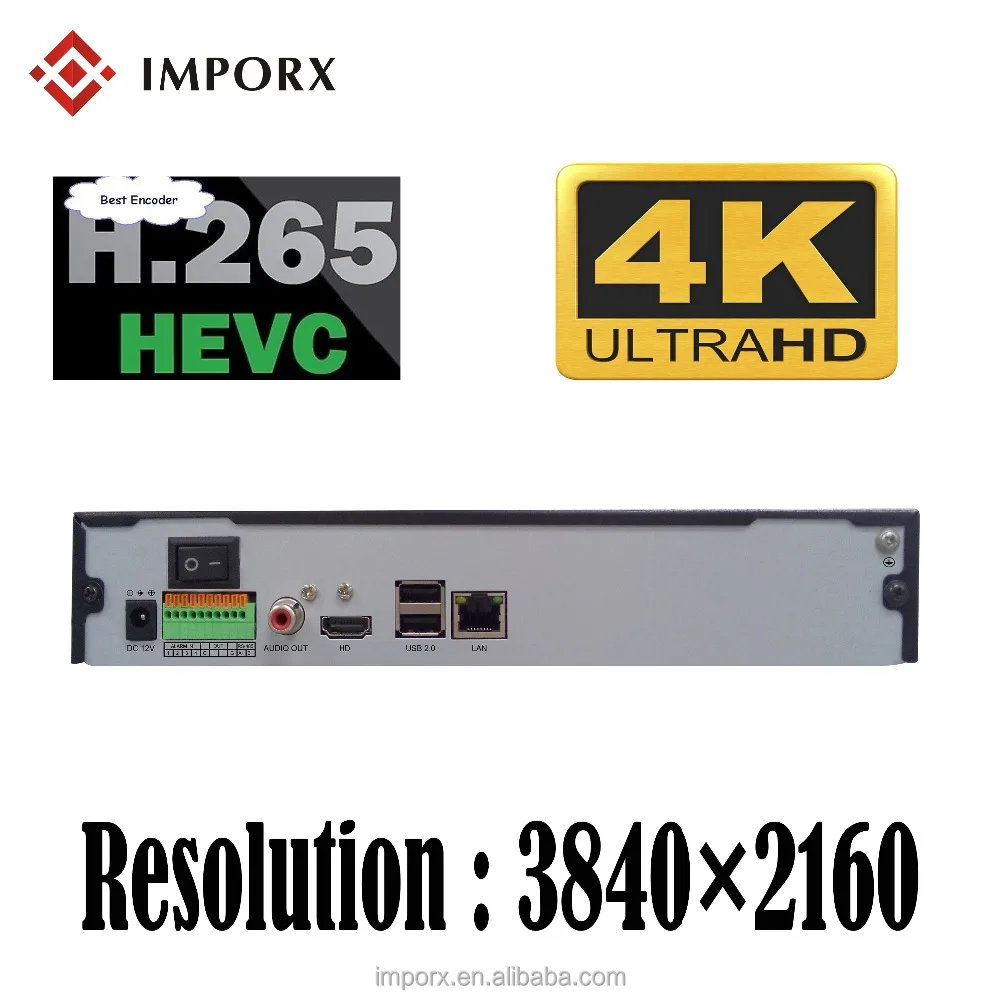

External Ports | Network Port | 1×RJ45, 10M/100M self-adaptive LAN port |
USB Port | 2 ports(1×USB2.0 port in front,1×USB2.0 ports in back) | |
Serial Port | 1× RS-485 | |
Alarm Input | 4ch alarm input,low electrical level effective,green connection line port | |
Alarm Output | 1ch alarm output,Relay touch (1A@24VDC), NO,NC can program | |
Network Management | Network Protocol | ONVIF(support 2.4 version),IPv4,UPnP( plug & play),NTP(Network Timing ),SADP(auto search IP address),PPPoE(dial-up),DHCP(auto search IP address)etc. |
WIFI | Can extend 4G | |
Others | Power Supply | 12V2A |
Power Consumption (without HDD) | <10W(without HDD) | |
Work Temperature | -10℃~+55℃ | |
Work Humidity | 10%~90% | |
Dimension | Equipment:260mm×220mm×43mm, Packing: 355mm×255mm×88.5mm | |
Weight(without HDD) | N.W.:1.5Kg;With packing:1.9Kg | |
Outside Carton | 10 pcs/carton. 525mm×455mm×365mm; Weight:20 Kg | |
Installation Way | Desktop Installation |
