8CH 6 в 1 xmeye dvr 1080p аналоговый DVR с поддержкой одного sata HDD цифровой видеорегистратор

Share on (62013485430):


Price:

Quantity:


Product Overview

Description


6 in 1 xmeye dvr 1080p analog DVR support one sata HDD digital video recorder



Product features





1.8CH 5-IN-1 DVR, compatible with CVBS, AHD, CVI, TVI, IPC


2.Support local hard drive to record and playback, maximum support 6TB hard drive


3.P2P service, easy with fast network, support multi-platform view(smartphone, PC,IE)


4.Dual stream design, separately make configuration in DVR or Web access. Sub stream for smooth remote control


5.HD video out with  and VGA port, maximum support resolution 1920*1080


6.Motion detection, support message push to phone, pc client and email


7.Maxium support 4 channels of 3MP ip cameras, compatible with ONVIF 2.0 protocol


8.4 channels of audio in, 1 channel of audio out, easy to audio and video recording


9.Support mixed connection with analog camera and ip camera, maximum support to connect 4 channels of 1080N and 4 channels of 1080p at a time


10.RS485 ptz port, support multiple ptz protocol


11.Support to alarm for any coincidence like video loss or no hard drive and so on.











Specifications
































































































































































































Model AVR7808LN
CPU HI3520D V300
Operation SystemEmbedded Linux Operating System
System SourceMultil-channels real time recording, playback and network operation
Operation Interface16 bit true color graphics operation interface, mouse and remote operation
Screen DisplayOne scene/four scene/eight scene/nine scene
Video FormatPAL(625TVL, 50fps) NTSC(525TVL, 60fps)
Image EncodingH.264 coding compression technology
Resolution1920*1080, VGA HD video out
Playback1080N, 1080P,3MP
Recording CapabilityAHD: 1080N IPC: 1080P, 3MP
Motion DetectionSupport motion detection recording, message push and email push
Voice IntercomSupport
Recording ModeManual recording, alarm recording, motion detection, time recording,
Local Playbackaccording to the channel type, 8 channels playback at a time
Recording SearchTime point retrieval, calendar retrieval, fact retrieval, channel retrieval
Analog4 x 1080N
Mixed Connection4 x 1080N + 4 x 1080P, 2 x 1080N + 6 x 1080P
IPC16 x 1080P, 4 x 3MP
Audio CompressionSupport G.711A audio compression, reply on the support of connected camera
Space OccupationVideo: CIF 4-5G per day, D1 8-12G per day, 960H 12-20G perday, 720P 20-30G per day, 960P 30-40G per day 1080P 40-70G per day
Audio: 691.2M per day
Space occupation of the video or audio files is just for reference, please apply with actual fact
Recording StorageHDD/Cloud storage
Backup ModeU disk, network backup, USB mobile hard disk, USB burning, SATA burning
Alarm InputNone
Alarm OutputNone

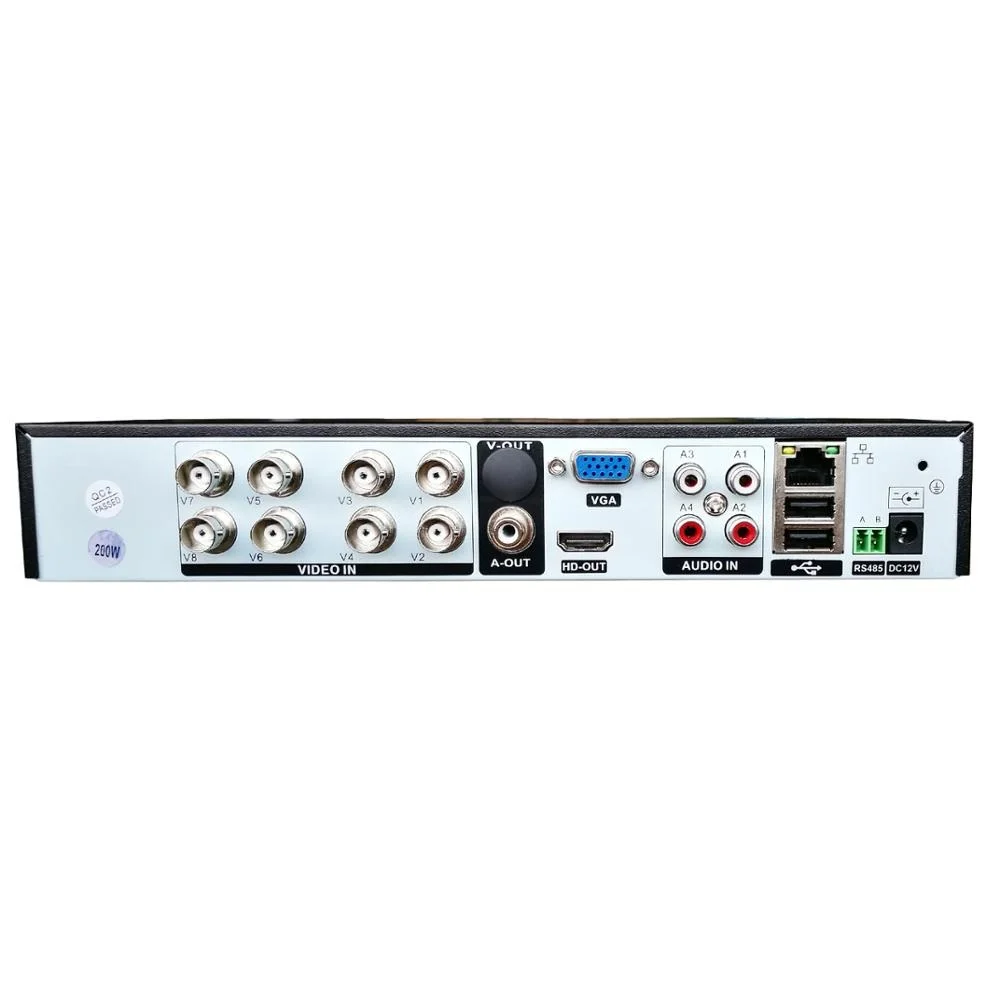

Video Input8 BNC port
Video Output1 VGA port, 1  port
Audio Input4 RCA port
Audio Output1 RCA port
Network InterfaceRJ45 10/100m Adaptive Ethernet port
PTZ1 RS485 Support multiple ptz protocol
Power consumption<15W(excluding HDD)
Temperature0℃—+55℃
Humidity10%—90%
Pressure86kpa—106kpa
USB Interface2 USB port
HDD Interface2 SATA port, 1x3.5 inch, 500GB-6TB
WiFi interfaceNone
Power supply12V 2A
Remote ControlSupport
Panel ButtonNot Support
MouseSupport
Size26cm*25cm*5cm
Weight0.90kg(excluding HDD)
gang controlsupport gang control, video wire can transmit video signal and PTZ control at one time, Hemisphere camera no need to connect S485 control line and wiring.
Compatibility compatible with Analog mode,AHD concentric HD access,Analog HD access,Hikvision concentric HDTVI, Dahua concentric HD access, network mode,network camera of alarmvip,Hikvision,Dahua, onvif protocol network camera.
