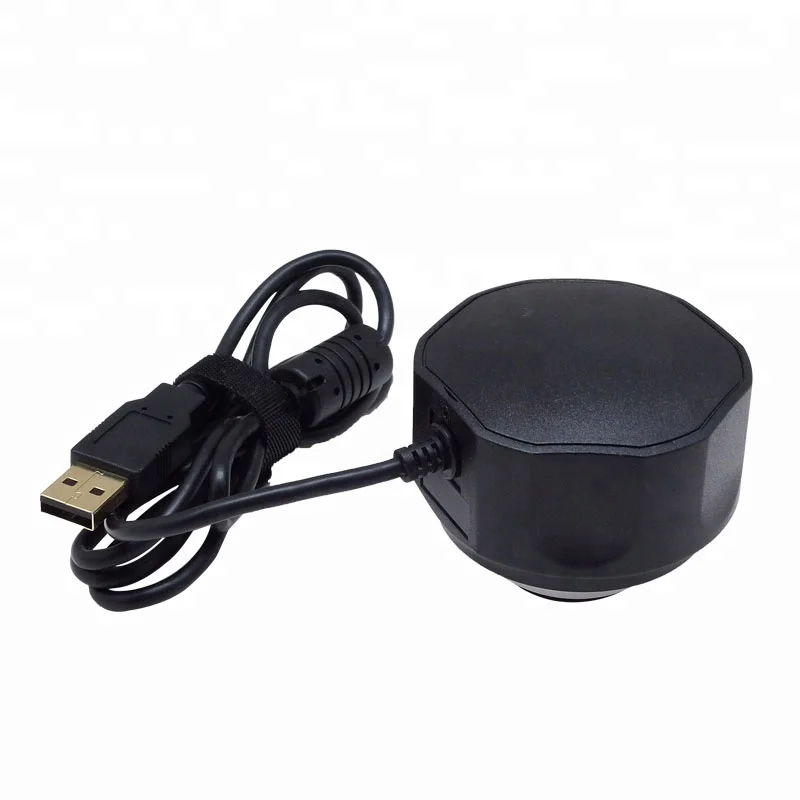

OPTO EDU A59.4910 M05 measuring ccd camera for microscope
OPTO-EDU A59.4910-M05 measuring ccd camera for microscope
OPTO-EDU A59.4910-M05 measuring ccd camera for microscope
OPTO-EDU A59.4910-M05 measuring ccd camera for microscope
OPTO-EDU A59.4910-M05 measuring ccd camera for microscope
OPTO-EDU A59.4910-M05 measuring ccd camera for microscope
OPTO-EDU A59.4910-M05 measuring ccd camera for microscope

OPTO EDU A59.4910 M05 measuring ccd camera for microscope

Share on (60691892056):


Price:$61.00 - $93.80

Quantity:


Product Overview

Description







Product Application

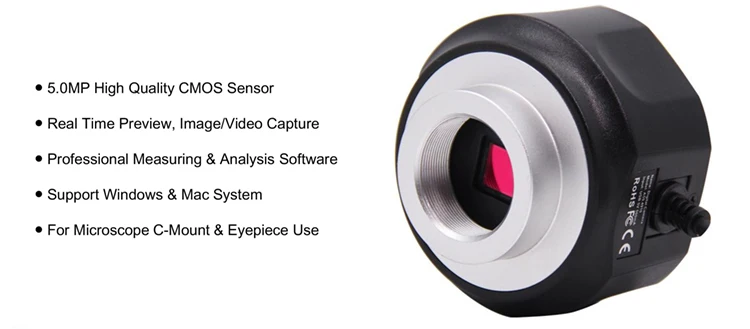

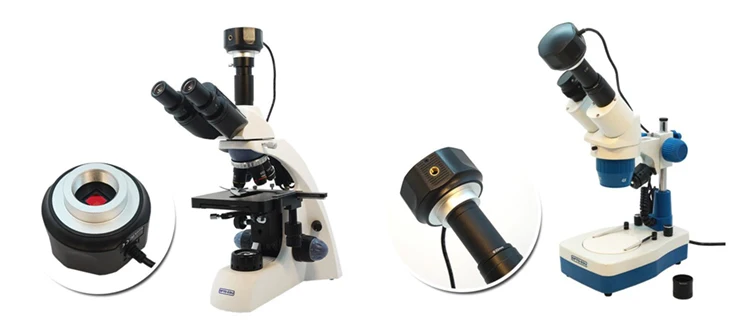

A59.4910 Microscope Camera can be connected to any biological microscopes, stereo microscopes, metallographic microscopes, etc. It has advantages of high frame rate, very nice color performance, clear image, convenient storage, widely used in industrial inspection, teaching research, clinical test, material analysis, machine vision, etc.

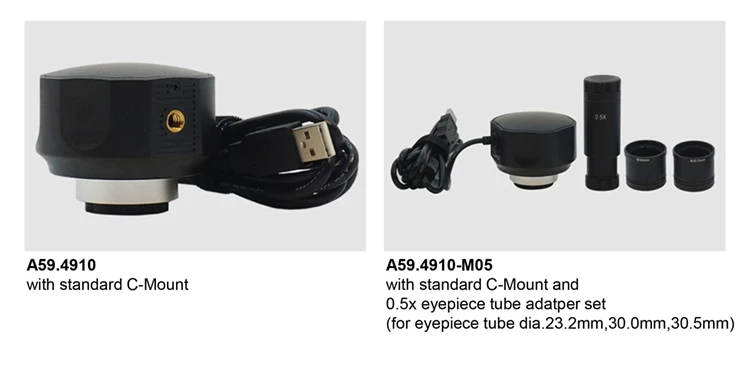

Models Optional






Products Description




Hardware Configuration
Imaging Sensor
Colorful
Scan Patterns
Scan Line By Line
The Maximum Resolution
2592 x 1944(5,038,848 Pixels)
Sensor Optical Format
1/2.5“ (5.70mm(H) x 4.28mm(V), Diagona 7.13mm)
Pixel Size
2.2μm x 2.2μm
Dynamic Range
70.1dB
ADC
12-bit, 8-Bit R.G.B to PC
SNRmax
38.1dB
Spectral Characteristics
380-650nm
Preview Modes
10FPS@2592x1944,
15FPS@1920x1080, 1600x1200
40FPS@1280x960, 1280x720, 1024x768, 800x600, 640x480
Binning Modes
1 x 1, 2 x 2
Exposure Capability
3.9ms - 320ms, Automatic And Manual
White Balance
Automatic And Manual
Software Interface
DirectShow
Capture Modes
Photos And Videos (MJPG and AVI)
Software Environment
Operation System
Microsoft®Windows®XP / 7 / 8 /8.1/10(32 & 64 bit)
Computer Configuration
CPU: Equal Or More Than The Second Generation Intel Core 2.8GHz
Memory ：2G Or More
USB Port：USB2.0 High Speed Port Or Compatible Port
Displayer ：Suggest 17 Inches Or Larger
Operating Environment
Operating Temperature
-10℃~ 50℃
Storage Temperature
-20℃~ 60℃
Operating Humidity
30~80%RH
Storage Humidity
10~60%RH
Power Supply
Direct-current , Supply By USB Port

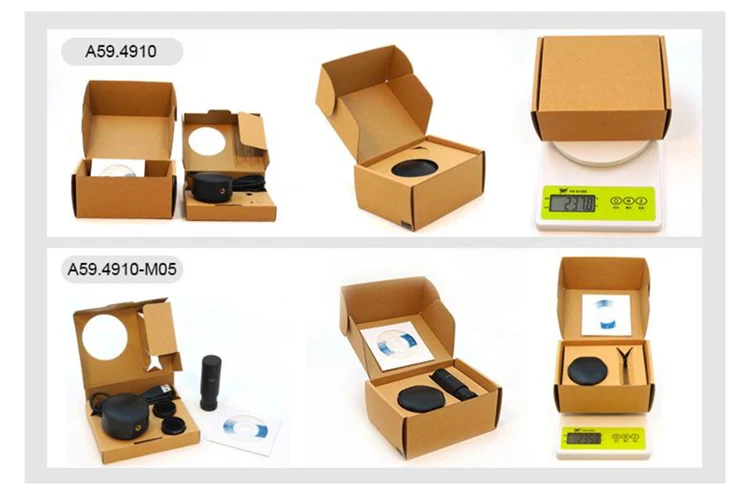

Product packaging






Company Profile




OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
