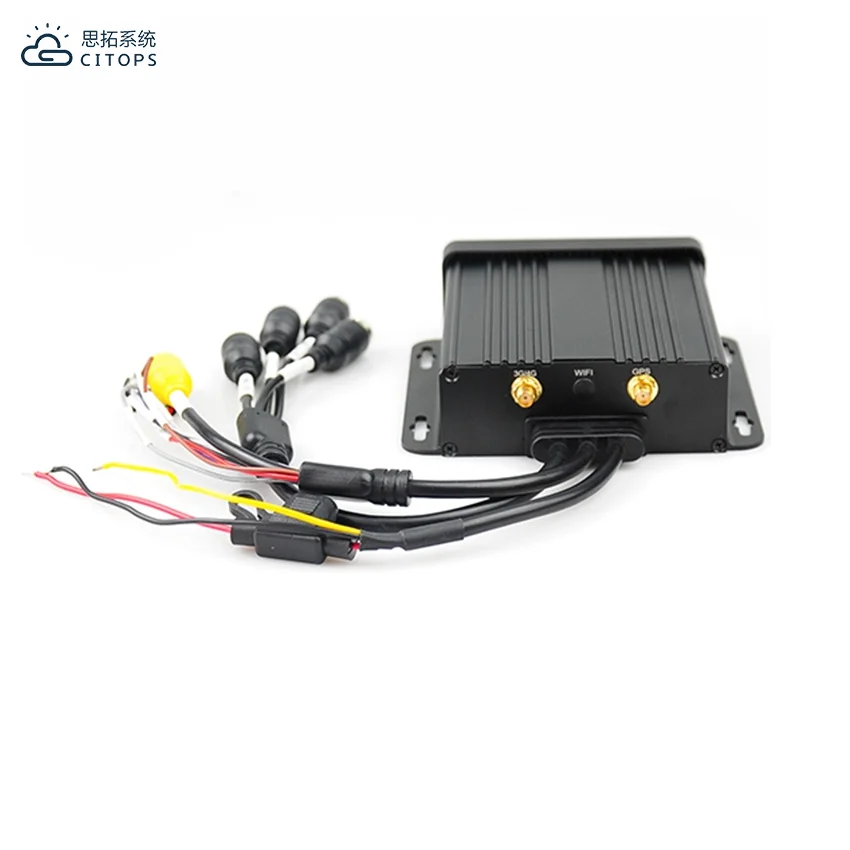

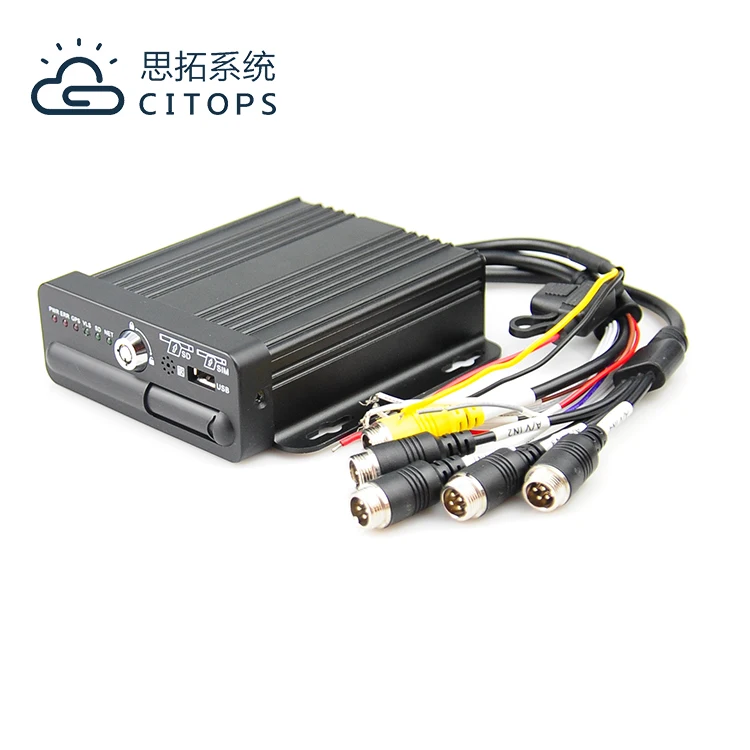

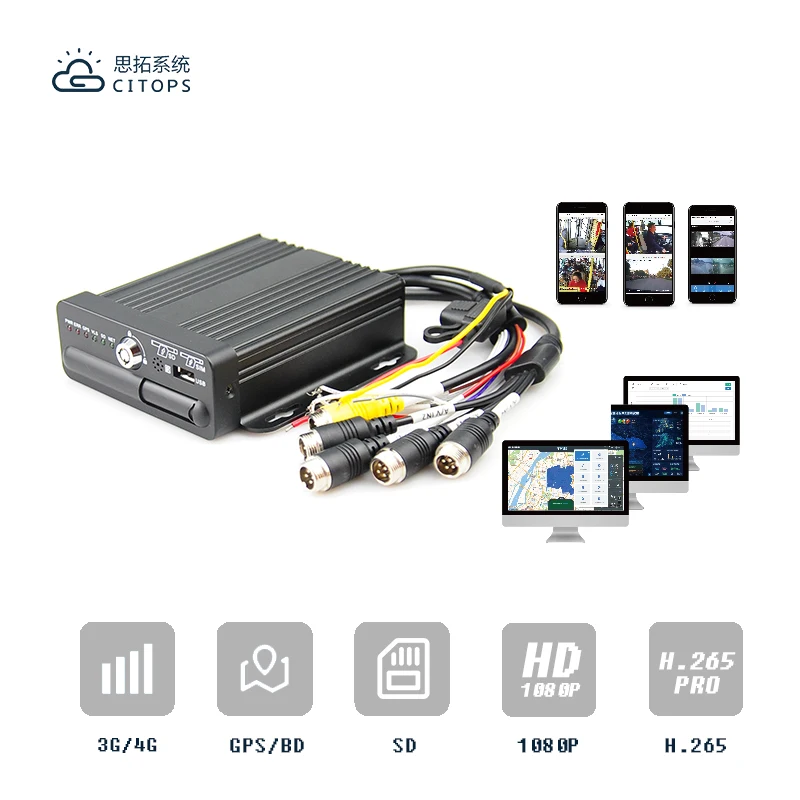

4ch mdvr 3g 4g gps car mobile dvr with PTT intercom function H.264 Max 1*256GB SD OEM 1ch CVBS
- Category: Surveillance Products >>>
- Supplier: Shenzhen Citops Systems Co. Ltd.
Share on (60692325524):
Product Overview
Description
Detailed Images
key features

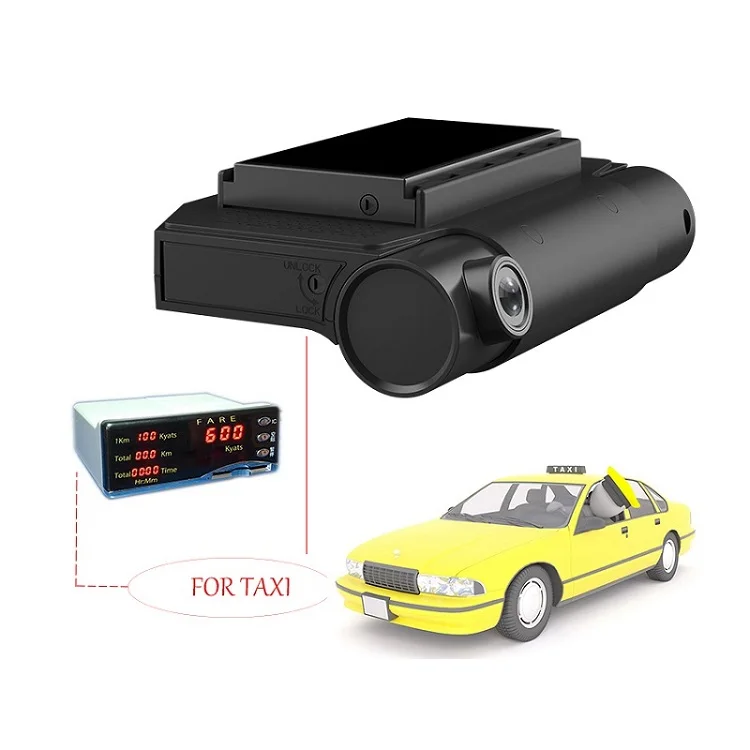

City Taxi Tracking AHD 720P GPS Wifi SD Storage 4CH MDVR H. 264 Max 1*256GB SD 12 Months CE FCC Rohs mobile dvr
Key features：
1. Industrial-grade design with super mini size, Economic type MDVR;
2. Wide voltage support over-load ,short circuit ,reverse connect protection;
3. Support SD card up to 256G for record storage;
4. 4G transmit; multiple grade image quality transmitting option;
5. GPS / BD global positioning;
6. Powerful software platform including remote live, playback, broadcast, talk and more;
Packing & Delivery
Specifications
Item | parameters | ||
Audio and Video Inputs | video input | 4ch AHD input | |
audio input | 2ch audio input channels | ||
Audio and Video outputs | video output | 1ch CVBS output | |
speech output | 1ch Audio output | ||
Audio and video parameter coding | video coding | H.264 Main Profile/H.265 | |
Resolution | 1080P/720P/D1 optional | ||
audio coding | default G.726,G.711A optional | ||
storage space | SD card | support 1 SD card | |
wireless network | 4G wireless | support 1 SIM card，optional：All the major communication modules in the world | |
locate mode | BD/GPS | Positioning, speed detection, time synchronization | |
Interface | USB | 1xusb2.0, for data export, upgrade use | |
serial port | 1 x RS232 | ||
I/O | 4 channel input Output 1 channel | ||
Physical Specifications | Size | 128.7mm（L）*128.7mm（W）*40mm（H） | |
weight | NW：0.5kg GW：0.8kg（Take M10C-SGNE-L as standard） | ||
work environment | operating temperature | -20〜+70℃ | |
operating humidity | 8%〜90%（No condensation） | ||
Other | operator schema | remote control | |
· Gravity sensor | built-in G-Sensor | ||
