OPTO-EDU A12.1305-B China Binocular Professional Laboratory Microscope
US $214.29-$266.67
Лучший Тринокулярный стереомикроскоп 7 45X с непрерывным увеличением и светодиодной подсветкой, инструмент для пайки печатных плат, микроскоп для наблюдения за минералами
- Category: Microscopes >>>
- Supplier: Shenzhen Ksl Electronic Equipment Co. Ltd.
Share on (60692350818):
Product Overview
Description
Overview

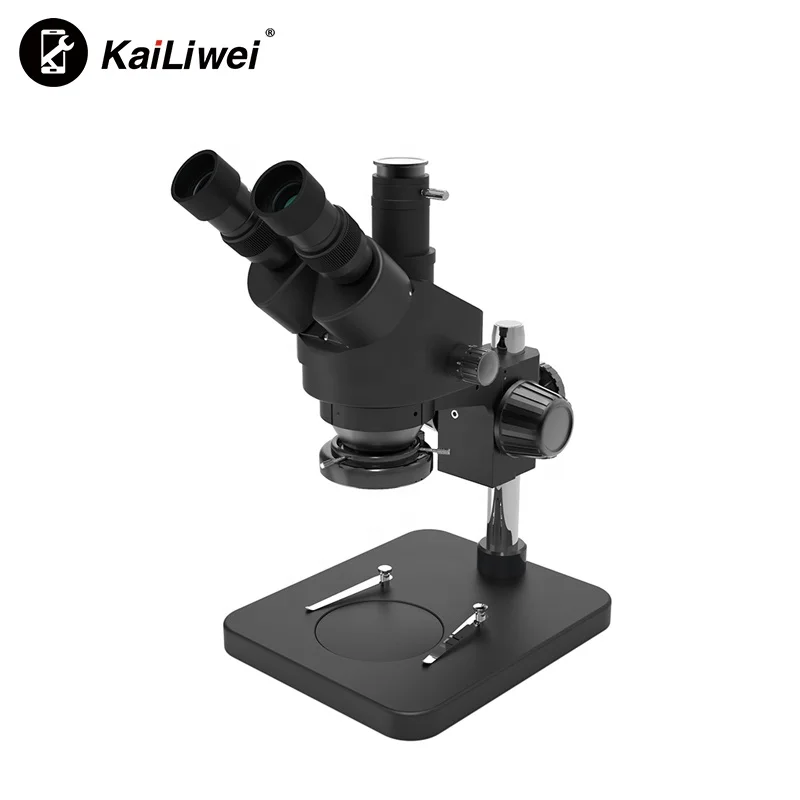

This(KSL Mobile Phone Repair 7-45X Continuous Zoom Stereo Optical Trinocular Microscope)is a fantastic Professional microscope that widely use in many aspect as below.
Industrial Inspection, Computer Parts inspection, Telecom module inspection, scientific teaching tool, Laboratory Research,Medical analysis, School Research tool, Insect dissection examination, Plant dissection examination, Skin examination, Scalp examination, Textile Inspection, Jewelry Inspection, Collections/ Coin Inspection, Printing Inspection, Reading Aid, Teacher Add as Project, Presentation and so on.
Industrial Inspection, Computer Parts inspection, Telecom module inspection, scientific teaching tool, Laboratory Research,Medical analysis, School Research tool, Insect dissection examination, Plant dissection examination, Skin examination, Scalp examination, Textile Inspection, Jewelry Inspection, Collections/ Coin Inspection, Printing Inspection, Reading Aid, Teacher Add as Project, Presentation and so on.
For Trinocular Microscope, they can Equipped with professional Camer to make you can easy to objuect and capture what you see in the micro world.
in the optical system | slanting path of rays changes a time of system, stereoscope angle 13°, 45° inclined observation |
Zoom ratio | 7X to 45X |

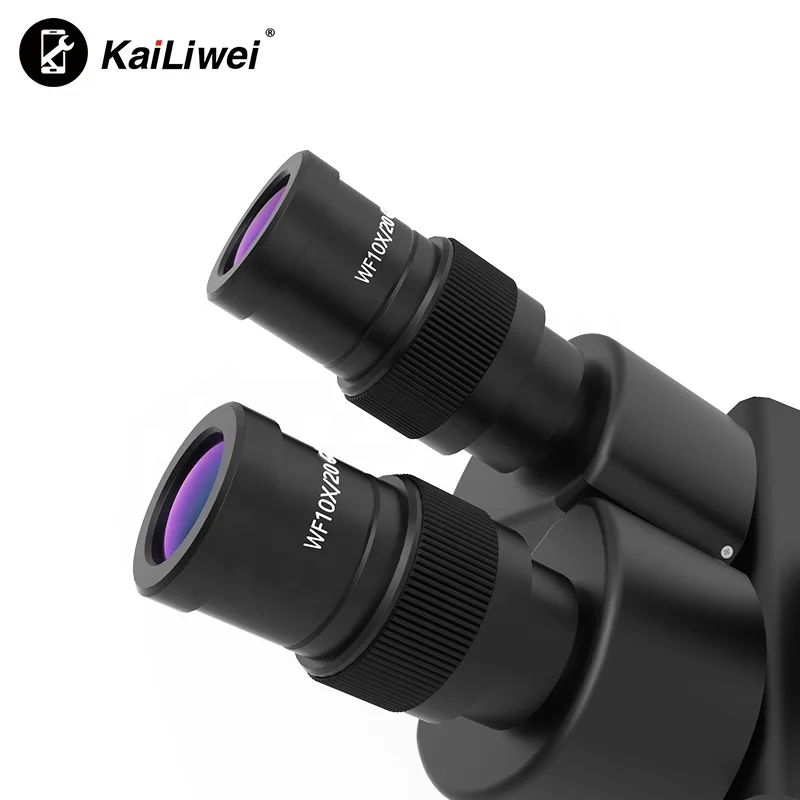

Eyepiece | WF10X/20mm Diopter Adjustment Eyepiece |

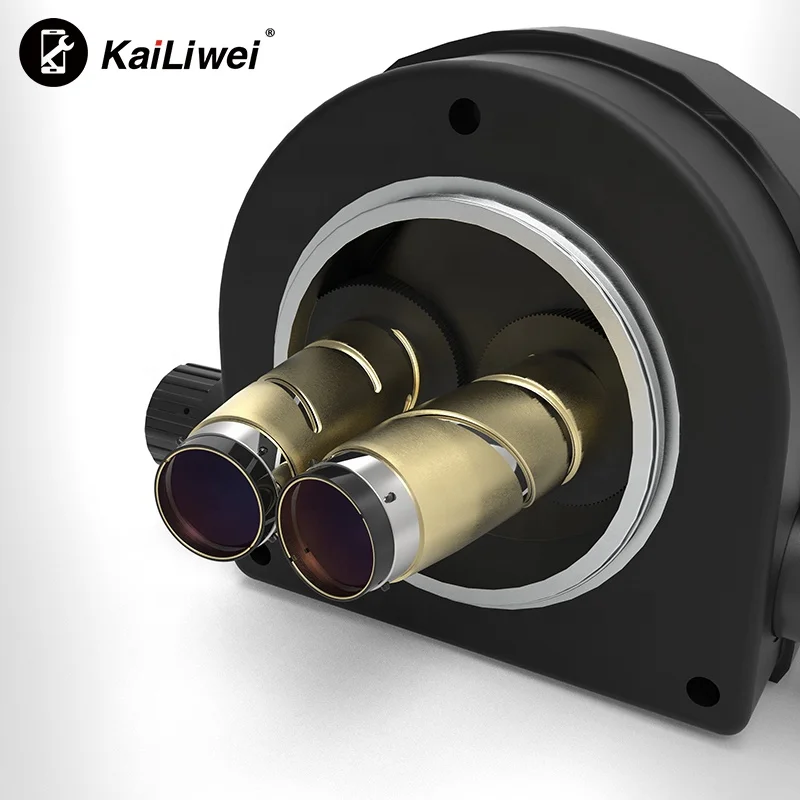

Objective | 0.7X to 4.5X |
Magnification | 7X to 45X |
Interpupillary distance adjustment range | 55-75mm |
Working distance | 105mm |
Pillar high | 240mm |
Diameter | φ32mm |
Base Size | 285x238mm |
Type | Optical |

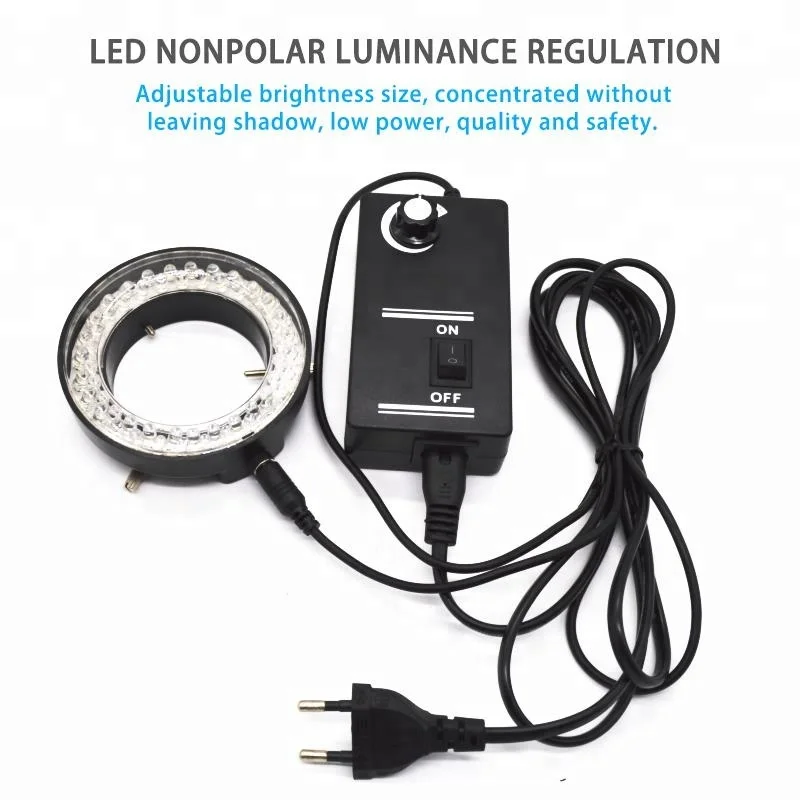

Light source | 56 LED ring Lights Adjustable brightness |
Color | White+ Black |
Product name | BEST Trinocular Stereo Microscope 7-45X Continuous zoom LED Lights PCB Solder Tool Mineral Watching Microscopio |
Objective | 0.7X-4.5X |
Eyepiece | WF10X/20mm |
Name | Smart Phone PCB Repair |
Customized support | OEM, ODM, OBM |
Function | pcb, inspection, industrial |
Specification

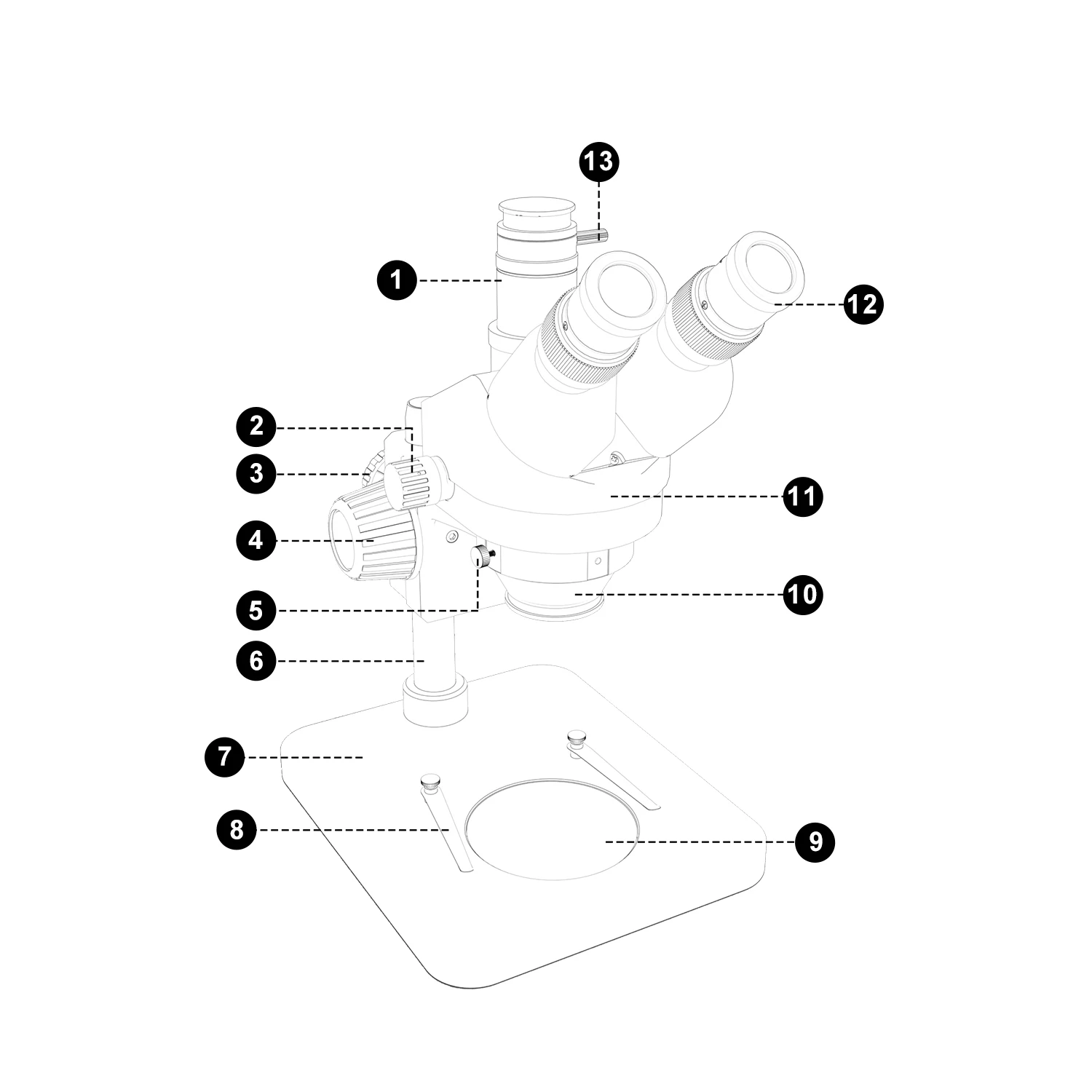

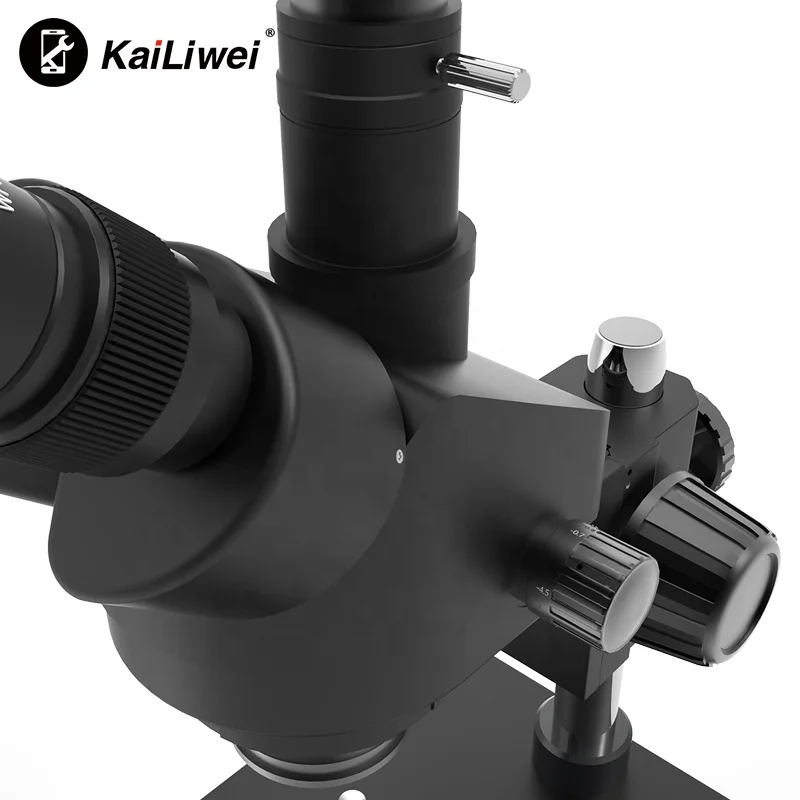

1 Camera adapter相机适配器 2 Dimming Knob灯光亮度调节
3 Up/Down Knob固定旋钮 4 Zoom control knob调焦手轮
5 Head Lock-screw 镜体锁紧螺钉 6 Round Column圆立柱
7 BASE 底座 8 clip压片
9 black and white plate黑白板 10 objective lens 物镜
11 Head 显微镜镜体 12 Eyepiece目镜
13 camera set screws相机固定螺丝

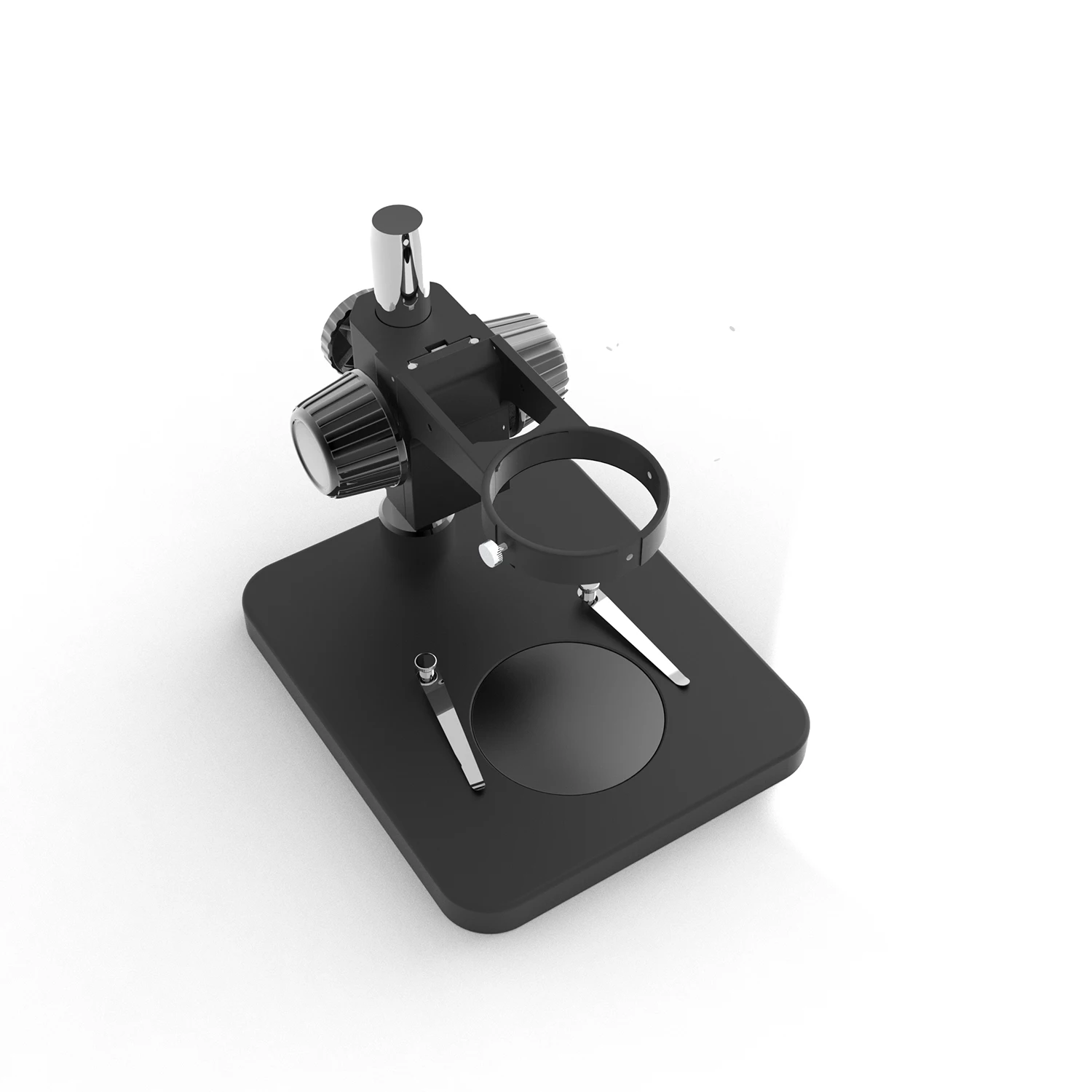

支架参数 Support parameters
立柱孔径：φ32m
Column aperture: Φ32mm
镜体孔径：φ76mm
Lens aperture: Φ76mm
中心距：155mm
Center distance: 155mm
升降范围：50mm
Lifting range: 50mm
底座参数The base parameters
立柱高：240mm
Column height: 240mm
直径：φ32mm
Diameter：φ32mm
配有压片和φ95mm 黑白板
Equipped with pressing tablet and Φ95mm black and white
plate
plate
底座：200x255x22mm
Base: 200 x255x22mm
不同目镜匹配不同同物镜的放大倍率
Different eyepieces match different magnifications of the same objective lens
Eyepiece 目镜 | Standard configuration 标准配置 | 附加大物镜 | ||||||||||||
0.5X | 1.5X | 2X | ||||||||||||
Working distance100mm 工作距离100mm | Working Distance 工作距离165mm | 工作距离45mm | Working Distance 工作距离30mm | |||||||||||
Magnification 放大倍率 | Field of View 视场范围 | Magnification 放大倍率 | Field of View 视场范围 | Magnification 放大倍率 | Field of View 视场范围 | Magnification 放大倍率 | Field of View 视场范围 | |||||||
10X/20 | 7X | 28.6 | 3.5X | 57.1 | 10.5X | 19 | 14X | 14.3 | ||||||
45X | 4.4 | 22.5X | 8.9 | 67.5X | 3 | 90X | 2.2 | |||||||
15X/15 | 10.5X | 21.4 | 5.25X | 42.8 | 15.75X | 14.3 | 21X | 10.7 | ||||||
67.5X | 3.3 | 33.75X | 6.7 | 101.25X | 2.2 | 135X | 1.7 | |||||||
20X/10 | 14X | 14.3 | 7X | 28.6 | 21X | 9.5 | 28X | 7.1 | ||||||
90X | 2.2 | 45X | 4.4 | 135X | 1.5 | 180X | 1.1 | |||||||
Product Description
packing list

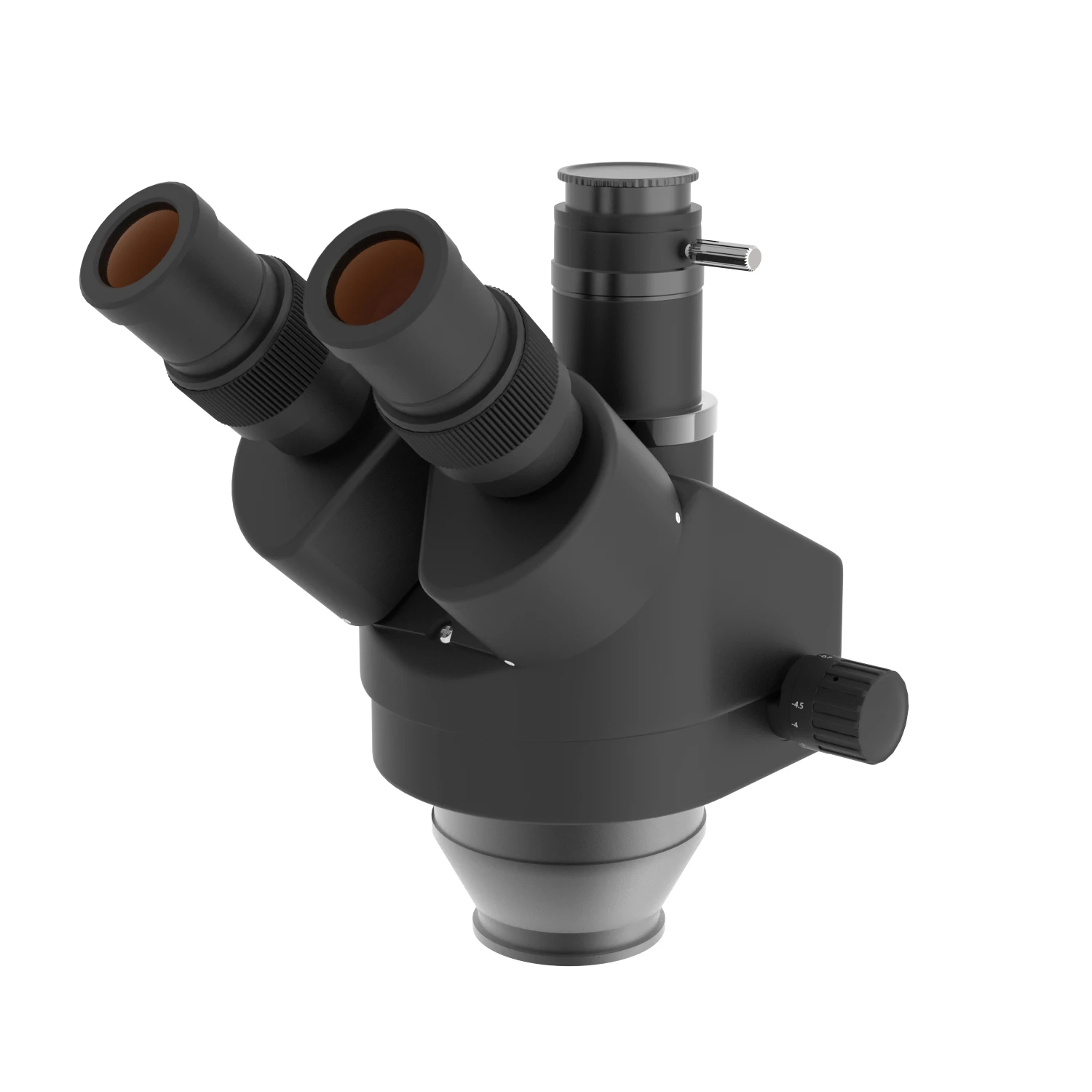

1.One 7x~45x Zoom Stereo Trinocular Microscope Head
2.One Pair of Super Widefield High-Eyepoint WF10X/20 Eyepieces
3.One metal repair pad with anti temperature round table
4.One Focusing Rack
5.One Pair of Eye-guards
6.One Dust Cover
2.One Pair of Super Widefield High-Eyepoint WF10X/20 Eyepieces
3.One metal repair pad with anti temperature round table
4.One Focusing Rack
5.One Pair of Eye-guards
6.One Dust Cover
Packing & Delivery
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Our Services
1.We Will provide you User manual in English or operating videos for free ;
2.24 hours technical support by email or vedio call via wechat or skype;
3. Free training to make sure you master the operating of our products;
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
2.24 hours technical support by email or vedio call via wechat or skype;
3. Free training to make sure you master the operating of our products;
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
