guangzhou jasu pet single stage stretch blow moulding machine for no smell plastic material Food non toxic grade
- Category: Injection Molding Machine >>>
- Supplier: Guangzhou Jasu Precision Machinery Co. Ltd.
Share on (60693069571):
Product Overview
Description
Product Description

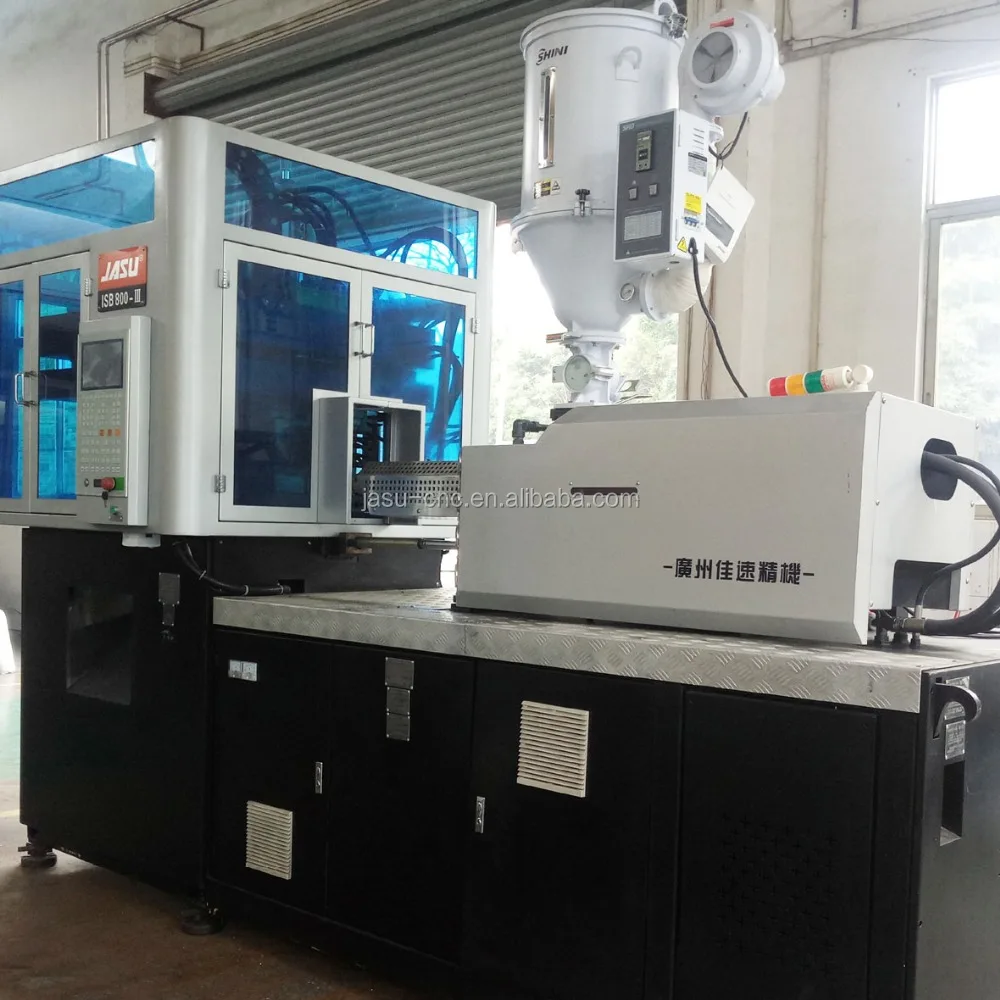

SINGLE STAGE INJECTION STRETCH BLOW MOLDING MACHINE: ISB 800A(H)-3
1.HIGH PERFORMANCE CLEAN & Nice
2.HiGH EFFECTIVE Without waste
3.HIGH ENERGY SAVING
MACHINE PARAMETER:
Model | ISB 800A(H)-3 | |
| Injection Part | ||
| Screw Diameter | 50mm | |
| Screw L/D Ratio | 20.5:1 | |
| Screw Speed | 0-150RPM | |
| Theoretical Injection Capacity | 481cm3 | |
| Injection Pressure | 176Mpa | |
| Max. Hydraulic Pressure | 140Kg/cm | |
| The Actual Injection Quantity(PS): | 452g(ps)/8Oz | |
| Screw Stroke: | 245Mm | |
| Clamping Part | ||
| Blow Clamping Force: | 80Kn | |
| Clamp Tonnage: | 600Kn | |
| Wheel Diameter: | 800mm | |
| Max. Height of Bottle: | ISB:200/IB:260 | |
| Open Vertical Mode Trip: | 430mm/530mm | |
| Others | ||
| Max. Pump Pressure: | 16Mpa | |
| Motor Oil: | 18.5Kw | |
| Electric Power: | 12.2Kw | |
| Oil Tank: | 400L | |
| Overall Dimension(L*W*H): | 4.10m*1.45m*3.0m | |
2. REMOVE MOLDING DISADVANTAGE FACTOR LEAST MOLDING STEP.
JASU injection blow molding machine advantage, we are national patent products :
1)Electrical servo motor drive,avoid hydraulic dirty product.
2) Full automatic control ,easy operation.
3) material barrel and hot runner temperature control accurately by PIT
4) save more cost than traditional machine.
5) compact structure. Less space needed
6) Injection:
Hot runner and temperature control device and standard configuration only change mold to make a new product.
Blow:Hydraulic mold clamping,core insert,blow and bottom molding are standard configuration.
Product release :Ejector is a standard device
7) PROVIDE THE WHOLE SERVICE FOR MOLDING DESIGN AND MANUFACTURE.
If you have interesting in our products, please click her to send us a inquiry , we have someone who tell you solutions products and professional team to handle your business from pre-sale to after-sale. incluing : comment feedback ,delivery time confirmation , shipping issue, loading cargoes and custom clearance. Thank you !
https://jasu-cnc.en.alibaba.com/?spm=a2700.details.pronpeci14.1.34ec4cd1XtJp6r
Packaging & Shipping
PACKAGE : WOVEN PACKAGE WITH FILM EXPORT: BY OCEAN; CONTAINER
CUSTOM CLEARANCE :
Our Services
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our Factory. * Shipping Team support
Company Information
GUANGZHOU JASU MACHINE CO., LTD Specialize in manufacturing one step INJECION BLOW MOULDING MACHINE .we supplied to the high quality, high precision plastic containers making machine with low cost and low energy consumption.
More than 100 employees and 30 professional technicians dedicate themselves to JASU brand series machines, our R&D department devotes to constantly developing new blow technology.We have set up 30 representative offices and 24hours maintenance service network throughout China.
JASU established 2003 with a high reputation from customers china and abroad, specially the oversea customers from Southeast Asia, Middle East, Africa, Europe, South America, etc. At the end of 2014, the export amount took up 60% of the yearly sales.
we are Located in Pearl River delta area, closing to vessel port and air transportation services, special near HONGKONG air port, we have the competitive advantage of a fast delivery system and centralized supply chain center.We sincerely wish to invite the trade partners and import buyers to visit our showroom, as well as the workshop, to discuss the future cooperation.
