Product Overview

Description



Product Description

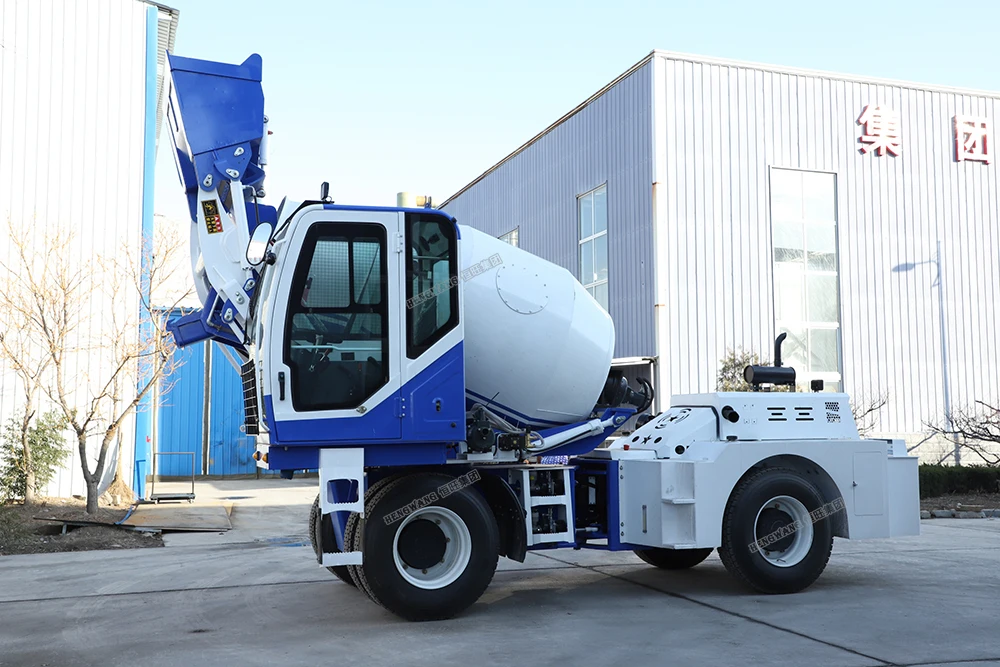

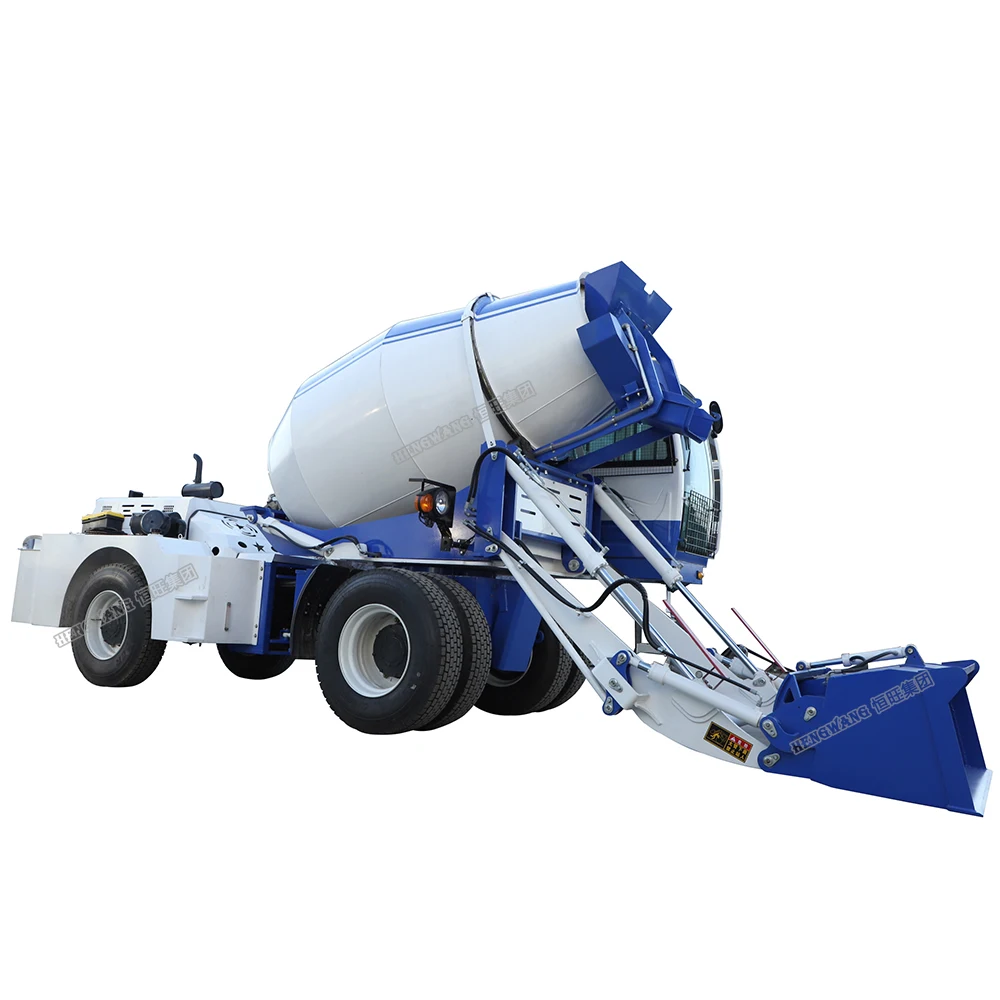

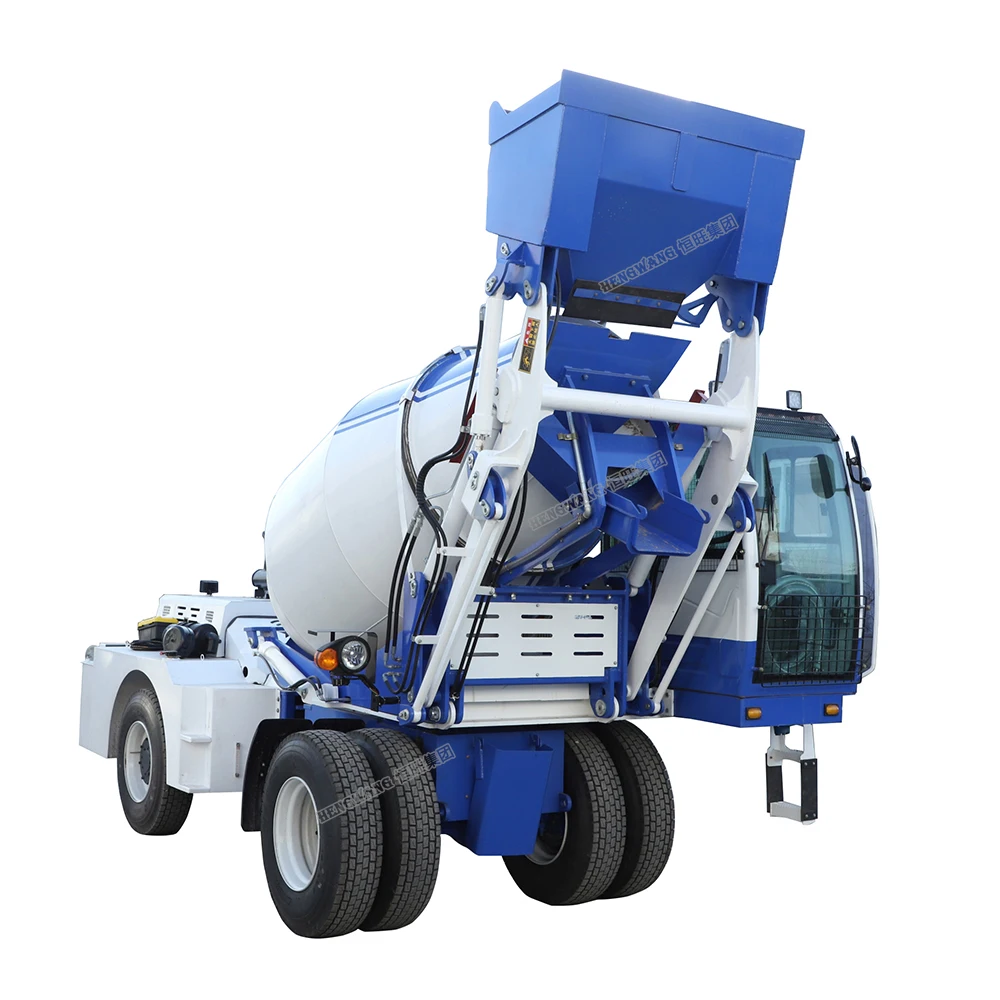

HWJB350 Concrete Mixer Truck Production Characteristic
* Italy Leading Design，Automatic Feeding Mixing System
* Simple And Convenient Operation
* High Efficiency Output，Save Time And Labor，Save Cost
* The Perfect Combination Of Mixing Truck And Loading Car
* 180 Degrees With A Rotary Stirring Tank，Two-Way Unloading




Specifications
Unit
Parameter
Model
/
HWJB350
Actual stirring capacity
m³
3.5
Rotary drum capacity
m³
3.6
Degree of bias
°
16
Rotational speed
r/min
10-20
Direction of rotation

Feed:clockwise output:counter clockwise
Mixing drum blade

Two sets of spiral blades and four sets of auxiliary blades
Slump of concrete
mm
70-260
Hydraulic Power Transmission System
Pump model

CBGV-4025
Hydraulic motor model

BM5-400
Reducer ratio

01：24
Water Supply
Tank capacity/ water supply form
L
540/ automatic timing water supply mechanism with automatic timing
The main performance parameters of the chassis and the engine
Engine type / displacement
L
CF4C100T-Z-13B2
model

Straight injection type four stroke water cooled supercharged diesel engine
Rated power
kw/r/min
95KW/2400
Max torque
N.m/r/min
380/1500-1800
Max running speed
km/h
24
Min steering radius
mm
4500
Climbing capacity
%
26
Tire

16/70-20
Driving way

4×4
Weight
kg
7500
Maximum load capacity
kg
7800
Whole machinery weight
kg
15300
Overall size(L*W*H)
mm
6650*2600*3200
The wheelbase
mm
3000
Bucket capacity
m³
0.6

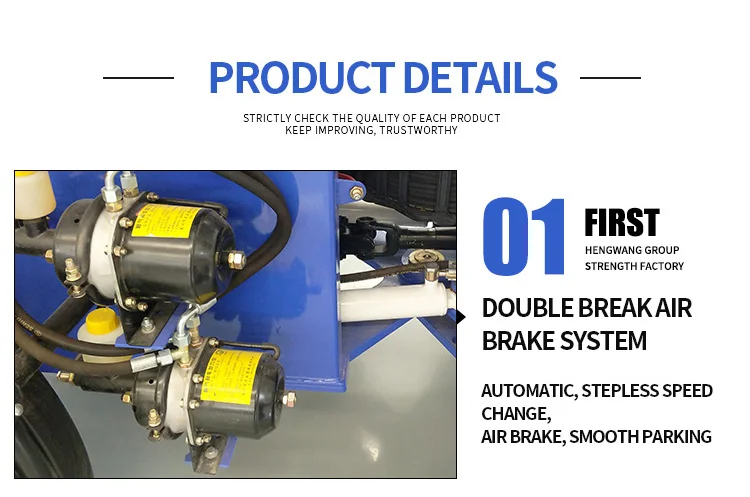

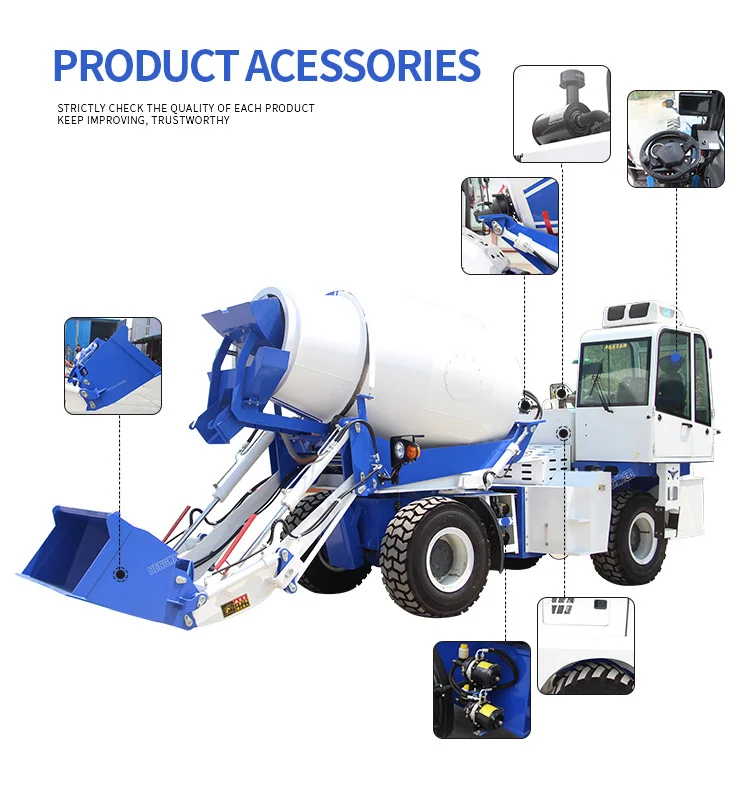

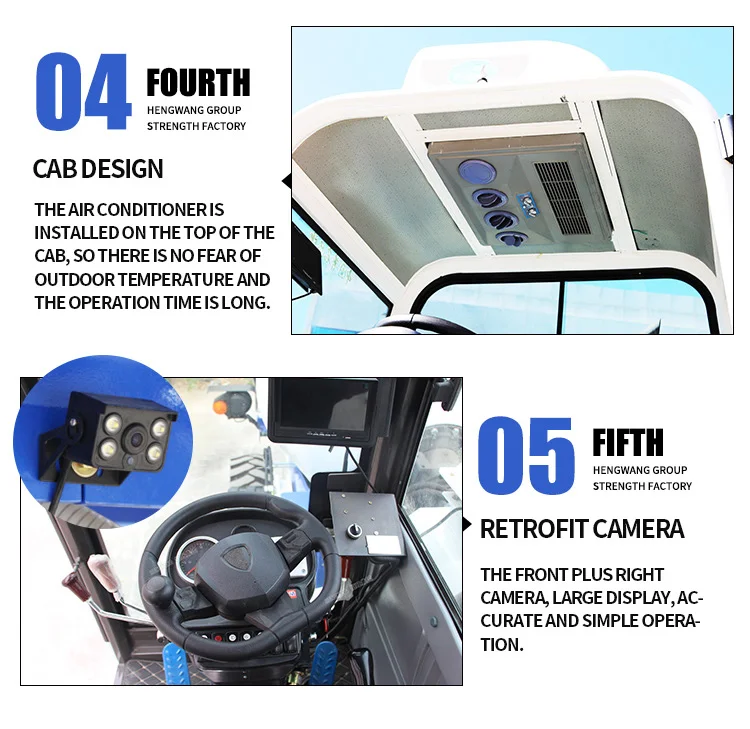

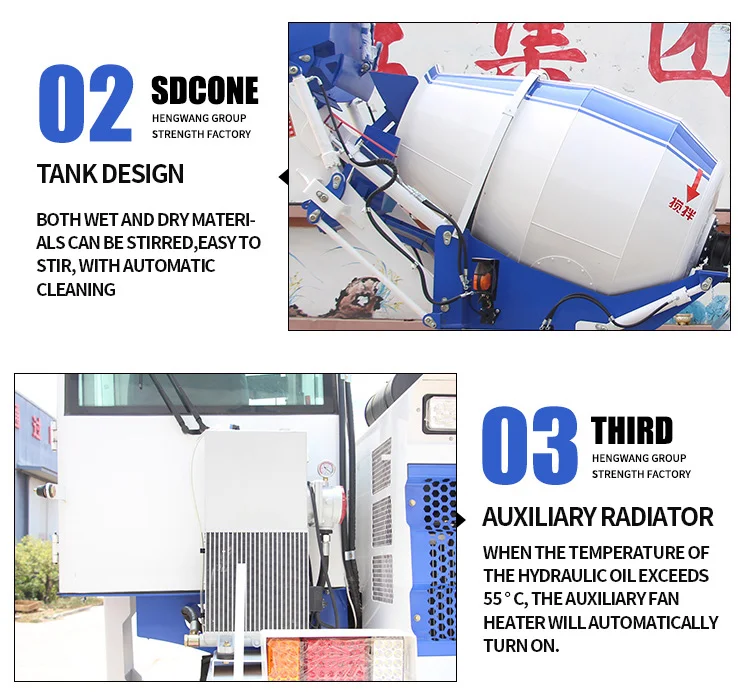

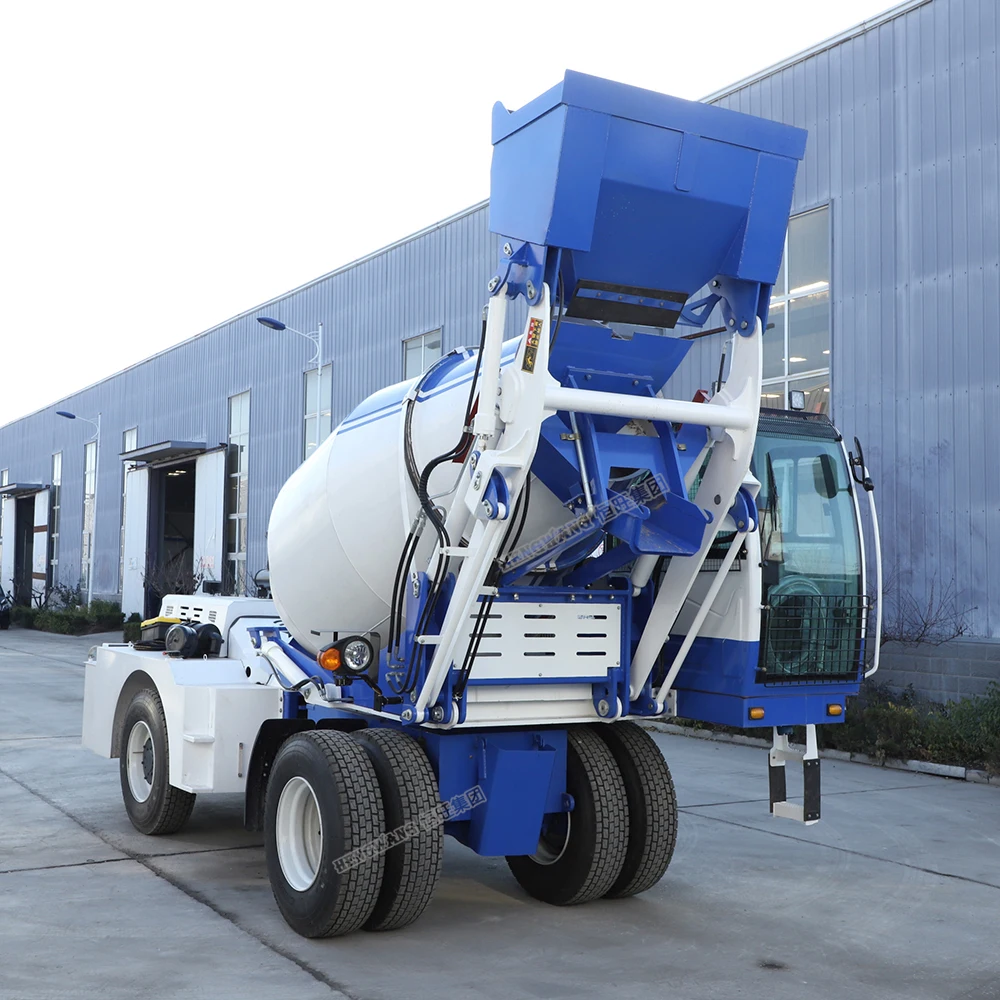

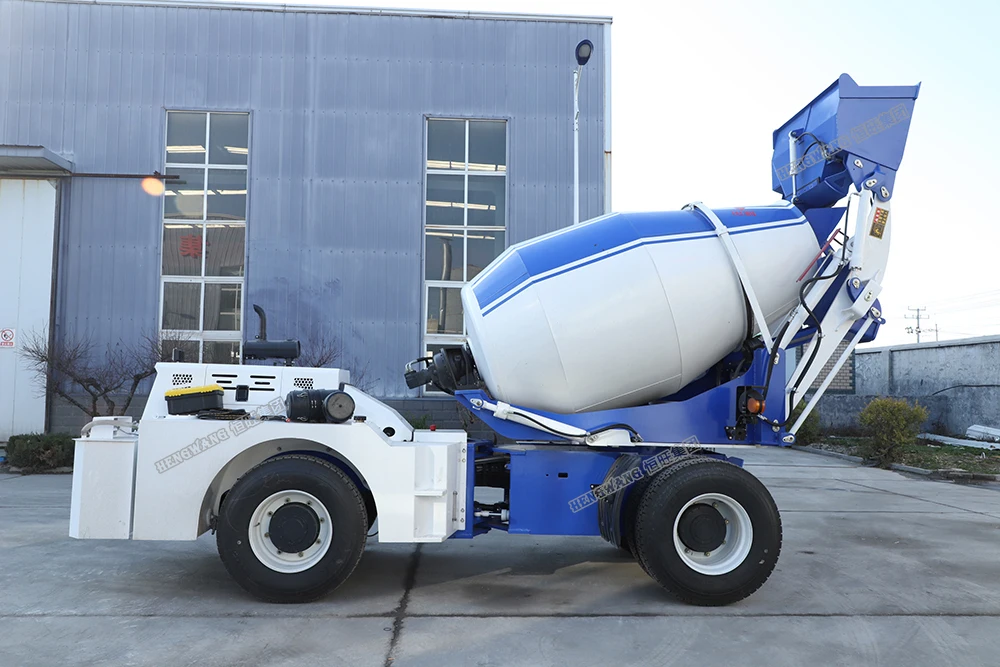

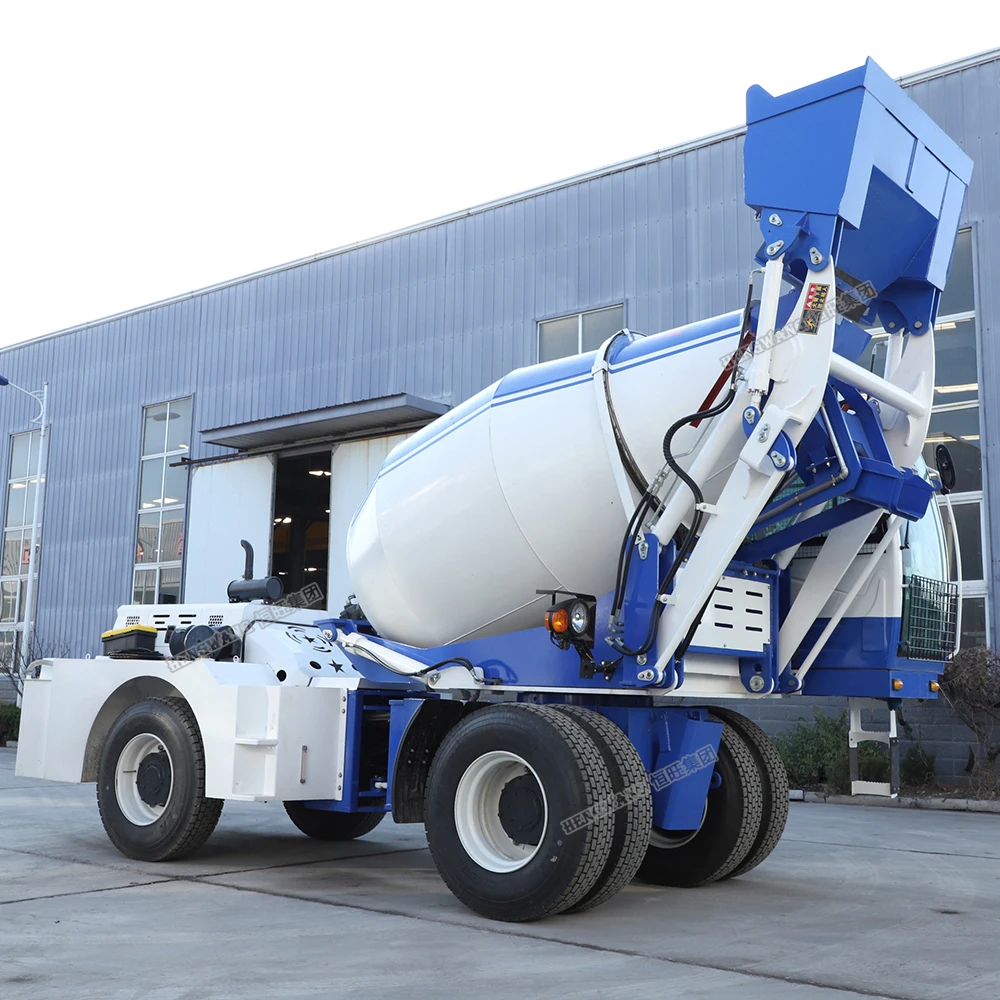

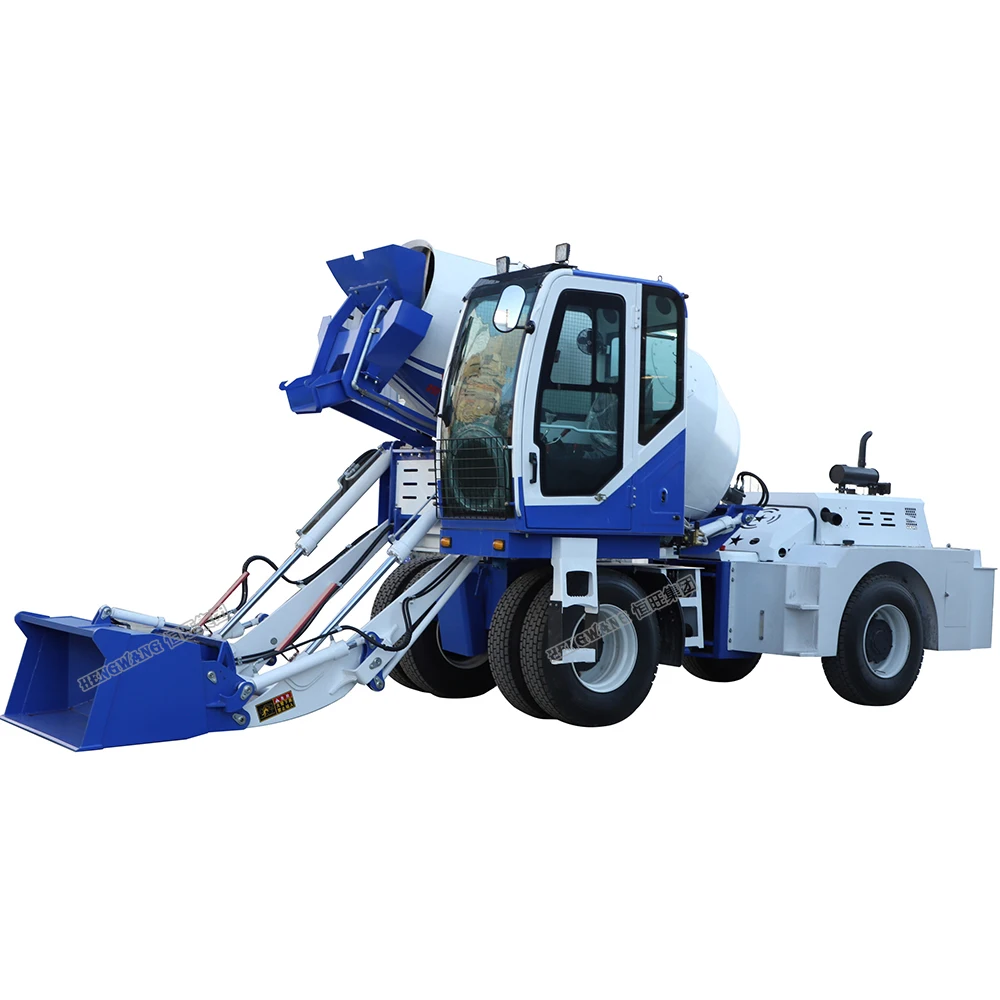

Detailed Images

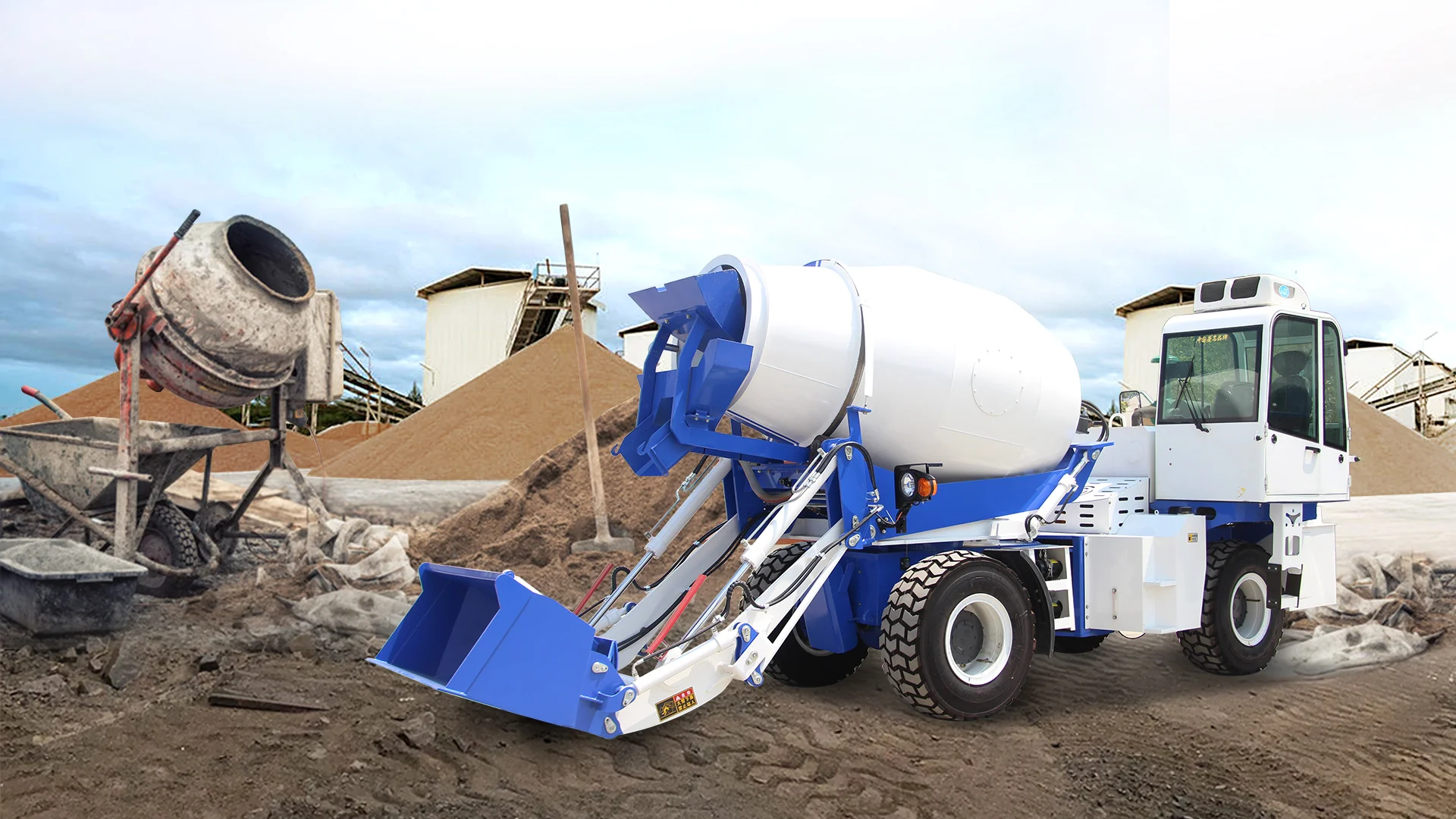

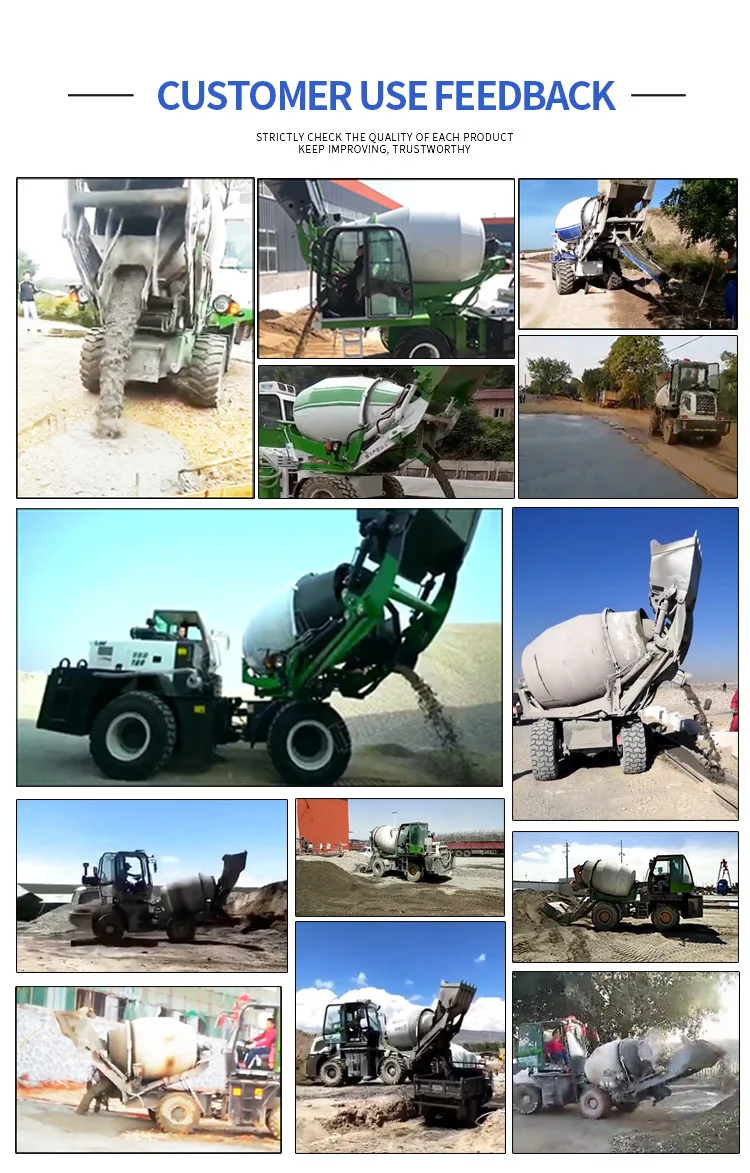

Application




Packing&Shipping
