PSA ( Pressure Swing Adsorption) Technology a revolution in Non Cryogenic Air Separation and Oxygen Generation Technology uses special grade of ZMS ( Zeolite Molecular Sieve).

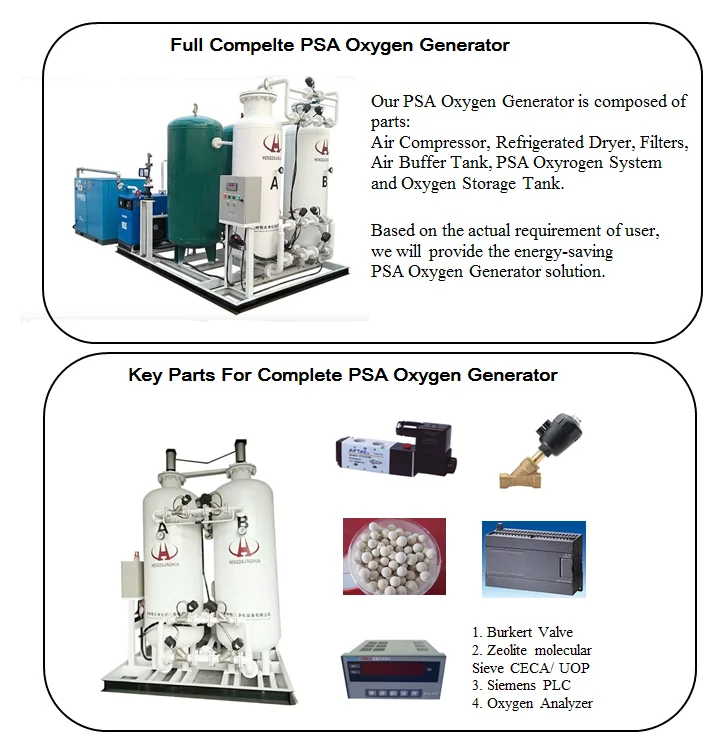

The compressed air is passed through a Twin Tower PSA module interconnected with automatic change over valves. After passing through a Refrigerated Dryer air gets dried. Dried compressed air will now come in contact with bed of Zeolite molecular sieves (ZMS). Zeolite Molecular Sieves are special grade of adsorbent which have the property of preferential adsorption of nitrogen molecules. At a time one tower remains under nitrogen production cycle, whereas the other tower undergoes regeneration which is achieved through depressurization of the tower to atmospheric pressure. The outgoing oxygen gas is sent to a surge vessel where the minimum pressure will be maintained with the help of Back pressure Regulator.
Technical Index Compressed Air Pressure: 0-0.5Mpa Oxygen Capacity: 1-200 Nm3/h Oxygen Purity: 93%±2% Outlet Pressure: 0.5Mpa or per requirement Dew Point: ≤-40℃ Electrical Power :380V/3P/50HZ or Customized
Application
Industrial oxygen generator used for aquaculture, welding, cutting or feeding oxygen to ozone machine etc.
1.Medical: The generator can be set up to fill the hospital pipeline directly and use the filling ramp as a backup system. Oxygen cylinders can be filled simultaneously or during hours with low consumption.
2.Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.
3.Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical, urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.
4.Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.
Model No.
Flow Rate (Nm3/h)
Purity
HDFO-5
5
93±2%
HDFO-10
10
93±2%
HDFO-20
20
93±2%
HDFO-30
30
93±2%
HDFO-40
40
93±2%
HDFO-50
50
93±2%
HDFO-60
60
93±2%
HDFO-70
70
93±2%
HDFO-80
80
93±2%
HDFO-100
100
93±2%
HDFO-120
120
93±2%
HDFO-150
150
93±2%
HDFO-180
180
93±2%
HDFO-200
200
93±2%
Q: Are you trading company or factory? A: We are OEM skid-mounted Oxygen Generator factory, founded in 2008.Welcome you to visit our company at anytime!
Q: What is the terms of payment? A: T/T, L/C etc.
Q: How long is your delivery time? A: Generally it is 10-50 working days depending on your order.
Q: How to get a prompt quotation? A: When you send us inquiry, please kindly tell us the below technical information. 1) O2 Flow rate: ____Nm3/h 2) O2 Purity: ____% 3) O2 Discharge pressure: ____Bar 4) Voltages and Frequency: _____V/PH/HZ 5) Application or use for which industry.
