Factory direct high quality 300Mbps Wireless N adsl vdsl modem
- Category: Routers >>>
- Supplier: Shenzhen Hooolink Technology Co. Limited
Share on (60694896973):
Product Overview
Description
Product Description
Parameter | Specifications | ||||||
Chipset | RTL8676S+ 8271+ 8192 | ||||||
DDR/SDR SDRAM | 16MB SDRAM | ||||||
Serial Flash | 4 MB | ||||||
Features | 2T2R MIMO, wireless rates of up to 300Mbps Parent Control PPPoE, PPPoA, IPoE WAN connection. DHCP Server and DHCP Relay 802.1q VLAN NAT and NAPT ALG: TFTP/FTP/SIP/RTSP/L2TP/PPTP/IPSEC/H323 Virtual Server and Port Trigger DDNS Manual configuration of DNS QoS: Strict prior and WFQ DoS(denial-of-service) protect MAC filter, IP filter and URL filterWeb / Telnet / SSH / FTP / TFTP /SNMP/ Ping local and remote accesscontrol UPnP IGMP Snooping and IGMP proxy Static route Dynamic routing management, RIPV1, RIPV2 NTP DMZ | ||||||
Protocols | RFC2684 VC-MUX, LLC encapsulations for bridged or routed packets RFC2364 PPP over ATM ALL5(PPPoA) RFC2516 PPP over Ethernet (PPPoE) RFC768 User Datagram Protocol (UDP) RFC791 Internet Protocol (IP) RFC792 Internet Control Message Protocol (ICMP) RFC793 Transmission Control Protocol (TCP) RFC826 An Ethernet Address Resolution Protocol (ARP) IPoE (IP over Ethernet over AAL5) G.992.1 (T1.413) G.992.2 (G.dmt), G.lite G.992.3 (G.bis/ADS L2) G.992.5 (ADSL2+) Annex L (reach extended ADSL2) | ||||||
Wireless | Standard: IEEE802.11b/g/n Frequency Range: 2.4GHz~2.4835GHz Modulation: BPSK, QPSK, CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM) Wireless data rate: 300M Channel: 1~11(USA, Canada 1~13(Europe) 1~14(Japan) Security: 64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2 | ||||||
Device Management | Web based GUI (HTTP Management) TR069 ( WAN Management Protocol ) SNMP Menu-driven CLI via serial port or telnet Universal Plug and Play (UPnP) Internet Gateway Device (IGDv1.0) | ||||||

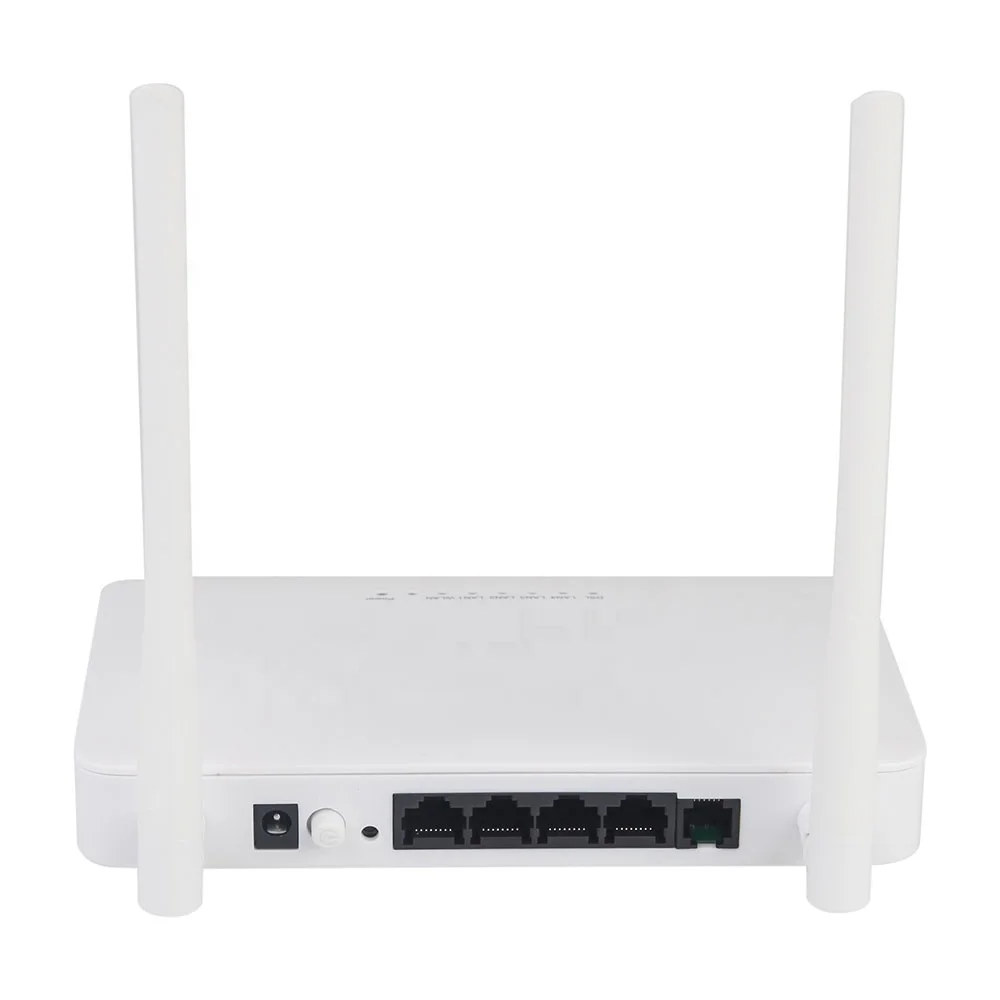

Interface | 1 x RJ11 DSL interface 1 x WLAN 4 x RJ45 10/100m Auto MDI/MDIX Ethernet interfaces 1 x power switch | ||||||
Environment | Operating Temperature: 0ºC—40ºC Storage Temperature: -20ºC—70ºC Operating Humidity: 10%—95%, non-condensing Storage Humidity: 5%—95%, non-condensing | ||||||
Power Supply | 12 V /0.5A | ||||||
Our Company
Our company's main business: Aggregation routers, load balancing routing, 4G/5G routers, Home routing, Industrial routing, DTU, IoT module，etc.
The company has a strong technical team, many senior software engineers, hardware engineers. Provide customers with product design, hardware development, software function customization, OpenWRT firmware compilation, TR069 protocol compilation, etc.
It can provide customers with MTK, QCA, IPQ industrial grade and other series of solution routers. Cooperative customers and products sell well at home and abroad, and are highly praised by customers.
Our company looks forward to cooperating with you! Develop together and create success together!
The company has a strong technical team, many senior software engineers, hardware engineers. Provide customers with product design, hardware development, software function customization, OpenWRT firmware compilation, TR069 protocol compilation, etc.
It can provide customers with MTK, QCA, IPQ industrial grade and other series of solution routers. Cooperative customers and products sell well at home and abroad, and are highly praised by customers.
Our company looks forward to cooperating with you! Develop together and create success together!
Certifications
Packing & Delivery
Packing
We offer a variety of packing services and shipping supplies, including corrugated boxes, bubble wrap. All items will be double checked and well packed before shipping. For items that have a unique shape or size, we'll find the right specialty box to pack it in with care.
Delivery
Shipping service by sea or air door-door to meet your unique on-demand and scheduled delivery needs. Our professional courier agent will ensure your goods are delivered reliability to their destination. We take great care in packing every details to ensure safe shipment to you.
FAQ
Contact US
Irene
Tel/ Whatsapp: +86 135 3816 2820
Skype: sales@hooolink.com
Wechat: hooolink
Our Advantage
1) If we have stock, no MOQ request
2) We provide OEM & ODM service as your request
3) We do pay more attention to the product details, including the packing, lable, shipping mark and so on.
Back-up Service
1) We will revert to you on TradeManager within 1 hour and your inquiry within 24 hours
2) We will provide the latest product information at reglar time.
3) 12 months warranty time
