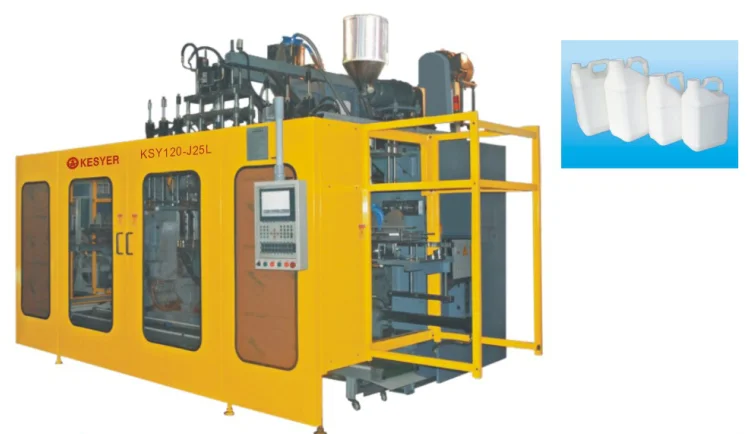

KSY 25L Plastic Bottle Extrusion Blow Moulding Machine,Double station

MACHINE TECHNOLOGY PARAMETER

Blow Molding Machine Model

KSY95-J25L  Double Station

Screw Diameter

mm

120

Screw L/D Ratio

L/D

28:1

Extrusion motor power

KW

90

Hydraulic motor power

KW

37

Screw rotate speed

R.P.M

10-85

Screw heating zone

zone

9

Heating power

KW

30

Extruding Capacity HDPE

kg/h

210

Mold open-close stroke

mm

1080

Length of mould capacity

mm

500

Width of mould capacity

mm

1060

Thickness of mould capacity

mm

210

Dry Cycle time per hour

time

11.5S

Clamping Force

KN

250

Oil tank Volume

L

300

Air Pressure

kg/cm2

6-8

Air Consumption

m3/min

3.0

Cooling water pressure

Mpa

0.3-0.5

Cooling water consumption

L/min

330

Weight of product

g

30-1200

Volume of product

L

25L

Average power consumption

kw

130

Net weight of machine

ton

25

Gross with of Machine

ton

25.5

Machine Dimension (L*W*H)

m

5.0*5.4*2.85
