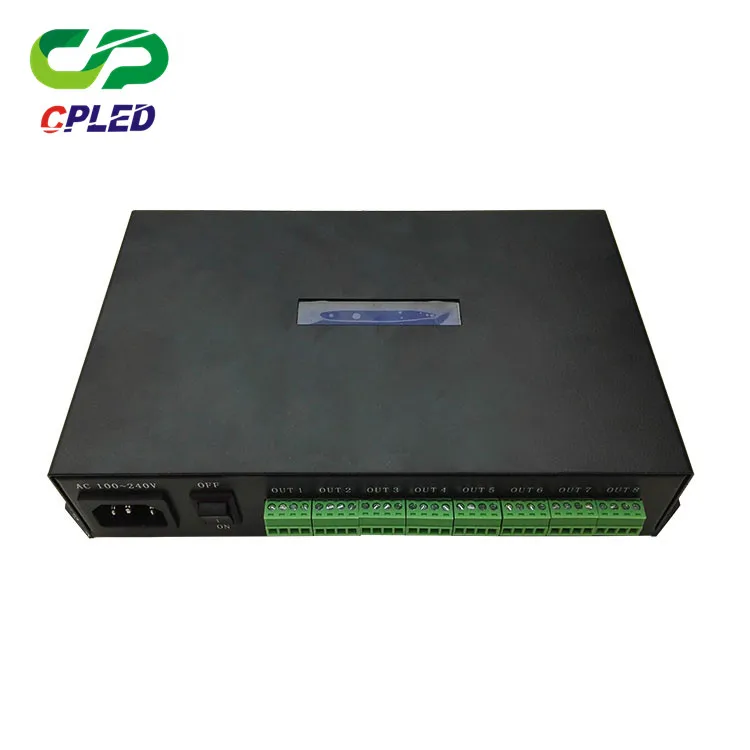

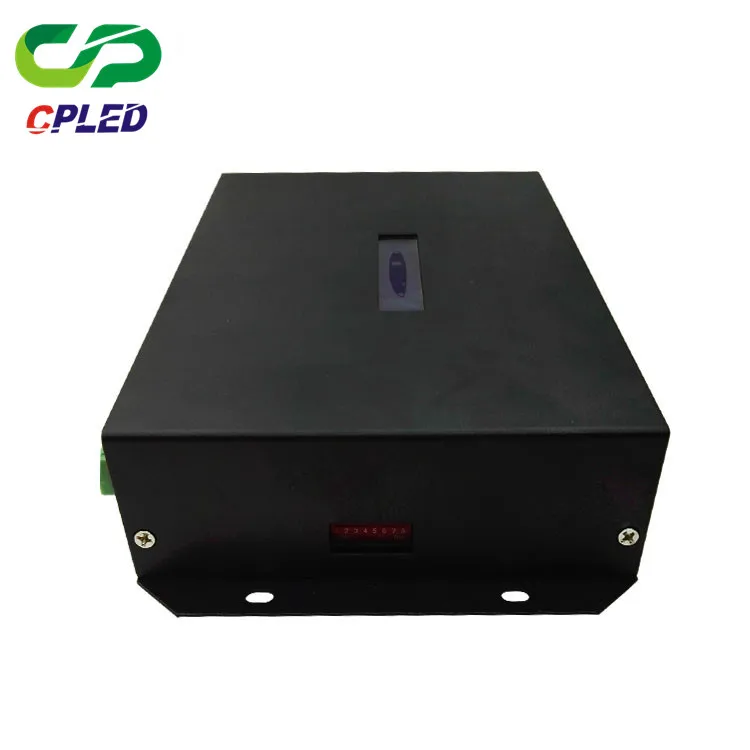

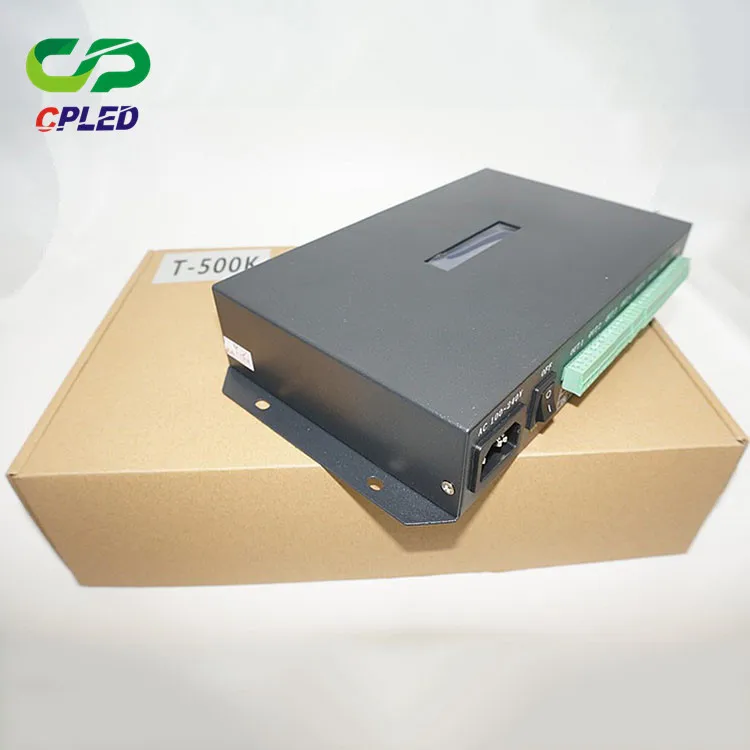

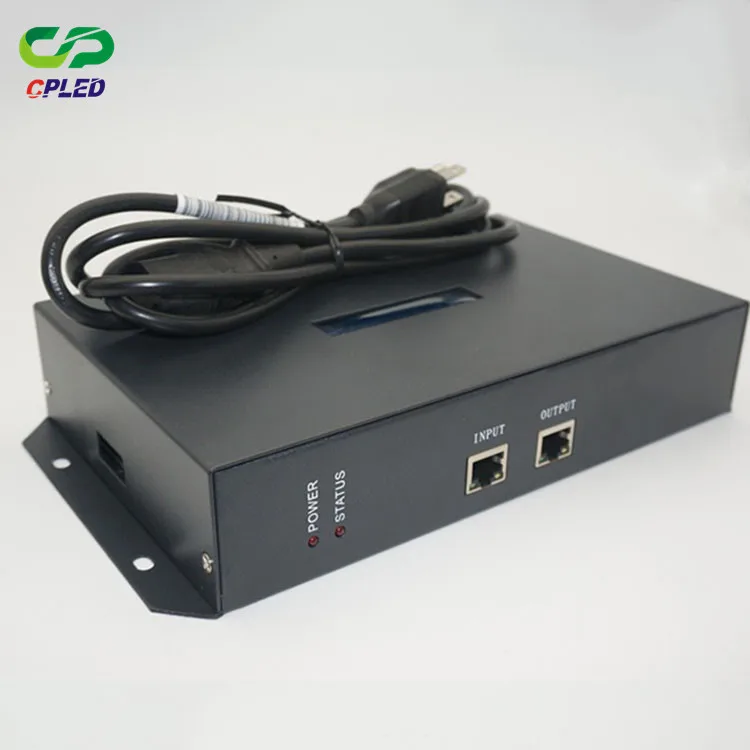

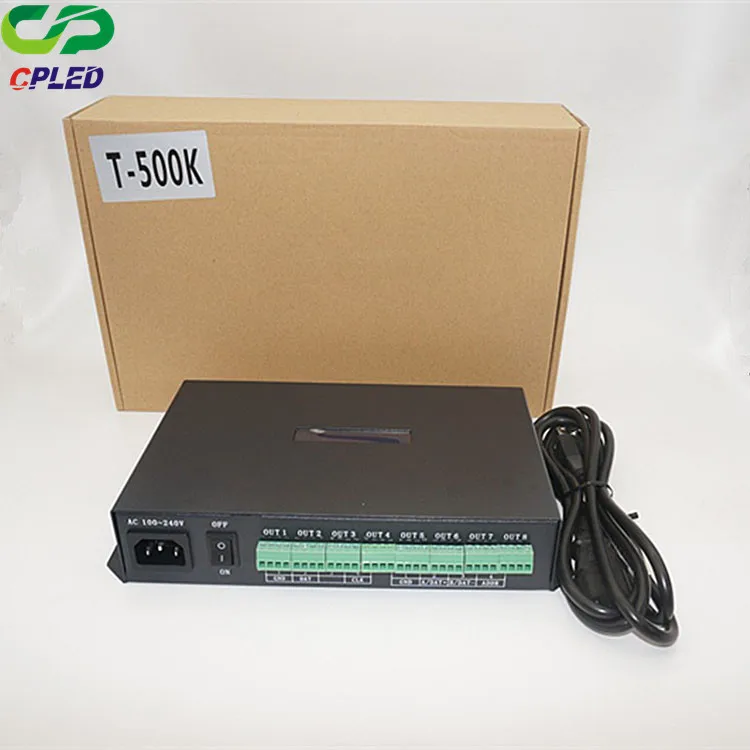

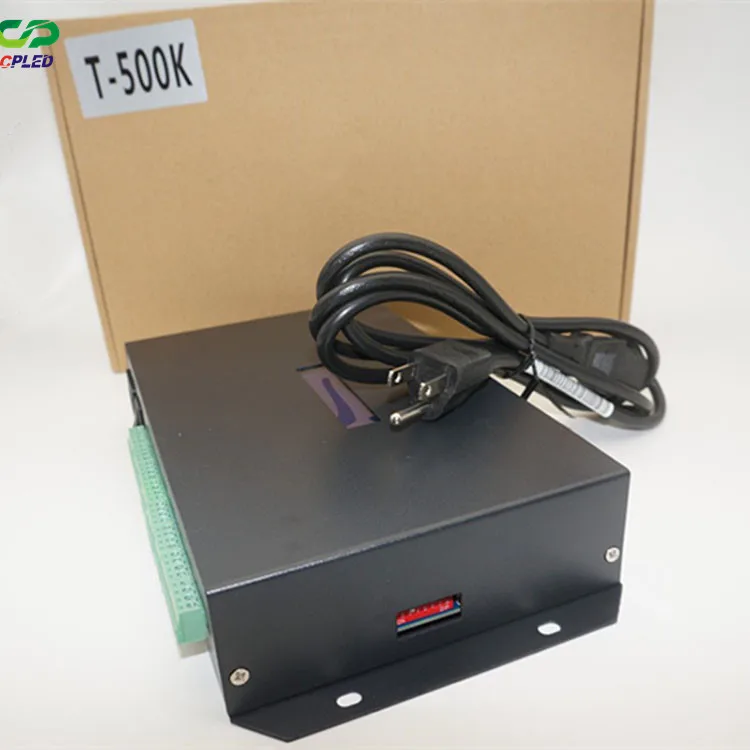

Online live master Controller T 500K PC online control LED pixel controller

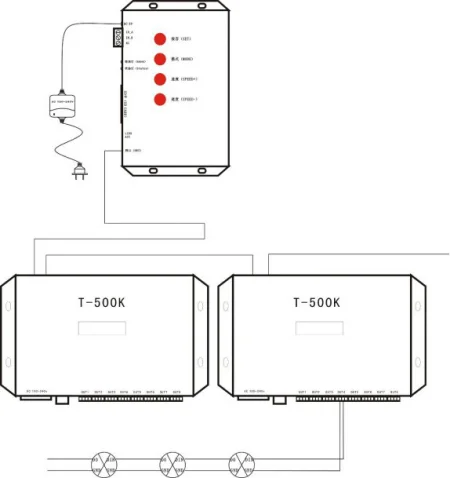

Controller launched diagram:

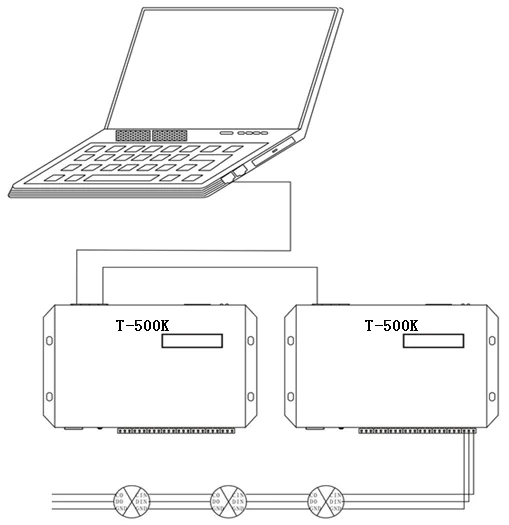

System architecture figure :

Precautions:

To reduce the risk of electric shock, fire or injury to persons, read and follow the warnings and precautions to prevent the occurrence of such events

1 Non-professionals do not open the enclosure.

2  Do not install this controller in a magnetic and high-pressure environments.

3 In order to reduce the component due to a short circuit caused the fire and the risk of damage, make sure the line is connected securely connected.

4 Make sure that the controller altogether good ventilation and proper temperature environment.

5 controller to the room lighting within a distance of 10 meters, the distance between lamps and lighting fixtures, please contact the manufacturer over the pitch range, you can add a signal amplifier.

6 with a controller, make sure to use AC100-230V power supply and ensure that the same transformer and controller connection polarity.

7 Do not plug the power cable in the open, be sure to turn on the power connection is secure and properly before the power

8 When they do not own any unusual repairs, so not warranty.

9 In order to reduce the risk of electric shock, fire or personal injury, read and follow the warnings and precautions to prevent the occurrence of such events
