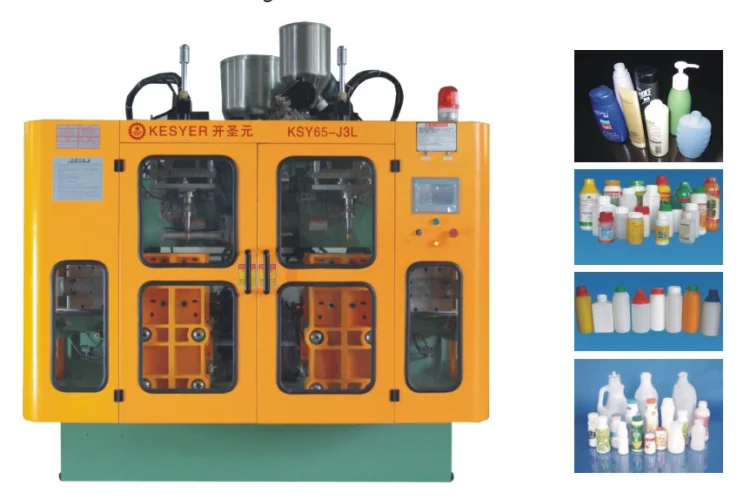

KSY 3L Plastic Bottle Extrusion Blow Moulding machine,Double Station

MACHINE TECHNOLOGY PARAMETER

Blow Molding Machine Model

KSY95-J3L  Double Station

Screw Diameter

mm

65

Screw L/D Ratio

L/D

26:1

Extrusion motor power

KW

15

Hydraulic motor power

KW

11

Screw rotate speed

R.P.M

10-85

Screw heating zone

zone

6

Heating power

KW

12

Extruding Capacity HDPE

kg/h

60

Mold open-close stroke

mm

400

Length of mould capacity

mm

380

Width of mould capacity

mm

390

Thickness of mould capacity

mm

190

Dry Cycle time per hour

time

4.8S

Clamping Force

KN

60

Oil tank Volume

L

150

Air Pressure

kg/cm2

6-8

Air Consumption

m3/min

0.6

Cooling water pressure

Mpa

0.3-0.5

Cooling water consumption

L/min

70

Weight of product

g

10-180

Volume of product

L

3L

Average power consumption

kw

23

Net weight of machine

ton

7.0

Gross with of Machine

ton

7.5

Machine Dimension (L*W*H)

m

2.95*2.0*2.45
