Product Overview

Description


Linan Xinhui Cable Co.,Ltd specialized in coaxial cable,bare wire,such like :RG6,RG59,RG11,RG58,silver wire,OCC wire,Silver plated copper,Nickel wire,CCS(copper clad steel wire),CCA(Copper clad aluminum wire),Al-mg wire,Enameled wire ,aluminum wire

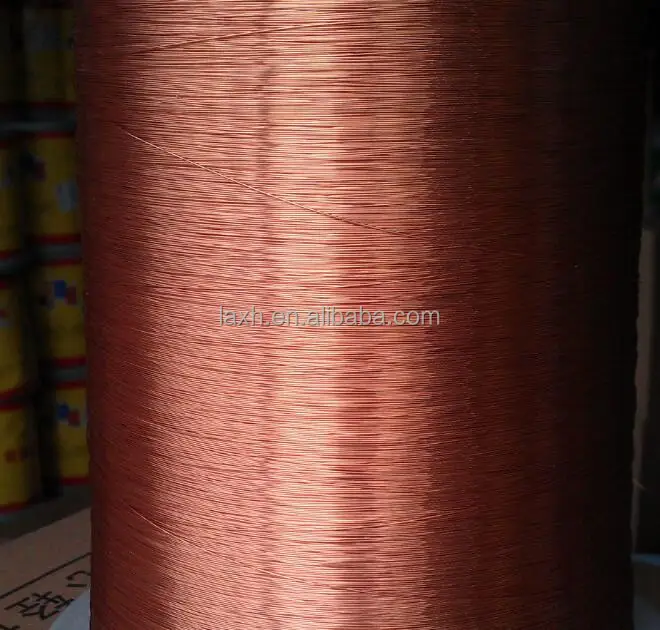

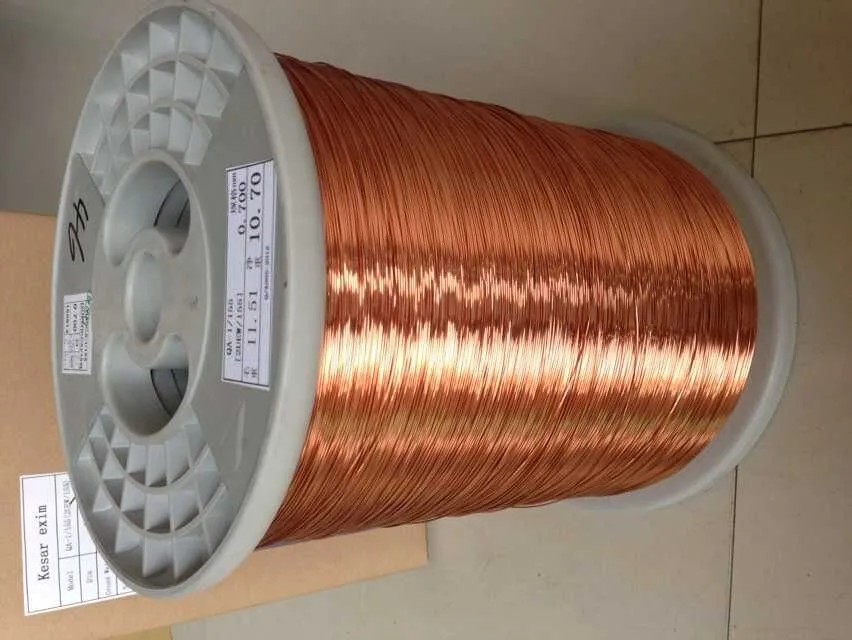

   Enameled copper round wire





Specifications


Name

enamelled copper wire

Type

QZXYL-2/180

Diameter

2.40mm

Standard

IEC60317-15

Test Item

Unit

Technical Requirement

Test Result

Appearance



bright and clean, Uniform color,

Ok

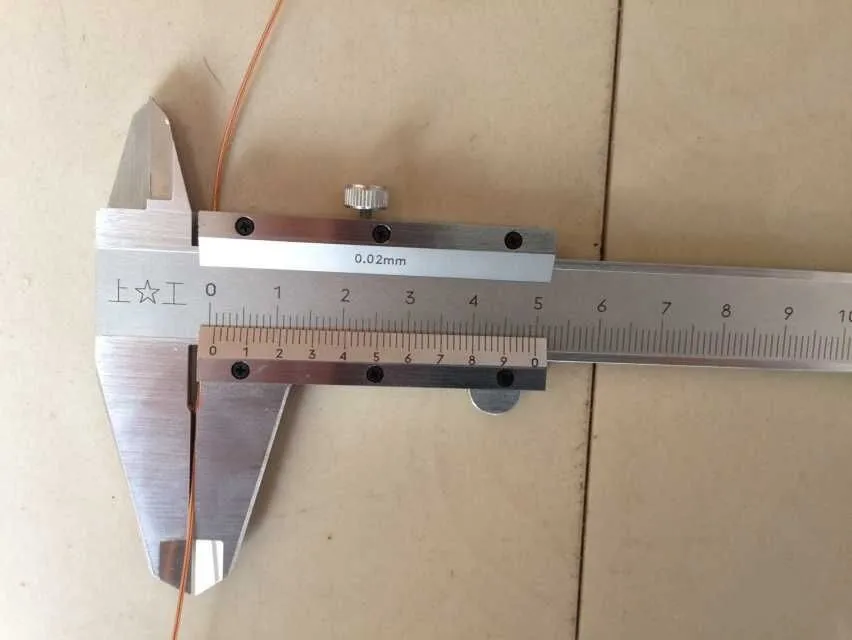

Overall Diameter

mm

<2.518

2.483

Conductor Diameter

mm

±0.024

2.402

Thickness of insulation film

mm

>0.079

0.081

resistance

Ω/m

<0.006354

0.006069

Elongation



>15%

27%

winding test



no cracking

Ok

Tensile Test



15% No cracking

no cracking

Peel twist



insulation film Without losing adhesion

Ok

Jerk test



insulation film Without losing adhesion

Ok

Resistance to heat shock

C

200C insulation film no cracking

Tensing 15% half an hour, no cracking

Resistance to solvent



Standard solvent "H" Pencil

2H is ok

Breakdown Voltage

KV

5.0KV

14.8,14.8,14.9,14.2,14.8

package



Meet the export standards

Ok

Quality Control Result



Ok

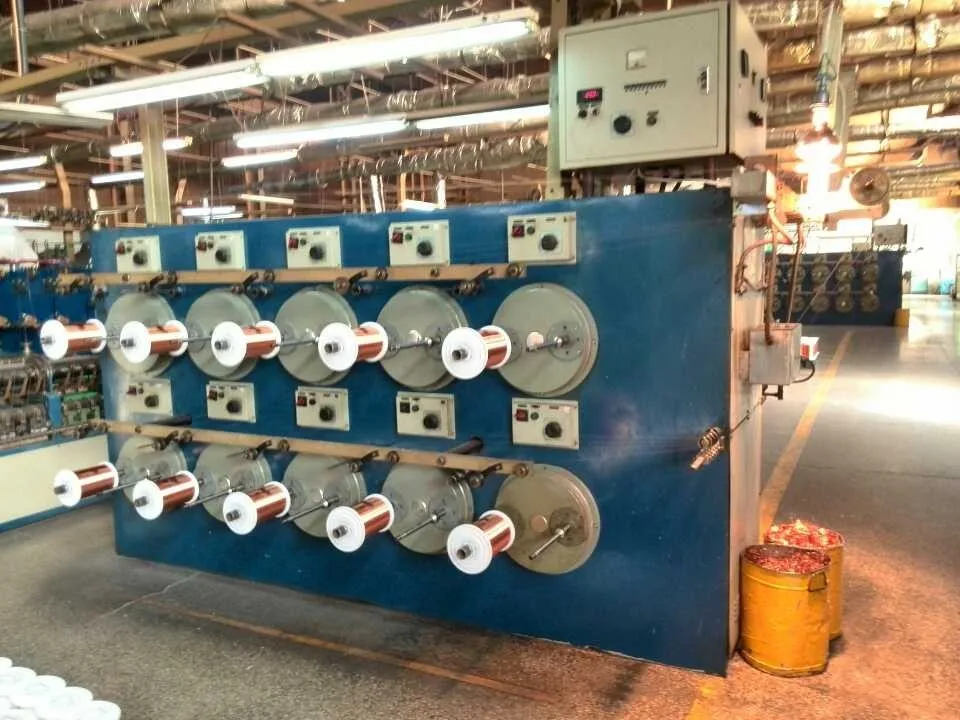

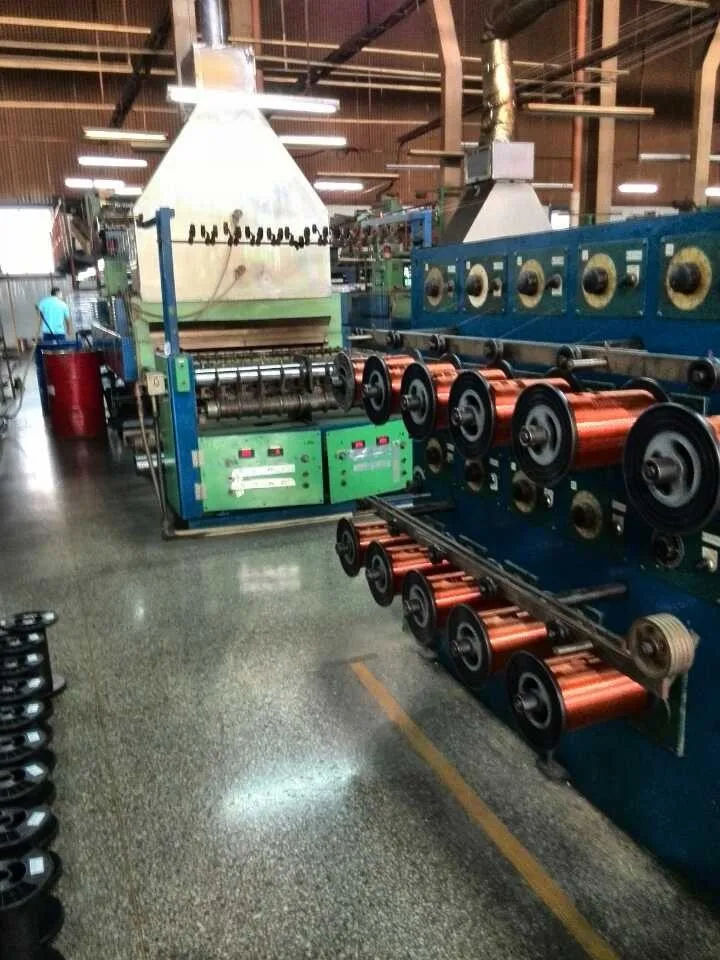

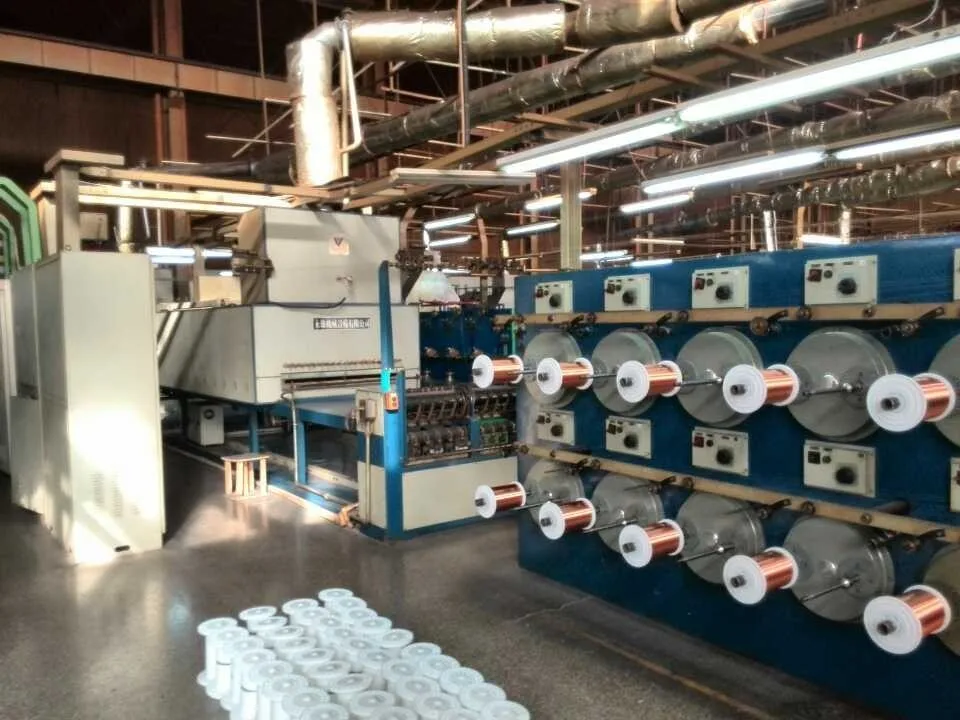

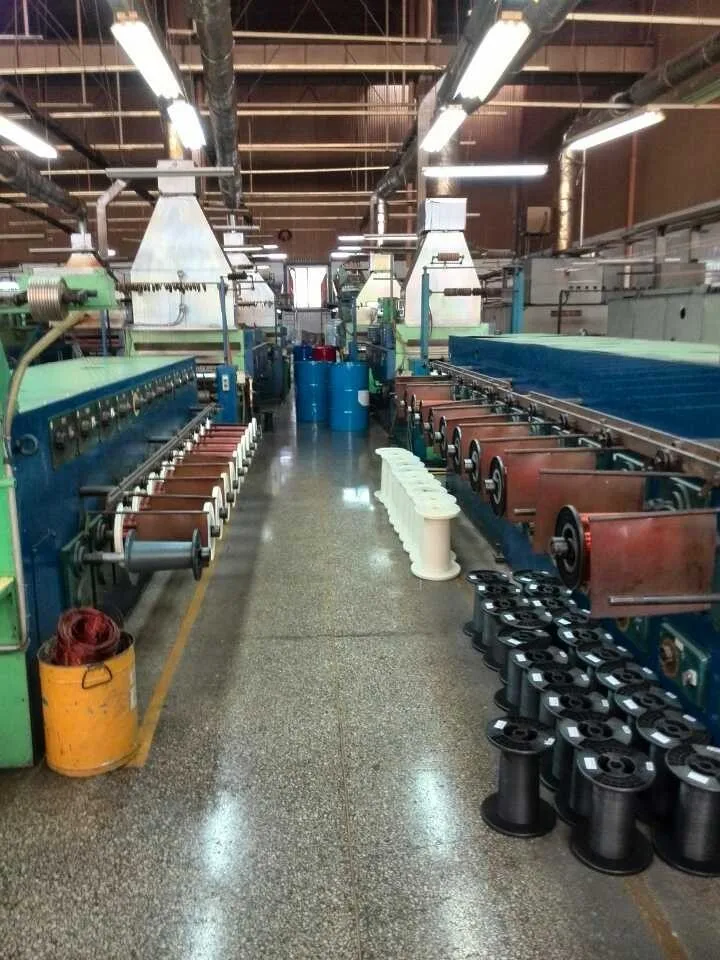

EAL and ECu wire is our best seller. We are leading factory in Enamelled wire production base.



1.Specifications of enamelled copper wire:
Diameter:0.2mm-8.0mm
Standard: IEC, NEMA,GB
Thermal Class: 130/155/180/200/220 °C
Certification:SGS,UL Approved,iso9001,iso14001



2.Features of enamelled copper wire:
a) Excellent resistance to abrasion and solvent,
b) Excellent electricity performance
c) Excellent heat shock, adherence and flexibility
d) High cut through



3.Main Applications of enamelled copper wire
a)Small transformers, linear motors, relays, solenoids, small motors, clock   coils, watch coils, magnetic heads.
b)Automotive sensors and coils as relais and ignition coils.
c)Generators,dry-type or oil-immersed.
d)Anti-explosion motor,air-conditioner compressor,washing machines.
e)Military and space applications.

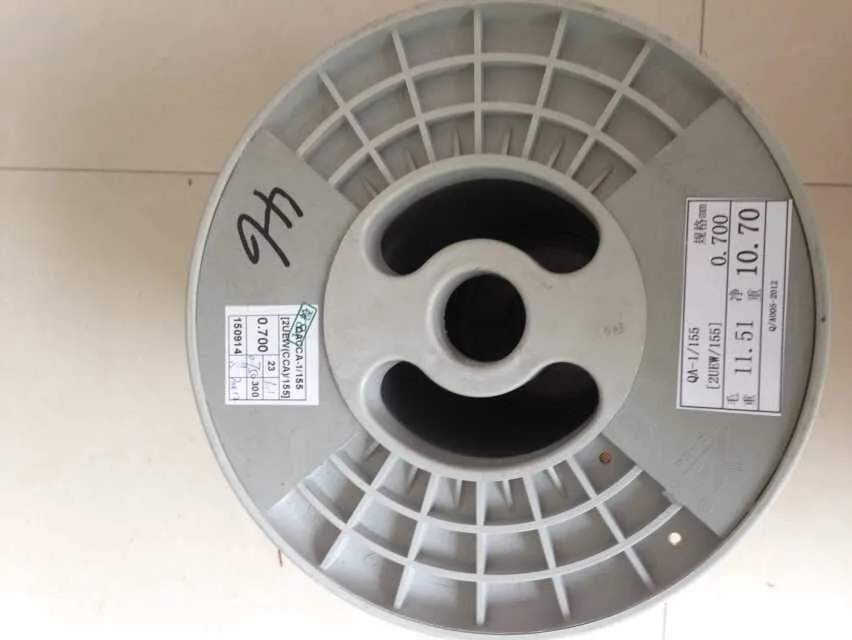

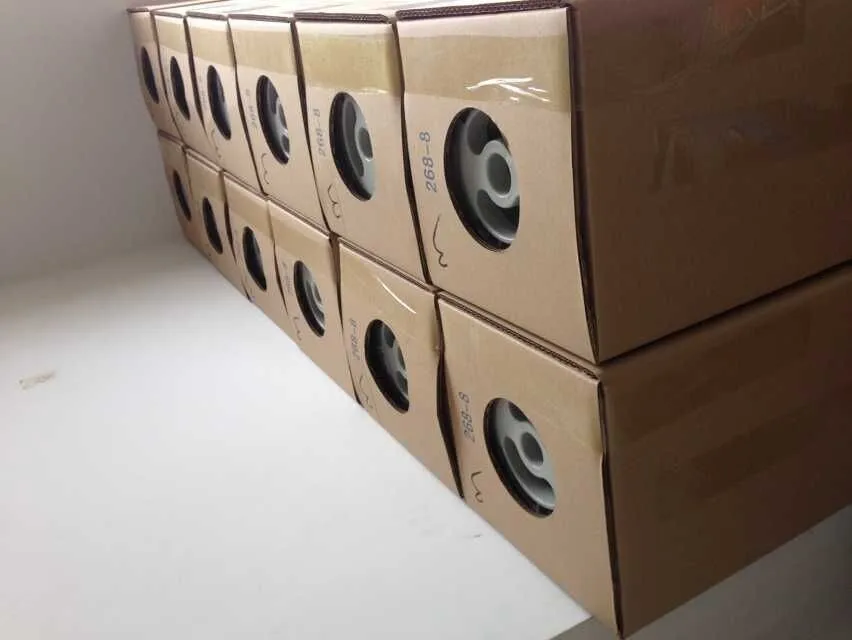

4.Packing of enamelled copper wire : plastic spool,wooden spool and also can pack the goods according to the requirement of each client
