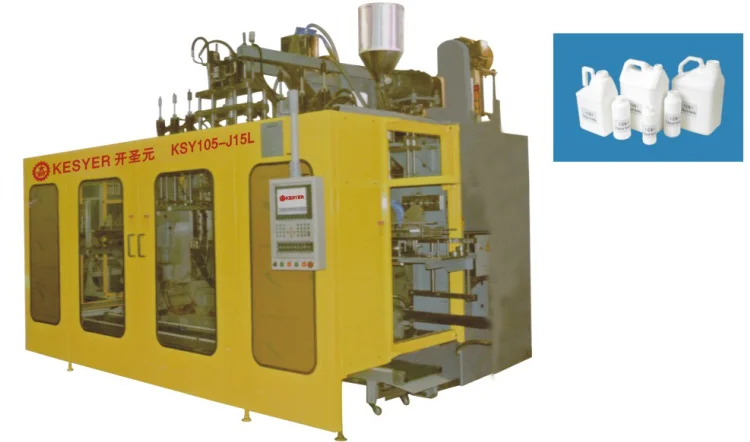

KSY 15L Plastic Bottle Extrusion Blow Moulding Machine,Double Station

MACHINE TECHNOLOGY PARAMETER

Blow Molding Machine Model

KSY95-J15L  Double Station

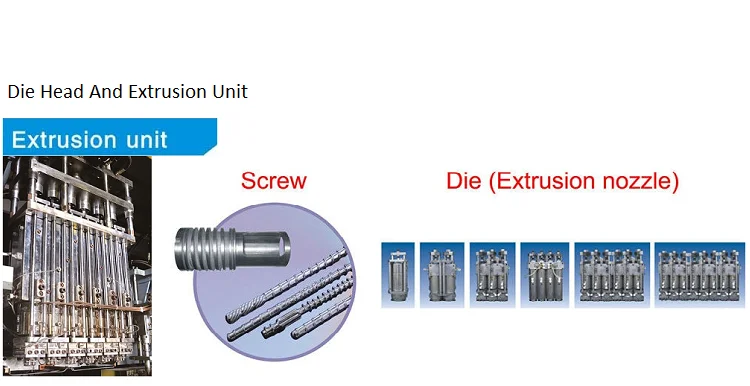

Screw Diameter

mm

105

Screw L/D Ratio

L/D

28:1

Extrusion motor power

KW

65

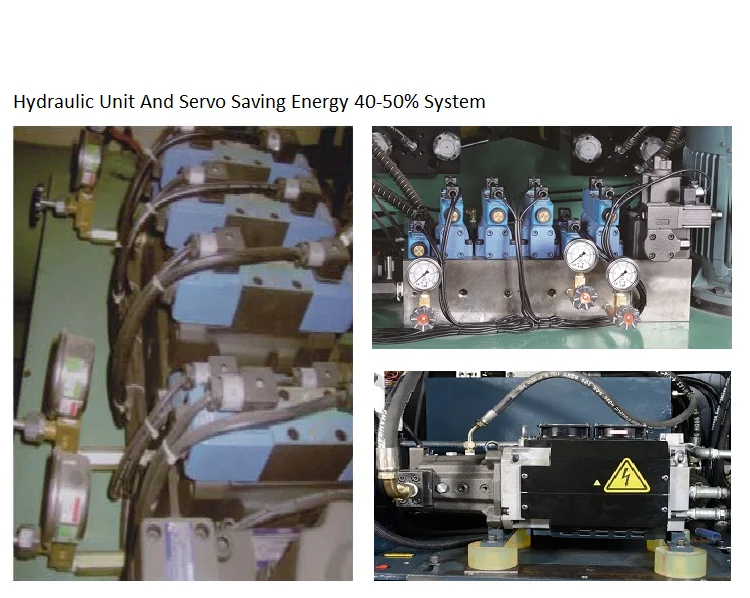

Hydraulic motor power

KW

30

Screw rotate speed

R.P.M

10-85

Screw heating zone

zone

9

Heating power

KW

25

Extruding Capacity HDPE

kg/h

170

Mold open-close stroke

mm

880

Length of mould capacity

mm

500

Width of mould capacity

mm

830

Thickness of mould capacity

mm

210

Dry Cycle time per hour

time

8.8S

Clamping Force

KN

220

Oil tank Volume

L

300

Air Pressure

kg/cm2

6-8

Air Consumption

m3/min

3.0

Cooling water pressure

Mpa

0.3-0.5

Cooling water consumption

L/min

250

Weight of product

g

30-800

Volume of product

L

15L

Average power consumption

kw

95

Net weight of machine

ton

18

Gross with of Machine

ton

18.5

Machine Dimension (L*W*H)

m

4.7*4.2*2.75
