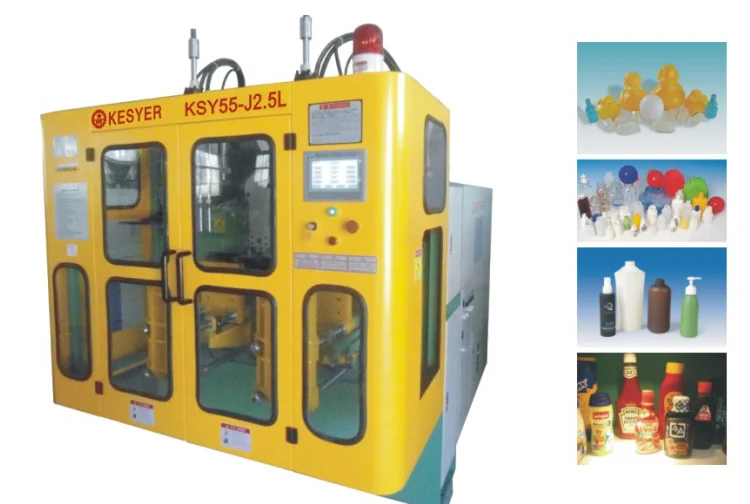

KSY 2.5L Plastic Bottle Extrusion Blow Moulding Machine,Double Station

MACHINE TECHNOLOGY PARAMETER

Blow Molding Machine Model

KSY95-J2.5L  Double Station

Screw Diameter

mm

55

Screw L/D Ratio

L/D

26:1

Extrusion motor power

KW

12

Hydraulic motor power

KW

11

Screw rotate speed

R.P.M

10-85

Screw heating zone

zone

6

Heating power

KW

12

Extruding Capacity HDPE

kg/h

48

Mold open-close stroke

mm

350

Length of mould capacity

mm

320

Width of mould capacity

mm

340

Thickness of mould capacity

mm

130

Dry Cycle time per hour

time

4.2S

Clamping Force

KN

45

Oil tank Volume

L

100

Air Pressure

kg/cm2

6-8

Air Consumption

m3/min

0.5

Cooling water pressure

Mpa

0.3-0.5

Cooling water consumption

L/min

50

Weight of product

g

5-160

Volume of product

L

2.5L

Average power consumption

kw

16

Net weight of machine

ton

5.5

Gross with of Machine

ton

6.0

Machine Dimension (L*W*H)

m

2.85*1.8*2.35
