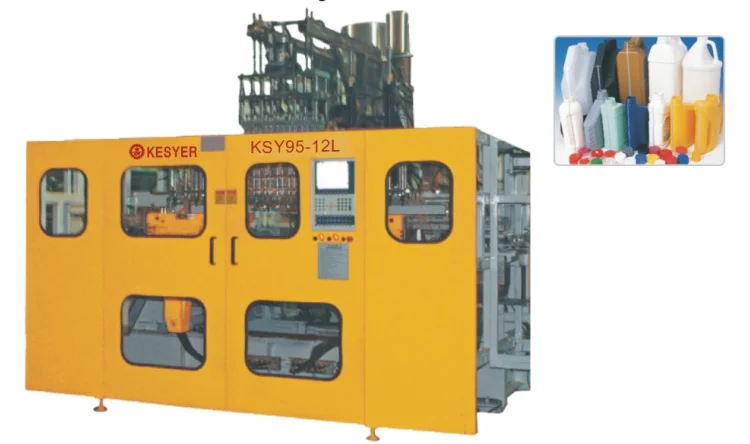

KSY 12L Plastic Bottle Extrusion Blow Moulding Machine,Double Station

MACHINE TECHNOLOGY PARAMETER

Blow Molding Machine Model

KSY95-J12L  Double Station

Screw Diameter

mm

95

Screw L/D Ratio

L/D

28:1

Extrusion motor power

KW

55

Hydraulic motor power

KW

22

Screw rotate speed

R.P.M

10-85

Screw heating zone

zone

9

Heating power

KW

20

Extruding Capacity HDPE

kg/h

140

Mold open-close stroke

mm

720

Length of mould capacity

mm

500

Width of mould capacity

mm

700

Thickness of mould capacity

mm

210

Dry Cycle time per hour

time

7.5S

Clamping Force

KN

190

Oil tank Volume

L

250

Air Pressure

kg/cm2

6-8

Air Consumption

m3/min

2.5

Cooling water pressure

Mpa

0.3-0.5

Cooling water consumption

L/min

200

Weight of product

g

30-800

Volume of product

L

12L

Average power consumption

kw

80

Net weight of machine

ton

16

Gross with of Machine

ton

16.5

Machine Dimension (L*W*H)

m

4.6*3.5*2.65
