Wastewater evaporators price
US $7800

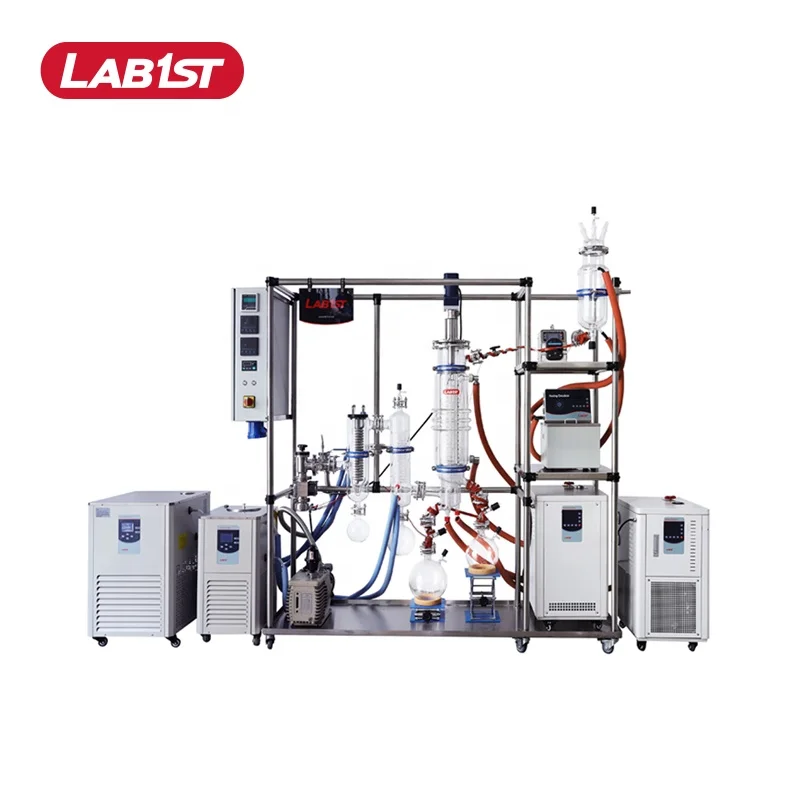

Pilot scale lab short path wiped film molecular distillation evaporator
- Category: Evaporator >>>
- Supplier: Labfirst Scientific Instruments (shanghai) Co. Ltd.
Share on (60698944253):
Product Overview
Description

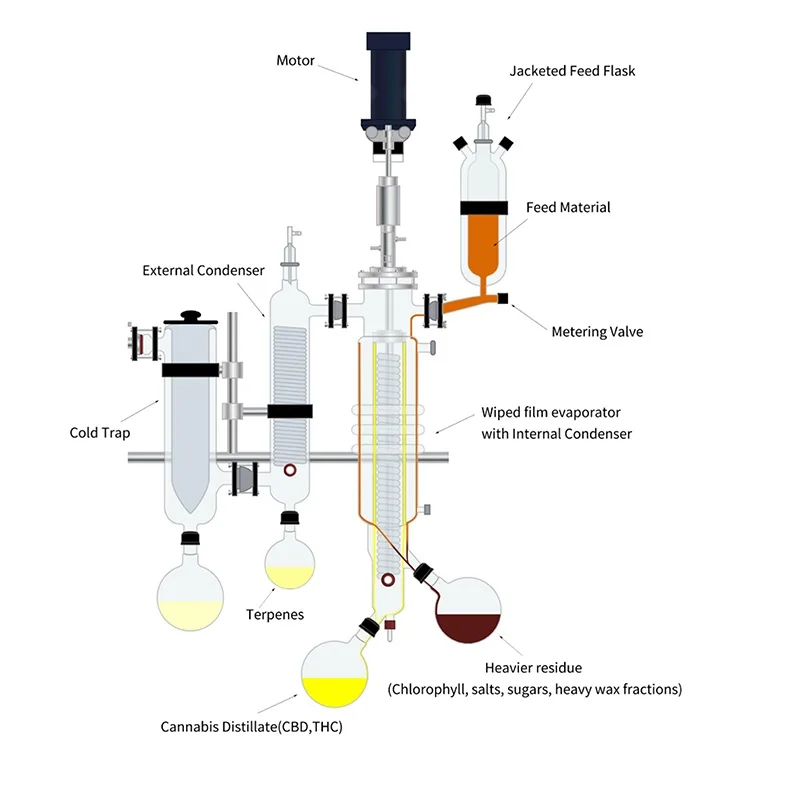

Lab1st wiped film evaporator molecular distillation unit
LAB1ST wiped film molecular distillation unit is superior than traditional short path distillation kit by shorter residence time, lower separation temperature, capability of continuous and unattended operation. The units are available in various sizes (from 80mm diameter to 200mm or more), with processing speed up toa 28kg/h.
Glass Molecular Distillation Unit - Type C
Evaporator Unit: with dewar-style cold trap
Main Heater: up to 300℃
Pre-heater: up to 300℃
Heater/Chiller for Internal Condenser: -25℃ to 180℃
Rotary Vane Pump: 6L/s gas displacement
Additional Terpene Condenser
Chiller for Terpene Condenser: down to -20℃
Chiller for Terpene Condenser: down to -20℃
Peristaltic Pump Module: for continuous inlet
Glass Valve Module: for Continuous Outlet
Diffusion Pump Chiller for Cold Trap: down to -80℃
Glass Molecular Distillation Unit - Type A
Glass Molecular Distillation Unit - Type B
Evaporator Unit : standard with dewar-style cold trap
Main Heater: 5kW heating power, up to 300C
Pre-heater Heater/Chiller for Internal Condenser: 1.5kW heating power, up to 300C
Rotary Vane Pump: 6L/s gas displacement
Pre-heater Heater/Chiller for Internal Condenser: 1.5kW heating power, up to 300C
Rotary Vane Pump: 6L/s gas displacement
Evaporator Unit, Main Heater, Pre-heater Heater/Chiller, Rotary Vane Pump;
Peristaltic Pump Module for continuous inlet
Peristaltic Pump Module for continuous inlet
Glass Valve Module for Continuous Outlet
Diffusion Pump:80L/s gas displacement,for higher vacuum
Details Images
Technical datas
Model | GMD-80 | GMD-100 | GMD-150 | GMD-200 | |||
Effective evaporation area (m2) | 0.1 | 0.15 | 0.25 | 0.35 | |||
Barrel diameter (mm) | 80 | 100 | 150 | 200 | |||
Feeding funnel volume（L） | 1 | 2 | 3 | 5 | |||
Feed rate(Kg/hr) | 0.5 ~ 5 | 0.75 ~ 7.5 | 1.25 ~12.5 | 1.75 ~`7.5 | |||
CBD Throughput at end of 8-10 hr.day (kg) | ~8 | ~12 | ~20 | ~28 | |||
Motor power (W) | 120 | 120 | 120 | 200 | |||
Maximum speed (rpm) | 400 | 400 | 400 | 400 | |||
Distillate receiving flask (L) | 1L | 2l | 5L | 5L | |||
Recycle receiving flask (L) | 1L | 2L | 3L | 5L | |||
Operation Temperature | Up to 250 ℃ | ||||||
Voltage | 220V Single phase (Customizable) | ||||||
Vacuum | Batter than 10pa | ||||||
Related products
Hybrid Molecular Distillation Unit
Stainless Steel Molecular Distillation Unit
Clent's feedback
Our factory
Labfirst Scientific and Industrial Equipment Co.,Ltd
Founded in Shanghai, Lab1st is specializing in the manufacturing extraction and distillation equipment from lab scale to production scale over 20 years.
We supply all products with reasonable price and real time support upon our own production line, professional experience and high quality supply chain. Moreover, our experienced and well-trained support team is always ready to provide the best support.
