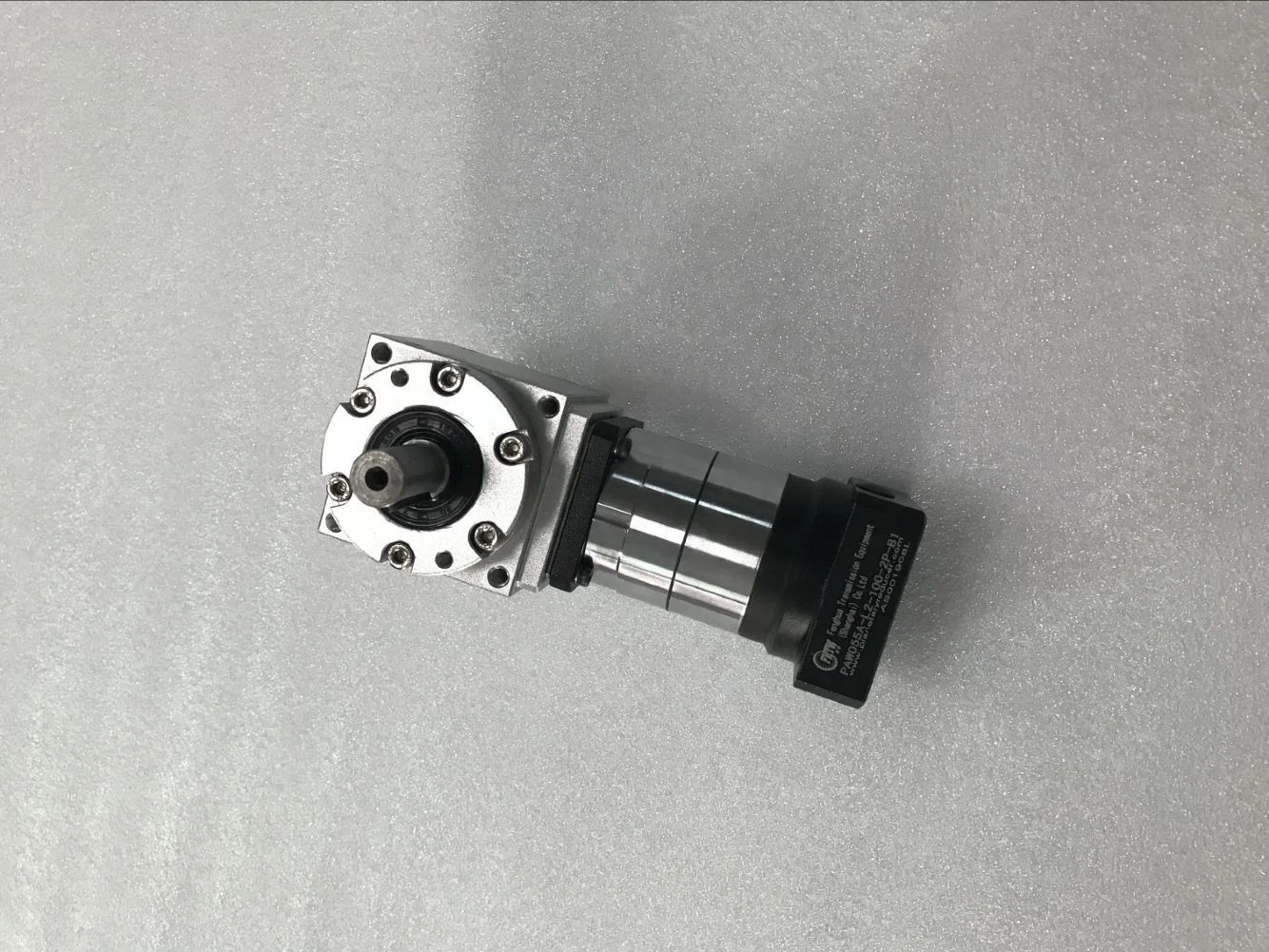

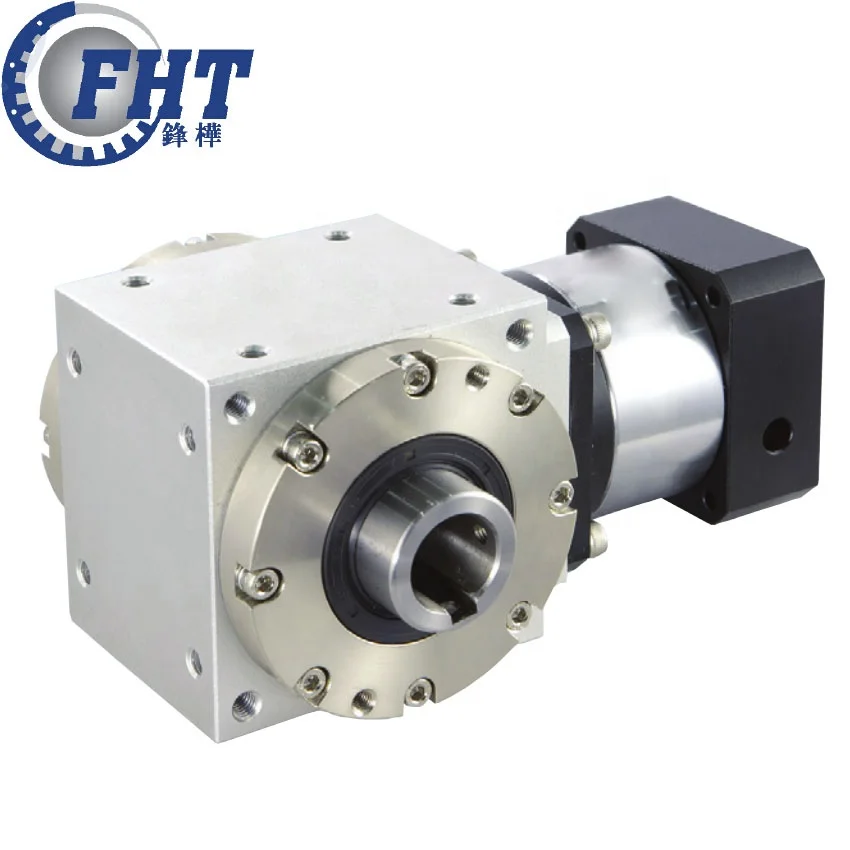

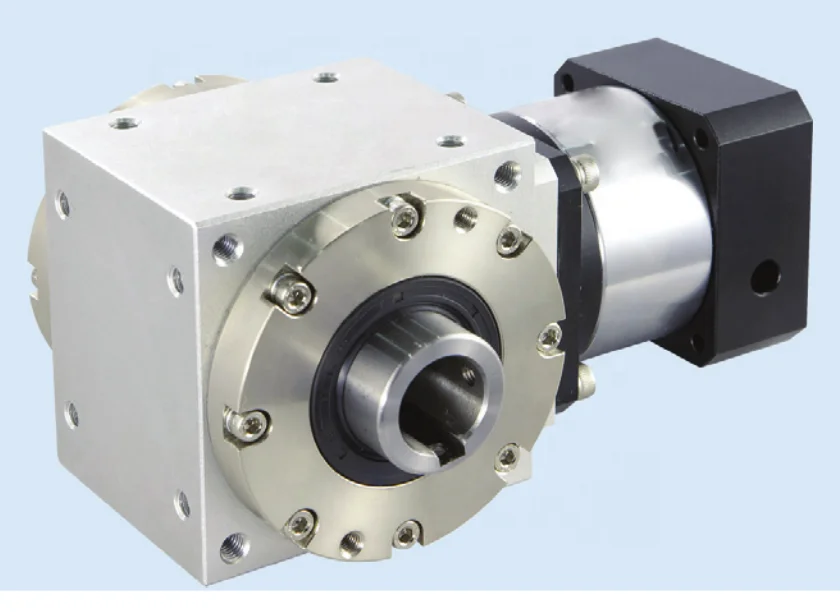

TQG полый вал Servo мотор редуктор скорости 90 градусов gerbox PAW105A 2P 2 ступенчатый редуктор
- Category: Speed Reducers >>>
- Supplier: Taiqi Electromechanical Equipment (Shanghai) Co. Ltd.
Share on (60699008234):
Product Overview
Description
Product Overview
Product introduction
PAW-2P is the right angle gearbox with two output shaft,consisted of high efficiency spiral bevel gears and planetary part with spur gears,so it is also called spiral bevel planetary gearbox.
The spiral bevel gears of PAW-2P right angle gearbox are made of high stretch SCM415 material and tooth hardness HRC60°~ HRC62°.Such excellent structure features PAW-2P with high strength and high rigidity and best for heavy loading change.
PAW-2P 90 degree right angle gearbox is with motor adapter on the input side,makes motor easily mount the gearbox.The planetary frame and 90 degree structure make the gearbox compact and perfectly applied to the transmission mechanism that need to change the motion direction with limited space.
PAW-2P right angle gearbox generates low heat and low noise when rotating.This allows a continuous high speed without sacrifice to performance and favored by a majority of users.
PAW-2P right angle gearbox have a variety of ratio adapt to different speed and torque requirements:
1-stage:3, 4 ,5, 6, 7, 10
2-stage:12, 15, 16, 20, 25, 28, 30, 35, 40, 50, 60, 70, 100
The 90 degree gearbox has a wide range of nominal torques 10Nm~1200Nm,suitable for different loads of the transmission system.
PAW-2P 90 degree right angle gearbox have three types of backlash:
Standard backlash: 10~15arcmin
Precision backlash(B2):5~8arcmin
Precision backlash(B1):3~5arcmin
Sizes available: PAW070A / PAW085A / PAW105A / PAW125A / PAW125B / PAW150A / PAW150B / PAW180A / PAW180B
Widely used in Printer, Belt Conveyors, Gantry Robot, Auto packing sealing machine, Packing machine (vertical pillow), Packing machine (horizontal pillow), Dispenser Robot, Loader robot and some other heavy load case.
The spiral bevel gears of PAW-2P right angle gearbox are made of high stretch SCM415 material and tooth hardness HRC60°~ HRC62°.Such excellent structure features PAW-2P with high strength and high rigidity and best for heavy loading change.
PAW-2P 90 degree right angle gearbox is with motor adapter on the input side,makes motor easily mount the gearbox.The planetary frame and 90 degree structure make the gearbox compact and perfectly applied to the transmission mechanism that need to change the motion direction with limited space.
PAW-2P right angle gearbox generates low heat and low noise when rotating.This allows a continuous high speed without sacrifice to performance and favored by a majority of users.
PAW-2P right angle gearbox have a variety of ratio adapt to different speed and torque requirements:
1-stage:3, 4 ,5, 6, 7, 10
2-stage:12, 15, 16, 20, 25, 28, 30, 35, 40, 50, 60, 70, 100
The 90 degree gearbox has a wide range of nominal torques 10Nm~1200Nm,suitable for different loads of the transmission system.
PAW-2P 90 degree right angle gearbox have three types of backlash:
Standard backlash: 10~15arcmin
Precision backlash(B2):5~8arcmin
Precision backlash(B1):3~5arcmin
Sizes available: PAW070A / PAW085A / PAW105A / PAW125A / PAW125B / PAW150A / PAW150B / PAW180A / PAW180B
Widely used in Printer, Belt Conveyors, Gantry Robot, Auto packing sealing machine, Packing machine (vertical pillow), Packing machine (horizontal pillow), Dispenser Robot, Loader robot and some other heavy load case.
FEATURES AT A GLANCE
*low backlash(≥3arcmin,≤15arcmin)
*high efficiency(≥98%,94%≤)
*operation smoothly
*low noise
*Temperature rise slowly
Model | PAW070A / PAW085A / PAW105A / PAW125A / PAW125B / PAW150A / PAW150B / PAW180A / PAW180B |
Ratio | 1:1-100:1 |
Backlash | ≥3arcmin,<=15arcmin |
Torque | 10Nm-1200Nm |
Weight | 1.8kg-42kg |
Package | Carton or wood gearbox |

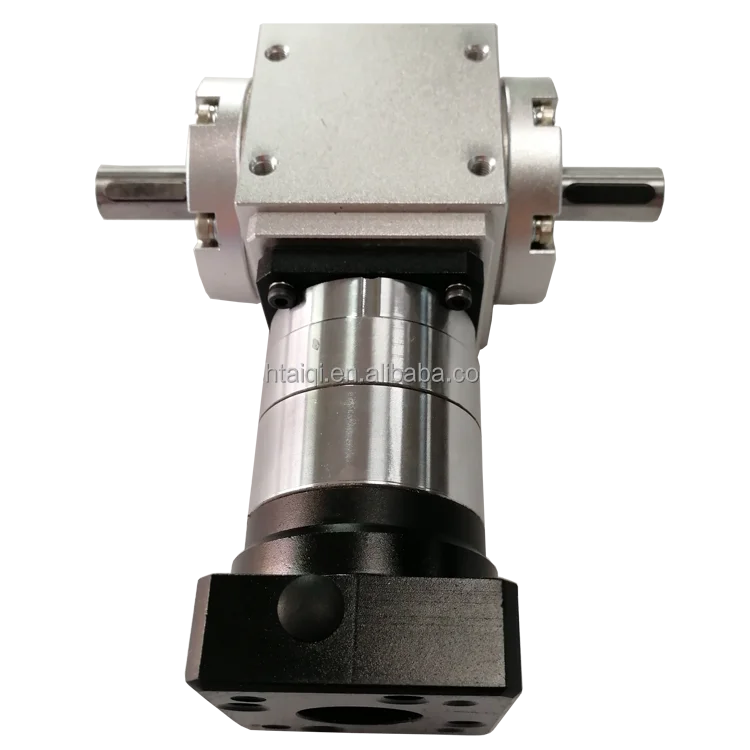

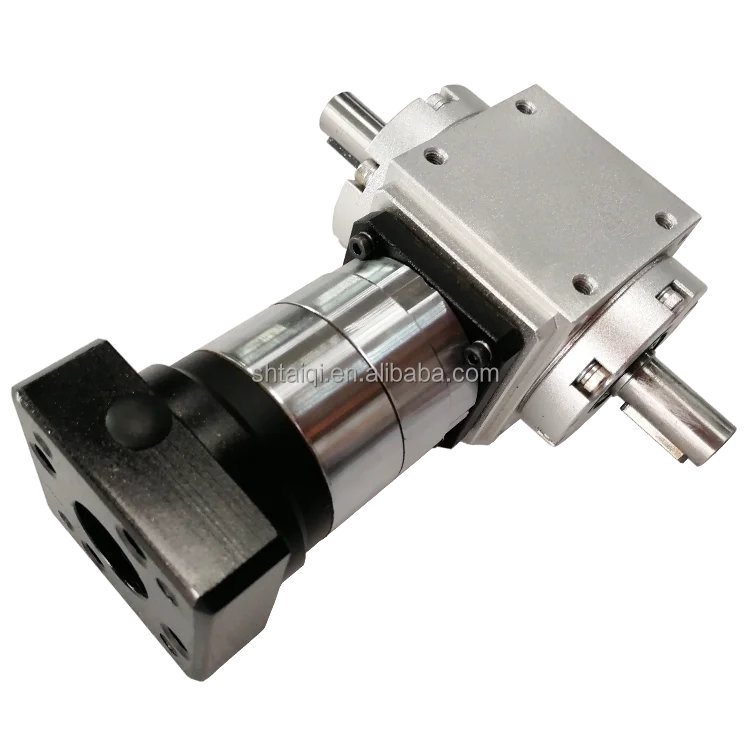

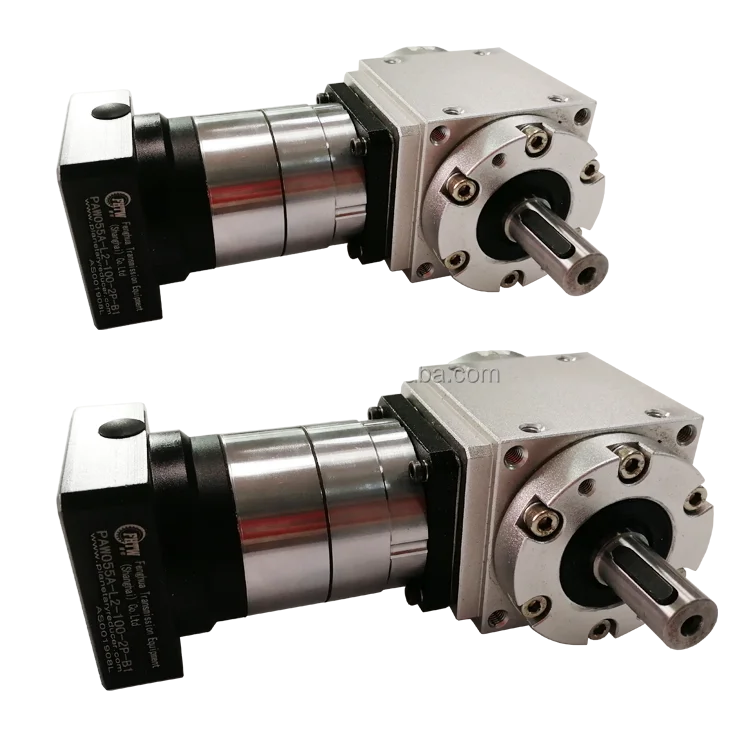

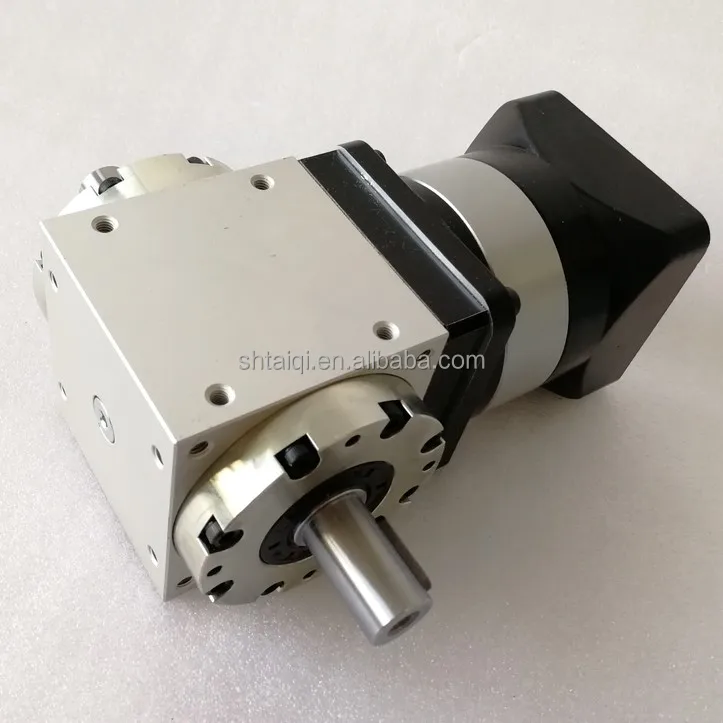

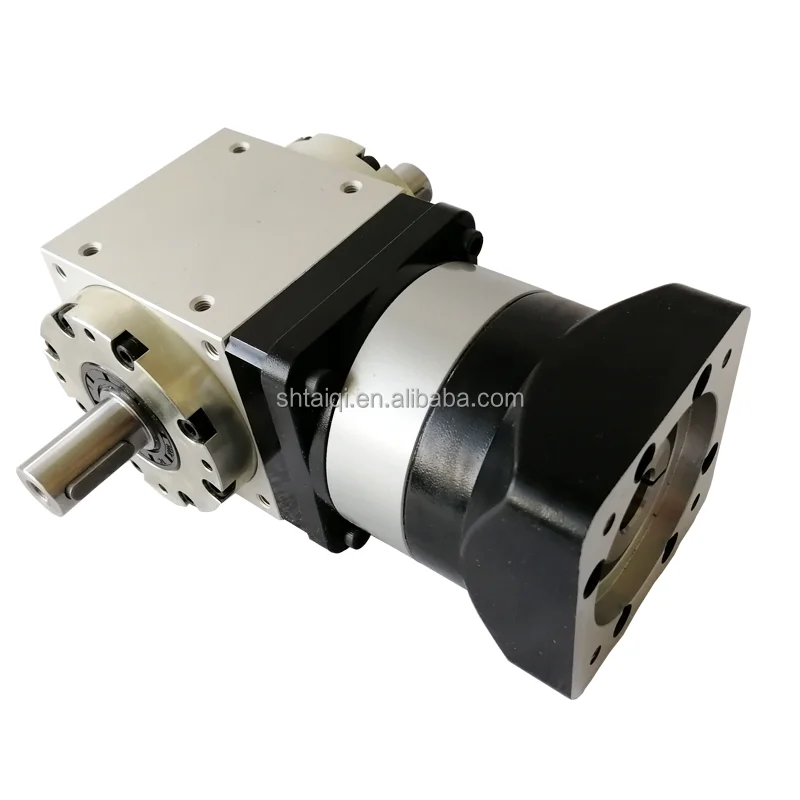

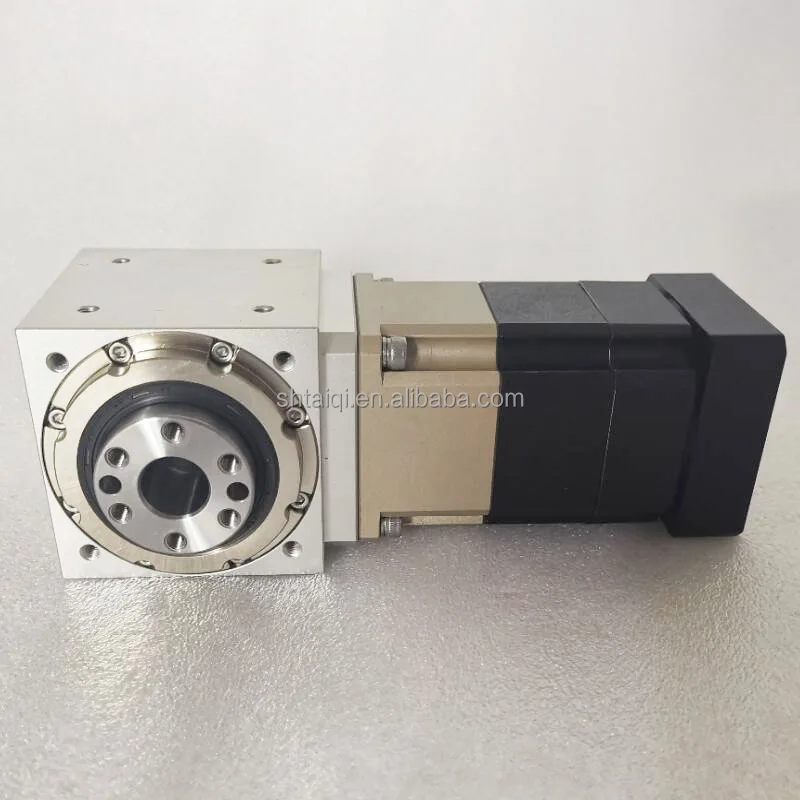

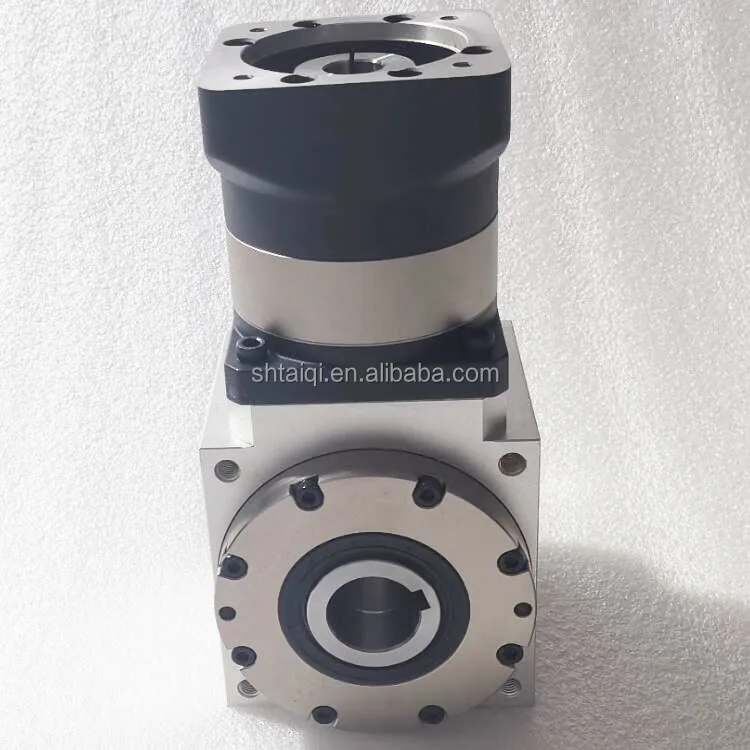

Real Figures

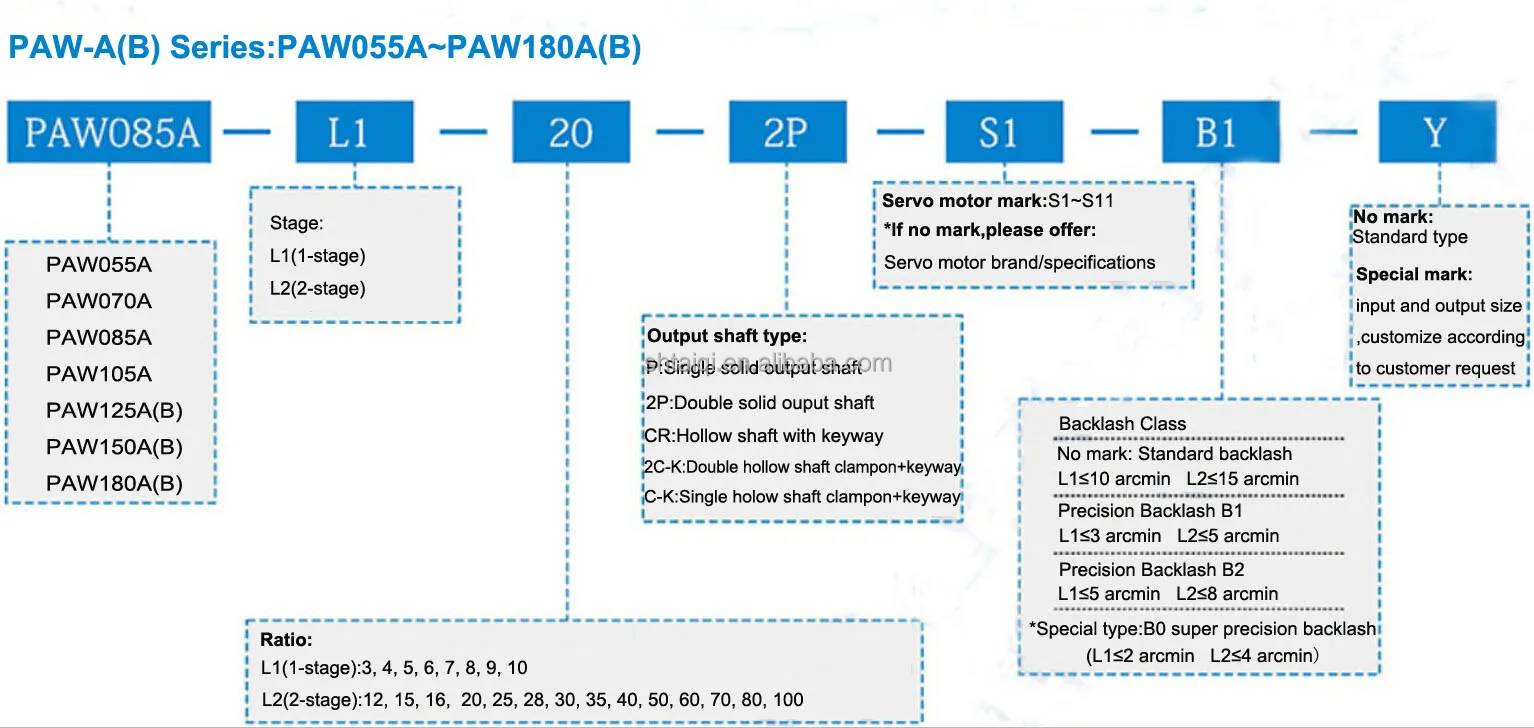

Model Selection

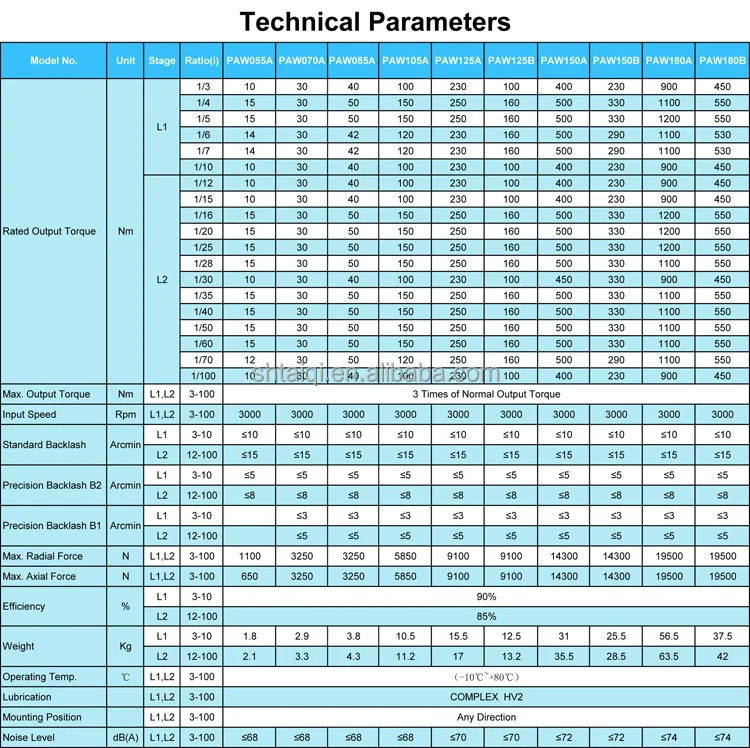

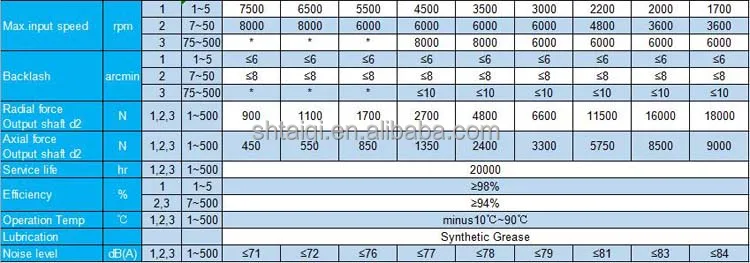

PRODUCT SPECIFICATIONS
Dimensions
