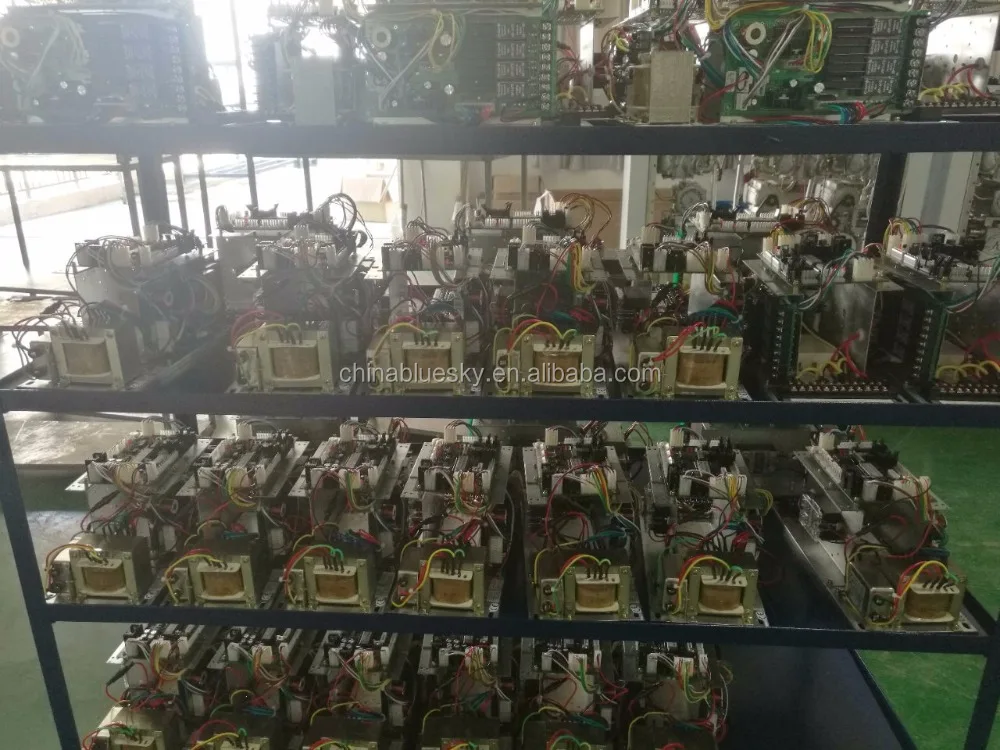

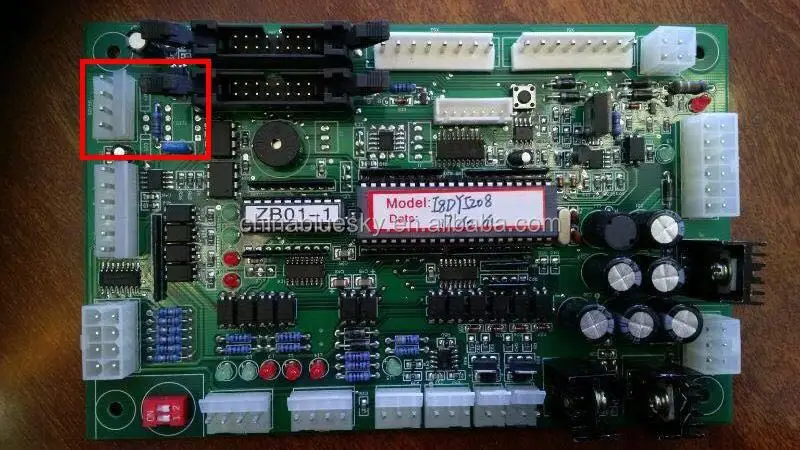

Electronic controller LT B224 for fuel dispenser

Place of Origin:

China (Mainland)

Brand Name:

BLUE SKY

Model Number:

RTLT-L

Voltage:

AC380V±20%

amount district:

8 digits

liter district:

8 digits

unit price district:

6 digits

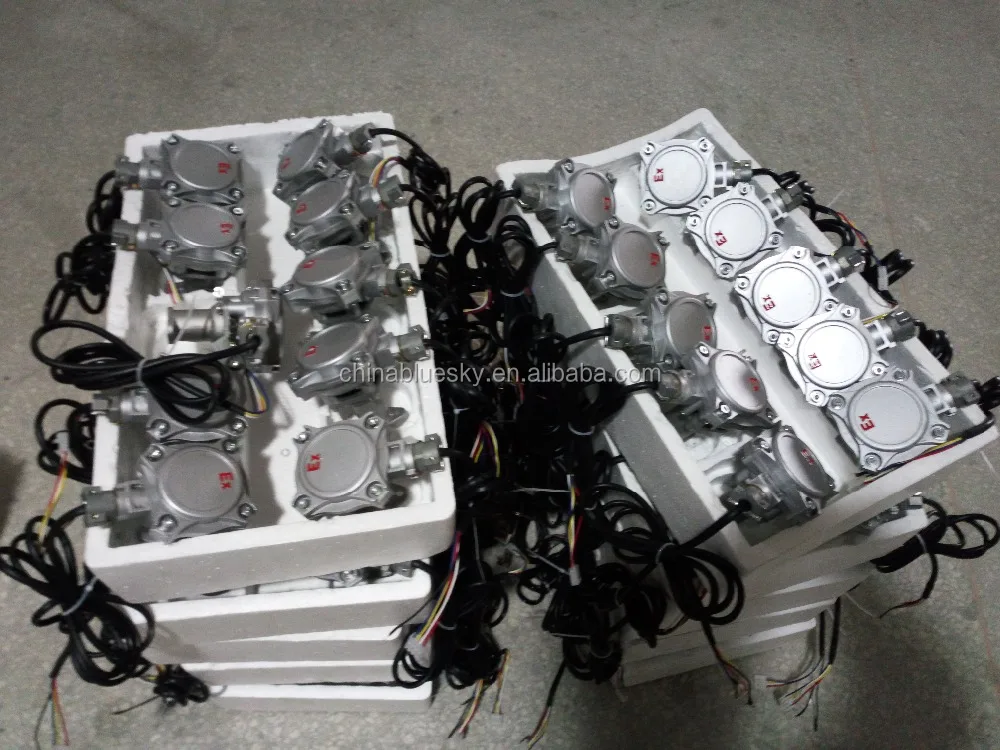

The pulser:

200 pulses per rotation

type:

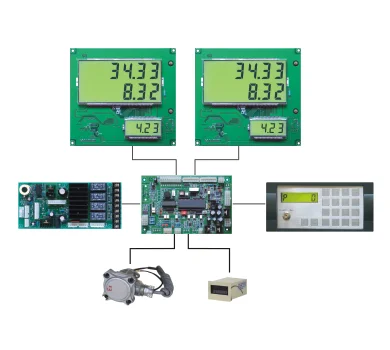

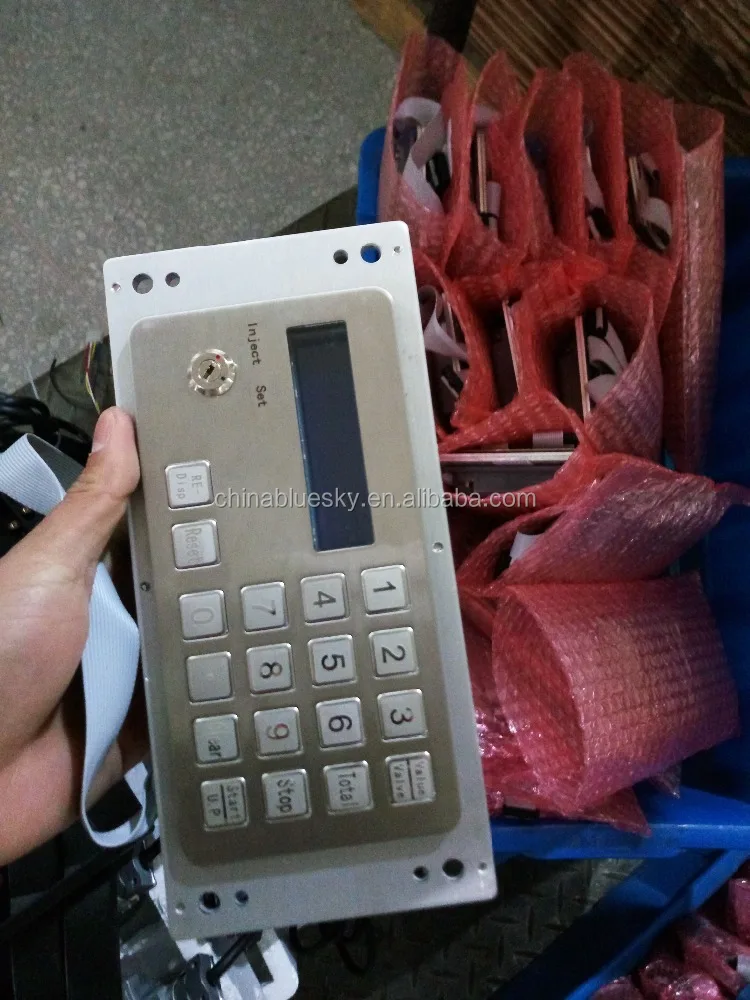

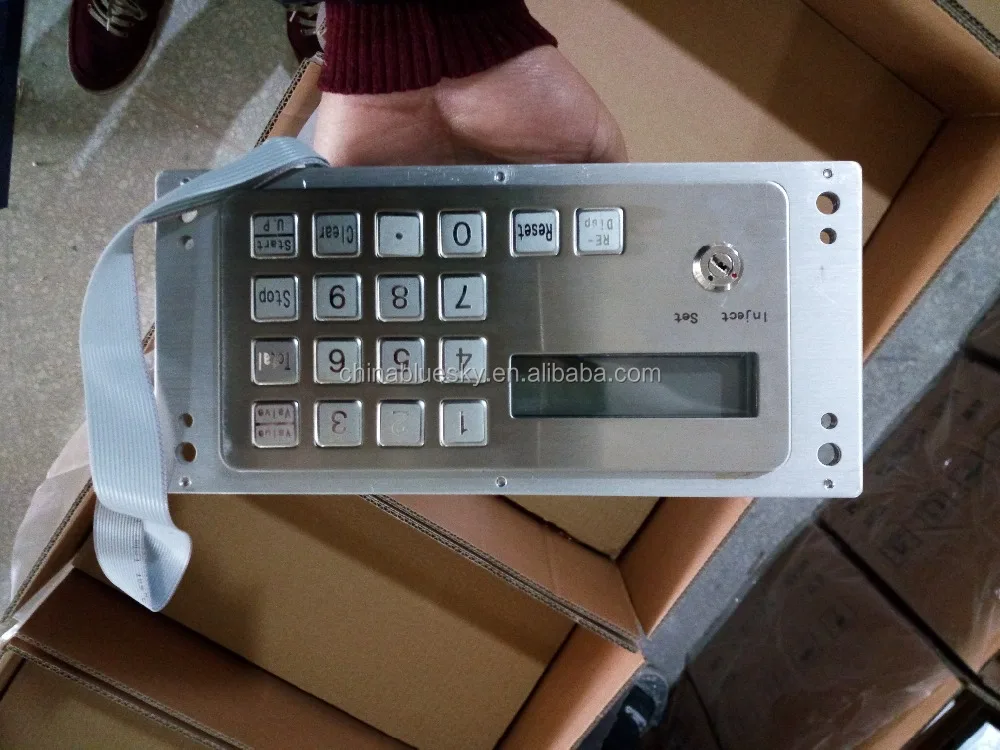

1keyboard,1nozzle,2display

Main Characteristics and Parameters:

Working Ambient:

1)Adapt temperature:  -35℃~ 55℃

2)Relative humidity:   30%~90%

3)Air pressure:       86~106KPa

Power:

1)Voltage:  AC220V±20%     AC380V±20% √    AC110V±20%

DC12V±3V       DC24V±4V

2) Frequency:  (50±1)Hz  √   (60±1)Hz

The digits number displayed on display screen:

1)liter district:         8 digits

2)amount district:      8 digits

3)unit price district:    6 digits

Counting range of shift totalize:

Volume or amount: 8 digits (Volume including 2 decimal digits )

Counting range of liter general totalize: 10 digits  (Volume including 2 decimal digits )

Counting range of amount general totalize: 12 digits  (Volume including 2 decimal digits )

Unit price setting range:0~999999   basic currency / liter

Solenoid valve turn off setting range:0~0.99 liter

Can choose voice and printer

Can choose 7 digits for electromagnetic counter or 9 digits for Mechanical totalizer counter.

Leaves the communication ports, so it can communicate with the gas station management system.
