Safe and high quality double line customerized low price hot selling plastic sealing bag making machine for garbage bags

Banner

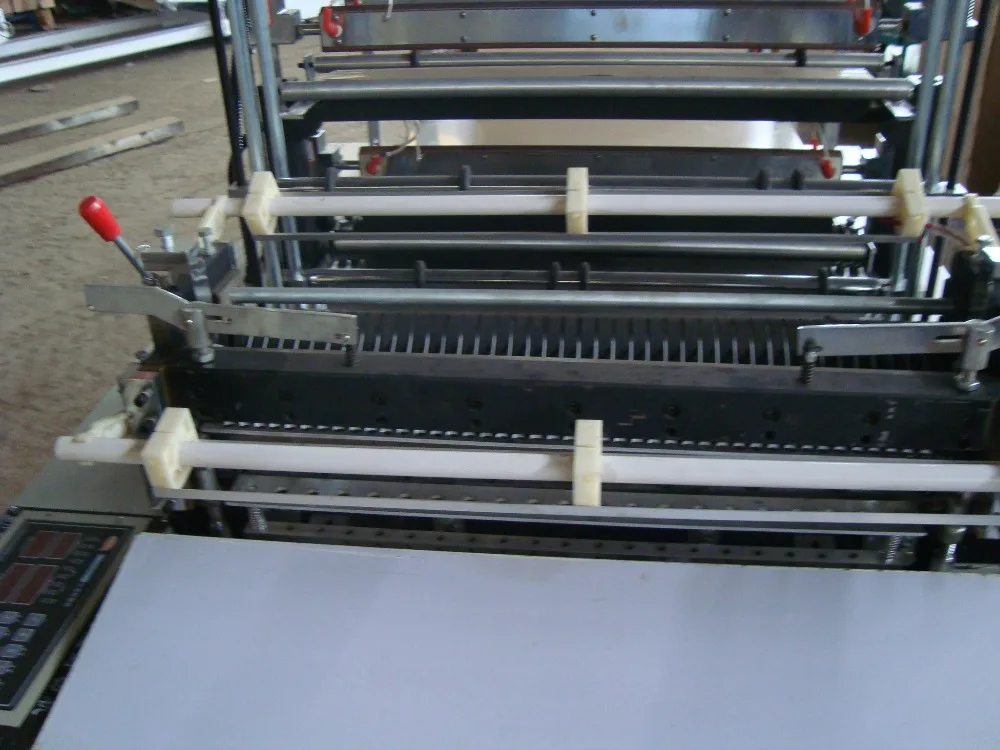

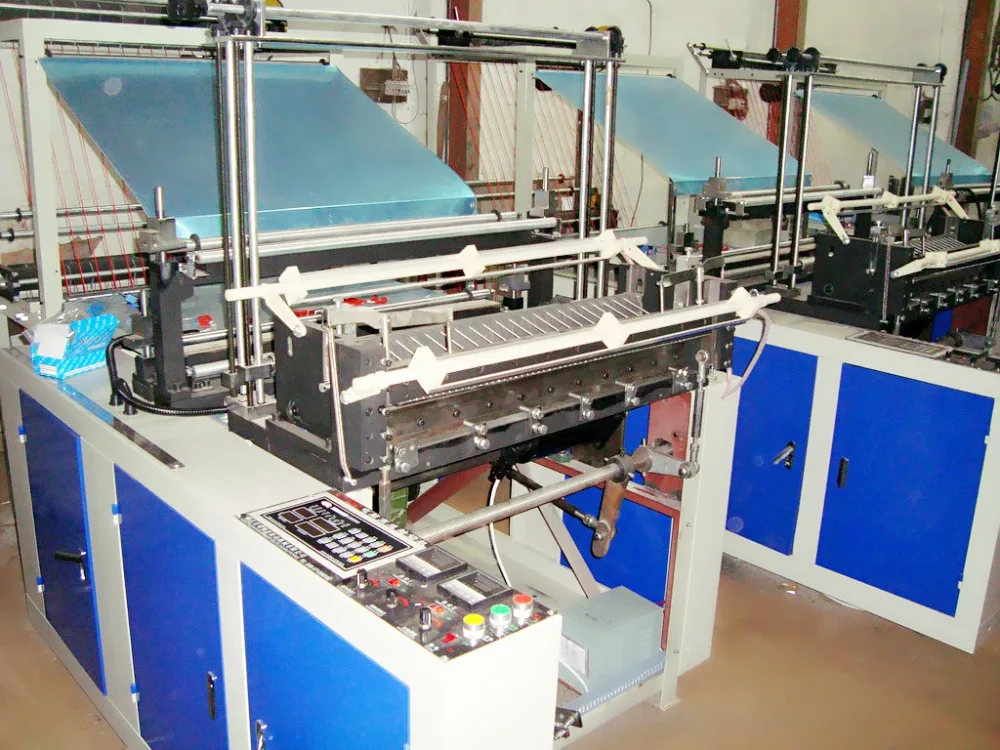

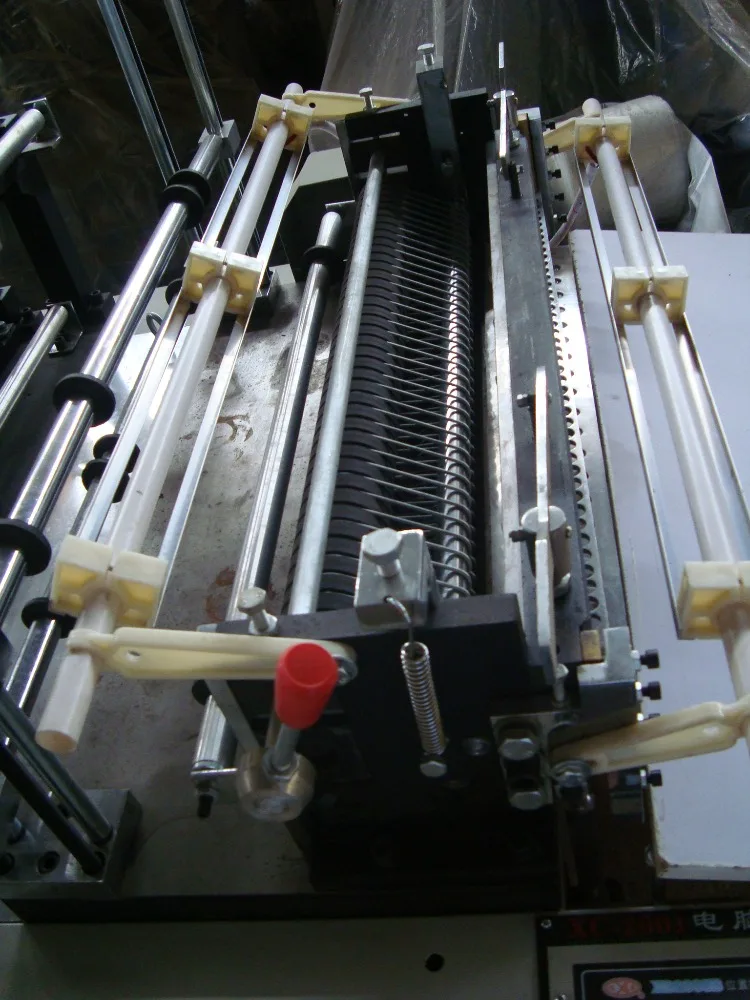

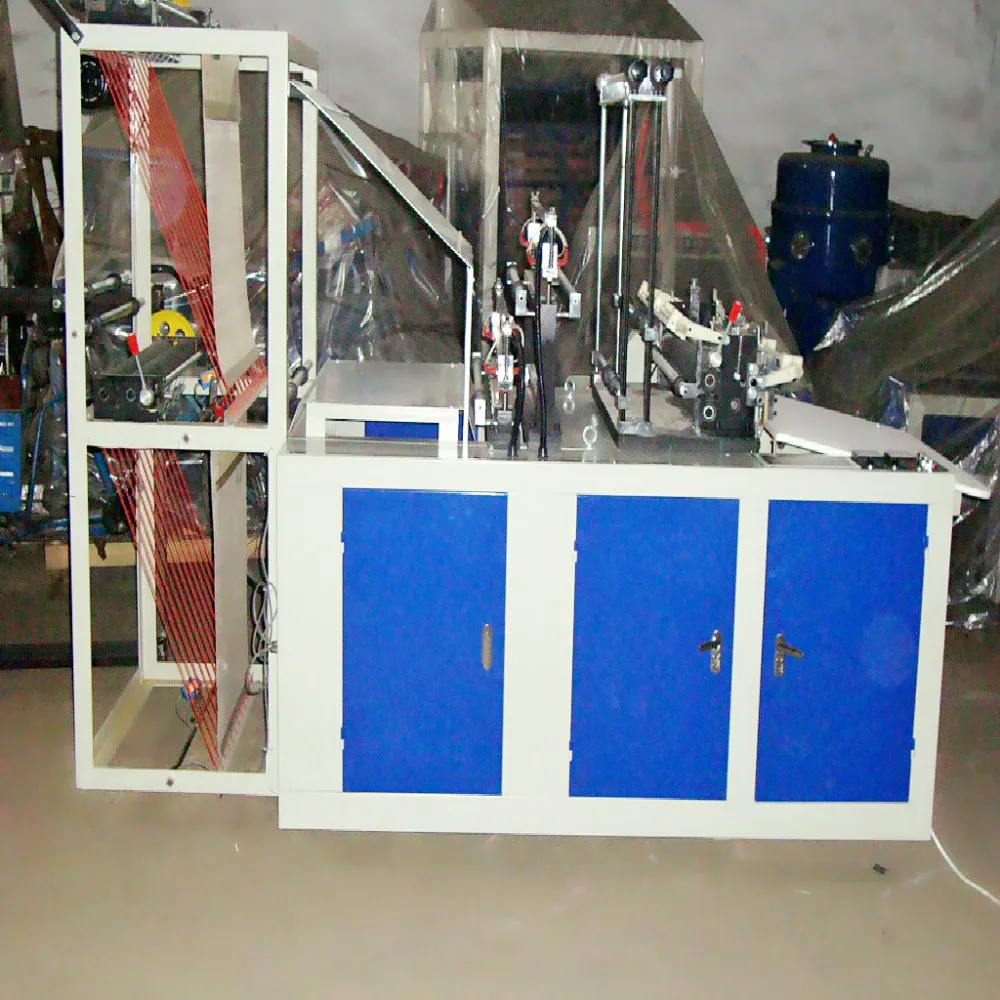

Wenzhou professional manufacturer sealing (cold cutting) bag making machine is specially designed as dual-use machine for T-shirt bags and flat bags with photoelectric automatic tracking, fixed-length by microcomputer, high limit downtime, automatic counting and alarm on reaching the set value, high compensation accuracy, keep the bags neat, little error and high automation, so it is an ideal equipment for producing white bags, colored vest bags. The HDPE/LDPE film bags produced by this machine are suitable for go shopping in the supermarket and shopping malls.


General features:

Two production lines, high output

Hot sealing and cold cutting, highly automatic to produce flat bags; if work with punching unit this machine can produce T-Shirt bags

One photocell enables to cut printed bags

Only one step motor/servo motor installed to pull the rubber roller

Position controller controls the operation, clear settings system for easy operation

Static eliminator to get rid of statics on film surface for better cutting

Digital temperature controllers to adjust the temperature of the heating bar



Top China Brand

Model

SHXJ-700D

SHXJ-800D

SHXJ-900D

SHXJ-1000D

Cutting line

Double layers double lines

Bag width

600mmx2

700mmx2

800mmx2

900mmx2

Bag length

1000mm

Cutting speed

50-130pcs/min/line

Motor

Stepping motor

Main motor

1.5KW

Heating Capacity

4KW

Power supply

220V, 50Hz

Electronics used

 Top China Brand

Machine weight

 850kg 900kg

950kg

 1000kg
Dimension 3.2×1.25×1.8M 3.2×1.35×1.8M 3.2×1.45×1.8M 3.2×1.55×1.8M
Optional device    Servo motor, imported photocell


Production process
