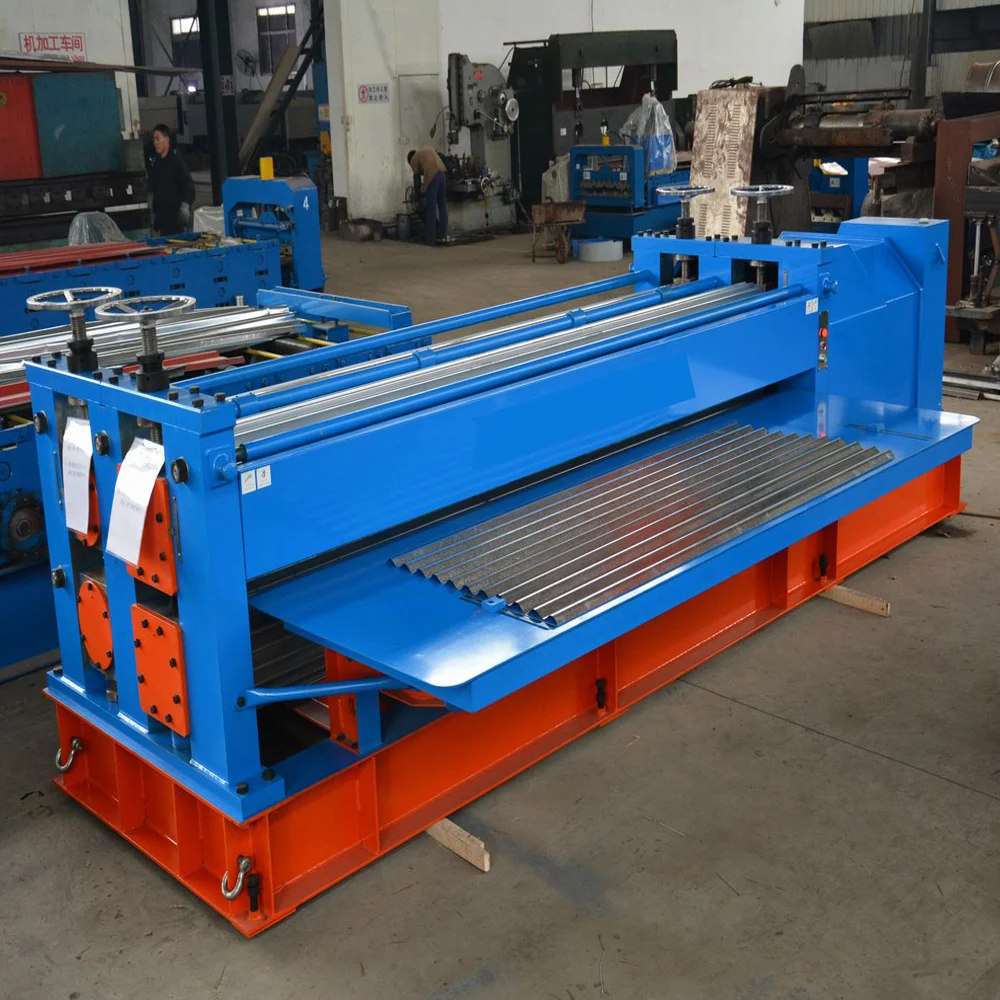

ROOFING SHEETS metal rolling machine SX 600 305 subm cold roll forming machine from china
- Category: >>>
- Supplier: AMI (Tianjin) New Materials Technology Co. Ltd.AMI Ltd.
Share on (60702814745):
Product Overview
Description
Products Description
| 1 | Commodity | Corrugated tile form machine |
| 2 | Type | XH-32E |
| 3 | Equipment Weight | 10 tons |
| 4 | Outline Dimention | 6280MM X 2000MM X 1500MM |
| 5 | Widthof the Sheet | 750 MM TO 1000 MM |
6 | LENGTH OF THE SHEET | Max. 4500MM |
| 7 | MATERIAL TO BE CORRUGATED | FULL HARD GALVANIZED SHEETS |
| 8 | WIDTH RANGE OF SHEET | 762MM,914MM,1000MM,1250MM |
| 9 | THICKNESS RANGE OF SHEET | 0.14 MM TO 0.3 MM |
| 10 | DEPTH OF WAVE | 18MM(±1.5MM) |
| 11 | PITCH OF WAVE | 76MM (±2.0MM) |
| 12 | DRIVE | 15 KW |
| 13 | POWER | AC440V & 60HZ & 3P |
| 14 | CONTROL | AC220V & 60HZ |
| 15 | SPEED | 10-12 STROKES PER MINUTE |
| 16 | OUTPUT | 2-4 TONS PER HOUR |
Note:CORRUGATION PARAMETERS:The tolerance of the width, depth, No,of waves of the roofing sheet after corrugated in accordance with JIS G3316 (1987) standard. | ||

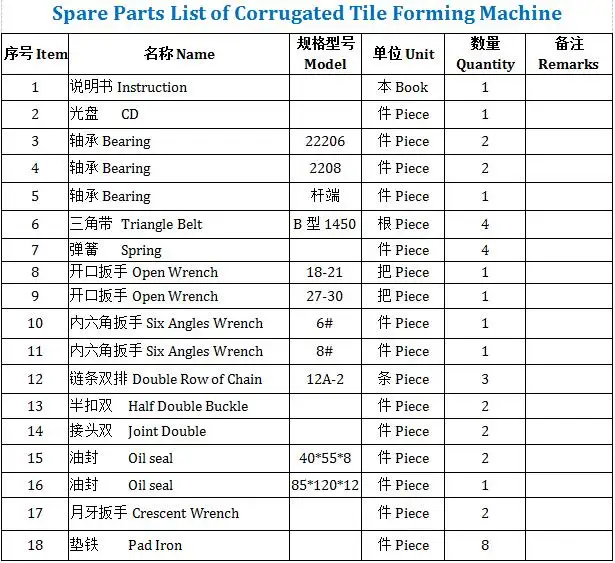

Spare parts:
Drawing of Corrugated Sheet:

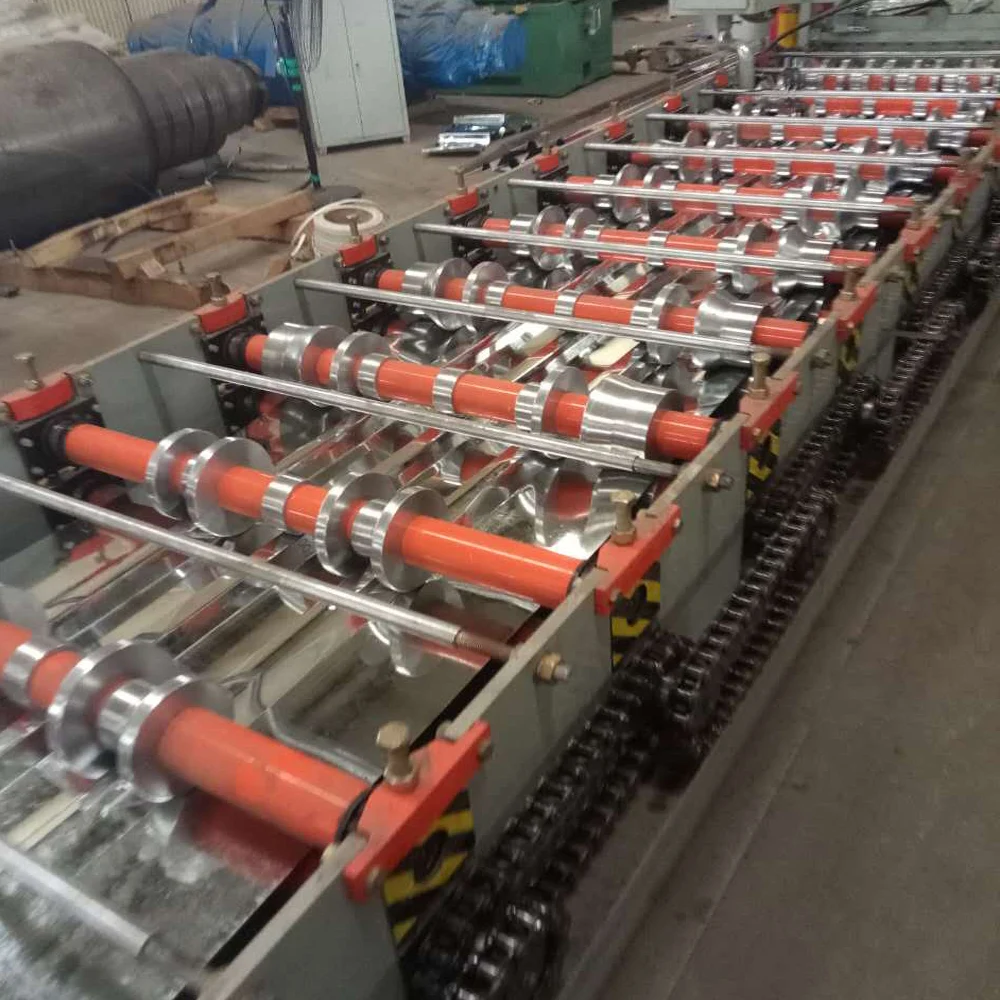

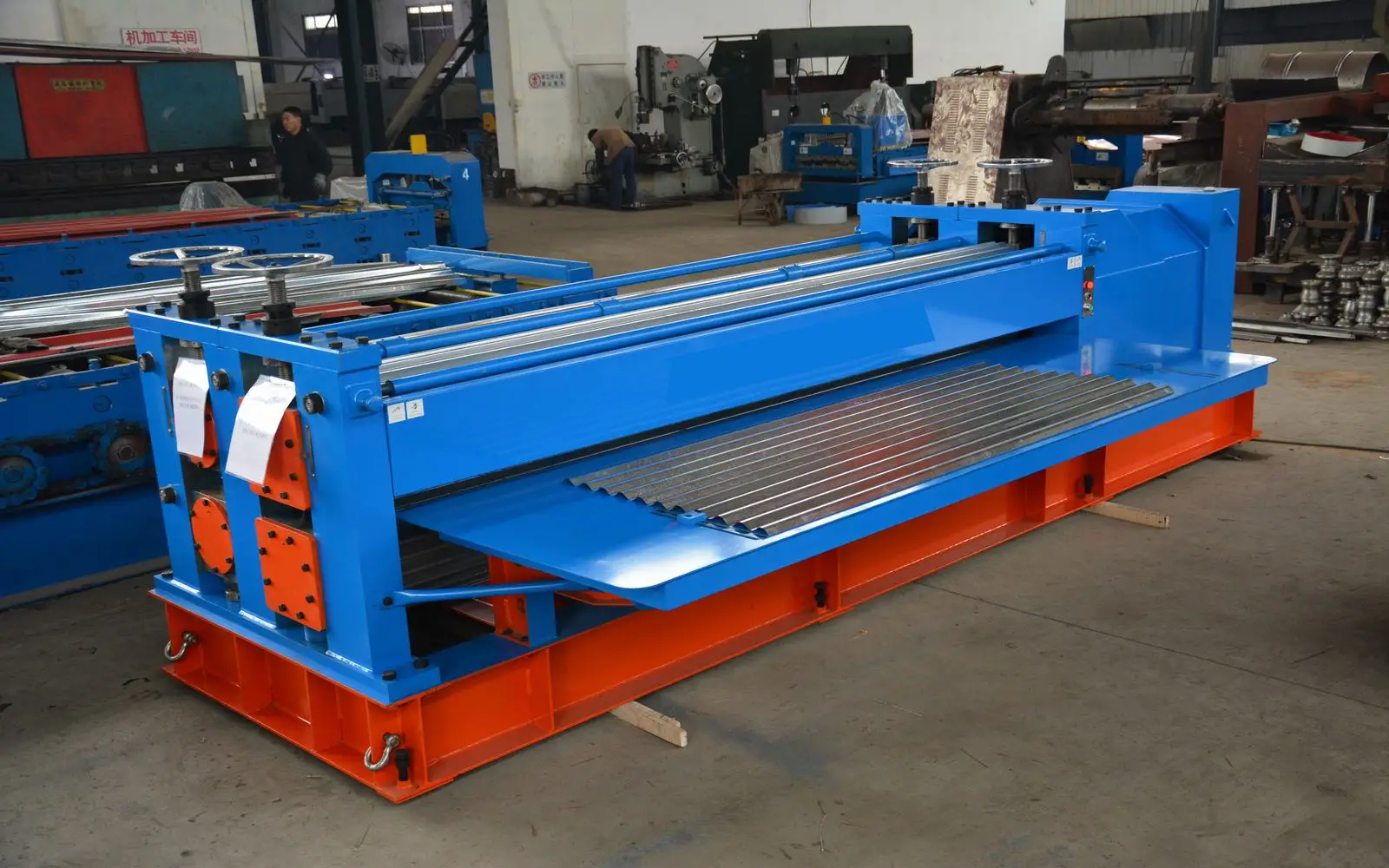

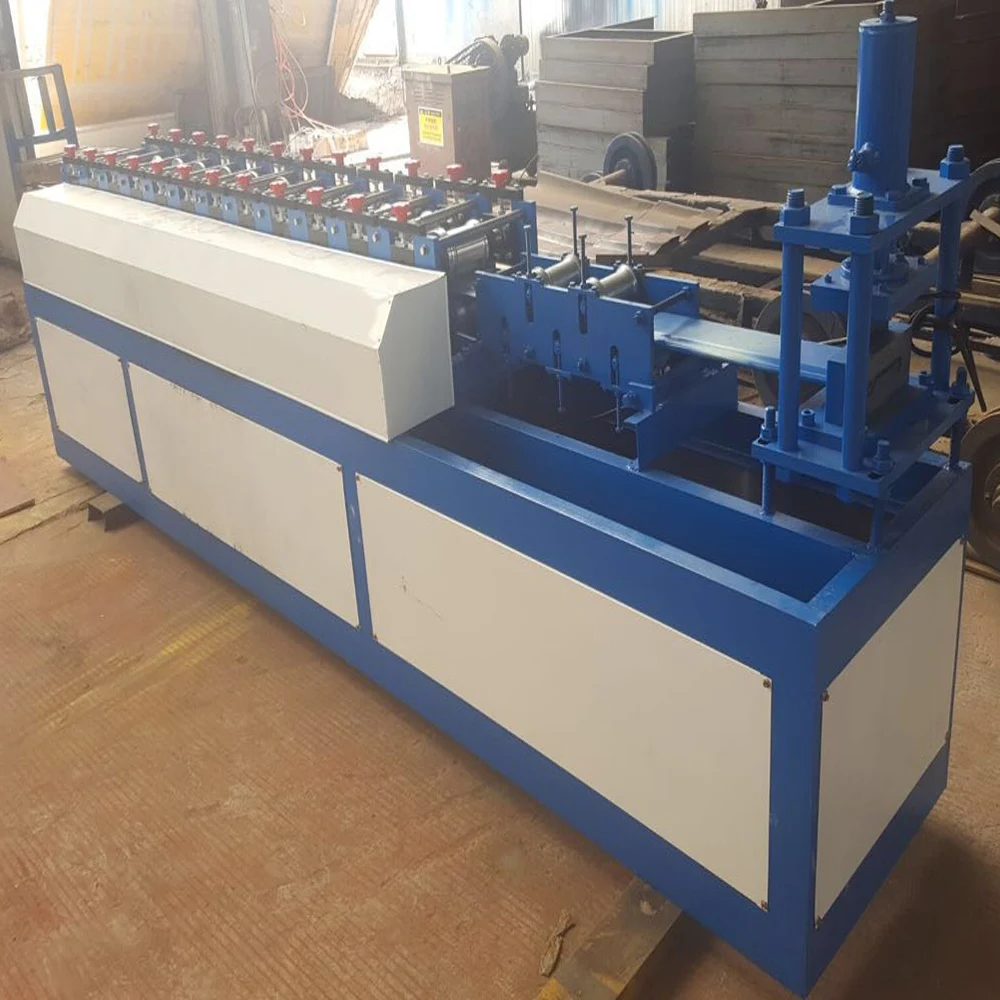

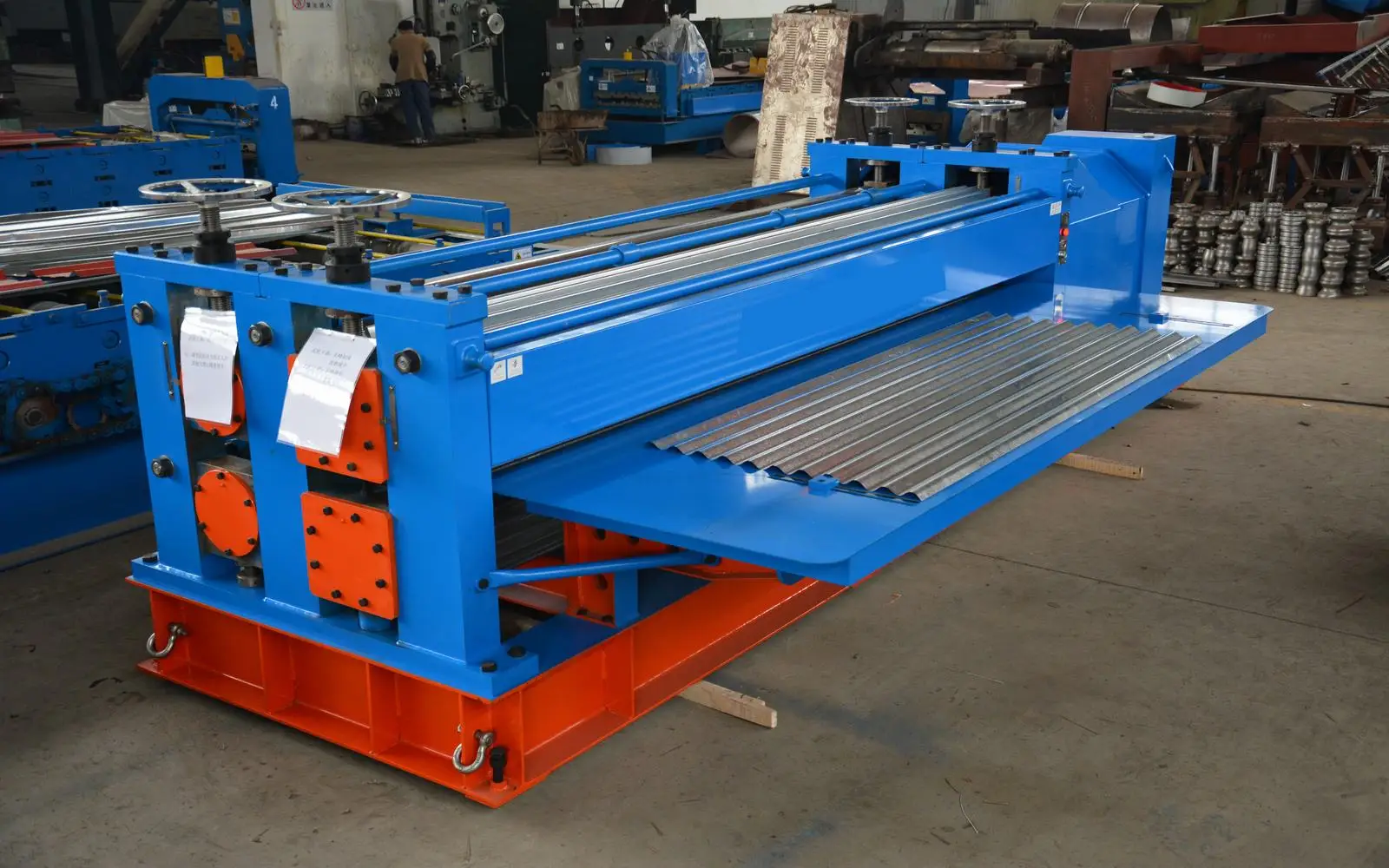

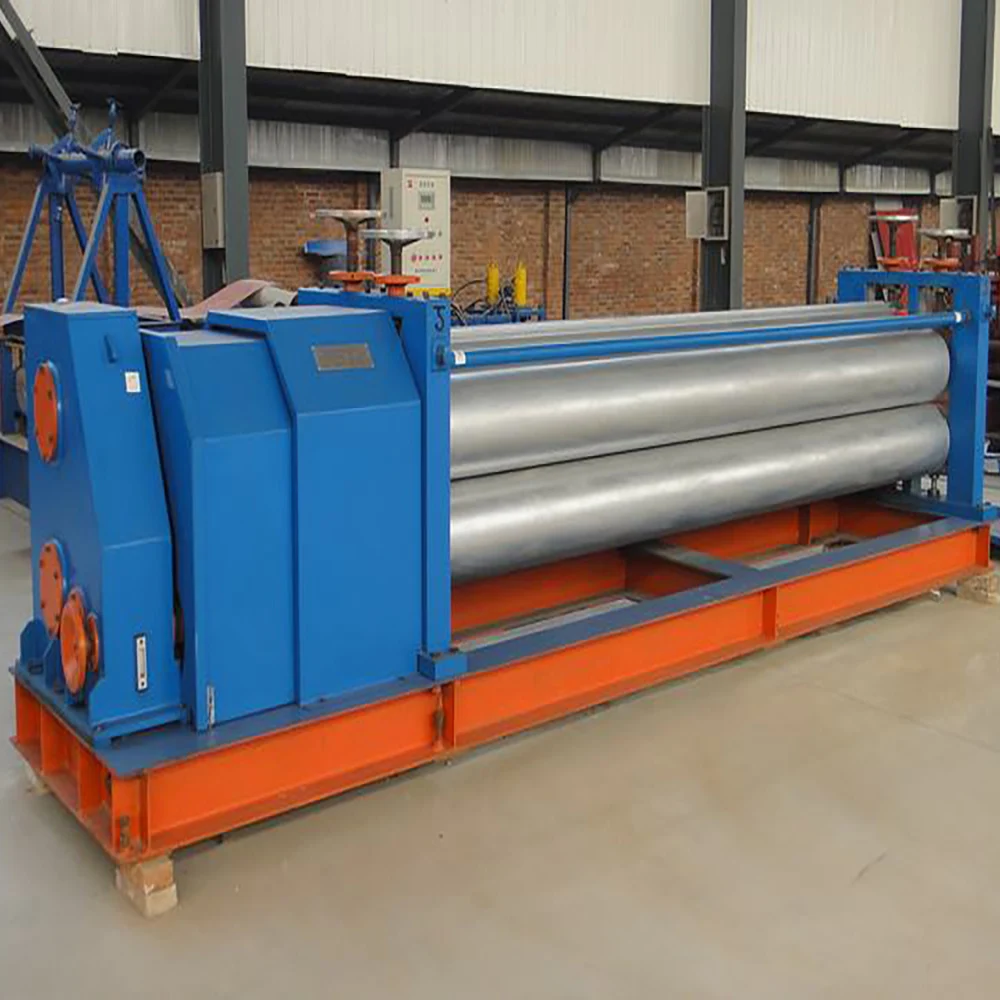

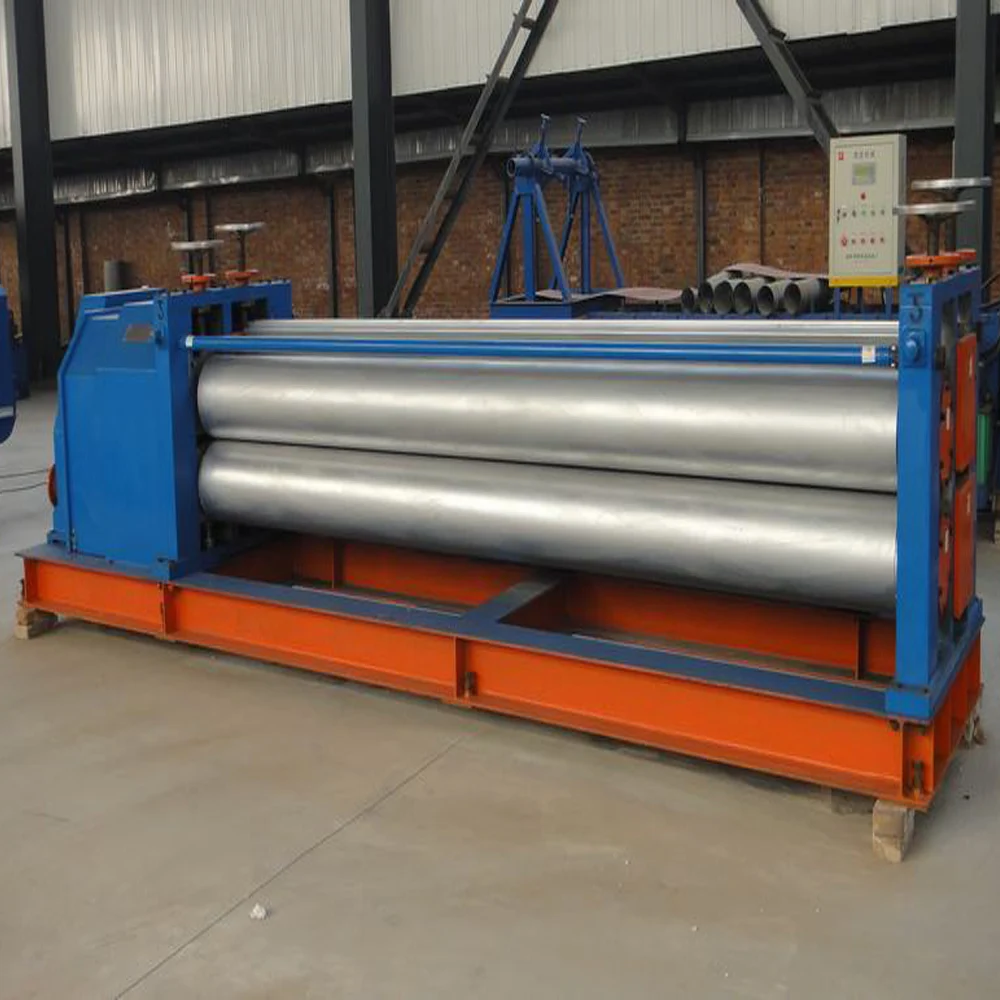

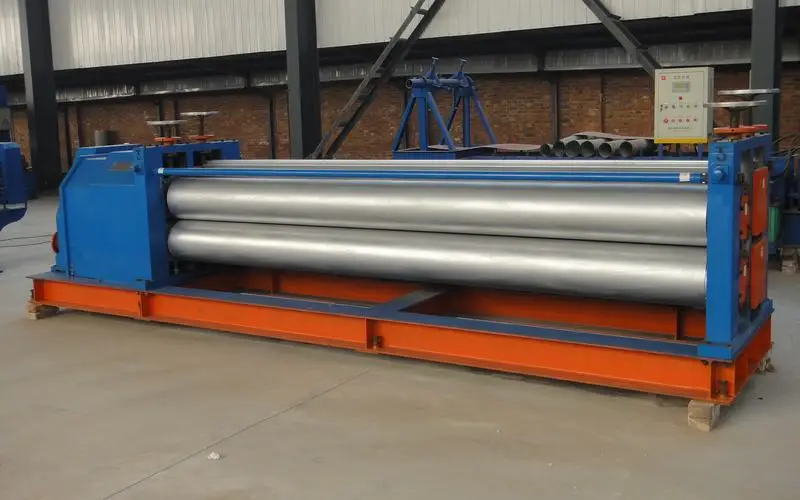

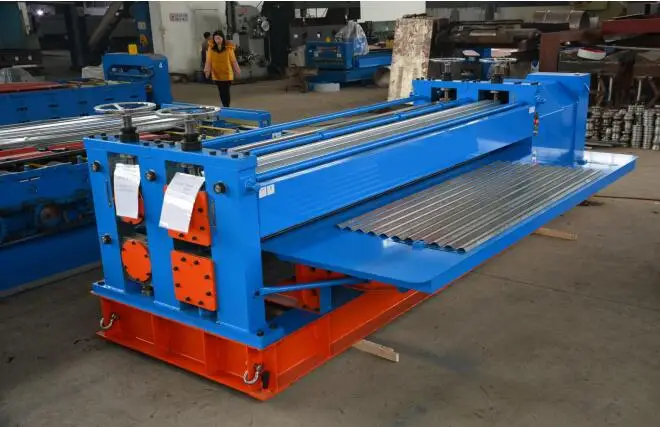

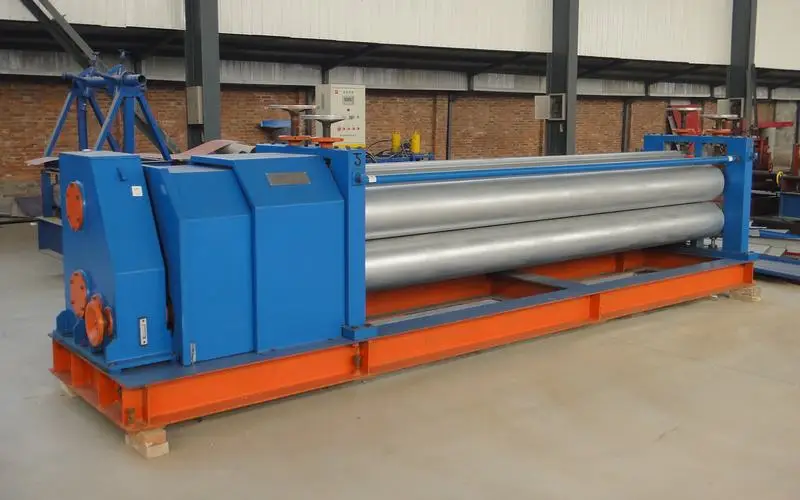

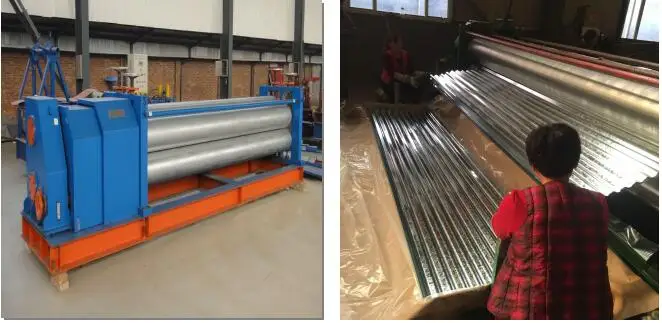

Picture Show:
