2017 Ruian New Design With Low Price ABA Film Blowing Machine(Kings Brand)
Product Description
It is used for blowing the plastic laminated film of low density polyethylene(LDPE), high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc. Characteristics: 1).Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package. 2).The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment. 3).The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring. 4).Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll-changing easy.
Main Technical Variables:
Model
SJ-45x2/FM1000
SJ-50x2/FM1200
SJ-55x2/FM1500
Screw Diameter
2x45mm
2x50mm
2x55mm
Screw Ratio
L/D30:1
L/D30:1
L/D30:1
Screw Speed
12-120r/min
12-120r/min
12-120r/min
Output of Single-desk Extrude Machine
35kg/h
50kg/h
60kg/h
Power of Main Motor
2x11KW
2x15KW
2x15KW
Caliber of Film Head
200-250mm
250-300mm
300-350mm
Rotational Mode of Machine Head
constantly revolve
constantly revolve
constantly revolve
Single-sided Thickness of Film
0.02-0.10mm
0.02-0.10mm
0.02-0.10mm
Max. Folding Width of Film
1000mm
1200mm
1500mm
Electric Total Capacity
42Kw
53Kw
65Kw
Weight of Machine
3500kg
4500kg
1500kg
Overall Dimensions
4200x2200x4600mm
4600x2400x5000mm
5200x2700x6000mm

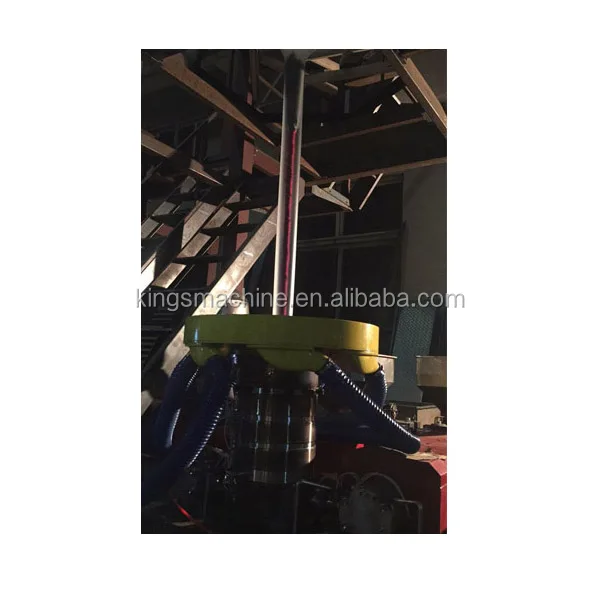

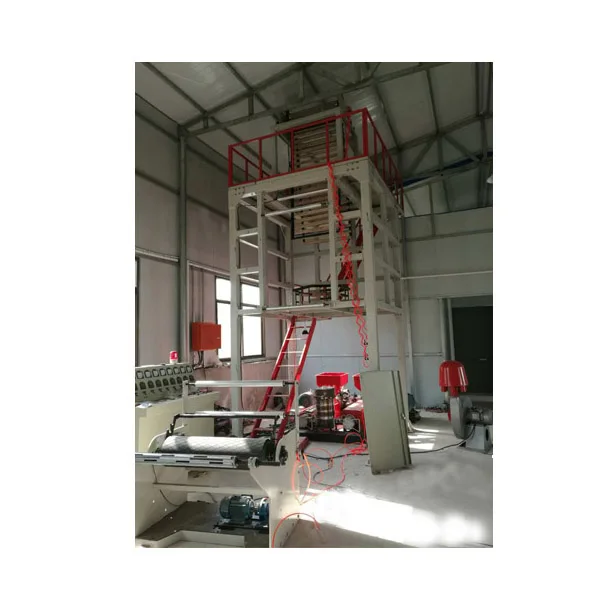

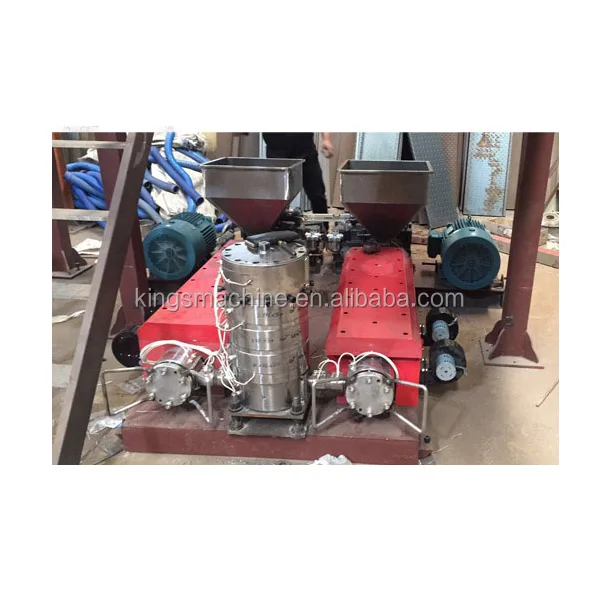

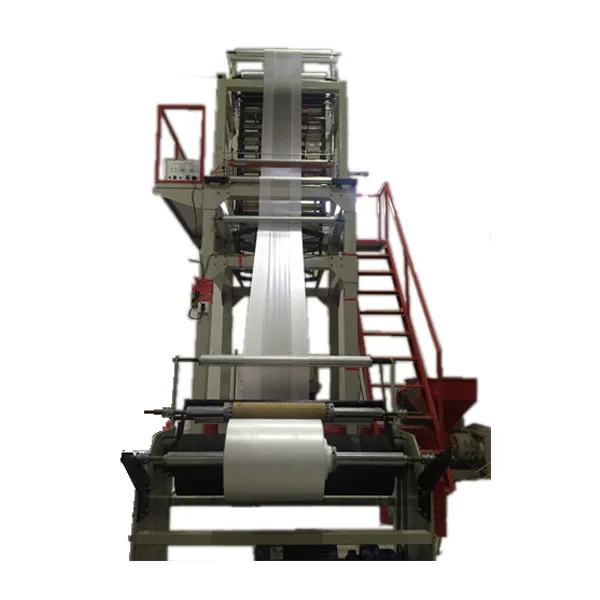

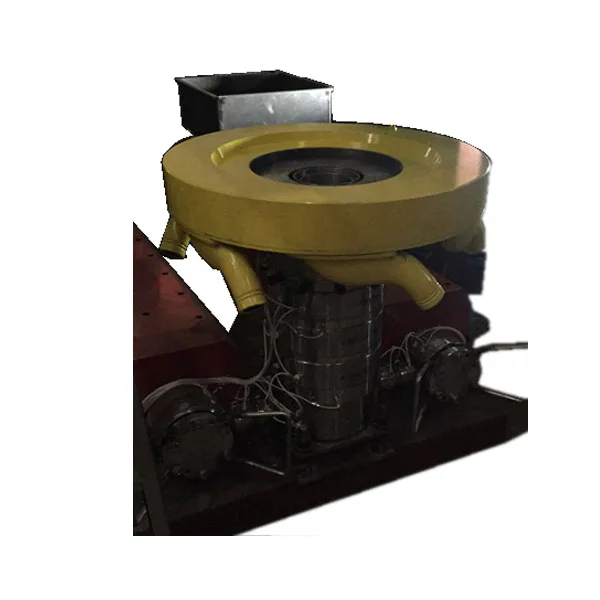

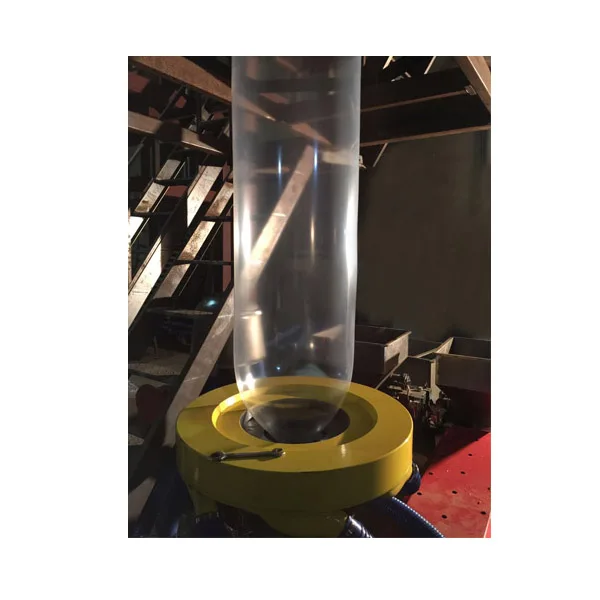

Detailed Images
Packaging
After-Sales Service
1- We provide 24 hours call service-- 0086-18815155383
2- We can provide you skillfull knowlege on the machines.
3- Our engineers are available to install and test your machines at any time if requested by the customers.
4- All machines will be examined and tested before shipment.
5- All of our machines are with CE certification.
6- We have already exported to Vietnam, India,Indonesia,Kenya,Egypt,Russia,Turkey etc.
