2 Ton Manual Hydraulic Stacker With Adjustable Forks For Sale
US $270.00-$550.00
Hugong hydraulic manual stacker
- Category: Stacker & Reclaimer >>>
- Supplier: Shanghai Yiying Crane Machinery Co. Ltd.
Share on (60705289103):
Product Overview
Description

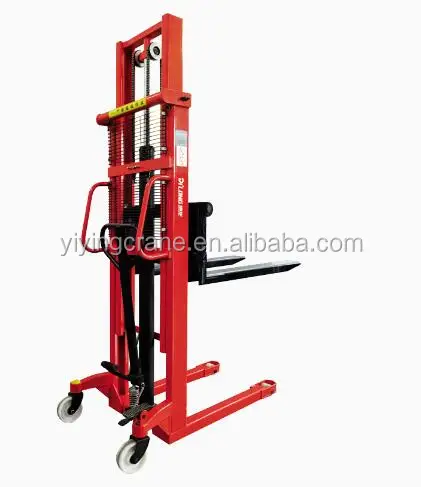

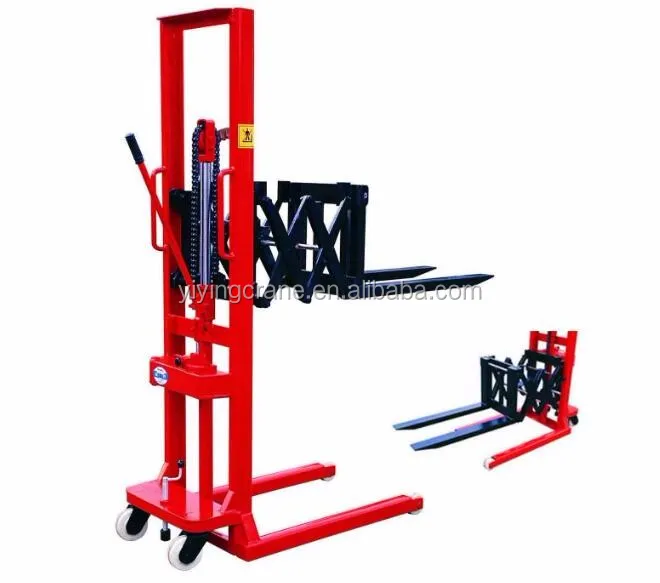

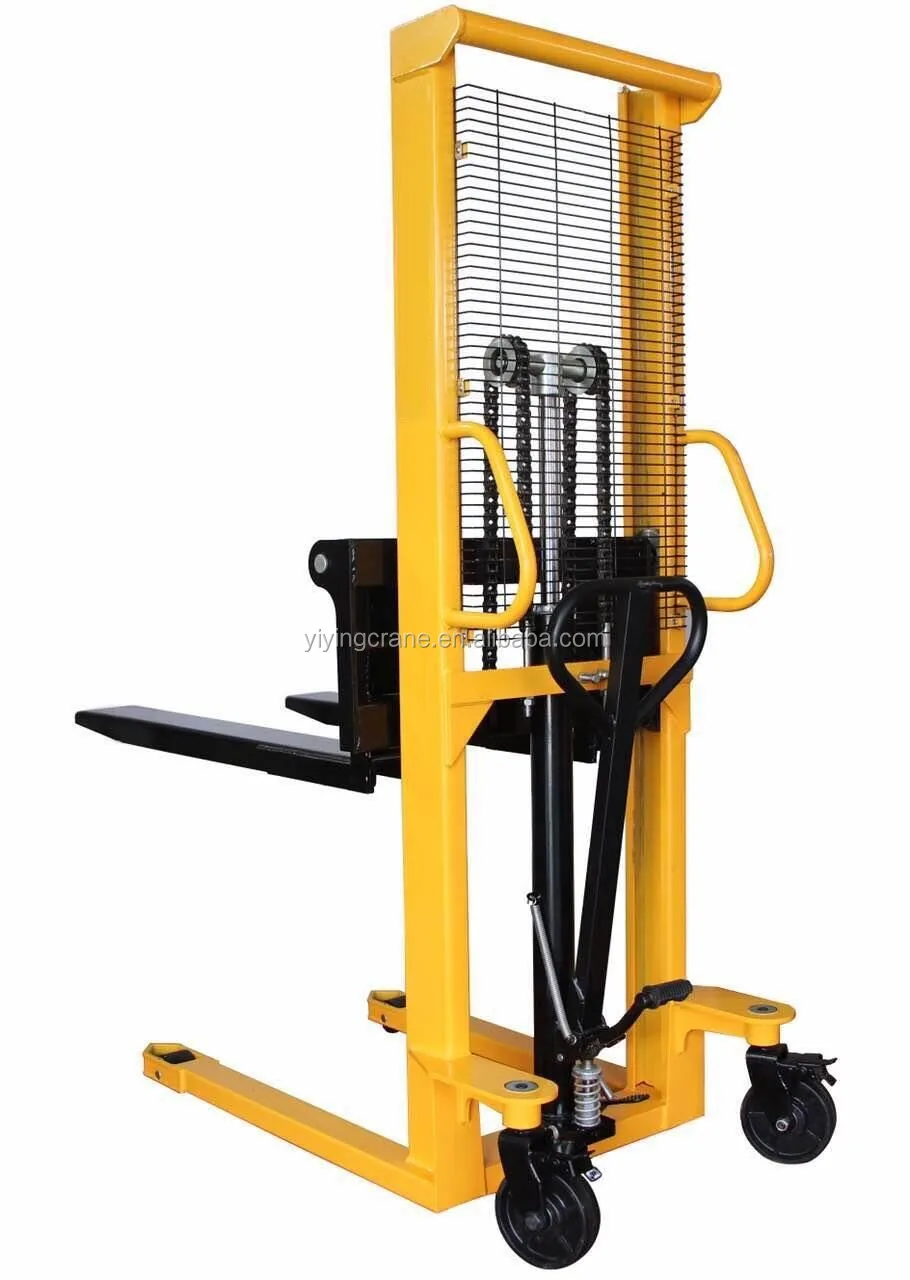

Hugong hydraulic manual stacker
Hydraulic manual stacker for price for sale
| Model | Unit | ||||
| Product type | hand stacker | hand stacker | hand stacker | hand stacker | |
| Loading capacity | Ton | 0.5 | 1 | 1.5 | 2 |
| loading center | mm | 400 | 400 | 400 | 400 |
| wheel type | nylon | nylon | nylon | nylon | |
| bearing wheel size | mm | Ø75×42 | Ø80×60 | Ø80×60 | Ø80×60 |
| steering wheel size | mm | Ø180×50 | Ø180×50 | Ø180×50 | Ø180×50 |
| Min.fork lowered height | mm | 90 | 90 | 90 | 90 |
| Max.fork lifting height | mm | 1600 | 1600 | 1600 | 1600 |
| Overall fork width | mm | 220-720 | 220-940 | 220-940 | 260-940 |
| Inside width between forks | mm | 20-520 | 20-740 | 20-740 | 20-700 |
| Fork size(l/e/s) | mm | 800/100/53 | 900/100/30 | 900/100/30 | 900/120/30 |
| Overall length | mm | 1284 | 1375 | 1430 | 1430 |
| Overall width | mm | 1980 | 1980 | 2080 | 2080 |
| Overall height | mm | 800 | 1000 | 1000 | 1000 |
| Min.turning radius | mm | 1250 | 1400 | 1400 | 1400 |
| Pump pressure frequncy AT Max.height(laden) | times | ≤95 | ≤95 | ≤110 | ≤110 |
| Service weight | KG | 190 | 220 | 250 | 275 |
Product details
Product details
1)The hydraulic consists of three parts:
the elevating cylinder and controlling parts,the elevating arm and chain-wheel parts,the gantry and back-wheel parts.
The lift lifts the weights with a manual or pedal hydraulic device,and loads weights with manual pull and push at a low position.
The oil-reflow valve is placed in the hydraulic device.
The descending speed is controlled through the pedal,ensuring the correct action of the hydraulic system and safety.

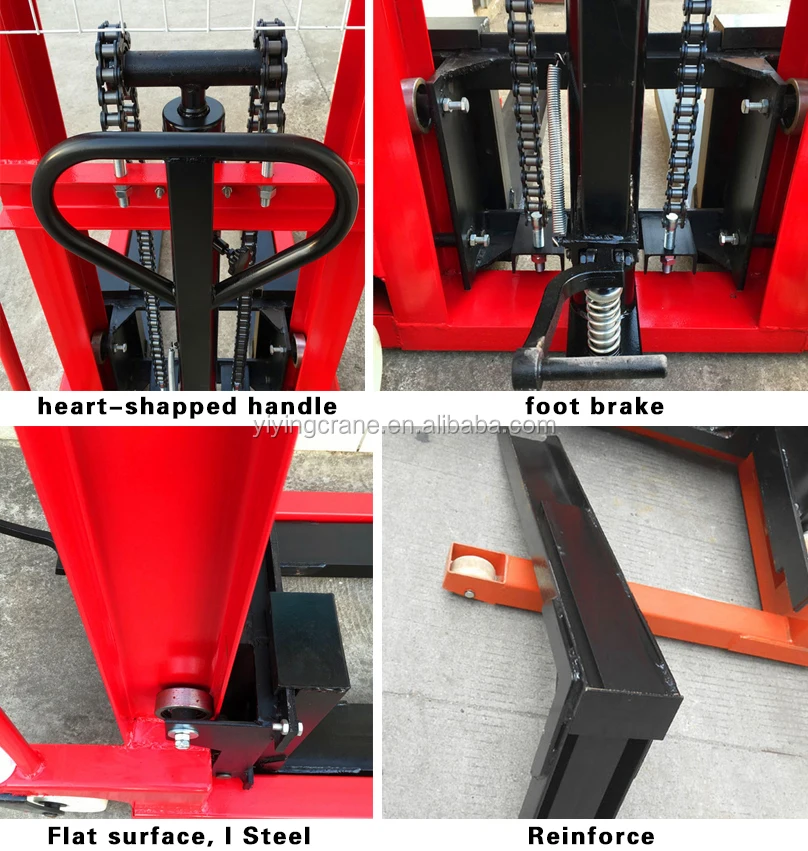

2)Big pump, strong heart
 | Frame thickness The frame thickness has 8mm. |
| Fork size One model for most countries. General size: 330-740mm It is the adjustable fork, the fork size can be adjusted from 330mm to 740mm. And the leg width is 690mm. |  |
 | Fork size One model for the EUROPEAN countries General size:550mm It is the fixed fork, the fork size is 550mm. And the leg width is 490mm. |
Fork size A special model General size:330-830mm It is the adjustable fork, the fork size can be adjusted from 330mm to 830mm.It is on the outside of the leg. And the leg width is 490mm. |  |
| |
Packing & Delivery
 | |||||||||
 | | ||||||||
Why choose us
BRAND ADVANTAGE
1. 50 years brand history; (Trademark registration number; 1975110)
2. TOP5 lifting equipment supplier in China;
3. One of the first batch of enterprises certified by Alibaba;
4. Brand customers: CNPC, China Railway Group and so on
TECHNOLOGY ADVANTAGES
1. Focuse on the production and R&D of lifting equipment for about 30 years;
2. Professional independent research and development team, recognized by domestic and foreign customers.
3. Company was honored by the givernment as a High-Tech enterprise in 2010
Service Advantage
1. 7D*24H after-sales service,
2. More than 100 professional service staff.
The products of our company have exported to over 80 countries and regions,including EUROPE,USA,AUSTRALIA and SOUTHEAST ASIA,etc.
Company Information
Shanghai Yiying Crane Machinery Co., Ltd. Was established in 1992, which specializing in designing and manufacturing Manual Chain Hoist, Lever Hoist, Electric Hoists, Forklift and other lifting products.
1. Annual production in 5 million units production area 3600 square meters;
2. 4 production bases in HangZhou, Chongqing, Jiangsu and Hebei.
3. 120 production lines;
4. More than 500 employees;
5. Annual export value over 50 million RMB.
Certifications
RIGOROUS QUALITY CONTROL
1. Certificate:CE,SGS,ISO:9001,BV
2. The third-party inspection for quality testing is accepted
3. Product qualification rate more than 98%
4. In accordance with the requirements of Environmental Protection Administration,
the quality and delivery can be guaranteed
