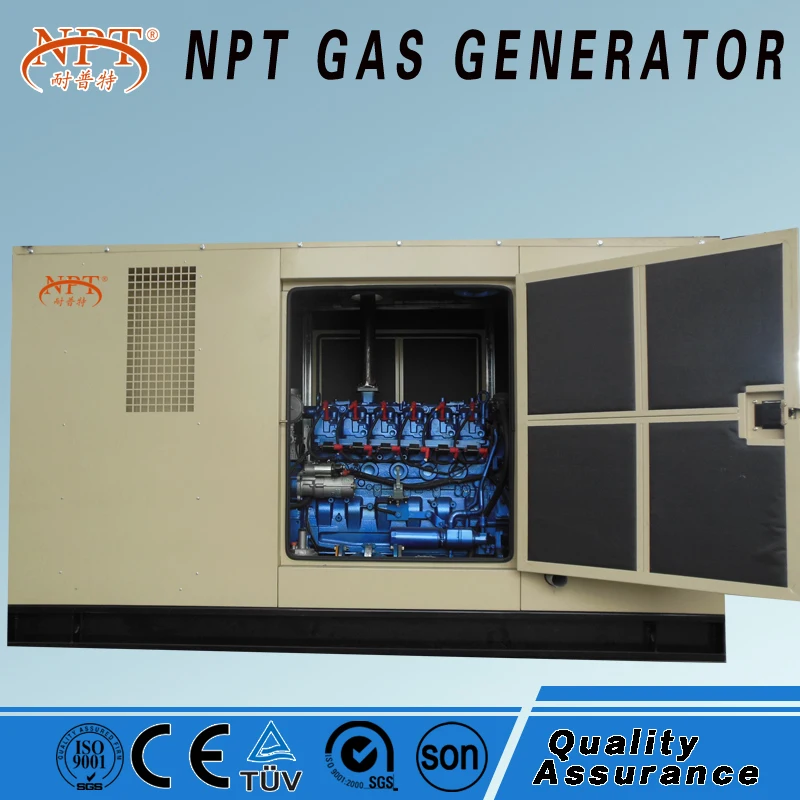

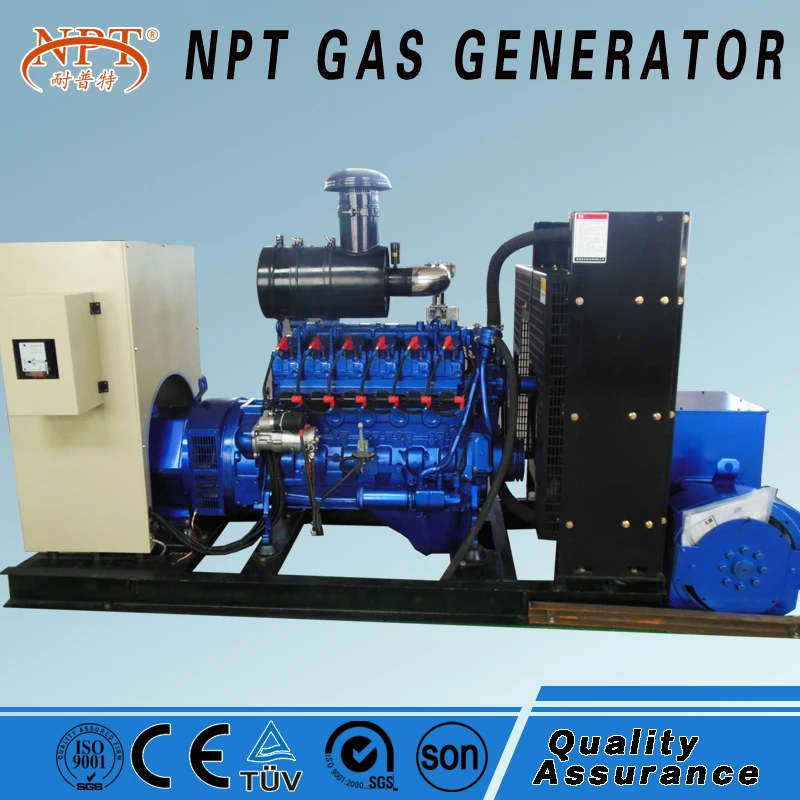

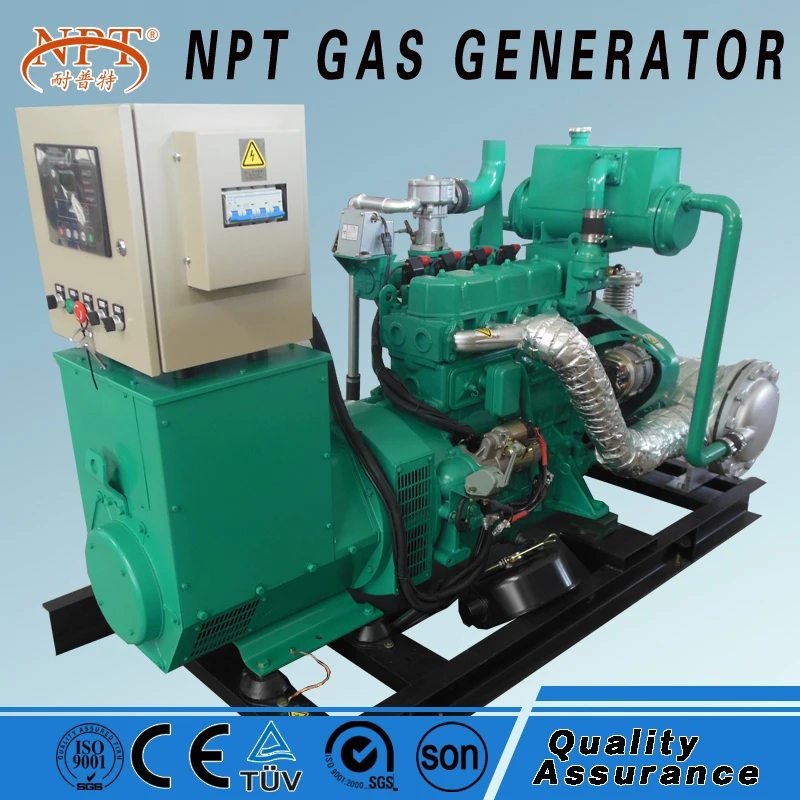

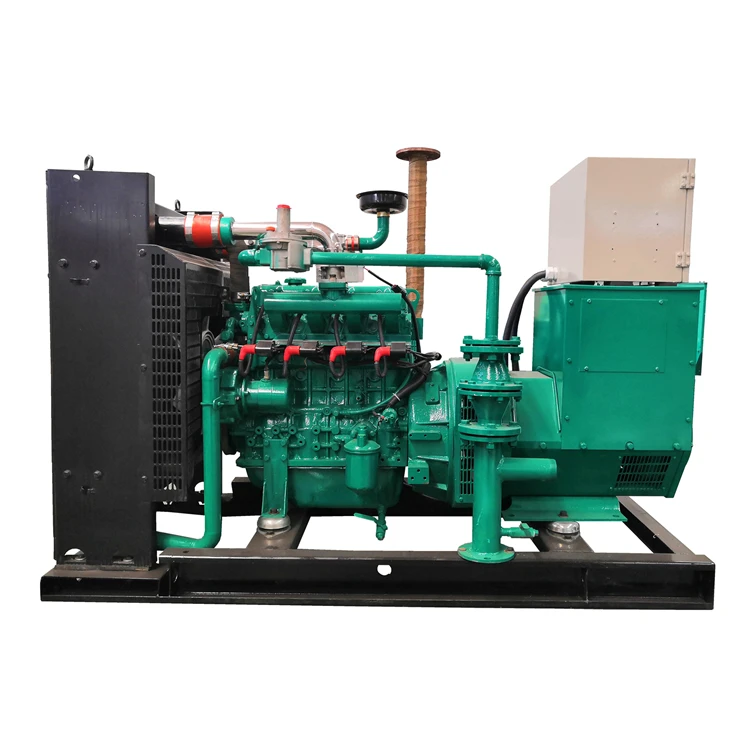

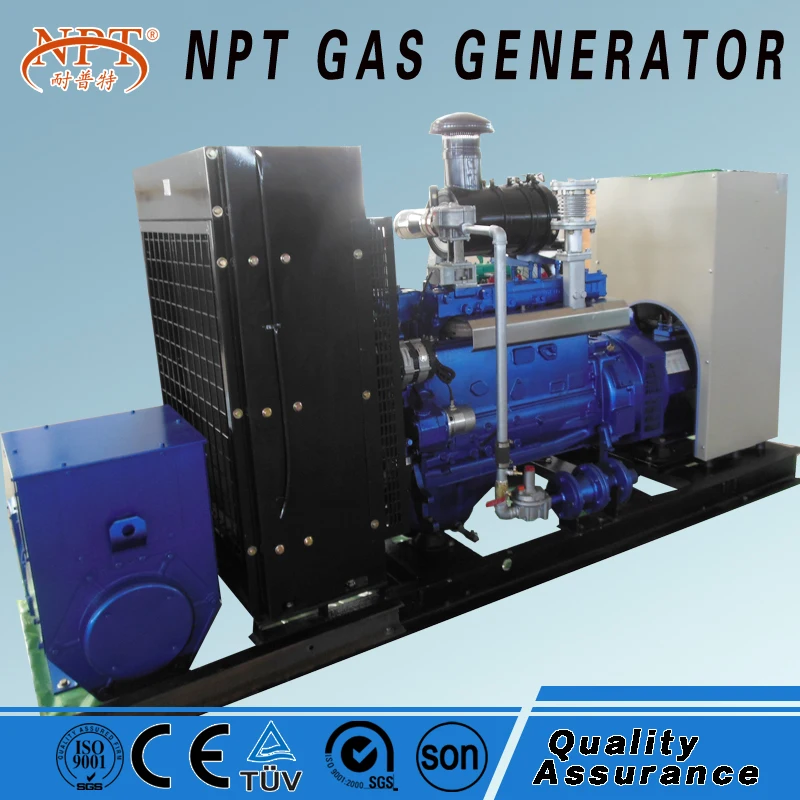

CE approved 50 kw generator biomass gasifier to power

Share on (60707613699):


Price:$16,000.00

Quantity:


Product Overview

Description


Product Description

Product Application

Biomass is used for facility heating, electric power generation, and combined heat and power. The term biomass encompasses a large variety of materials, including wood from various sources, agricultural residues, and animal and human waste.

\t
Product name
\t
CE approved 50 kw generator biomass gasifier to power
\t
Model
\t
50GFT-J
\t
Rated power
\t
50kW/62.5kVA
\t
Rated speed
\t
1500/1800rpm
\t
Power factor
\t
Lag0.8
\t
Protection Class
\t
IP23
\t
Gross Weight
\t
1020kg
\t
Dimension(L*W*H)
\t
2300*840*1350mm
\t
Basics electric parameter
\t
50/60Hz,3 p 4 w,400V/230V

Benefits

The raw material used are rice husk, wheat husk, wood bricks, wood saw and other dried agricultural waste.
This technology helps in tapping Biomass energy which otherwise goes unused in the atmosphere and increases global warming.
The final output of Biomass is an environment friendly gas as it has very low content of sulphur dioxide and nitrogen oxide with almost negligible carbon dioxide.
It is 100% replacement to the local Electricity bill and Diesel Generators.
No dependency on external factors such as electricity failure/shortage in fuel (diesel), etc.
This decentralized mode of electricity generation helps in reducing the burden on the state power grid and also contributes in power transportation saving.
The heat coming out from the exhaust is carbon less and is around 400-650 degree Celsius, which can be easily used for indirect heating purposes and can also add to the savings.

Detailed Images
\t
Gas Engine
\t
Model
\t
ND68D6TL-2
\t
Type
\t
Four-stroke,Water cooling,electronic ignition(ECU),pre-mixed lean burn, turbocharged after cooled
\t
Rated power
\t
60kW
\t
Rated Speed
\t
1500/1800rpm
\t
Speed regulation
\t
Electronic governor
\t
Cylinder Qty
\t
L6
\t
Bore*Stroke
\t
105*130mm
\t
Displacement
\t
6.75L
\t
Fuel gas type
\t
Biomass
\t
Fuel gas intake pressure
\t
2kPa--50kPa
\t
Control panel
\t
L-L&L-N voltage
\t
Speed and running hours
\t
load current
\t
Engine oil temperature
\t
Frequency
\t
Engine oil pressure
\t
Load power
\t
Coolant temperature
\t
Alternator
\t
Model\t
\t
XN224E
\t
Brand\t
\t
MBH( Germany)
\t
Rated Power
\t
50kW/62.5kVA
\t
Rated current
\t
90A
\t
Rated Frequency
\t
50/60Hz
\t
Rated output
\t
400V/230V
\t
Exciting Mode
\t
Self-Excited,Brushless
\t
Voltage Regulation
\t
AVR
