2) Provide on line video technique teaching of fusion welding
3) 2 years warranty
4) Provide customized welding machine

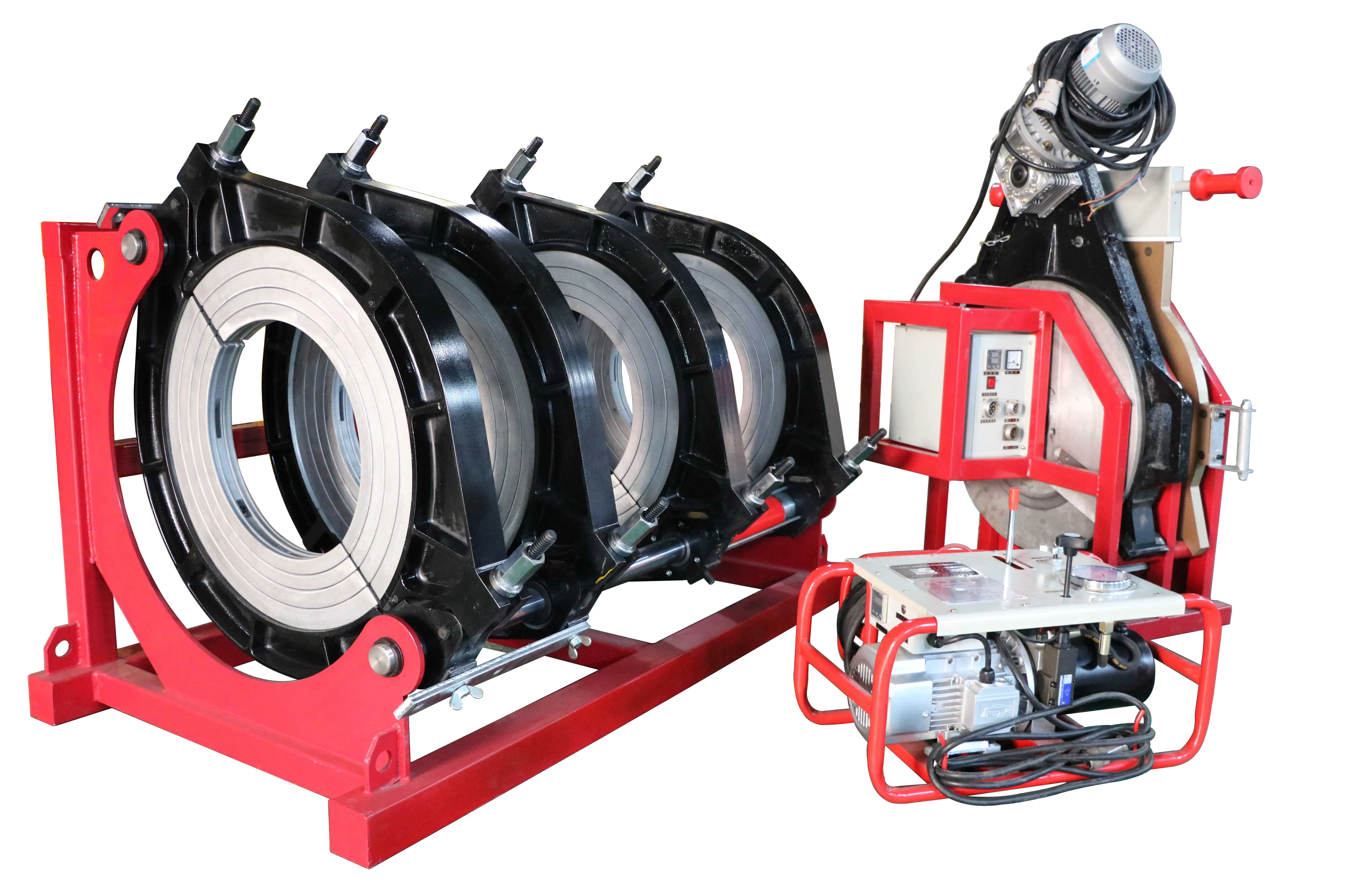

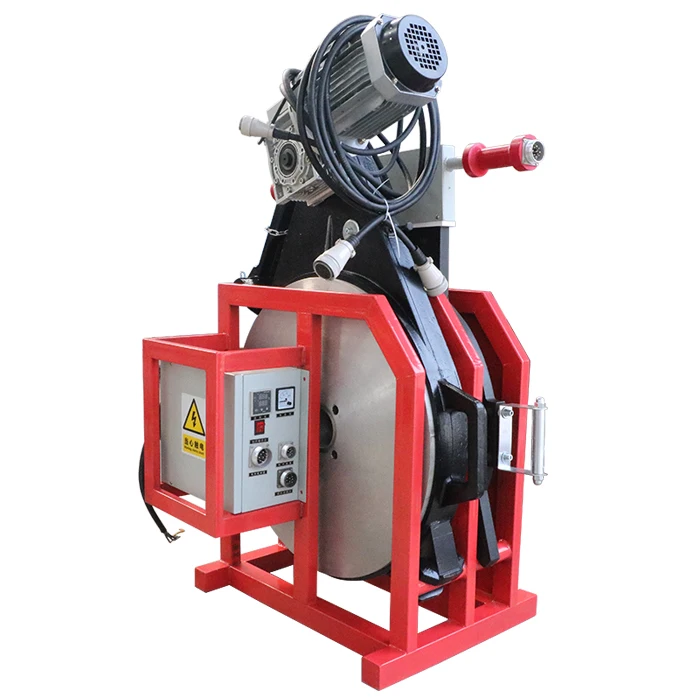

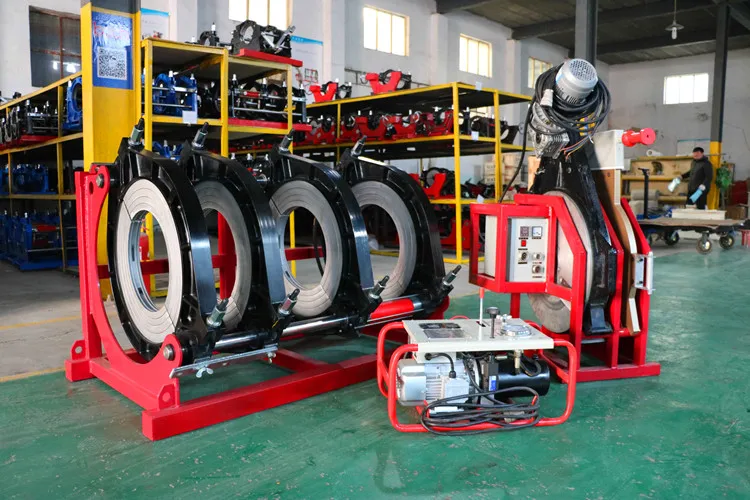

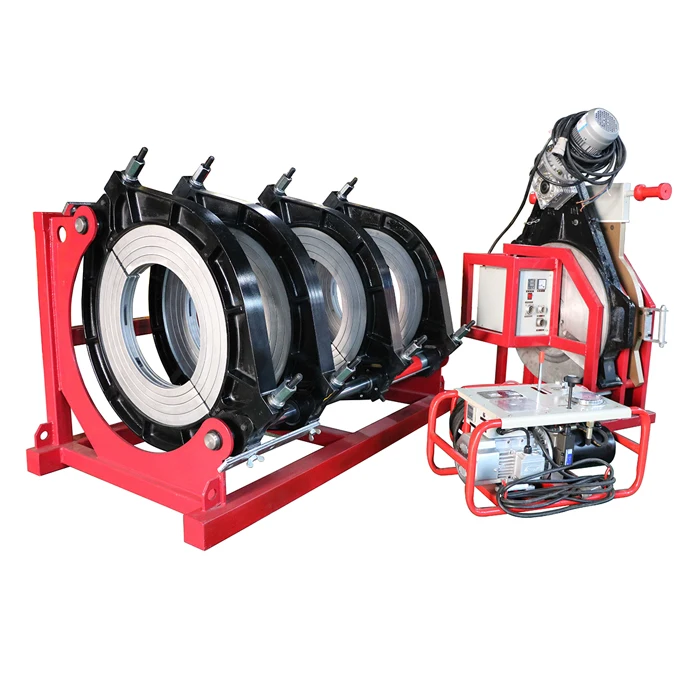

Brief introduction of SHBD630 BUTT FUSION WELDING MACHINE
1) Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
2) Easy to use
3) Welding position can transform that it is convenient for welding all kinds of pipe fittings.
Model
SHBD630 BUTT FUSION WELDING MACHINE
Welding range(mm)
400mm-630mm
Heating plate temperature
270°C
Heating plate surface temperature(170-250°C)
<±5°C
Pressure adjustment range
0-6.3MPa
Cross-sectional area of the cylinder
2000mm2
Working Voltage
220V,50Hz
Heating plate power
9.2kw
Cutter power
1.5kw
Hydraulic station power
1.5kw
Total Power
12.2kw
Electrical parts elements
Schneider,Siemens,Bosch,Chint Group
Machine frame material
aluminum ZL104
Gross weight
680kgs
Package size

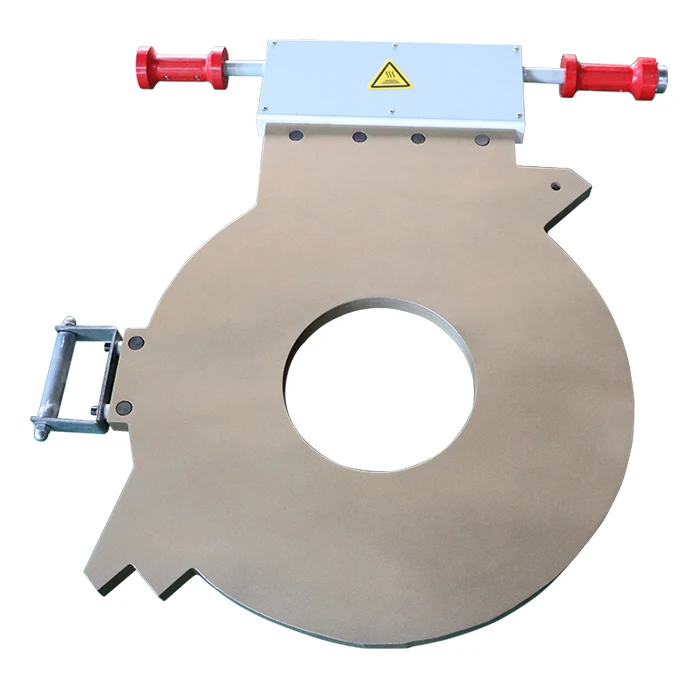

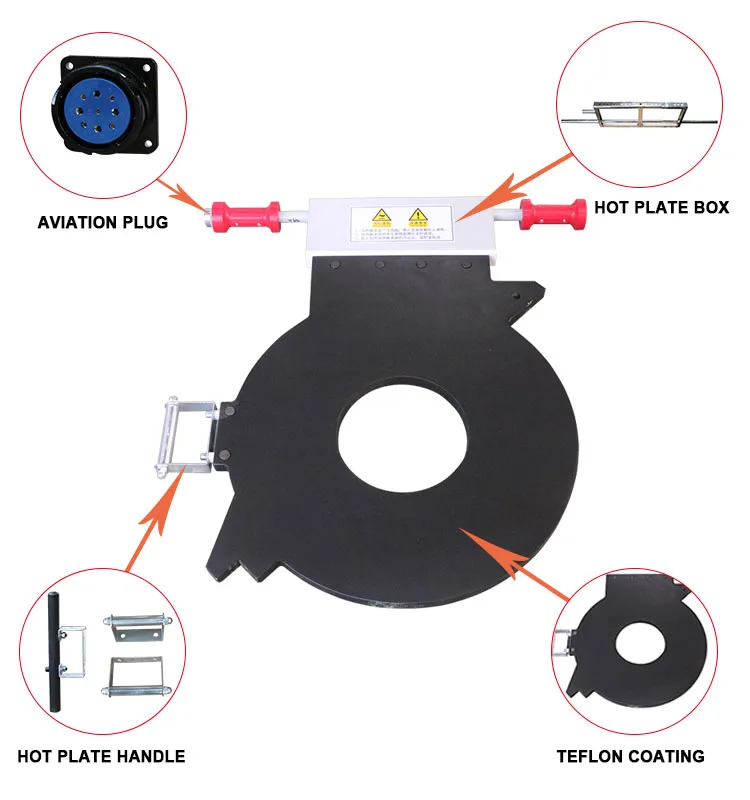

1. Using Teflon coating material imported from Japan, after twice coating and three processes.
2. The solid core of the Heating plate is thickened and non-stick tube, the heat transfer is even, supporting the aviation connection line to ensure the contact safety of the power supply.
3. Compared with other manufacturers, the thickness of Heating plate is increased by 5mm, and the heat storage and thermal conductivity are strong.
1. Timer, pressure gauge, temperature controller and alarm shall be installed on the operating table to facilitate observation and improve welding efficiency.
2. The temperature controller and pressure regulating valve are CE certified, and the control precision can reach 0.01%.

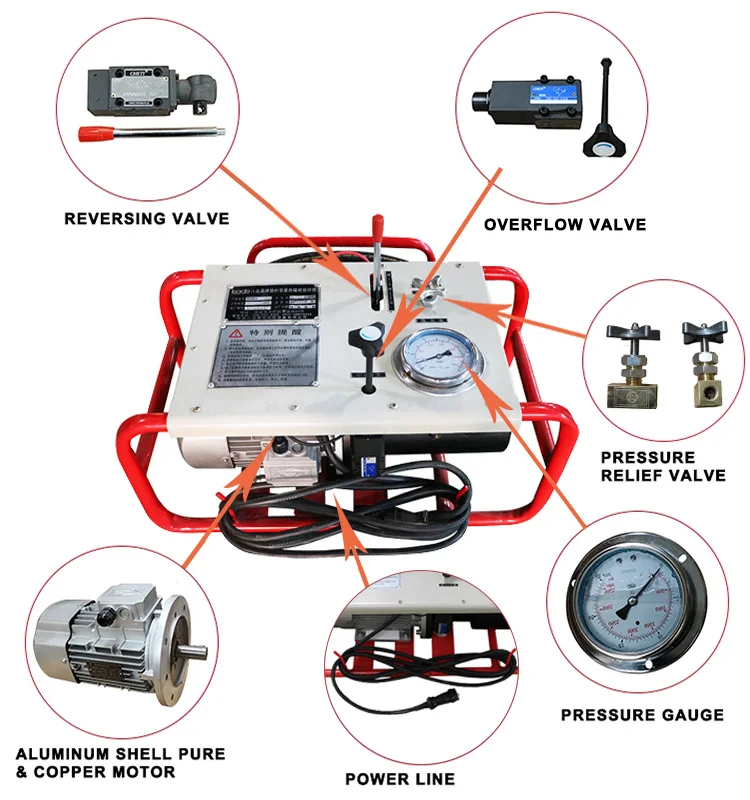

3. The hydraulic station is installed with an accumulator, which can realize the function of automatic pressure replenishment and reduce the number of manual pressure replenishment.

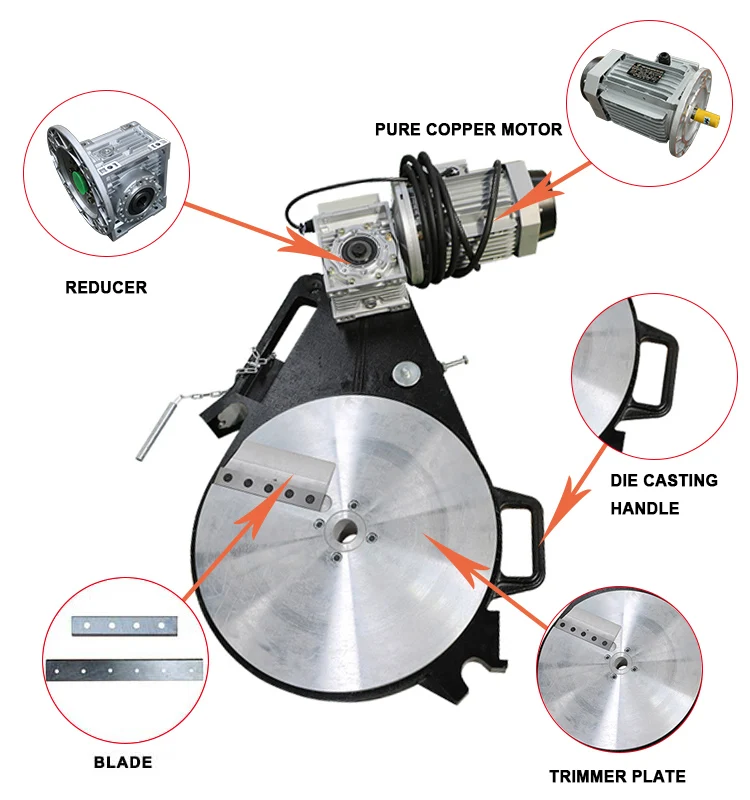

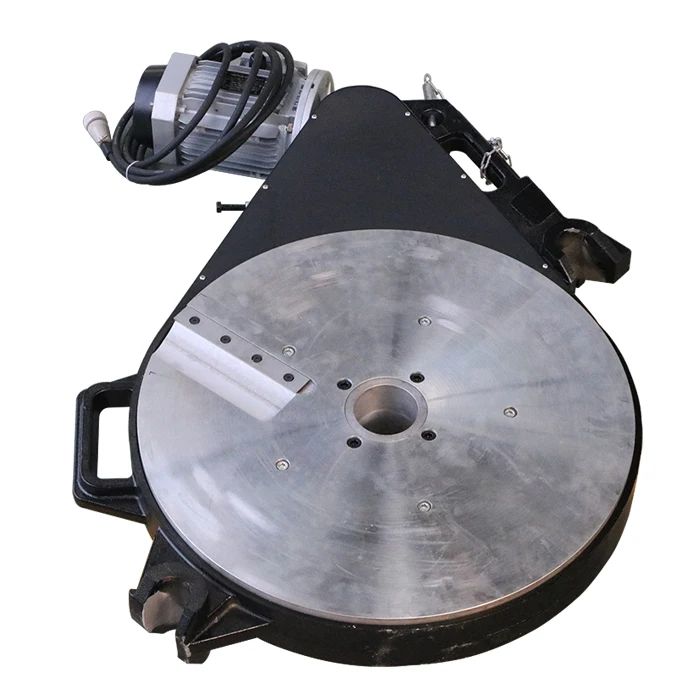

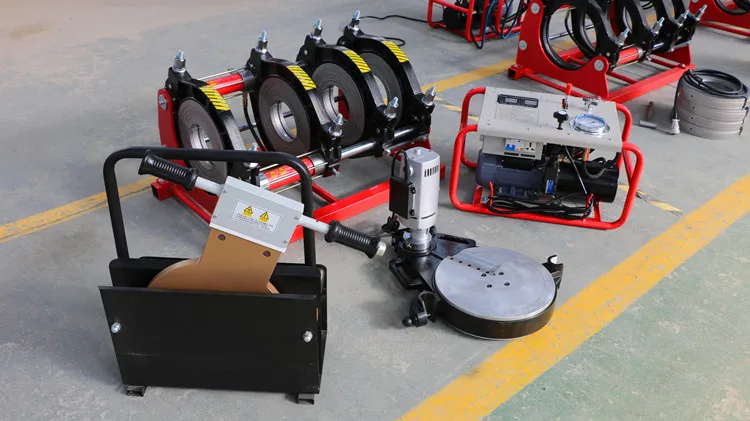

1. High power milling cutter, mirror cutter disk, strong motor, high concentricity, smooth milling.
2. High-power Bosch drill is adopted for milling motor, which is strong and strong without slipping
3. The milling cutter is equipped with a limited position switch, which can be rotated only when placed in the frame to prevent accidental injury.
Why choose us

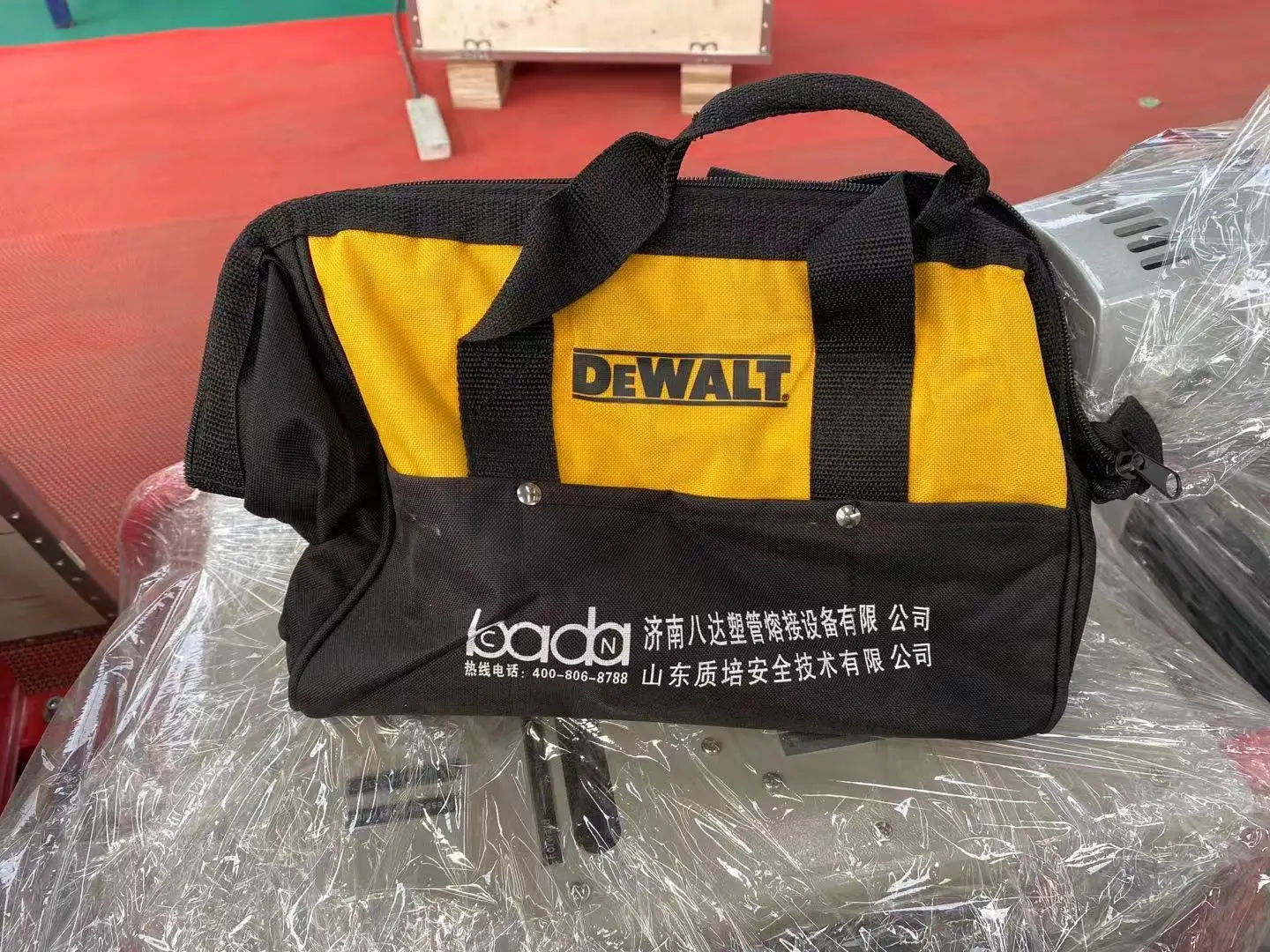

Every machine we send our customer with a tool bag.
fixture screws, blade, oil barrel is stuffy, certificate of conformity, warranty Card, instructions, maintenance Manual. Additional tools for fully automatic butt welding machine: U disk, joint bolt, ratchet wrench

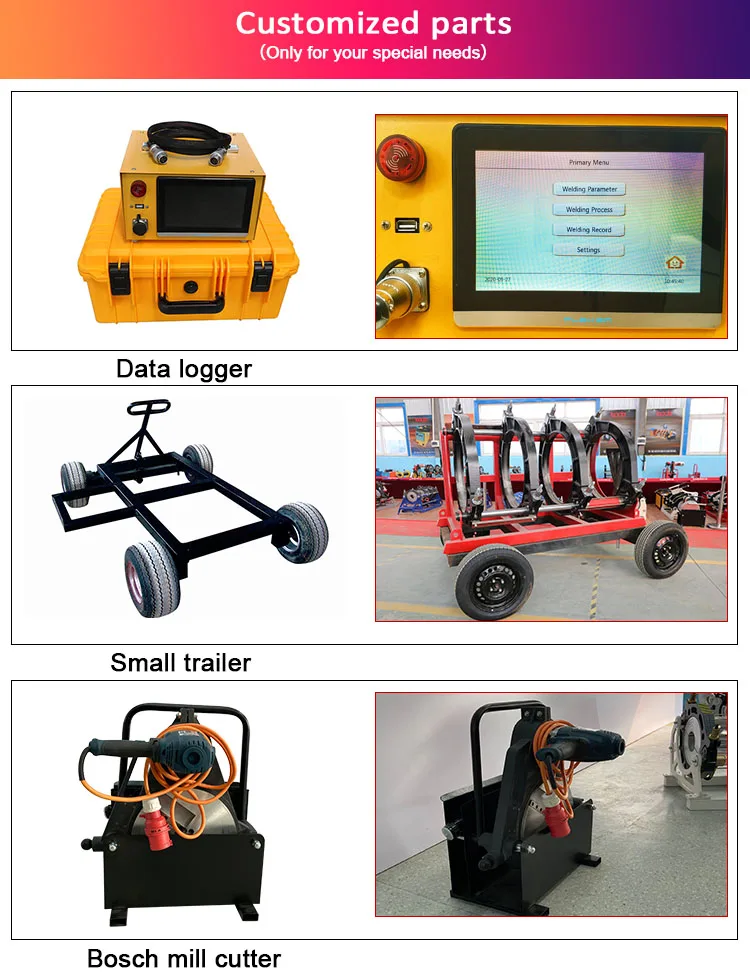

Trailer is for convenient transport in differnt area, the strong frame and smooth wheels, which are welcomed by end users. The advanced data logger is with the most mature program, which is upgraded at the beginning of 2021. This program is the top in China. Bosch mill cutter motor can be upgraded.

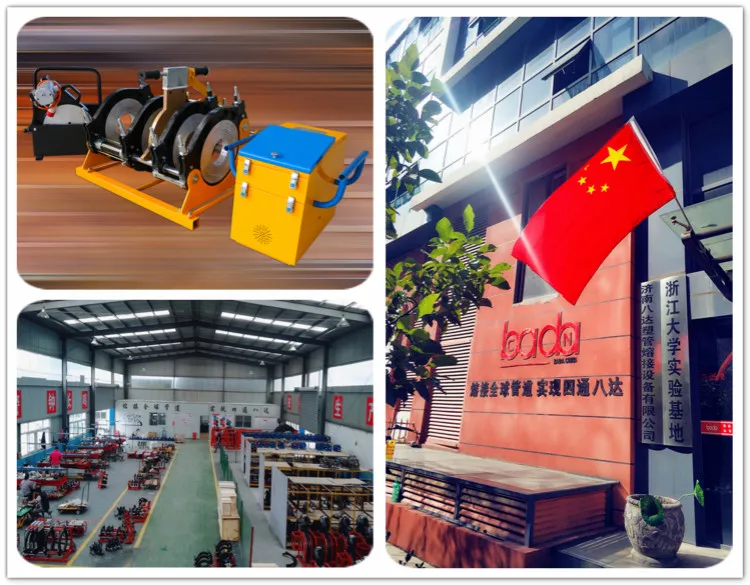

Jinan Bada plastic pipe welding equipment Co., Ltd. is a 23 years professional top manufacturer with CE, SGS, ISO9001 certificate, our product have low repair rate and 2 years warranty, the company participated in the drafting of GB and cooperated with well-known universities to train welding technology talents. The company has a large number of spare parts inventory, and can customize welding machines with different standards such as American Standard, British standard and German standard, so as to meet the needs of all customers.
3) Spare parts warehousing quality inspection, inspection during the production process, complete machine inspection and commissioning before delivery.
4) Cooperate with well-known universities, participate in the drafting of GB national standard, provide training for fusion welding technicians at home and abroad, and support free online video guidance.
5) Sufficient spare parts inventory, short delivery time, less than 50 sets, delivery time 7-10 working days, in line with ROHS 2.0 standard.
1) Advanced laboratory
2) Mature fusion welding technology
3) Spare parts warehousing quality inspection, inspection during the production process, complete machine inspection and commissioning before delivery.
4) Cooperate with well-known universities, participate in the drafting of GB national standard, provide training for fusion welding technicians at home and abroad, and support free online video guidance.
5) Sufficient spare parts inventory, short delivery time, less than 50 sets, delivery time 7-10 working days, in line with ROHS 2.0 standard.
