Price:$7,499.00

Quantity:


Product Overview

Description


Item Description

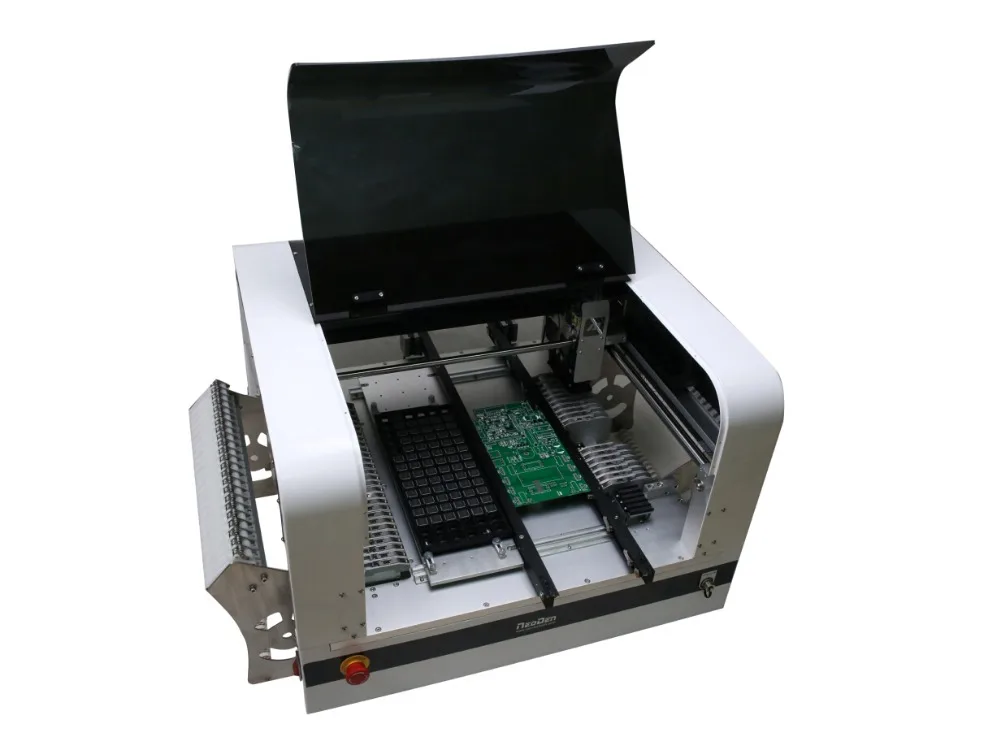

NeoDen4 is a flexible pick and place machine for all types of production
With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.
It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.

Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and
military industry, etc..


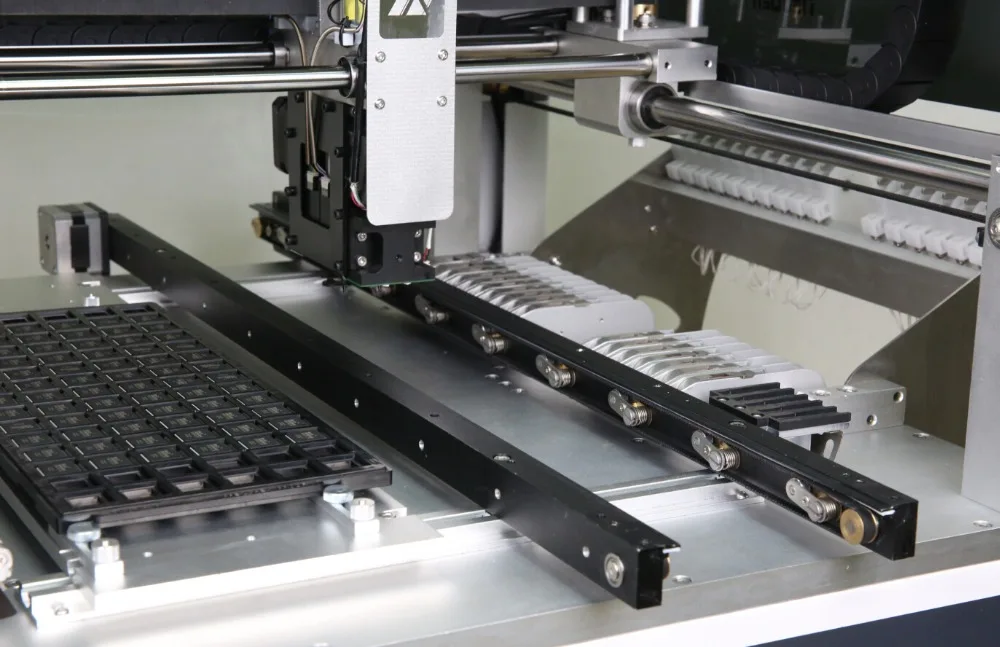

Rails and Feeders

Please kindly note auto rails & feeders are selectable, they will be charged separately.

Main Features


1. Dual vision system (up-looking and down-looking camers), identify and calibrate the different components at one
time, improves the accuracy of placement from 0201 to BGA;

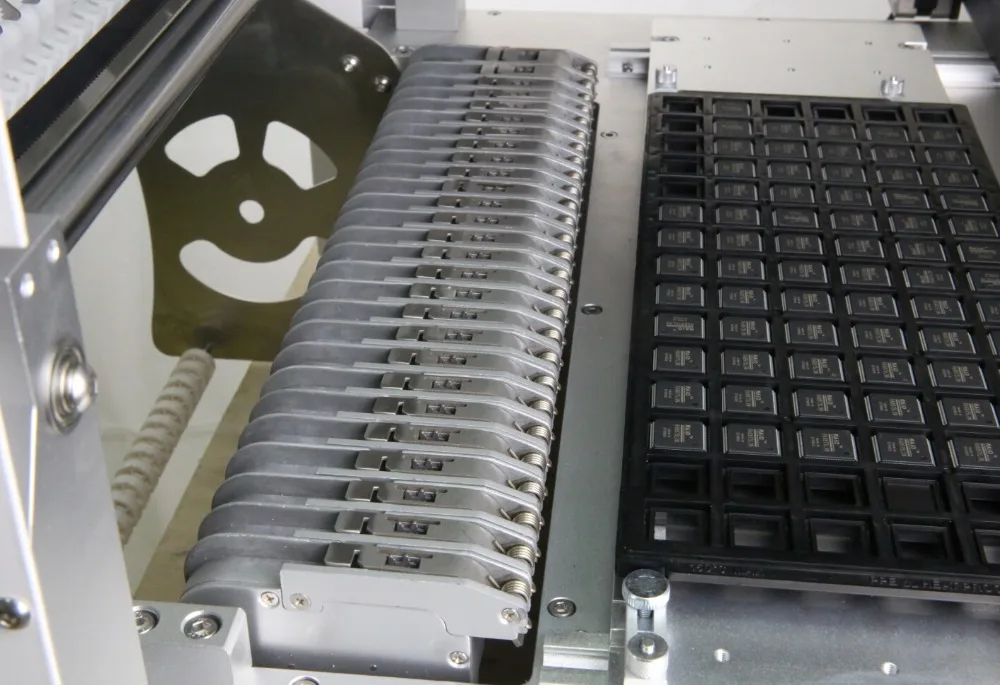

2. Automatic electric feeders, reduce the feeding deviation;
3. General conveyor is supported, so a SMT production line can be setup, which is more time-saving and labor-saving

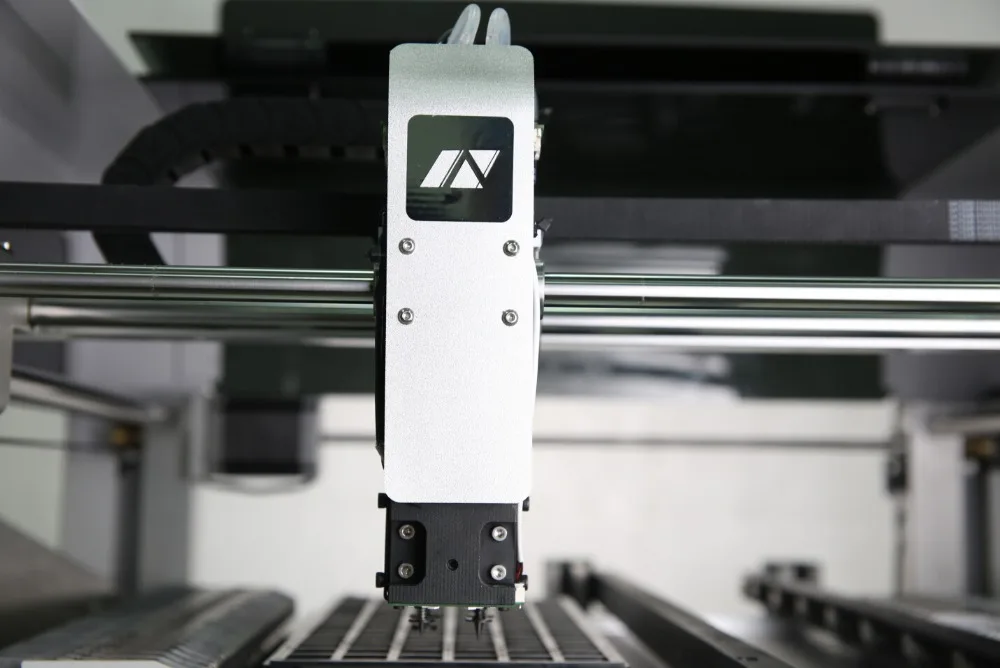

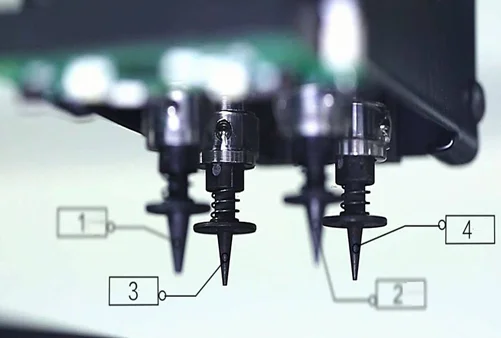

4. Four placement heads can pick up and calibrate components at one time.
5. The device supports remote system upgrade, NeoDen provides a life long system upgrade service for free to you;
6.19in display contributes to easier and convenient operation.

Specification
\t
Model
\t
NeoDen4
\t
Machine Style
\t
Single gantry with 4 heads
\t
Alignment
\t
Stage Vision
\t
Placement Rate
\t
Vision on:5,000CPH
\t
Vision off:10,000CPH(Optimum)
\t
Feeder Capacity
\t
Tape feeder:48(all 8mm)
\t
Vibration feeder:5
\t
Tray feeder:45
\t


Component Range
\t
Smallest Size
\t
0201
\t
Largest Size
\t
32x32mm (Pitch 0.5mm)
\t
Max Height
\t
5mm
\t
Rotation
\t
±180°
\t
Placement Accuracy
\t
± 0.02mm
\t
X-Y Repeatability
\t
±0.02mm
\t
Board Dimension(mm)
\t
Maximum
\t
310 x 1,500mm
\t
Minimum
\t
350 x 400mm(Option)
\t
140 x1,500mm(Option)
\t
Main Control
\t
GUI
\t
Electricity Supply
\t
110V/220V
\t
Power
\t
180W
\t
Weight
\t
85KG

Accessories

1 Vibration feeder *1
2 Nozzle *6
3 8G Flash Drive* 1
4 Power Cord(3m) *1
5 Rail extension parts *1
6 Double Sided Adhesive Tape *2
7 Allen wrench Set *5
8 Tool Box *1
9 Reel holder stand *1

Placement effect
Feedback & Review

A speech about NeoDen4 addressed by Joe Menard.
