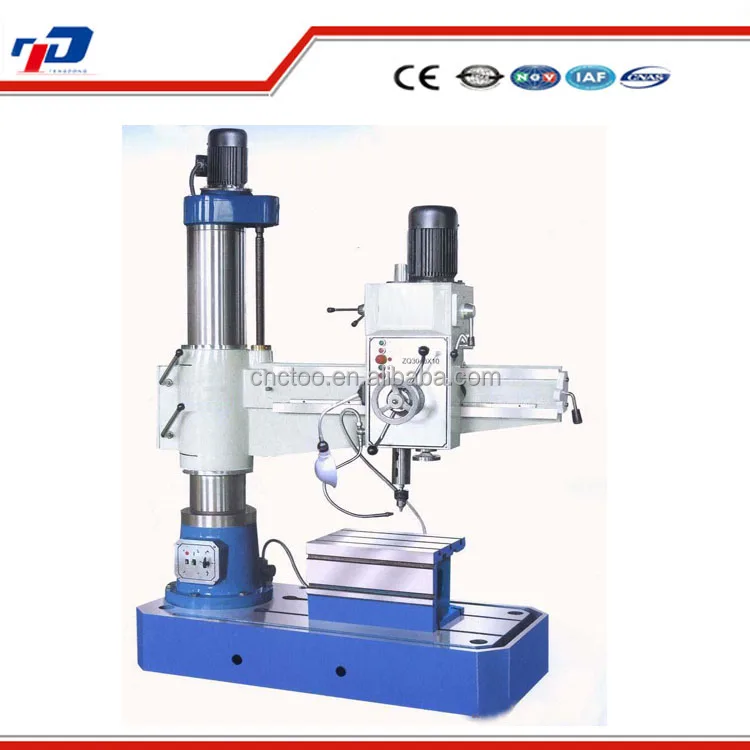

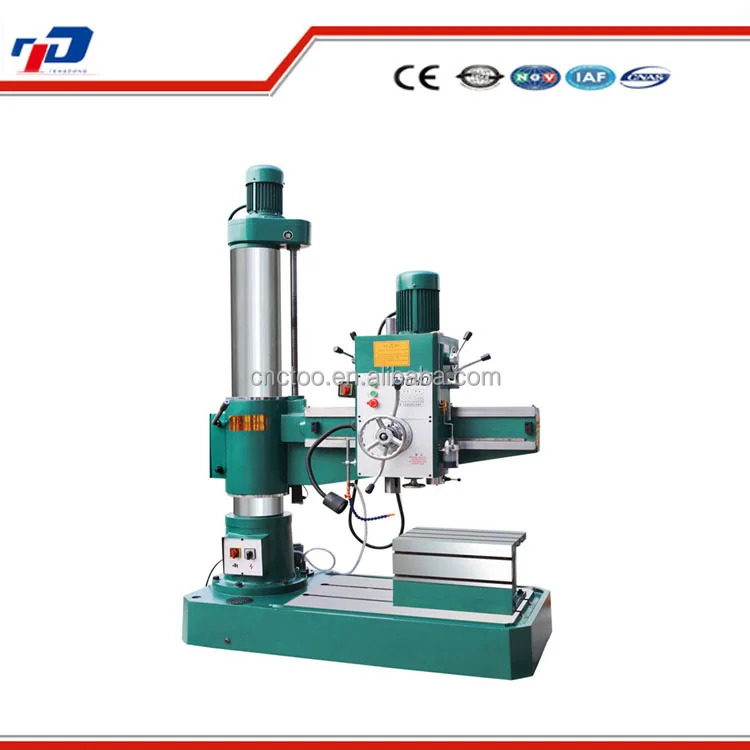

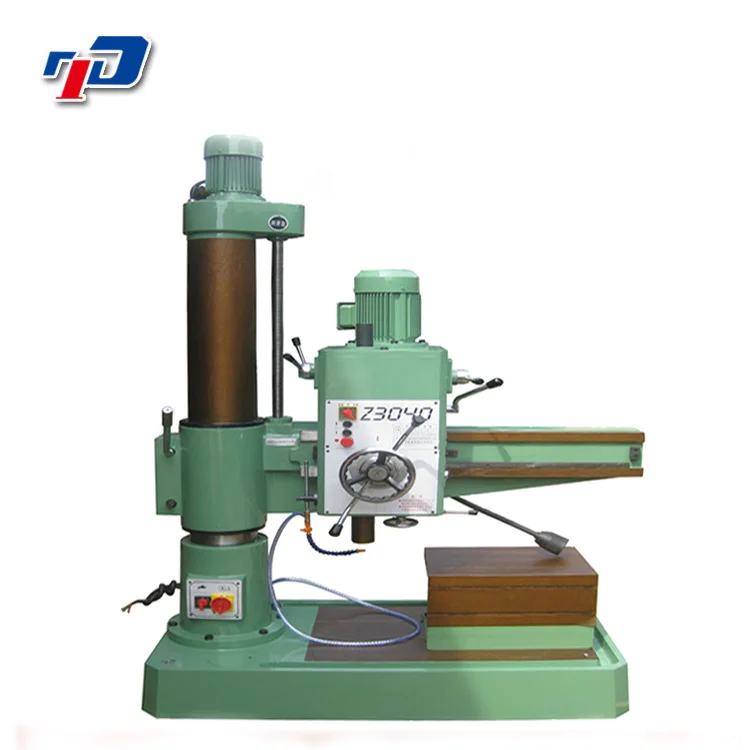

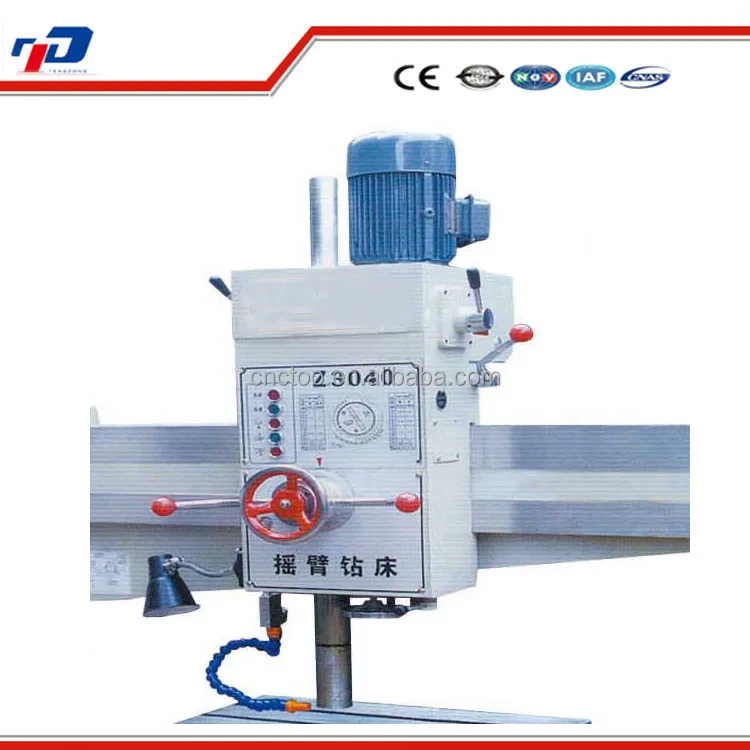

Z3040  radial arm drill machine for sale

Z3040  radial arm drill machine Product description:

Z3040*13 Double column radial drilling machine is with extensive use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.

Product main technical Specifications:

Specifications	Z3040*13(Double column)
Max  drilling  diameter(mm)	40
Distance between spindle axis and column(mm)	1300~360
Distance spindle nose and working surface of base plate(mm)	1200~260
Spindle travel(mm)	200
Spindle speed stage	6 (75-1220)
Spindle feed rate 3 N	0.10,0.16,0.22
Overall dimension(mm)	1800*705*2300
Spindle motor power(KW)	2.2
N/W(Kg)	1900
