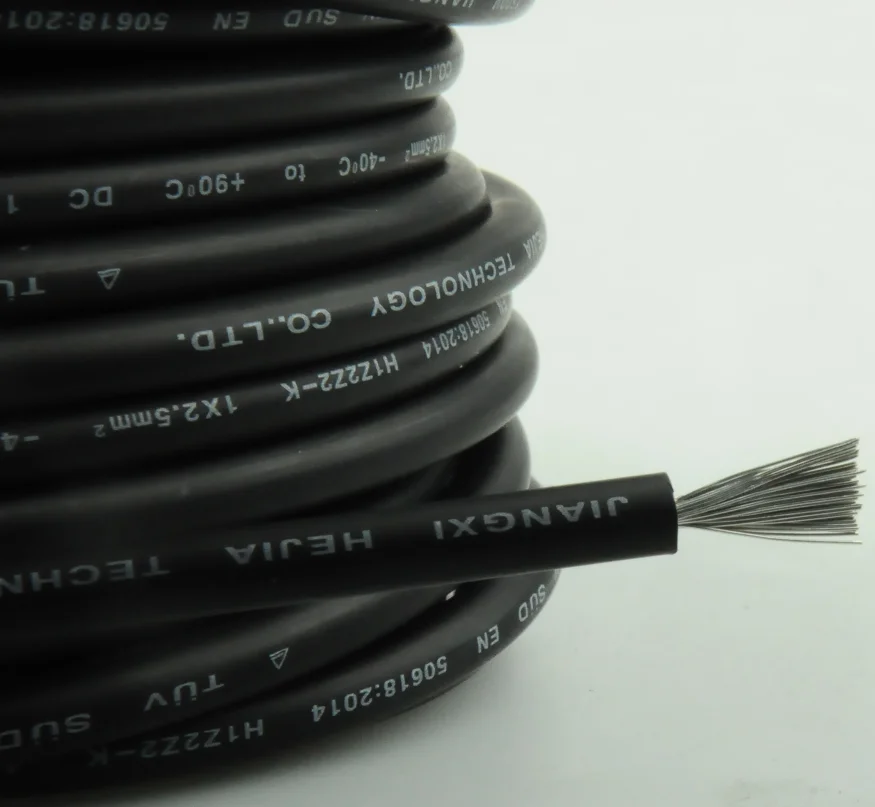

Кабель для солнечной панели pv1 f 6 мм, 10 мм2, 16 мм2, 4 мм2, XLPE, 6 мм2, кабель для солнечной панели класса 5
- Category: Wires, Cables & Cable Assemblies >>>
- Supplier: Zhongshan Hejia Electrical Industrial Co. Ltd.
Share on (60714683970):
Product Overview
Description

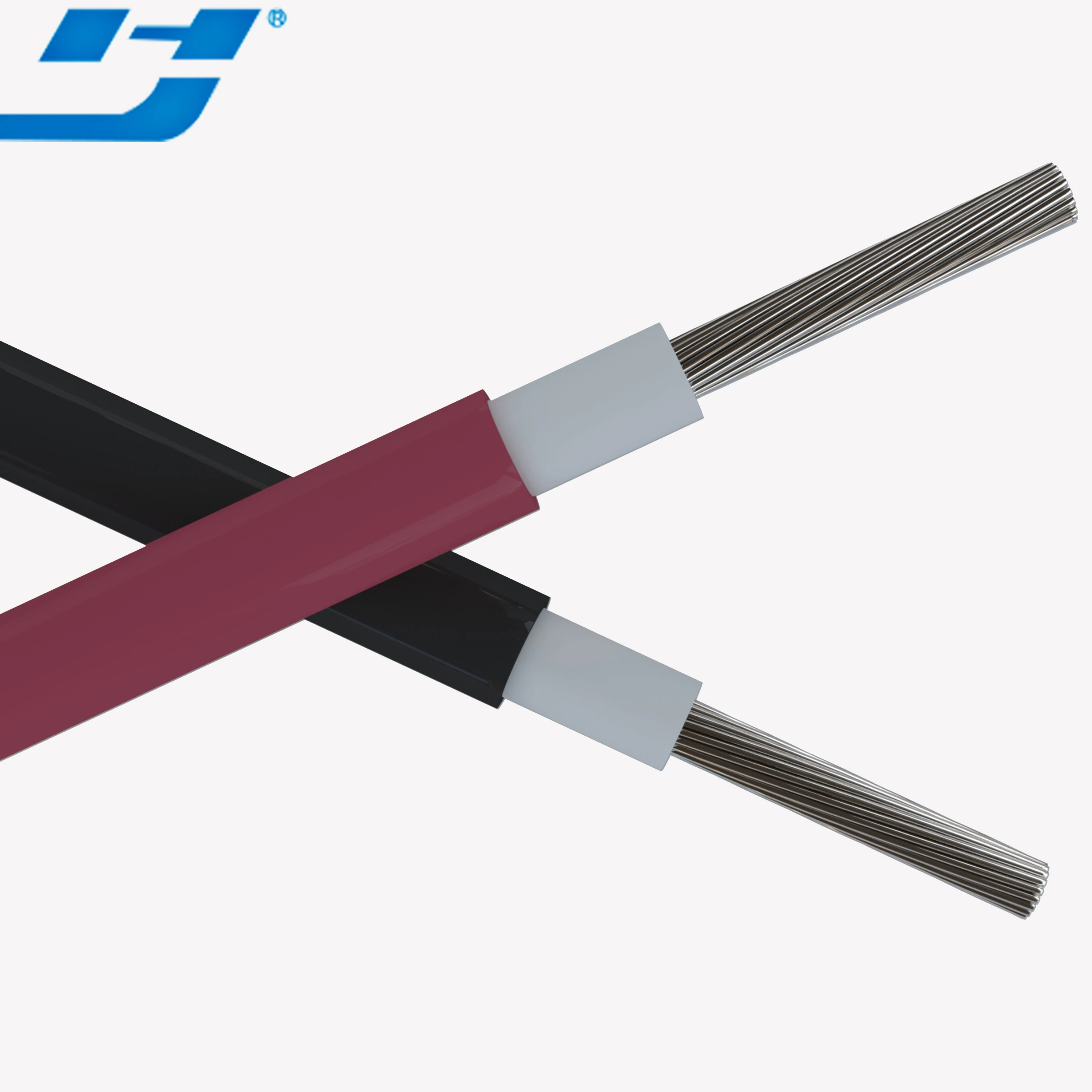

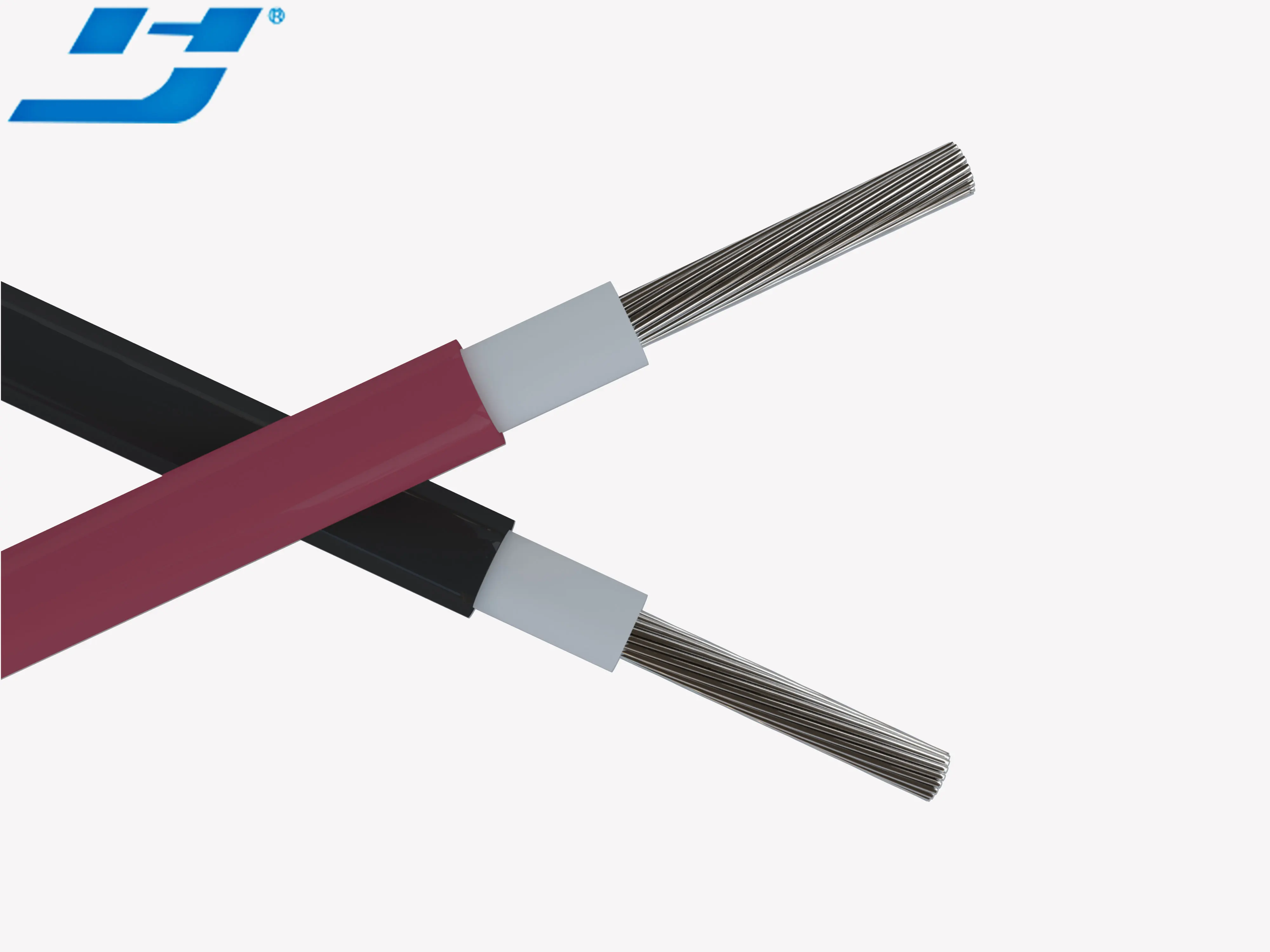

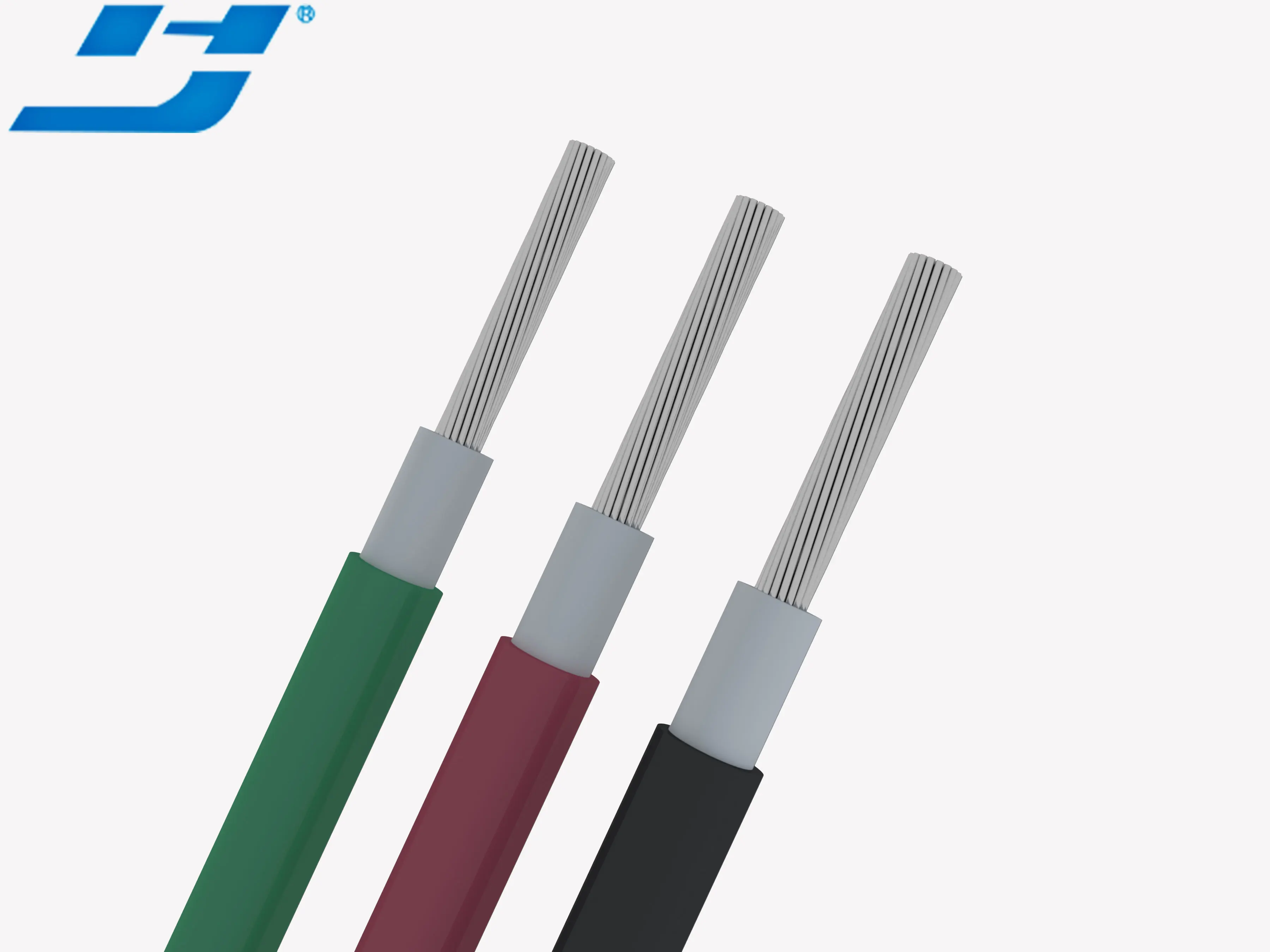

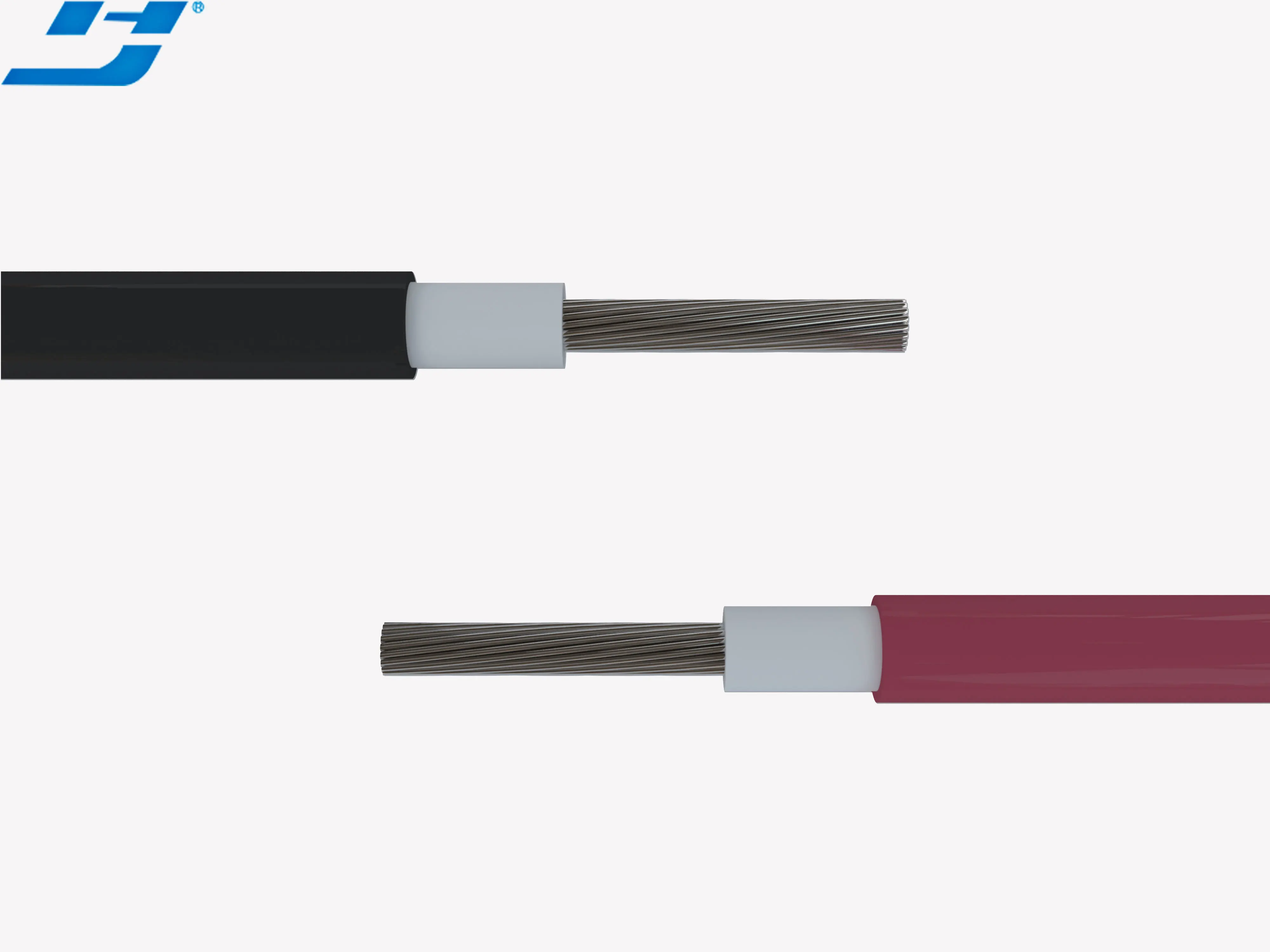

solar panel cable pv1-f 6mm 10mm2 16mm2 4mm2 XLPE
Product Description
Photovoltaic power cable use for power transmission in junction box of solar panel, transfer between photovoltaic panel and power confluence box, also use for wind-energy and track laying of power station. Mainly used in terrible outdoor environment.
Characteristics of cable
Ambient temperature -40℃~90℃,the maximum temperature is 90℃ ,Rated voltage DC1000V~1500V, the temperature of conductor could up to 120℃. Insulation, jacket are use the halogen-free electron-beam cross-linked material,with excellent softness,heat-resistance,cold resistance,wear-resistance,oil resistance,acid&alkali resistant,waterproof, UV-resistance and high fire-resistant, environment-friendly,the service life over 25 years.
Material:
Conductor: soft annealed stranded tinned copper
Insulation: 125℃Electron-beam cross-linked insulation material XLPE
Jacket: 125℃Electron-beam cross-linked insulation material XLPE
Description:

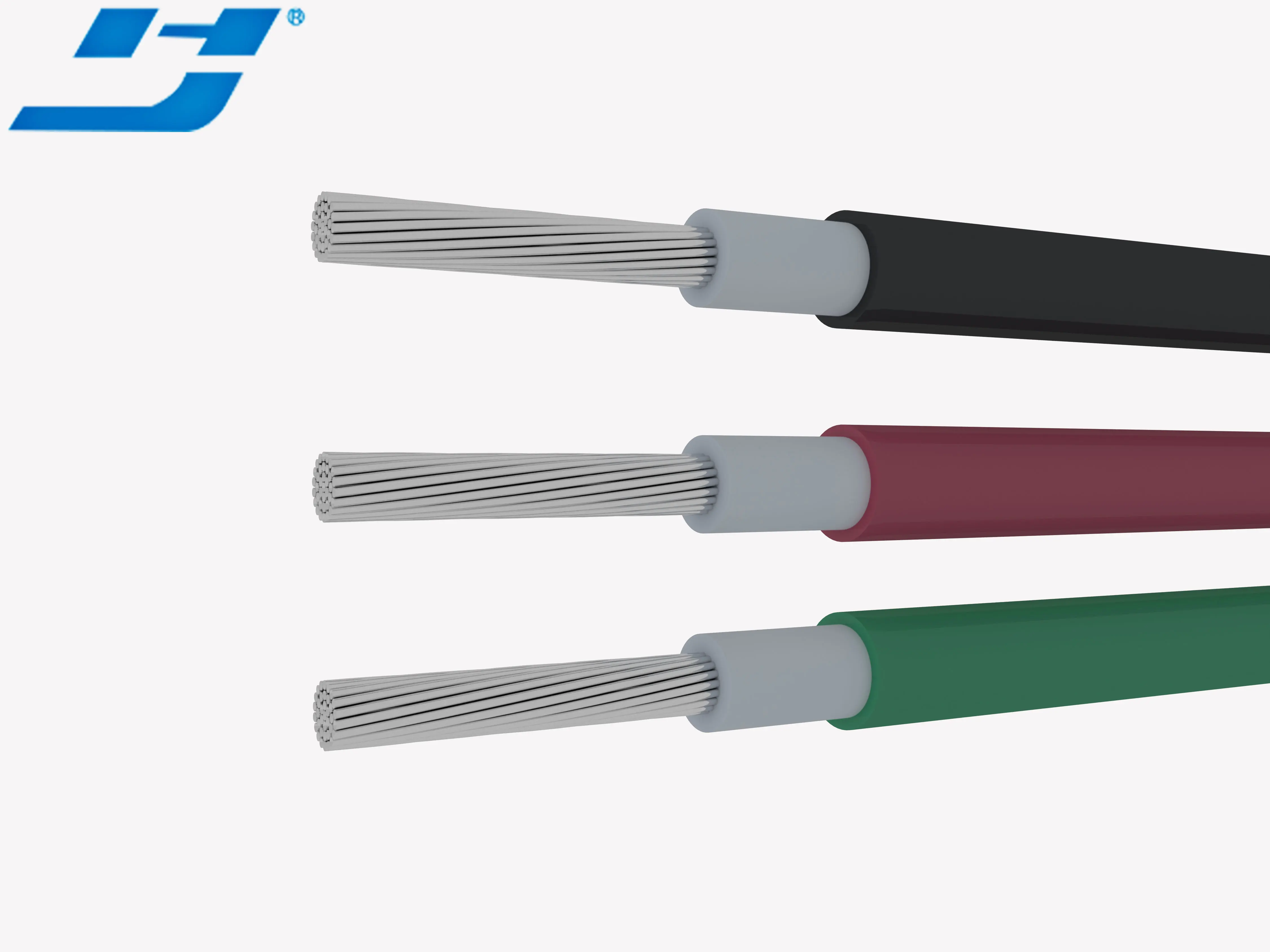

Single copper conductor, stranded, insulated with moisture and heat resistant, XLP cross-linked polyethylene insulation. Temperature rating 90° C in wet and dry applications.available.
Applications:
For use in Photovoltaic (PV)Solar Power Applications.
Rated for direct burial
Used to connect solar panels.
Features:
Stranded annealed copper conductors.
Sunilight resistant Cross-Linked Polyethelene (XLP) insulation
-40°C to +90°C
Standards:
ASTM B8
Listed as type USE-2 per UL 854
Listed as type RHH/RHW-2 per UL 44
Listed as type PV per UL 4703
Specifications:
Size: 6mm2
Number of Strands: 84
Insulation Thickness (Conductor): 0.012 inches
Outside Diameter: 0.25 inches
Weight: 0.087 lbs per feet
Allowable Ampacity: 40 Amps at 90°C Wet/Dry
Hejia Solar Cable Applied to Photovoltaic Panels All around the world
Company Information
Hejia Factory Location in China
Hejia Work Shop
Wire production process
Hejia Exhibitions

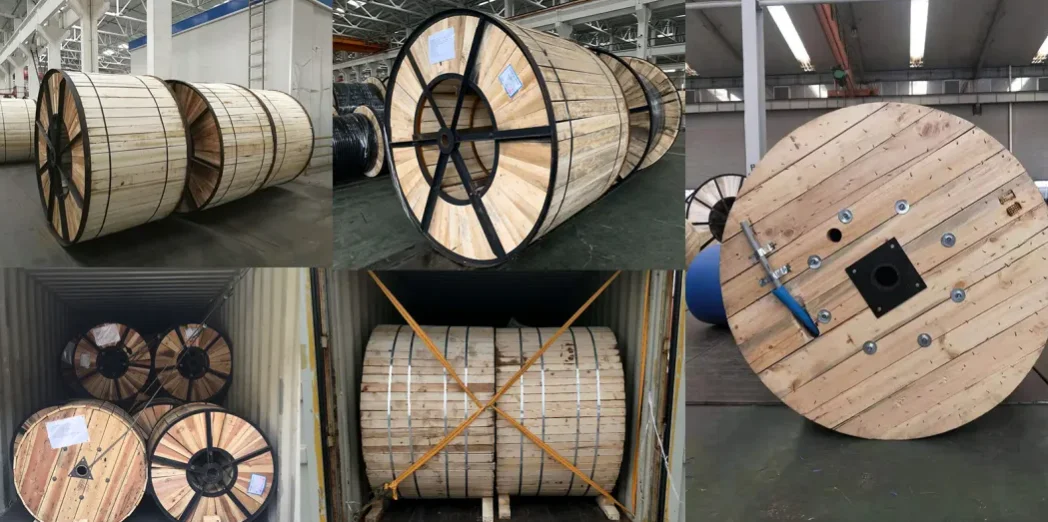

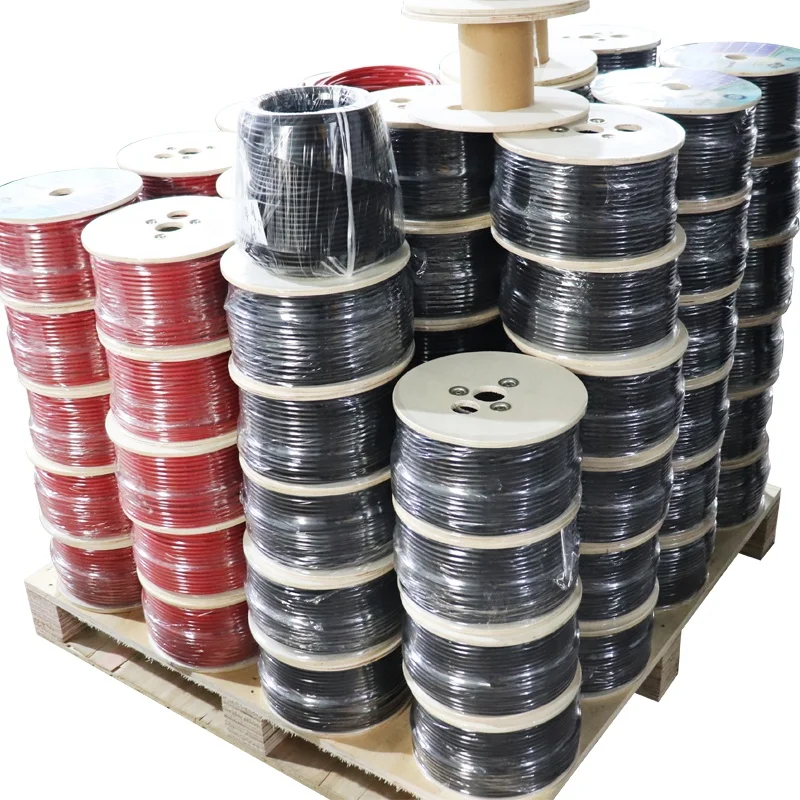

Packaging & Shipping
Our Services
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
3. OEM ODM is available.
4. Sample is available.
FAQ
Q1:Are you trading company or manufacturer?
A: We are the factory.and we can export the goods by ourselves.
Q2.How long is the delivery time?
A: We have fast delivery time
Sample leading time:Within 10 days
Production leading time: Within 20 days
Q3.Can you provide the free sample? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cos.If you need many items, or need more qty for each item,
we will charge for the samples.
Q4.How does your factory do regarding quality control?
A: All the products will be 100% checked before the shipment.
Q5:What's your terms of payment?
A: Usually by TT, Western Union and Alibaba assurance order.
if other terms,welcome to discuss with us.
Q6:Can you make customized products and customized packing?
A:es.We made a lot of customized products for our customer before.
And we made many moulds for our customers alread.
About customized packing,we can put your Logo or other info on the packing.There is no
problem.Just have to point out that ,it will cause some additional cost.
Q7:For the cables,May i know the method of packing you have now?

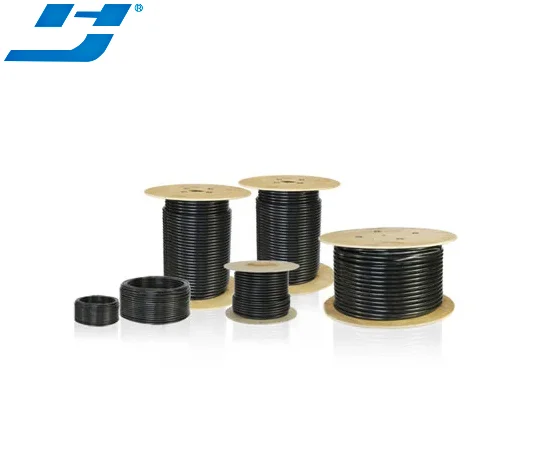

A:The method of packing as below for you reference: a.Paper Reel, b.Plastic Reel, c. Wooden Durm d.Gift box e.Pull box
Q8:How about the afer-sale service?
A: Any feedback or comment are welcomed,we will try to make the best assistant to let you maximum satisfaction.
About US
- 18 Years Manufacture Of Cable
- We provide high quality products and priority customer service.Customer's satisfaction is Hejia pursue.
- Every customer is important to Hejia,If you feel satisfied with our product and service,please give us your comments and feedback,thank you for your effort and support!
- If you intersting in our products, pls send the enquiry now.Free sample will be deliveried to your address soon!
Click”Contact Supplier” or “Chat now” for more details,Ms. Shel Qiu will reply you within 30 minutes.
