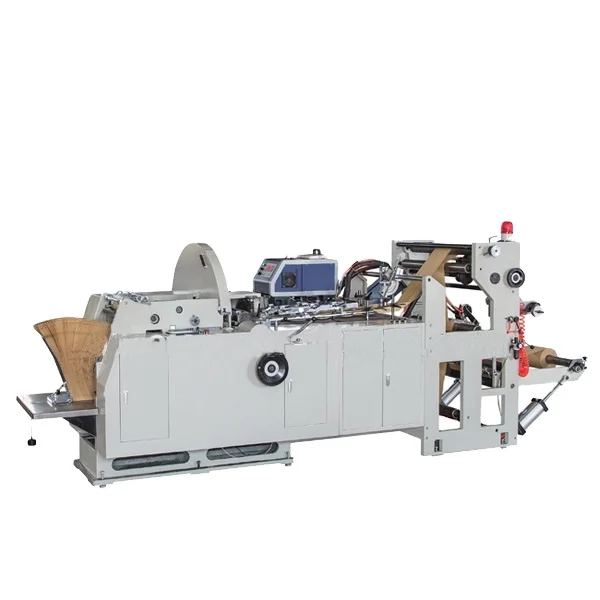

Automatic Shopping Paper Bag Making Machine
- Category: Bag Making Machines >>>
- Supplier: Zhengzhou Zomagtc Co. Ltd.
Share on (60715291954):
Product Overview
Description
Automatic Shopping Paper Bag Making Machine
Bag width (W):80-190mm
Bottom size(H):50-110mm
Cutting length(C):190-370mm
Max speed:260pcs/min
Can custom depend on your needs,any interest,please click the below picture to contact me.
The brief introduction of Automatic Shopping Paper Bag Making Machine
Roll Feeding square bottom paper bag making machine forming the paper bag in one process from printed or unprinted roll paper , side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag formation at a stroke.
The features of Automatic Shopping Paper Bag Making Machine
♥ Roll Feeding square bottom paper bag making machine forming the paper bag in one process from printed or unprinted roll paper , side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag formation at a stroke.
♥ This machine controls by PLC programmable servo motor through the human-machine touch screen interface. It can produce various of specifications paper bags.
♥ This machine have advantages of high speed, quickly replace the paper bag specifications, more wide range adjusting etc. It is an ideal machine for producing food bag, shopping handles bag.
The parameters of Automatic Shopping Paper Bag Making Machine
| Item | Automatic Shopping Paper Bag Making Machine |
| Bag width (W) | 80-190mm |
| Bottom size(H) | 50-110mm |
| Cutting length(C) | 190-370mm |
| Max speed | 260pcs/min |
| Paper roll width | 280-630mm |
| Max. reel weight | 600kg |
| Max. roll diameter | 1200mm |
| Reel inner diameter | 76mm |
| Paper specifications | 45-140gsm |
| Web edge control system | Double photoelectric automatic correction control system |
| Web tension control system | Automatic constant tension control system |
| Automatic counting system | Yes |
| Automatic oil supply system | Yes |
| Air pressure | ≥0.12cm, 0.6-1.2Mpa |
| Driven motor | Servo motor |
| Power | 13kw |
| Weight | 600kg |
| Overall dimensions | 8500*1700*1600mm |
Main parts brand:
| Name | Original/Brand | Quantity |
| Main controller | Germany Rexroth | 1 set |
| Servo motor | Germany Rexroth | 1 set |
| Servo driver | Germany Rexroth | 1 set |
| Touch screen | Germany Rexroth | 1 set |
| Low-voltage apparatus | Germany Schneider | 1 set |
| Color mark tracking photo-sensor | Italy DATALOGIC | 1 pcs |
| Voltage stabilize | Taiwan mean well | 1 set |
| Bottom detection photo-sensor | Japan Omron | 2 pcs |
Contact way
If you have any interest,please contact me freely,It's my pleasure to help you.
Website:www.electech.en.alibaba.com
Address:No 3 Dongfeng Road Zhengzhou China
Whatapp:+8618339919276
Packaging & Shipping
packaging&shipping
Our Services
Our Service:
♥Professinoal peson reply your questions
♥One year warranty for you
♥Perfect and careful after-sale service
♥Fast delivery for you
♥24 hours on-line service for you
Company Information
Zhengzhou Zomagtc Company Ltd have been designing, developing, manufacturing and marketing Machinery for more than 10 years. Firstly we mainly sever china mainland customers, In order to adapt to world market development, now we do the exporting business directly. After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
FAQ
Q: Why don't person reply to me?
A: Our person is 24 hours on-line.If nobody reply to you,maybe he has other businesses temporarity. So please leave your requirements on e-mail or chat tool,we will reply you as soon as possible.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory.More impotant,we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production competely.
Q: How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get lower price and better quality,if you choose us.
Contact us
If you have any questions, please contact me freely
Zhengzhou Zomagtc Company Ltd.
Add:No.3DongFeng Road,Zhengzhou,China
Email:andy at superelec.cn
Whatsapp:+8618339919276
