XDS3064AE Touch Screen Option 60MHz Bandwidth 4 Channel Oscilloscope
Contact Us Directly
For quick reply
For more discounts
For update info : www.weLLzion.com
Function & Benefits
- 60MHz Bandwidth,1GS/s sample rate,
- 14 bits vertical resolution with 4 Channels
- 40M record length 45,000 wfms/s waveform refresh rate
- 8 inch 800 x 600 high resolution LCD, optional multi-touch screen
- SCPI and LabVIEW supported
- Multi- trigger and bus decoding function(Optional)
- Multi-interface:USB host, USB device, USB port for PictBridge, LAN, AUX and VGA(Optional)
Specifications
| Model | XDS3064E | XDS3104E | XDS3064AE | XDS3104AE |
| Bandwidth | 60MHz | 100MHz | 60MHz | 100MHz |
| Sample Rate | 1GS/s | 1GS/s | 1GS/s | 1GS/s |
| Vertical Resolution (A/D) | 8 bits | 8 bits | 14 bits | 14 bits |
| Record length | 40M | |||
| Waveform Refresh Rate | 45,000 wfms/s | |||
| Horizontal Scale (s/div)) | 2ns/div~1000s/div, step by 1~2~5 | |||
| Channel | 4 | |||
| Display | 8 inch color LCD, 800 x 600 pixels display | |||
| Relay Time Accuracy | ±1ppm | |||
| Input Coupling | DC, AC, GND | |||
| Vertical Sensitivity | 1mV/div~10V/div (at input) | |||
| Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232 and CAN (optional) | |||
| Bus Decoding(optional) | I2C, SPI, RS232, CAN | |||
| Trigger Mode | Auto, Normal and Single | |||
| Vertical Range | ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div) | |||
| Communication Interface | USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) | |||
| Frequency Counter | Available | |||
| Power Supply | 100V~240V AC, 50/60Hz, CAT II | |||
| Fuse | 2A, T class, 250V | |||
| Battery (optional) | 3.7V, 13200mA | |||
| Dimension (W*H*D) | 340mm*177mm*90mm | |||
Option Module
Arb Waveform Generator (optional) Specifications(only apply to XDS3064E, XDS3104E)
| Max Frequency Output | 25MHz |
| Sample Rate | 125MS/s |
| Channel | Dual |
| Vertical Resolution | 14 bits |
| Amplitude Range | 2mVpp~6Vpp |
| Waveform Length | 8K |
| Standard Waveform | Sine, Square, Pulse, Ramp |
| Arbitrary Waveform | Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, Noise, and others, total 46 built-in waveforms, and user-defined arbitrary waveform |
Multimeter Specifications (optional)
| Full Scale Reading | 3¾ digits (max 4000 count) |
| Diode | 0V -1.5V |
| Continuity Test | <50 (±30) beeping |
| Input Impedance | 10MΩ |
| Capacitance | 51.2nF - 100uF: ±(3% ± 3 digits) |
| Voltage | VDC:400mV,4V,400V:±(1±1 digit);max input:DC 1000V |
| VAC:4V,40V,400V:±(1±3 digits);max input:AC 750V(virtual value) | |
| Current | DC:40mA,400mA:±(1.5%±1 digit); 10A:±(3%±digits) |
| AC:40mA:±(1.5%±3 digits),400mA:±(2%±1 digit),10A:±(3%±3 digits) | |
| Impedance | 400Ω: ±(1%±3 digits),4KΩ~40MΩ:±(1%±1 digit) |
| Frequency | 40Hz~400Hz |
Optional Module / Function
| VGA | VGA+AV port |
| WIF | Wifi |
| AWG | arb waveform generator |
| DMM | digital multimeter |
| MTS | Touch screen(capacitor-type) |
Special Function

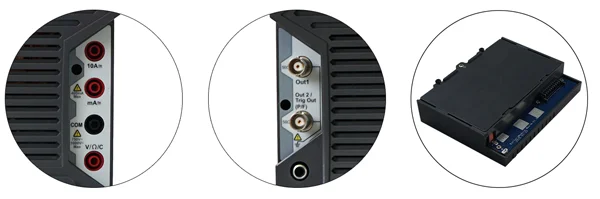

Multi-function Mobile Tester

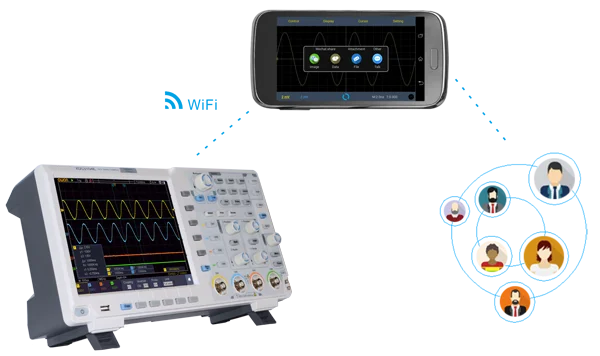

WiFi Function(Optional)

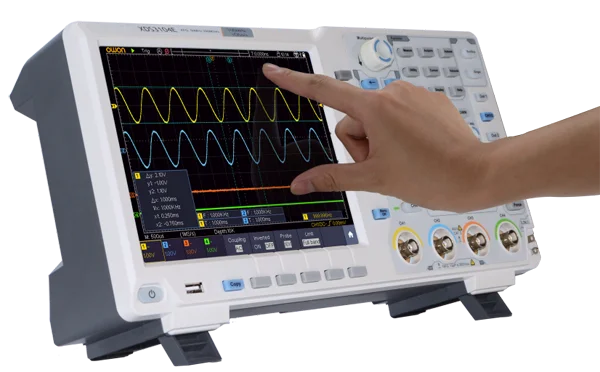

Multi-touch Screen(Optional)
