Hot sale SMD 1812 4532 230V 3KA telecom network gas discharge tube
- Category: Gas Discharge Tubes >>>
- Supplier: Shenzhen Shaoxin Electronics Co. Ltd.
Share on (60718193042):
Product Overview
Description
Product Description
PRODUCT SPECIFICATION
SHAOXIN ELECTRONIC
| Type | Surface mount |
| Material | Ceramic |
| Size | 4.5*3.2*2.7mm |
| DC Spark-over Voltage | 70V-600v |
| Tolerance | 20% |
| Impulse Discharge Current | 3KA |
Products Display
GDT INTRODUCTION
Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes. The ceramic envelope and with nickel connectors allow for high loads and Surging offers products that function at 20KA, 40KA, 50KA, 60KA,100KA&150KA. The breakdown voltages of the devices have a wide range (up to 20% tolerance). Major applications are high frequency telecommunication lines,stations, security systems,HID and high quality Surge Protection Devices (SPD).

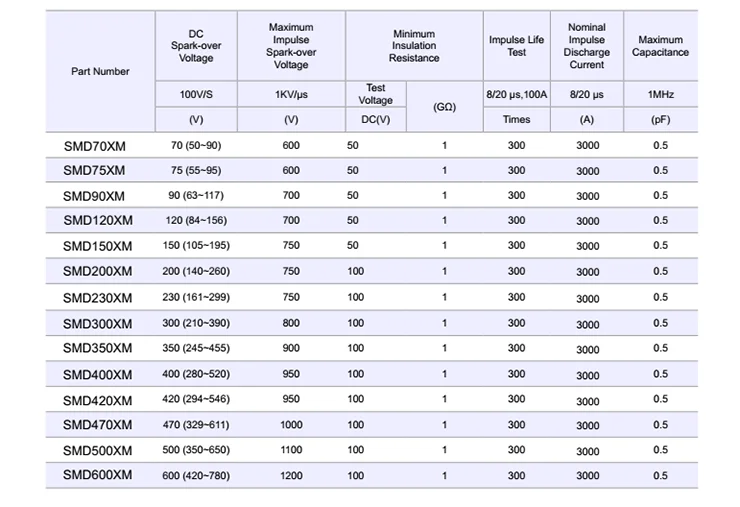

ELECTRIACL CHARACTERISTICS

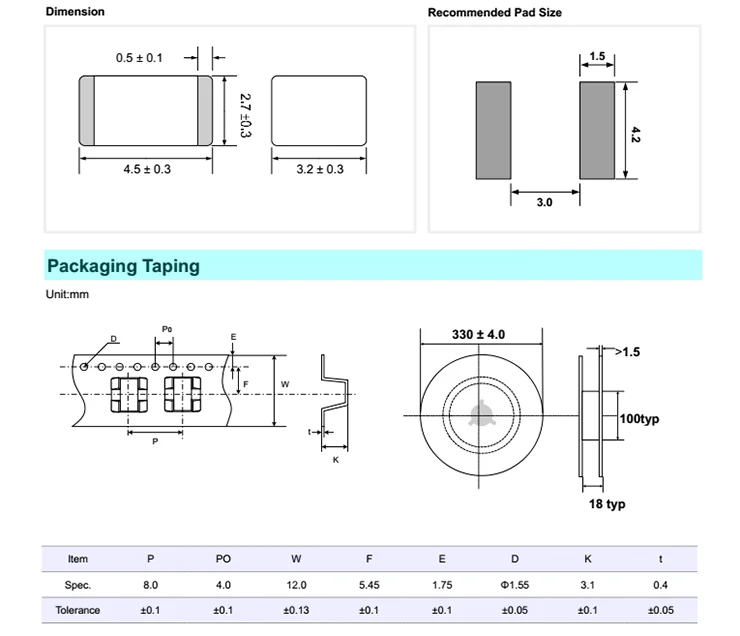

DIMENSION
Related Products
PRODUCT SPECIFICATION
SHAOXIN ELECTRONIC
Ceramic Gas Discharge Tube Metal Oxide Varistor Glass Gas Discharge Tube
TVS Diodes NTC Thermistor Fuse
Company Information
Our Certificate
Packaging & Shipping
FAQ
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, for container order, we have OEM packing service, you need to inform us your logo or company information in details. For bulk cargo, we will use neutral packing.
Q: What adventages do you have?
A: • Fast delivery and good service.
• Stable quality with competitive price.
• Strict management system.
