PLASTAR 1500mm Plastic Abc 3-Layer Film Blowing Machine
US $110000-$120000

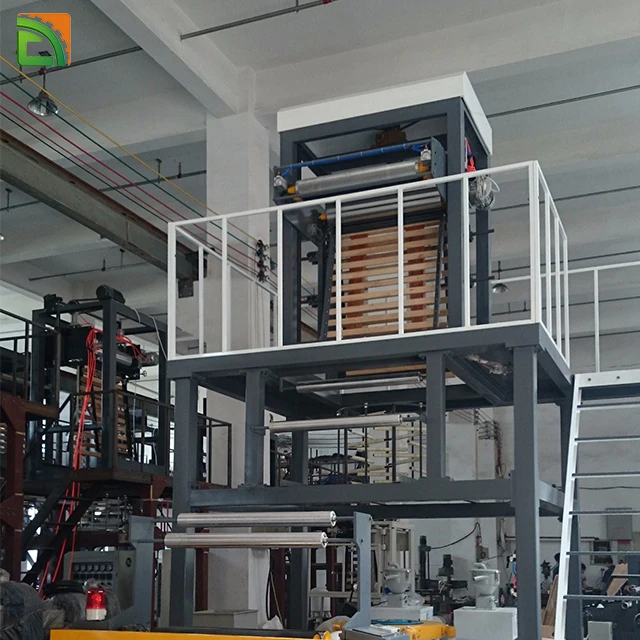

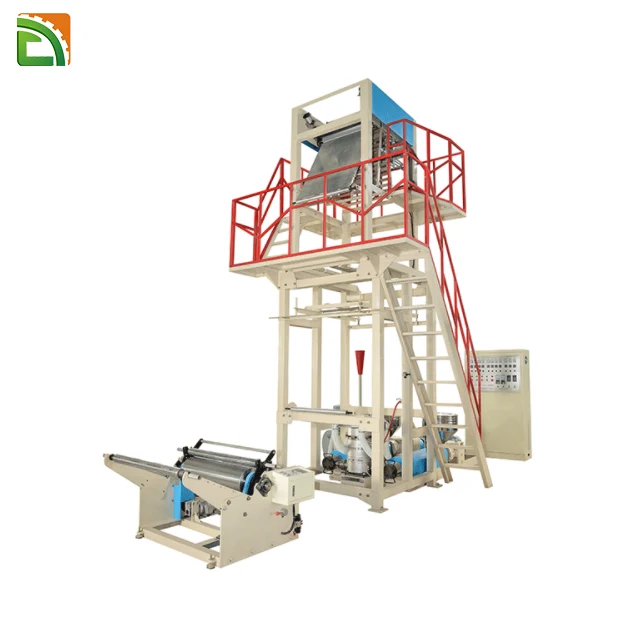

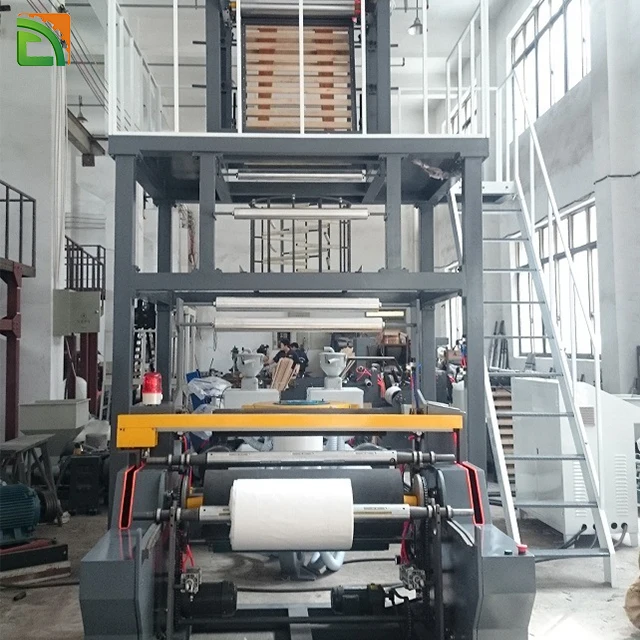

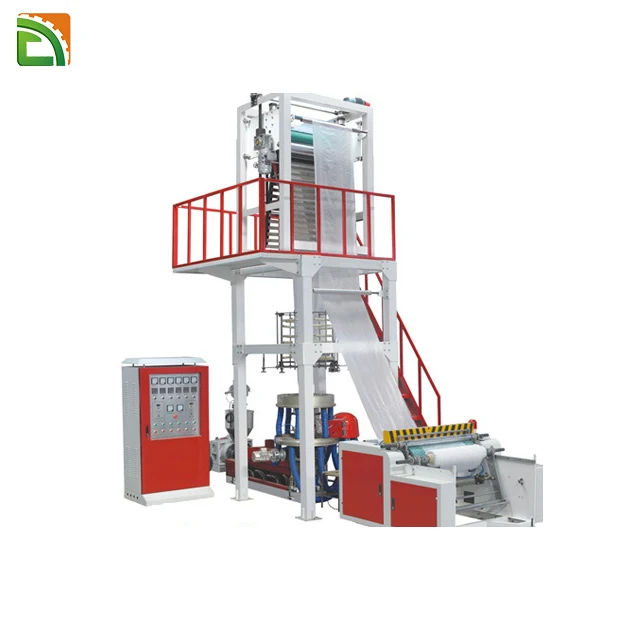

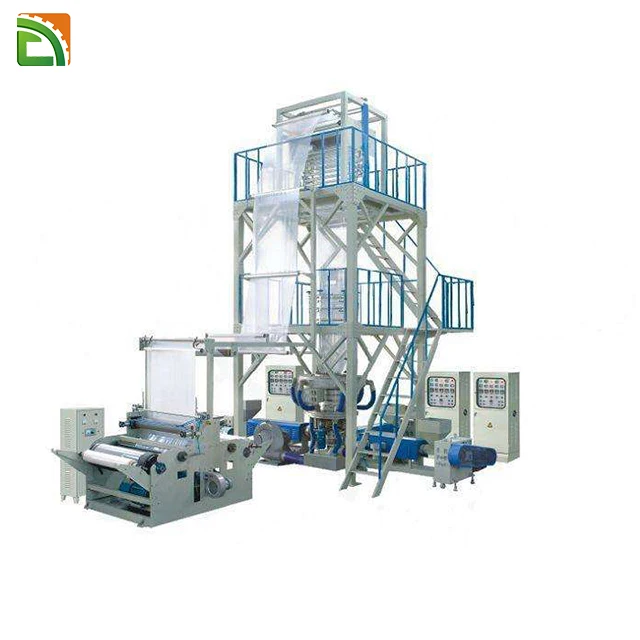

3 Layer Mini Stretch HDPE LDPE PE Film Extruder Agriculture Polyethylene ABA Plastic Film Blowing Machine
- Category: Blown Film Production Line >>>
- Supplier: Jiangyin Brenu Industry Technology Co. Ltd.
Share on (60720784152):
Product Overview
Description
Model | BRNGC-1200 |
TECHNICAL PARAMETER ABA Plastic Film Blowing Machine | |
Film width | Max 1200mmABA Plastic Film Blowing Machine |
Single-face Thickness | 0.005-0.3mmABA Plastic Film Blowing Machine |
Output | 50kg/hABA Plastic Film Blowing Machine |
Total Power | 50kwABA Plastic Film Blowing Machine |
Weight | 5000kgABA Plastic Film Blowing Machine |
Dimension(L×W×H)mm | 6800x2800x5600mmABA Plastic Film Blowing Machine |

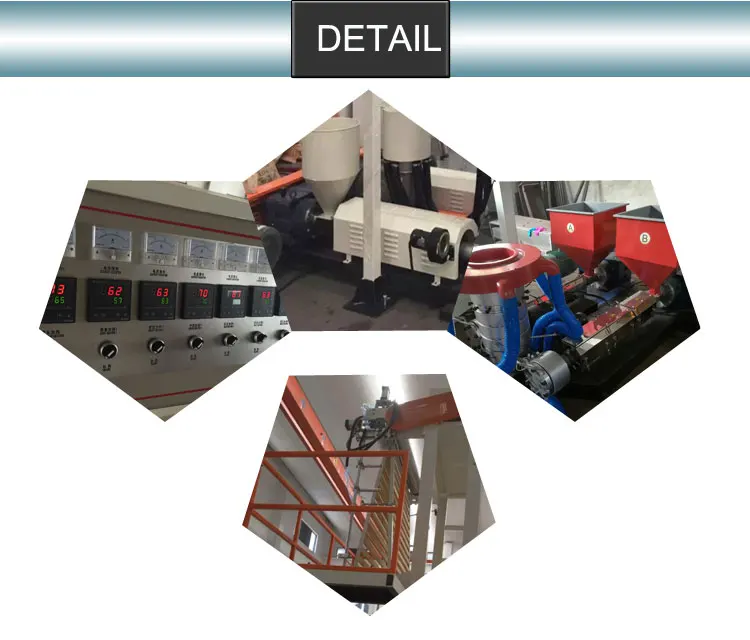

EXTRUDER | |
Screw diameter | D60mm for CACO3/recycle material D60mm for HDPE or LDPE |
L/D | 30:1ABA Plastic Film Blowing Machine |
heater | Ceramic or stainless steelABA Plastic Film Blowing Machine |
Heating control | 9 areaABA Plastic Film Blowing Machine |
Temp control | Automatic Digital meterABA Plastic Film Blowing Machine |
Cooling fan | 550wX2setsABA Plastic Film Blowing Machine |
Filter | IncludingABA Plastic Film Blowing Machine |
Die | fixed die or rotary die for choose |
Air ring | Special typeABA Plastic Film Blowing Machine |
Blower | 7.5kwABA Plastic Film Blowing Machine |
Drive motor and inverter | 30kw x2 setsABA Plastic Film Blowing Machine |
TAKE UP UNITABA Plastic Film Blowing Machine | |
Bubble inside steady stick | including |
Bubble outside steady unit | Including |
Take up roller size | 1250mm |
Embossing roller | Air cylinder control |
Gusset | Stainless steel |
Take up motor and inverter | 7.5kw |
Take up speed | 10-65m/min |
REWIND UNITABA Plastic Film Blowing Machine | |
Take up second time | 10N.m |
Rewind | One rewind by friction |
Rewind roller | Pneumatic type |
OTHERSABA Plastic Film Blowing Machine | |
Steel pipe | Square steel 12x12mm |
Steel plate | Thickness 12x12mm |
Q:Possible make them up to the requested power?
A:0f course.ABA Plastic Film Blowing Machine
Q:Do you have mini order?
A:0ne set.ABA Plastic Film Blowing Machine
Q:Do you supply the guarantee?
A:0ne year since goods arrive yourfactory ,any parts free supply once damage except personal reason
Q:which kind of transport for them?
A:By sea or othersABA Plastic Film Blowing MachineABA Plastic Film Blowing Machine
Q:which kind of payment can do?
A: Paypal ,Ali pay, credit, westem union,TT and so on
Q:which kind of trade item will do?
A: FOB, CNF,CIF,FCA----ABA Plastic Film Blowing Machine
