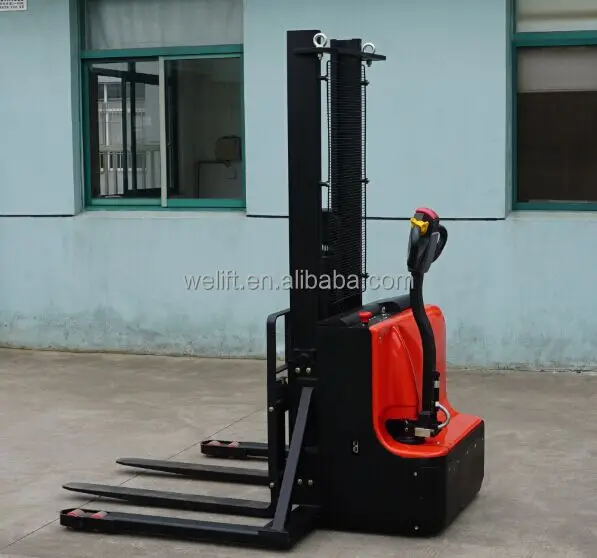

straddle type forklift electric stacker 1500kg 1.5ton hot sale
straddle type forklift electric stacker 1500kg 1.5ton hot sale

straddle type forklift electric stacker 1500kg 1.5ton hot sale

Share on (60720885572):


Price:RUB 141,704.27 - RUB 321,706.98

Quantity:


Product Overview

Description

Product Description

electric stacker forklift

1. Capacity is 1.5t/2.0t, lift height 1.6m-5.0m, free lifting is optional.
2. Bais walkie type, operator has very good overview.
3. Simple structure, easy to maintain and repair.
4. Lead-acid battery, long working time and long using life.
5. Long operation handle allows more light steering.
6. CURTIS controller, MAHLE hydraulic motor.
7. Reverse button/emergency button/battery indicator/automatic charger.
8. Bias type, middle driving type, straddle leg are optional per your request.
9. Automatic battery charger,battery voltage indicator.
10. Strong structure with strengthen forks, no bending and long endurance.



Model ES-15ES
Operate type Electric
Drive style Walkie
Capacity                          Qkg1500
Load center                     Cmm600
Overall length                  L1mm1895
Overall width                   Wmm1510
Mast. lowered height       H1mm21251800208022202335256021002265
Fork size                        L×b×mmm1150×160×56
Outside fork width           Dmm220-790
Min. ground clearance      xmm29
Wheel base                     L0mm12501415
Wheel type PU
Size of driving wheelmmφ250×80
Size of loading wheemmφ78×70
Size of balance wheelmmφ125×75
Min. turning radius           Wamm15501600
Min. aisle widthmm≥2250≥2500
Standing lift height           Hmm16002500300033003500400045005000
Mast extend height          H2mm21102980348037803980448051505650
Min. fork height                H3mm90
Driving speed (laden/unladen)km/h3.5/4.04.5/5.0
Lift speed (laden/unladen)mm/s90/130
Lowering speed (laden/unladen)mm/s95/120
Brake Electromagnetic
Driving motorkw1.21.2
Lift motorkw2.23
Battery capacity/voltageAh/V95/24, 165/24165/24
Battery weightkg51160
Service weight (without battery)kg560640665675690720890915

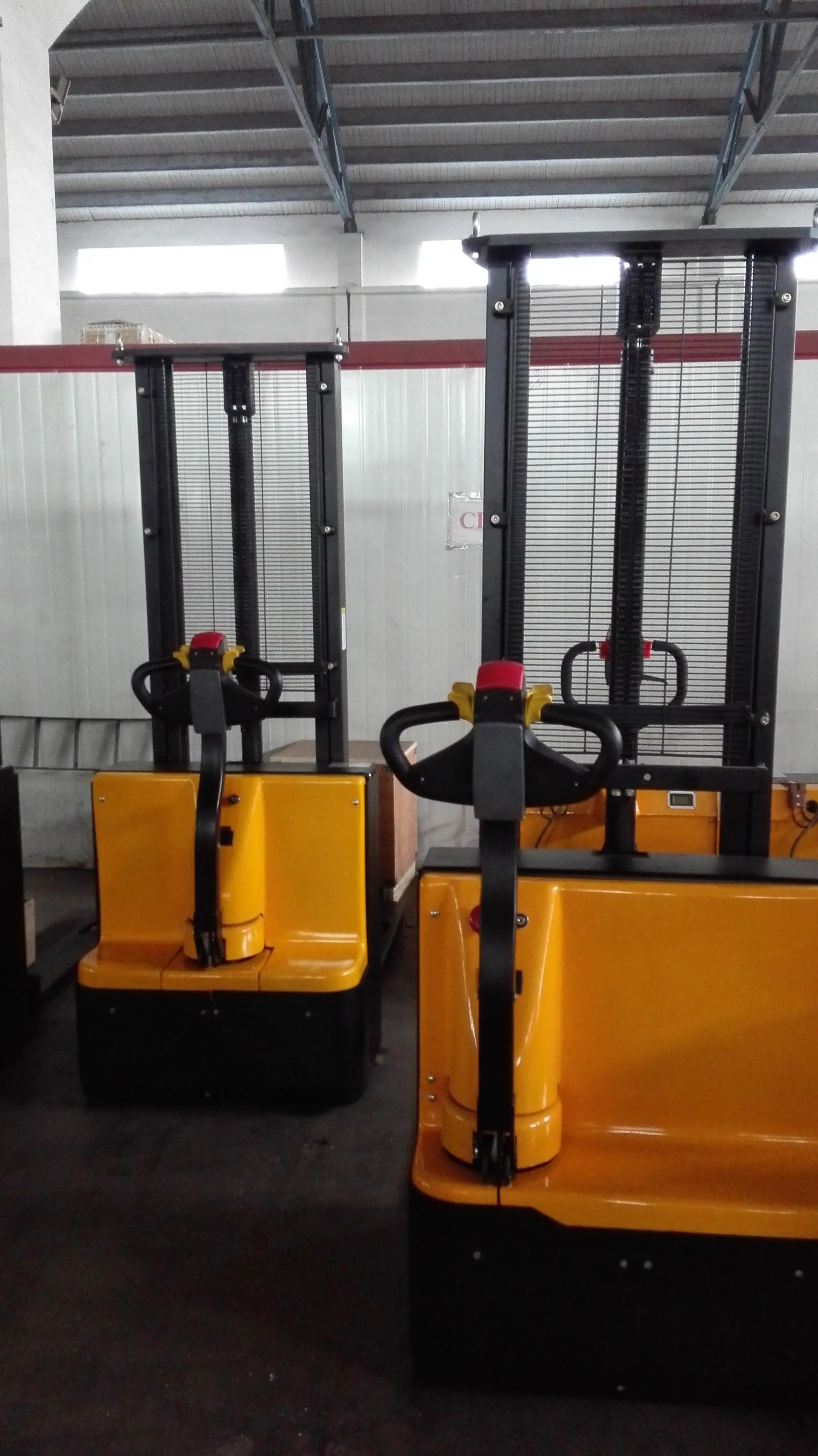

Bias & Middle driving.jpg
