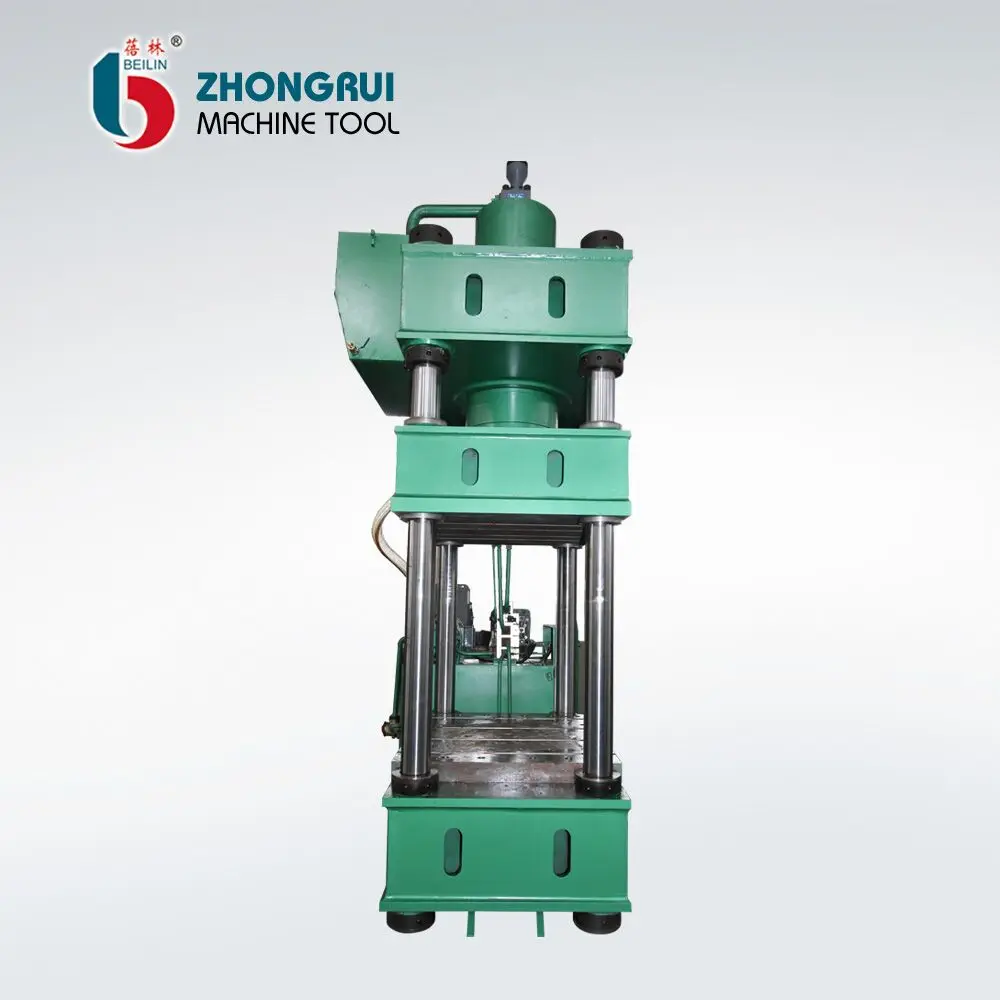

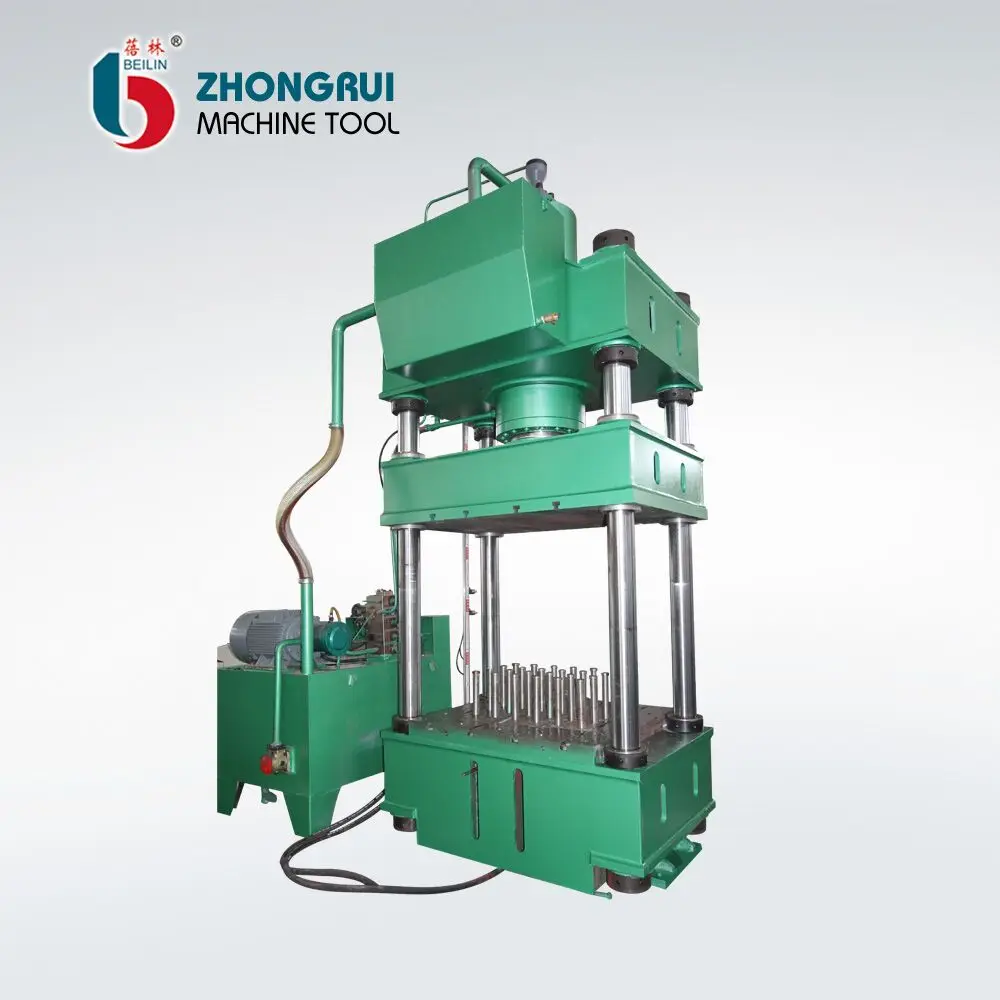

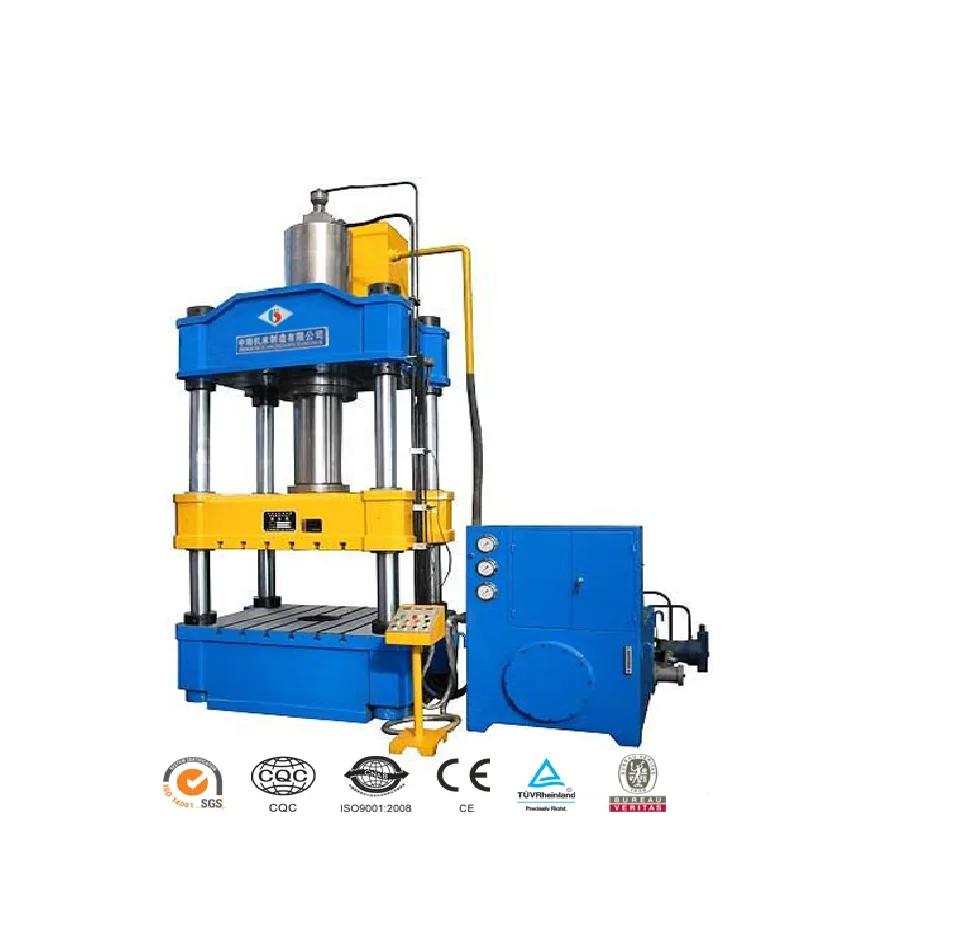

YTD32 500Ton Four Columns Hydraulic Press Machine


Product Description

Material structure feature:

1. Hydraulic press is applicable for metal sheet stretching and pulling, stretching, punching, bending. It is also used for pulling, stretching and pressing large-scale products. Presses offer fast, easy, and safe setup and operation as well as years of trouble-free service.
2.High rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine.
3.Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots.
4.Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life.

Ram adjustment and structure:

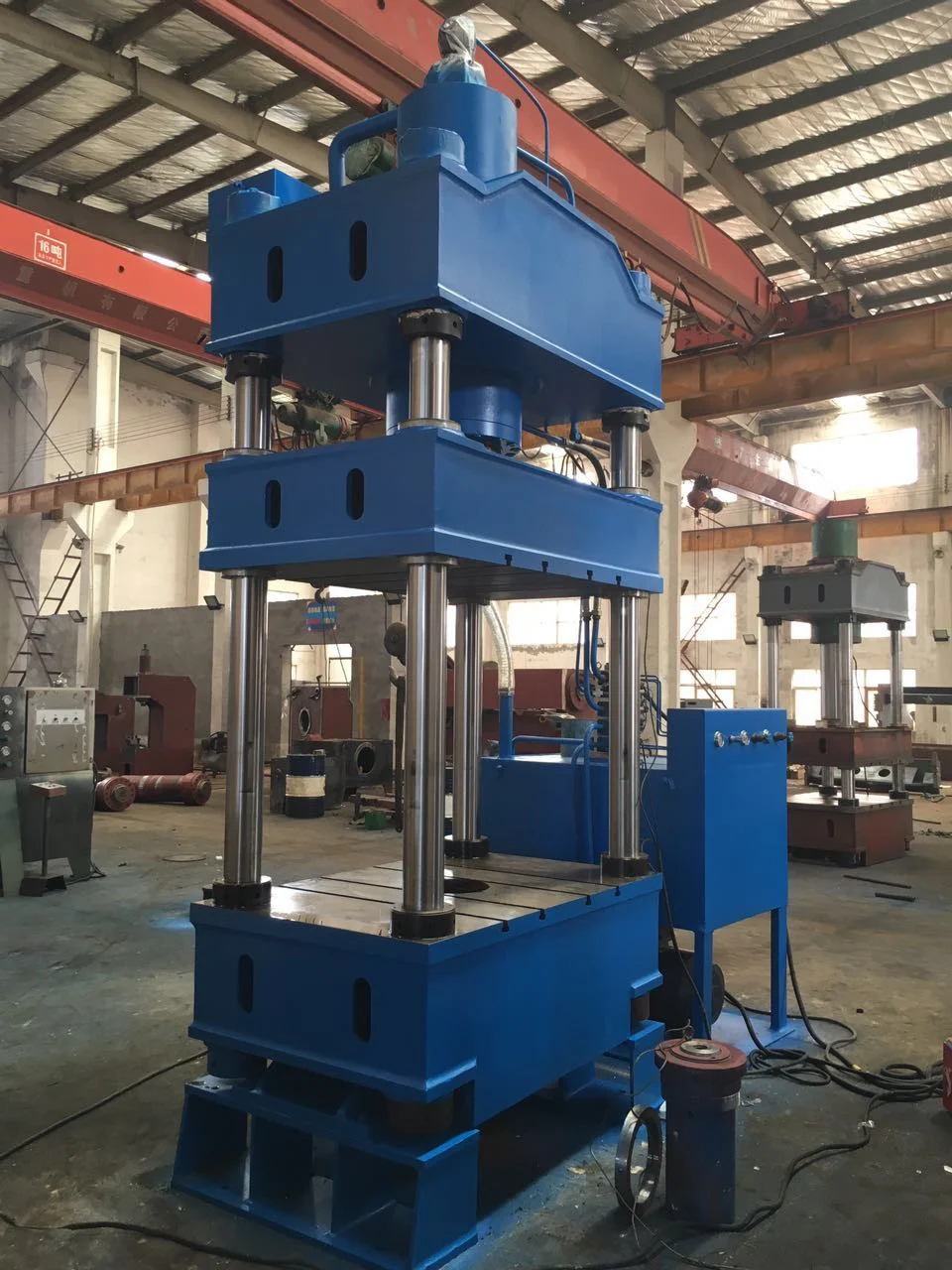

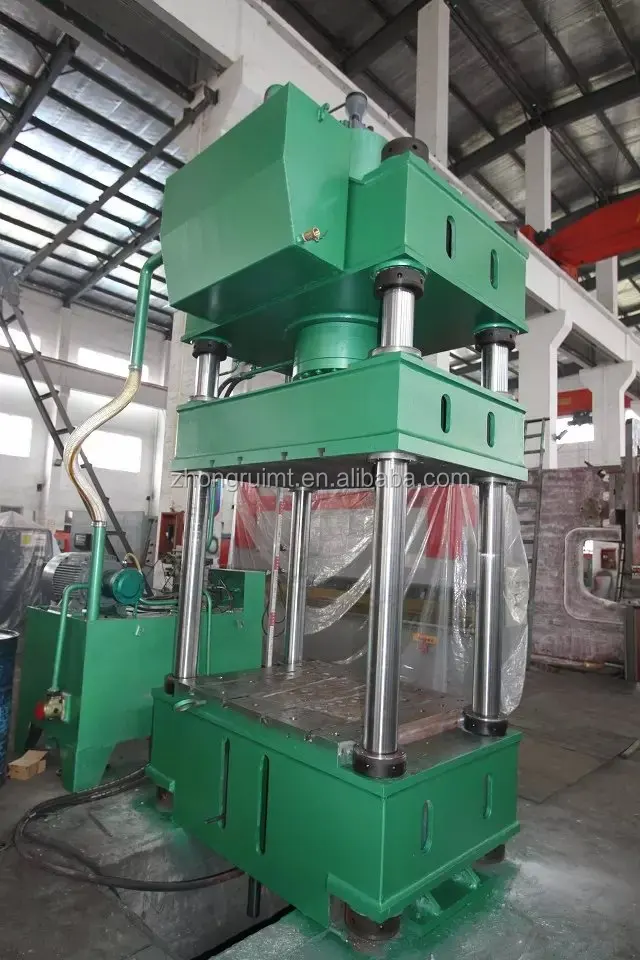

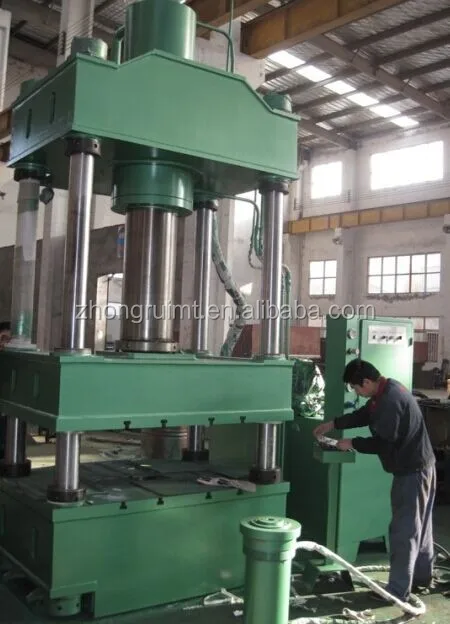

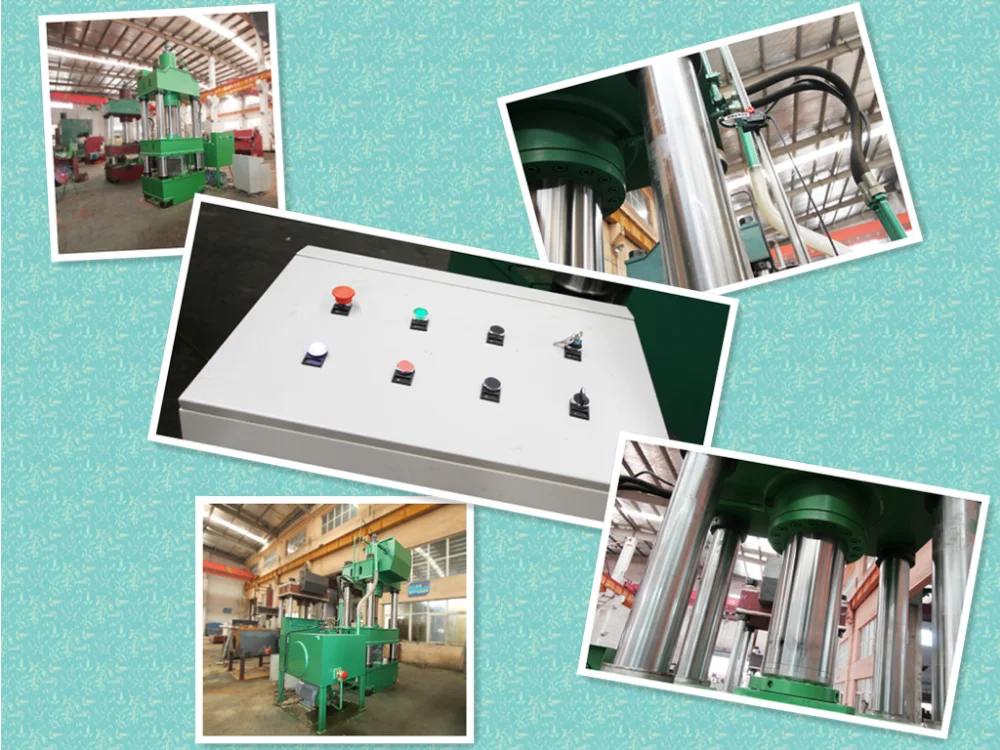

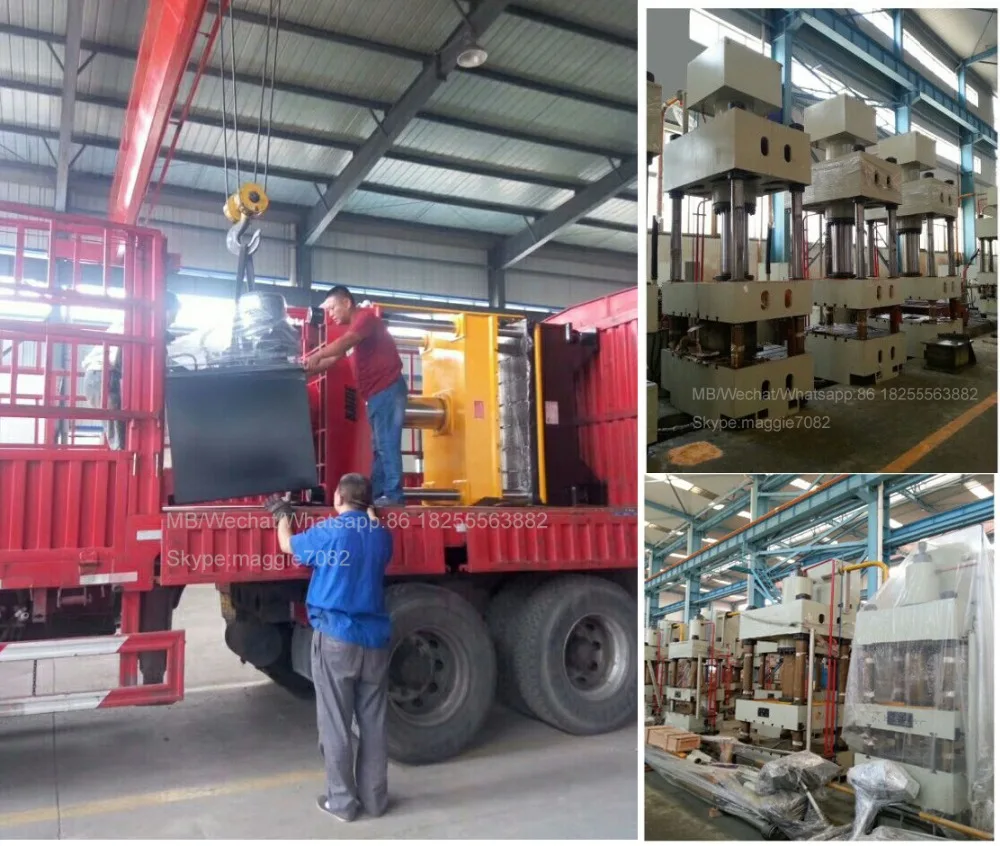

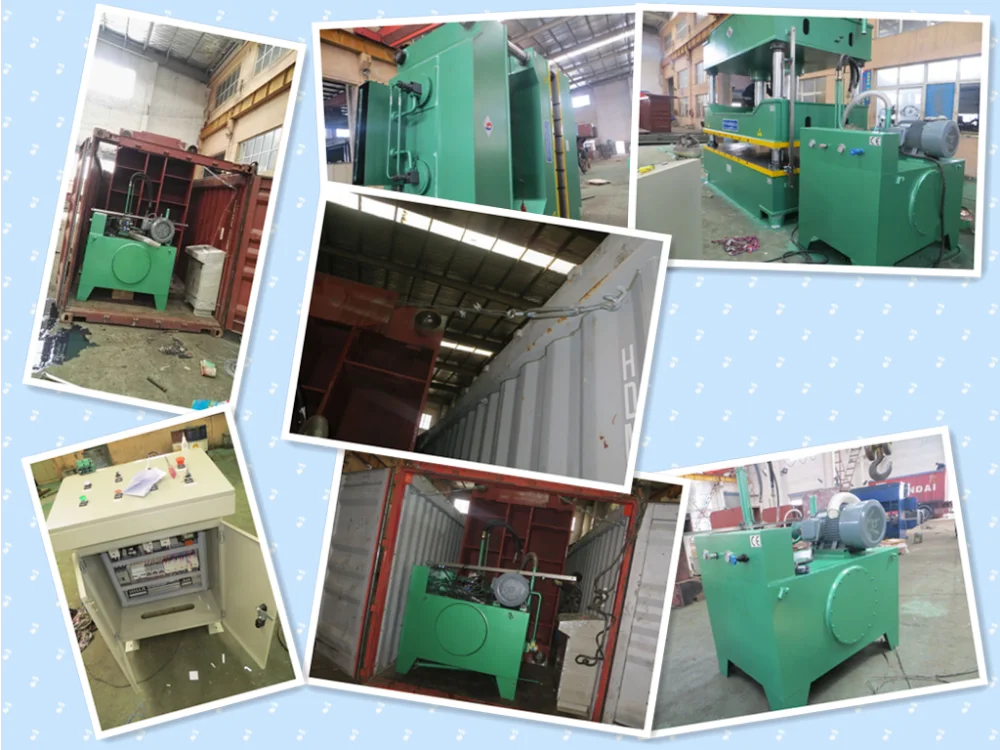

product show

<im>Technical Parameters:

Description pressure Max. pressure of liquid stroke slide daylight workbench motor
YTD32-40 400KN 25MPA 450mm 750mm 500X460 5.5KW
YTD32-63 630KN 25MPA 500mm 750mm 580X500 7.5KW
YTD32-100 1000KN 25MPA 600mm 880mm 720X580 7.5KW
YTD32-160 1600KN 25MPA 700mm 1000mm 1000X800 11KW
YTD32-200 2000KN 25MPA 700mm 1100mm 1000X900 15KW
YTD32-315 3150KN 25MPA 800mm 1250mm 1260X1120 22KW
YTD32-400 4000KN 25MPA 800mm 1250mm 1240X1200 22KW
YTD32-500 5000KN 25MPA 900mm 1500mm 1400X1400 2X22
YTD32-630 6300KN 25MPA 900mm 1500mm 1500X1500 2X22
YTD32-800 8000KN 25MPA 900mm 1500mm 1600X1600 2X30
YTD32-1000 10000KN 25MPA 900mm 1500mm 1600X1600 2X30
YTD32-1250 12500KN 25MPA 900mm 1500mm 1700X1600 2X37
YTD32-1600 16000KN 25MPA 900mm 1500mm 1600X1600 2X37
