SMT Stencil Printer Neoden PM3040 manual stencil printer for PCB printer without frame
- Category: Electronic Products Machinery >>>
- Supplier: Hangzhou Neoden Technology Co. Ltd.
Share on (60722774325):
Product Overview
Description
Item Description

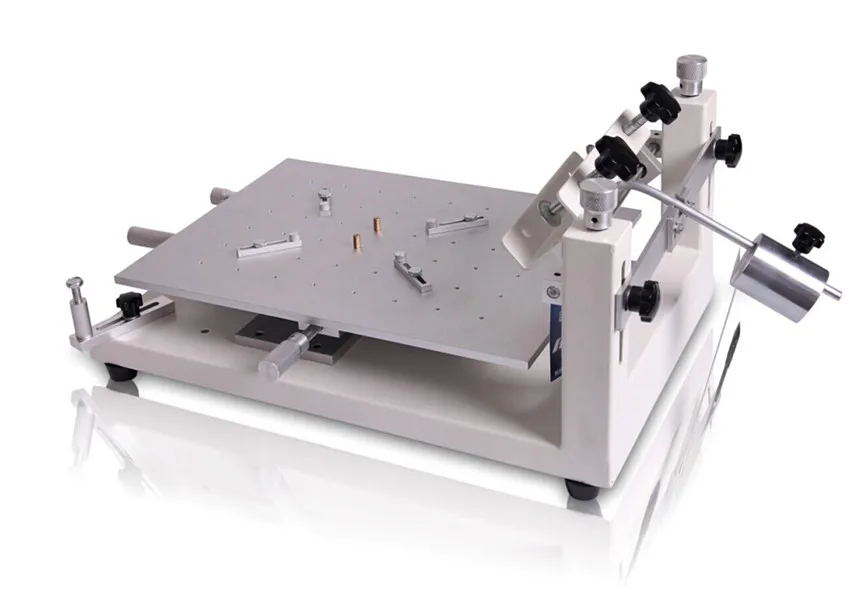

NeoDen PM3040 Introduction
PM3040 is used to covering the solder paste to PCB surface by making one Stencil frame according to the different PCBs,high flexibility ensure high printing precision,support PCBs which have components on both sides.
PM3040 is used to covering the solder paste to PCB surface by making one Stencil frame according to the different PCBs,high flexibility ensure high printing precision,support PCBs which have components on both sides.

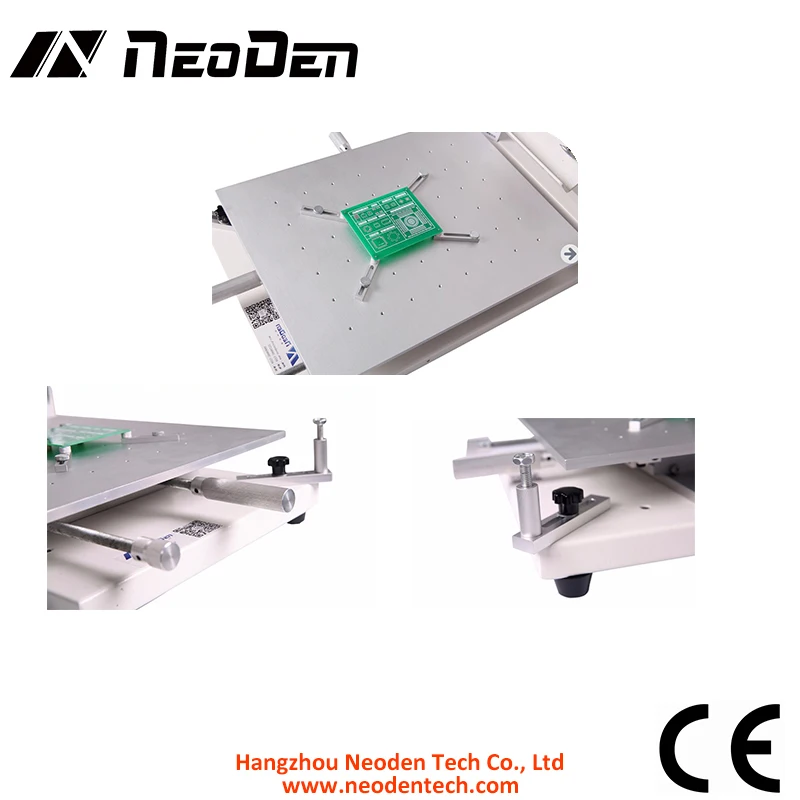

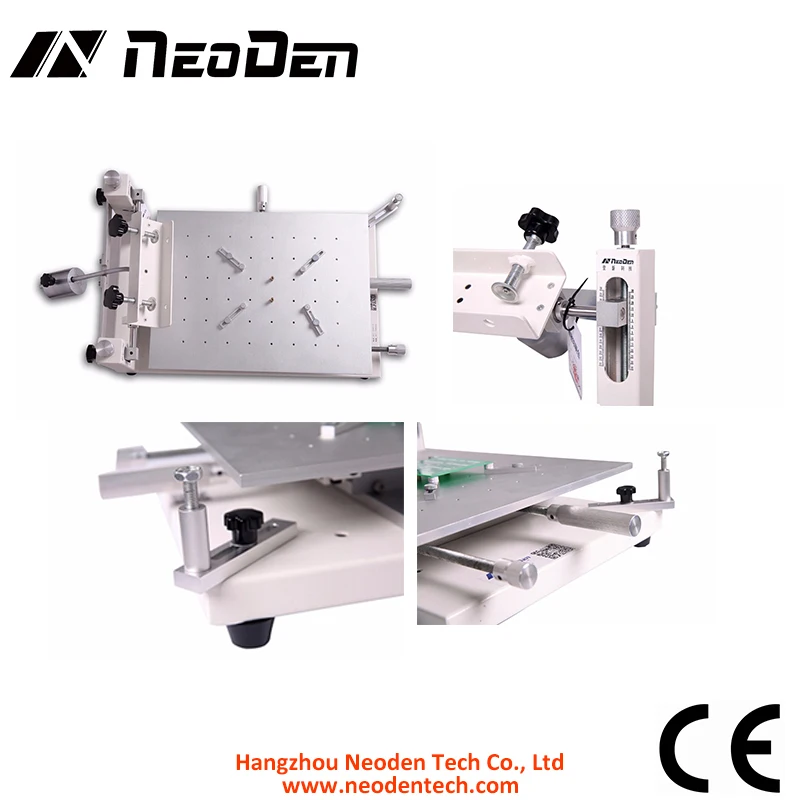

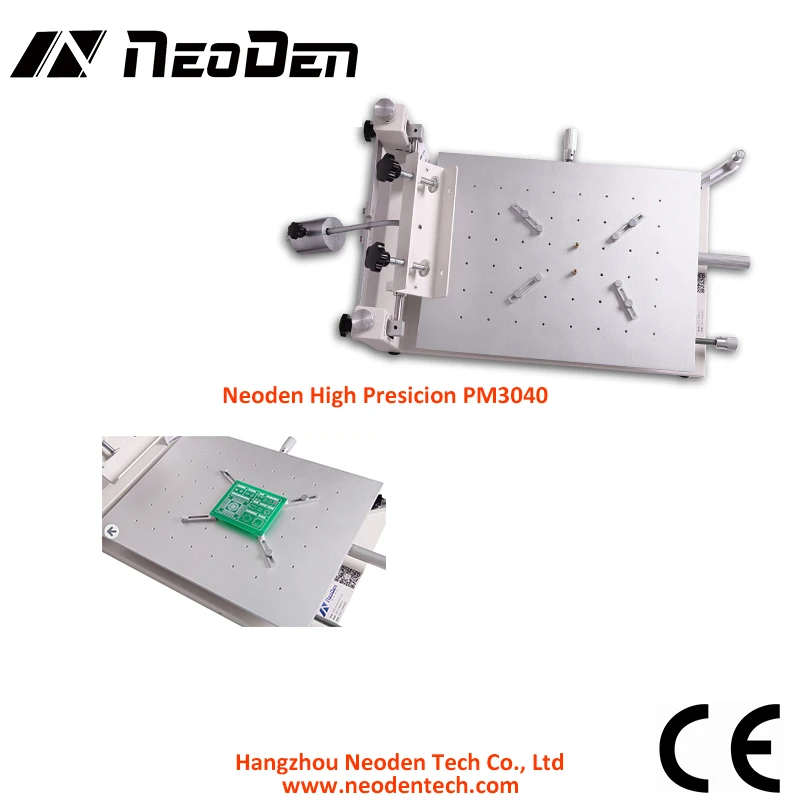

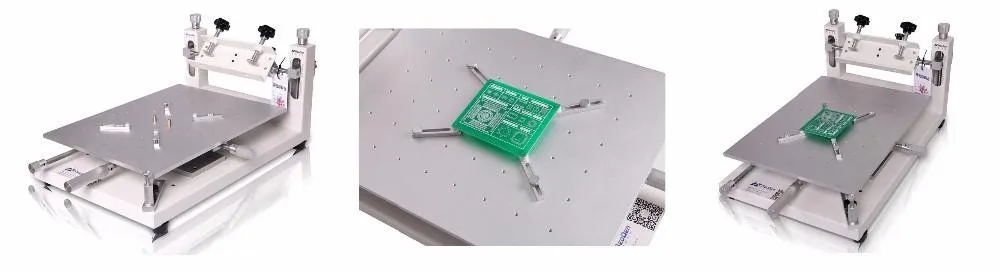

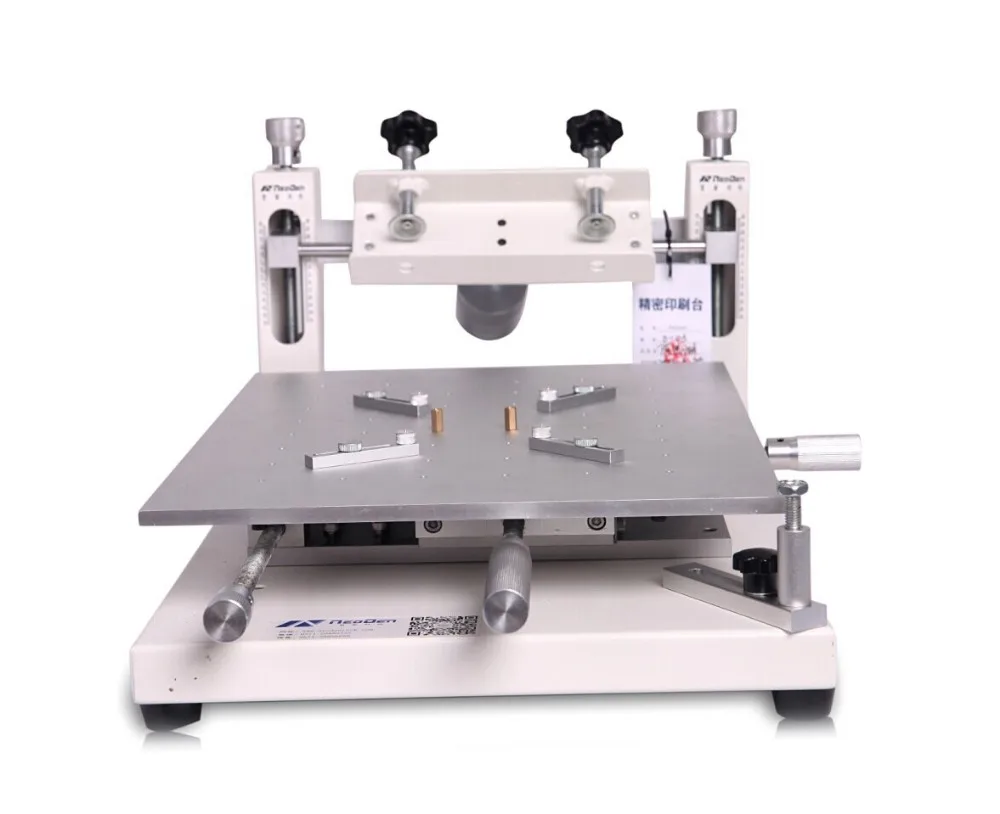

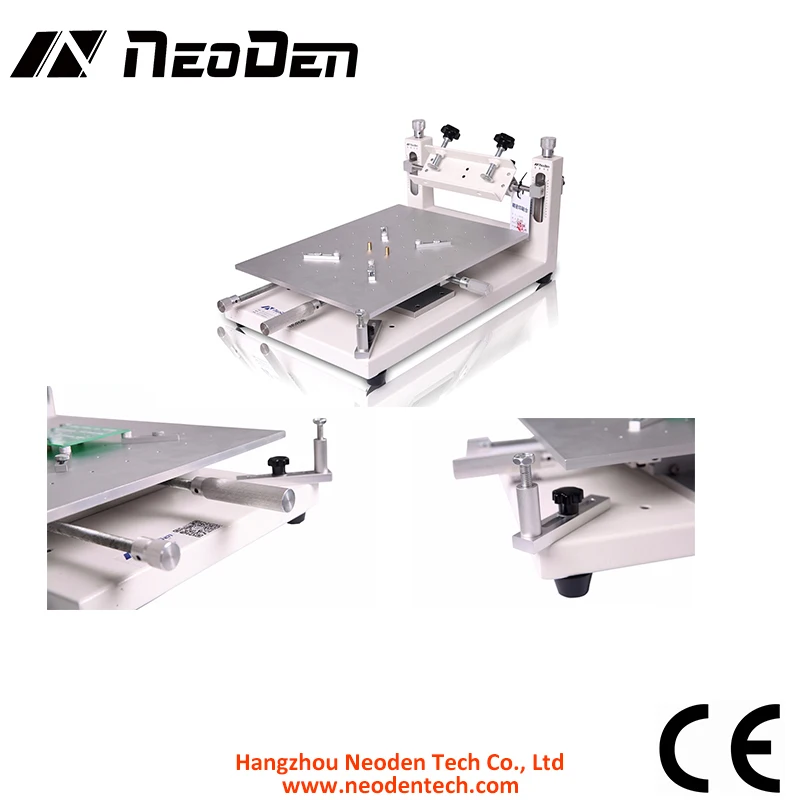

Detailed Pictures
Main Features
a. The same platform as printer can be selectable,easy to locate both single and double sides of PCB board,high flexibility ensure high printing precision;
b. The steel stencil can be rotated 30 degrees at most,and the precision can be kept all the way when repeat works,can be comparable with automatic machine
c. Using the way of steel stencil movement to adjust the best position,combining with the fine adjustment of X-axis,Y-axis to correct,convenient and efficient;
d. The frame made of thickened sheetmetal,finest material,good quality with outstanding durability;the brackets using the bolt bar to adjust the height,convenient for controlling the thickness of PCB;
Accessories
1)Foot Pad*4pcs;
2)Balance Adjustment Device*1;
3)X-axis Adjustment Handle*1;
4)Y-axis Adjustment Handle*1;
5)2mm Allen Wrench*1pcs;
6)4mm Allen Wrench*1pcs;
7)Support Pin*10pcs;
8)PCB Fixation Unit*4;
9)PCB Positioning Block: Ø1.0: 4pcs; Ø1.5: 4pcs; Ø3.0: 4pcs;
10) M3*8 Sunk Screw*2pcs;
11)M5*12 Bolt*4pcs;
12)M4 Manual Screw.
Placement effect
